DIAGNOSIS

TSB Revision

CONTROLLER AREA NETWORK (CAN)

54C-239

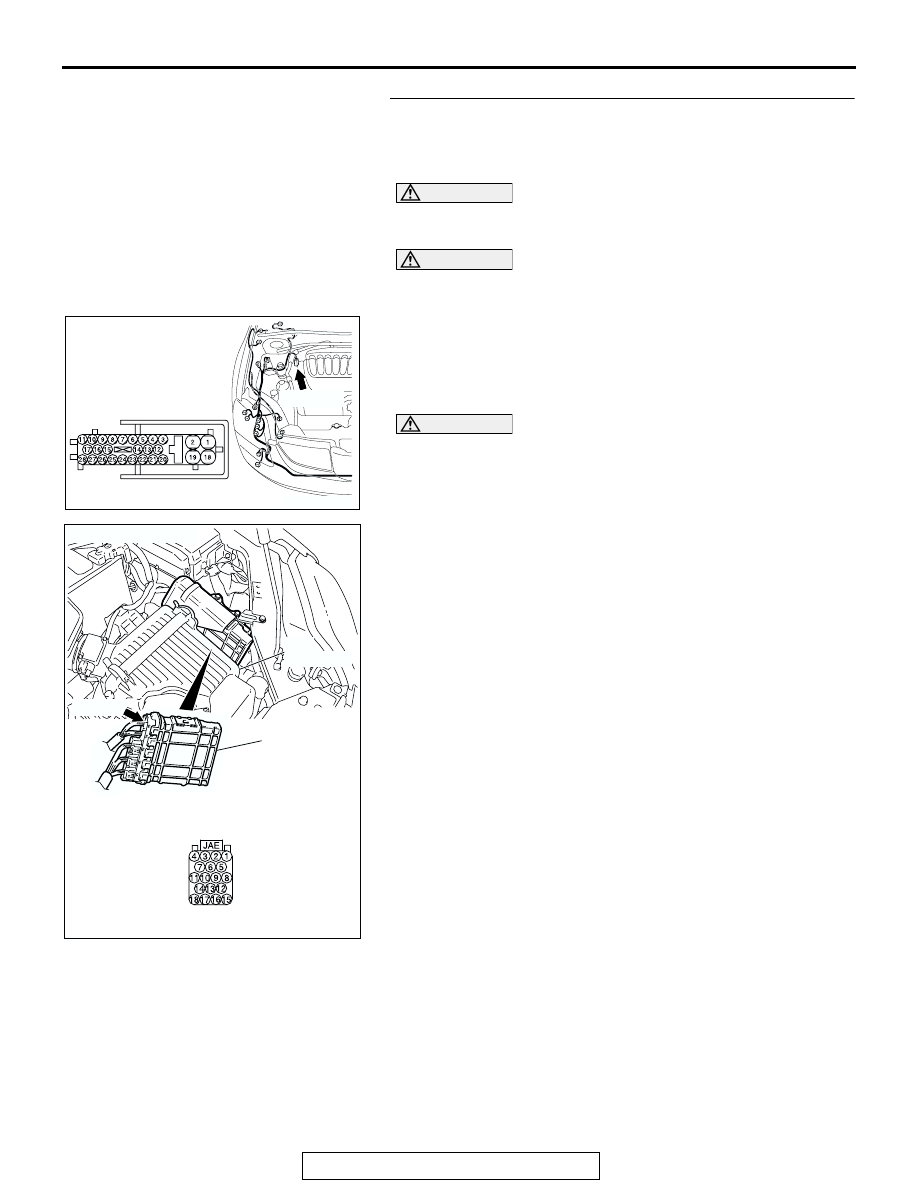

STEP 24. Check the CAN_H line (communication line only)
between intermediate connector C-29 and ABS-ECU
connector for short to ground. Measure the resistance at

intermediate connector C-29.

CAUTION

A digital multimeter should be used. For details refer to

P.54C-4

.

CAUTION

The test wiring harness should be used. For details refer to

P.54C-4

.

(1) Disconnect intermediate connector C-29 and ABS-ECU

connector A-02, and measure the resistance at the male
side of intermediate connector C-29 (at front wiring harness
side).

(2) Turn the ignition switch to the "LOCK" (OFF) position.

CAUTION

Disconnect the negative battery terminal. For details refer
to

P.54C-4

.

(3) Disconnect the negative battery terminal.

(4) Measure the resistance between intermediate connector

terminal 11 and body ground.

OK: 1 k

Ω or more

CAUTION

Strictly observe the specified wiring harness repair proce-
dure. For details refer to

P.54C-5

.

Q: Does the resistance measure 1 k

Ω or more?

YES : If the resistance measures 1 k

Ω or more, go to Step

25  .

NO :  If the resistance measures less than 1 k

Ω, repair the

wiring harness between intermediate connector C-29
and ABS-ECU connector.

AC305206

CONNECTOR: A-02

AG

A-02 (GR)

HARNESS SIDE

AC305231AI

CONNECTOR: C-29

AC209364

2 3

27

32

28

33

16

15

4 5

19

18

29

17

34

7 8

35

22

21

9 10

30

36

31

37

25

24

23

6

20

1

14

26

11

13

12

38

AC209364

MALE SIDE: C-29

TEST
HARNESS

HV

DIAGNOSIS

TSB Revision

CONTROLLER AREA NETWORK (CAN)

54C-240

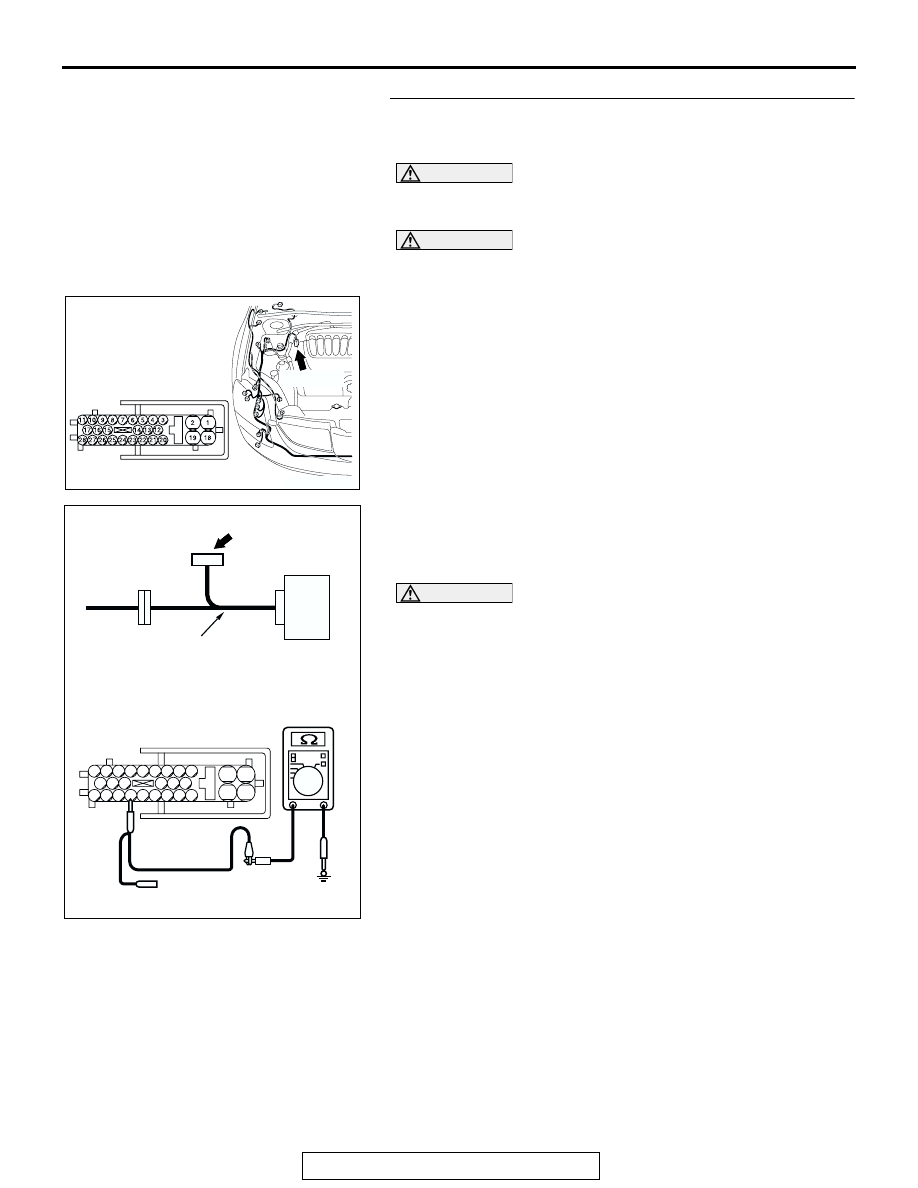

STEP 25. Check the CAN_H line (communication line only)
between the powertrain control module connector and
ABS-ECU connector for short to ground. Measure the

resistance at powertrain control module connector B-19.

CAUTION

A digital multimeter should be used. For details refer to

P.54C-4

.

CAUTION

The test wiring harness should be used. For details refer to

P.54C-4

.

(1) Disconnect powertrain control module connector B-19 and

ABS-ECU connector A-02, and measure the resistance at
the harness side of powertrain control module connector
B-19.

(2) Turn the ignition switch to the "LOCK" (OFF) position.

CAUTION

Disconnect the negative battery terminal. For details refer
to

P.54C-4

.

(3) Disconnect the negative battery terminal.

AC305206

CONNECTOR: A-02

AG

A-02 (GR)

HARNESS SIDE

AC306248AD

B-19 (B)

CONNECTOR: B-19

PCM

AIR
CLEANER

HARNESS SIDE

DIAGNOSIS

TSB Revision

CONTROLLER AREA NETWORK (CAN)

54C-241

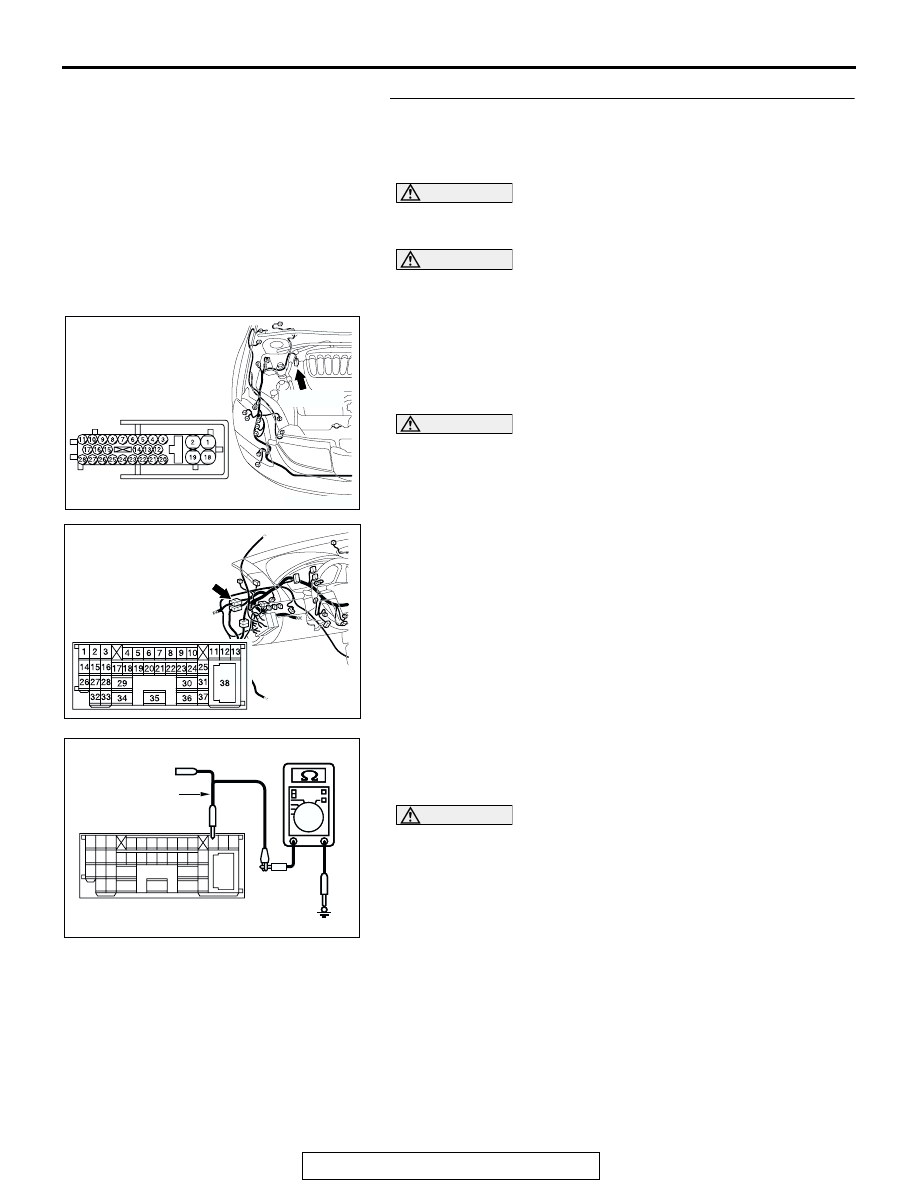

(4) Measure the resistance between powertrain control module

connector terminal 17 and body ground.

OK: 1 k

Ω or more

CAUTION

Strictly observe the specified wiring harness repair proce-
dure. For details refer to

P.54C-5

.

Q: Does the resistance measure 1 k

Ω or more?

YES : If the resistance measures 1 k

Ω or more, go to Step

26   .

NO :  If the resistance measures less than 1 k

Ω, repair the

wiring harness between powertrain control module
connector and ABS-ECU connector.

AC209364

HARNESS SIDE: B-19

TEST
HARNESS

AC209364IE

DIAGNOSIS

TSB Revision

CONTROLLER AREA NETWORK (CAN)

54C-242

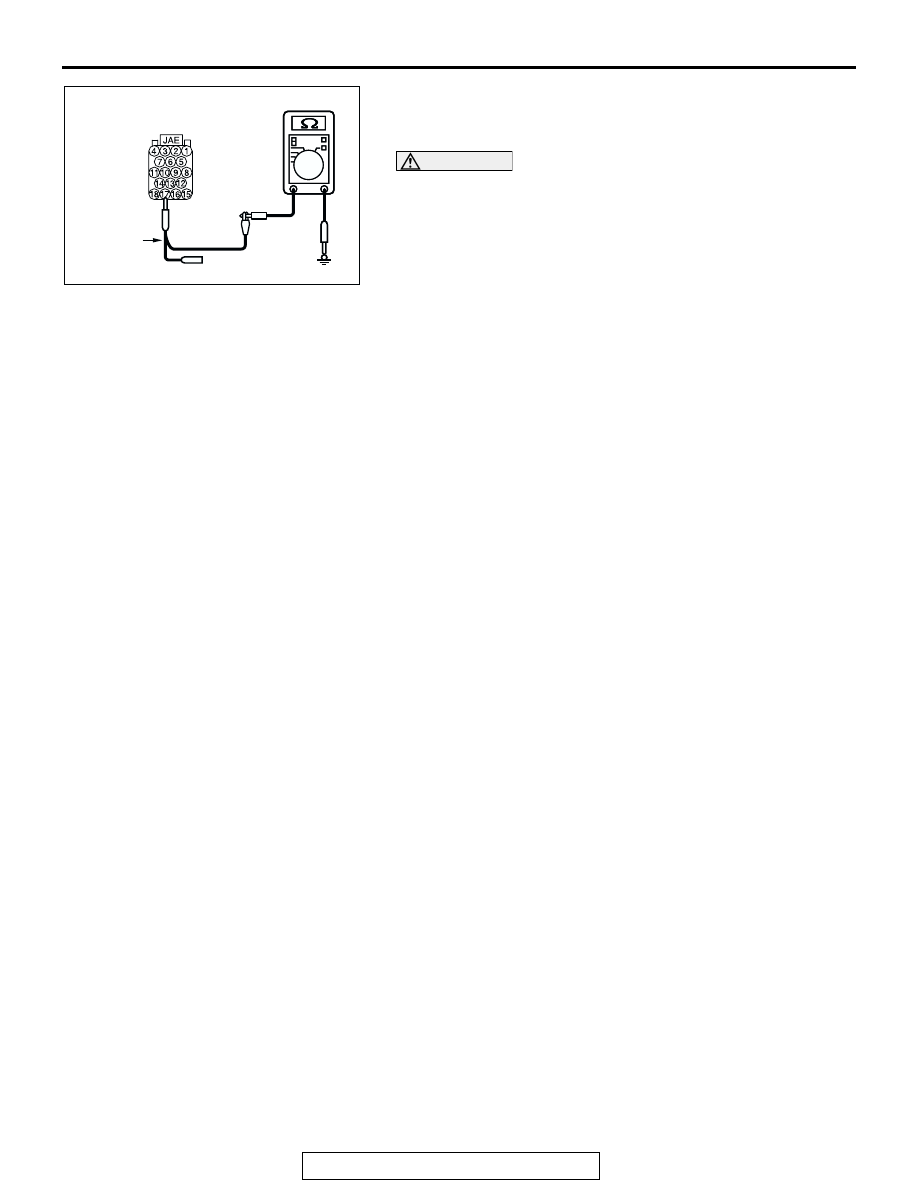

STEP 26. Check the CAN_H line inside the ABS-ECU for
short to ground. Measure the resistance at ABS-ECU

connector A-02.

CAUTION

A digital multimeter should be used. For details refer to

P.54C-4

.

CAUTION

The test wiring harness should be used. For details refer to

P.54C-4

.

(1) Disconnect ABS-ECU connector A-02.

(2) Connect special tool MB991970 (ABS check harness) to

the ABS-ECU and the wiring harness, and measure the
resistance at special tool MB991970 (ABS check harness).

(3) Turn the ignition switch to the "LOCK" (OFF) position.

CAUTION

Disconnect the negative battery terminal. For details refer
to

P.54C-4

.

(4) Disconnect the negative battery terminal.
(5) Measure the resistance between special tool MB991970

(ABS check harness) connector terminal 25 and body
ground.

OK: 1 k

Ω or more

Q: Does the resistance measure 1 k

Ω or more?

YES : If the resistance measures 1 k

Ω or more, diagnose

CAN bus lines thoroughly by referring to

P.54C-498

.

NO :  If the resistance measures less than 1 k

Ω, replace the

ABS-ECU.

AC305206

CONNECTOR: A-02

AG

A-02 (GR)

HARNESS SIDE

AC209767

SPECIAL TOOL
MB991970

ABS-
ECU

SPECIAL TOOL MB991970
CONNECTOR

AE

2

19

1

18

25

8

15

16

17

27

28

26

11

9

10

12

13

14

23

24

22 21

7

6

5

4

20

3
