SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-275

INSPECTION PROCEDURE G-2: Windshield Wiper and Washer: The windshield wipers do not work
when the windshield wiper switch is at "INT" or "MIST" position or the windshield washer switch is at
"ON" position. However, the wipers work at low speed when the windshield wiper switch is at "LO" or
"HI."

NOTE: This troubleshooting procedure requires use
of scan tool MB991958 and SWS monitor kit
MB991813. For details on how to use the SWS mon-
itor, refer to "How to use SWS monitor

P.54B-15

."

.

TECHNICAL DESCRIPTION (COMMENT)
This system may be at fail-safe mode as the SWS
communication line is defective.
If the system cannot receive any signal from the col-
umn switch (windshield wiper and washer switch)
due to a open circuit in the SWS communication line
or other reasons, the system will enter the fail-safe
mode when the ignition switch is at the "ACC" posi-
tion.

.

TROUBLESHOOTING HINTS

• The wiring harness or connectors may have

loose, corroded, or damaged terminals, or termi-
nals pushed back in the connector

• The column switch may be defective

• The front-ECU may be defective

DIAGNOSIS

Required Special Tools:

• MB991223: Harness Set

• MB991958: Scan Tool (MUT-III Sub Assembly)

• MB991824: Vehicle Communication Interface (V.C.I.)

• MB991827: MUT-III USB Cable

• MB991910: MUT-III Main Harness A

• MB991813: SWS Monitor Kit

• MB991806: SWS Monitor Cartridge

• MB991812: SWS Monitor Harness (For Column-ECU)

• MB991822: Probe Harness

WINDSHIELD
WIPER MOTOR

CIRCUIT
BREAKER

FRONT-ECU

· WINDSHIELD WIPER HI SPEED SWITCH
· WINDSHIELD WIPER INTERMIT SWITCH
· WINDSHIELD WIPER LO SPEED SWITCH
· WINDSHIELD WIPER MIST SWITCH

WIPER SPEED
SWITCHING
RELAY

INPUT SIGNAL

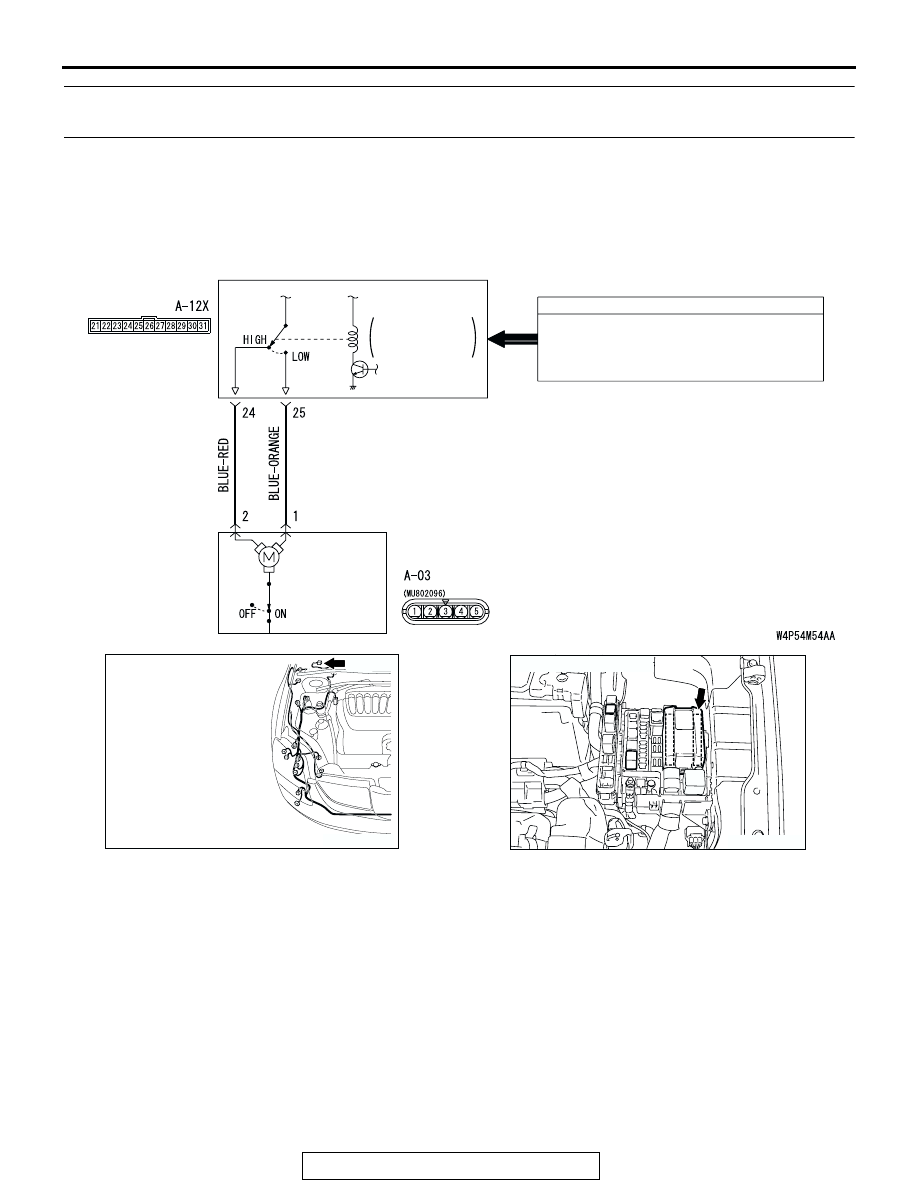

Windshield Wiper Motor Circuit

SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-276

Use scan tool MB991958 to select "ECU COMM Check" on
the SWS monitor display.

Check the following ECUs:

• Column-ECU

• Front-ECU

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958. Connect
special tool MB991910 before connecting special tool
MB991812. Be sure to connect special tool MB991806 after
turning on special tool MB991824.

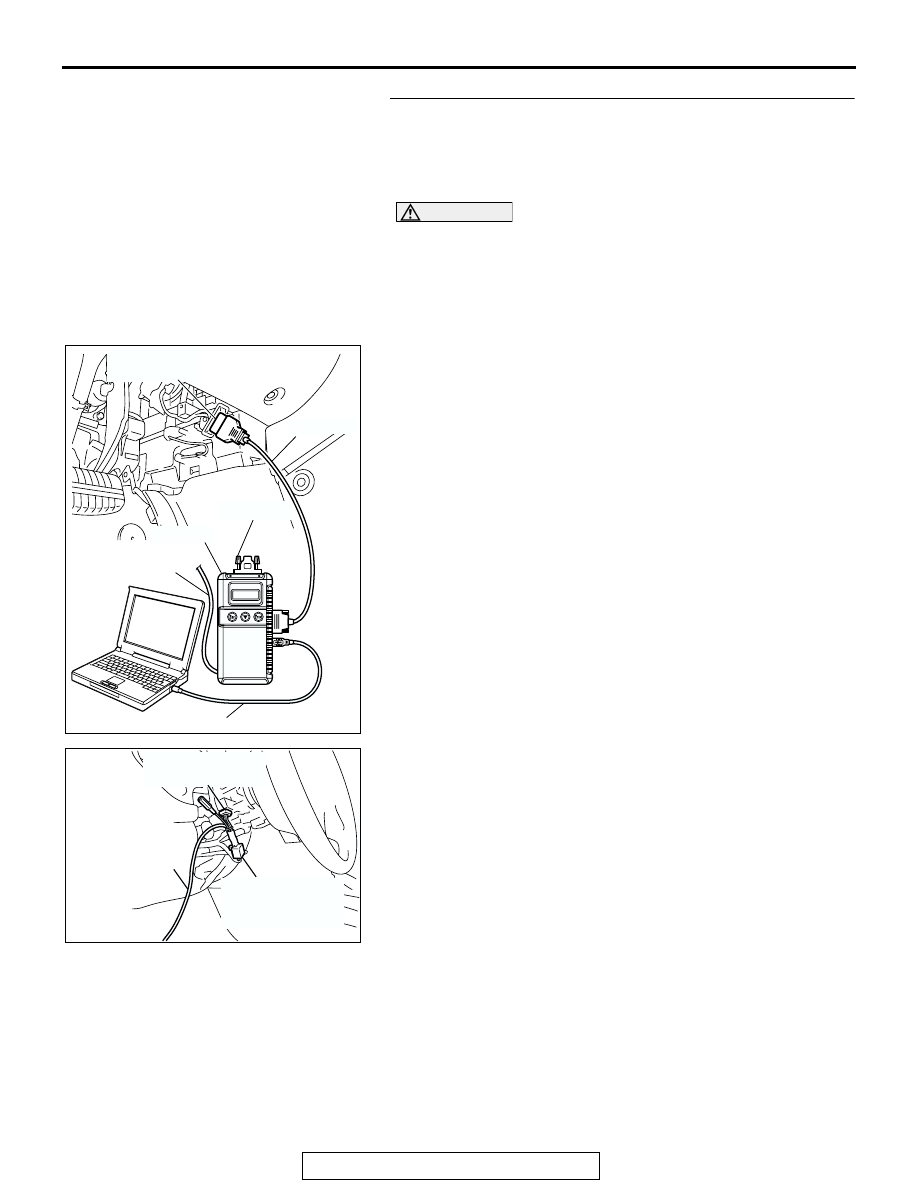

(1) Connect the special tool. Refer to "How to connect SWS

monitor

P.54B-13

."

(2) Turn the ignition switch to the "ON" position.
(3) Operate scan tool MB991958 according to the procedure

below to display "ECU COMM CHECK."
a. Select "Interactive Diagnosis."
b. Select "System select."
c. Select "SWS."
d. Select "SWS MONITOR."
e. Select "ECU COMM Check."

(4) Scan tool MB991958 should show "OK" on the "ECU

COMM Check" menus for both the "COLUMN ECU" and
the "FRONT ECU" menus.

Q: Is "OK" displayed for the "COLUMN ECU" and "FRONT

ECU" menu?
"OK" is displayed for all the items :
Replace the

front-ECU. Verify that the windshield wiper works
normally.

"NG" is displayed for the "COLUMN ECU" menu : Refer

to Inspection Procedure A-2 "Communication with the
column switch (column-ECU) is not possible

P.54B-72

."

"NG" is displayed for the "FRONT ECU" menu : Refer to

Inspection procedure A-4 "Communication with the
front-ECU is not possible

P.54B-87

."

AC305411AB

MB991910

DATA LINK

CONNECTOR

MB991827

MB991824

MB991806

MB991812

AC302210

COLUMN SWITCH
CONNECTOR

COLUMN SWITCH
CONNECTOR AT
HARNESS SIDE

MB991812

AB

SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-277

INSPECTION PROCEDURE G-3: Windshield Wiper and Washer: All of the windshield wiper switch
positions are defective.

NOTE: This troubleshooting procedure requires use
of scan tool MB991958 and SWS monitor kit
MB991813. For details on how to use the SWS mon-
itor, refer to "How to use SWS monitor

P.54B-15

."

.

TECHNICAL DESCRIPTION (COMMENT)
If either of the windshield wiper switch positions is
defective, the windshield wiper motor, column switch
(windshield wiper and washer switch) or the
front-ECU may be defective.

.

TROUBLESHOOTING HINTS

• Trouble in input signal system

• The wiring harness or connectors may have

loose, corroded, or damaged terminals, or termi-
nals pushed back in the connector

• The wiper motor may be defective

• The front-ECU may be defective

WINDSHIELD
WIPER MOTOR

CIRCUIT
BREAKER

FRONT-ECU

· WINDSHIELD WIPER HI SPEED SWITCH
· WINDSHIELD WIPER INTERMIT SWITCH
· WINDSHIELD WIPER LO SPEED SWITCH
· WINDSHIELD WIPER MIST SWITCH

WIPER SPEED
SWITCHING
RELAY

INPUT SIGNAL

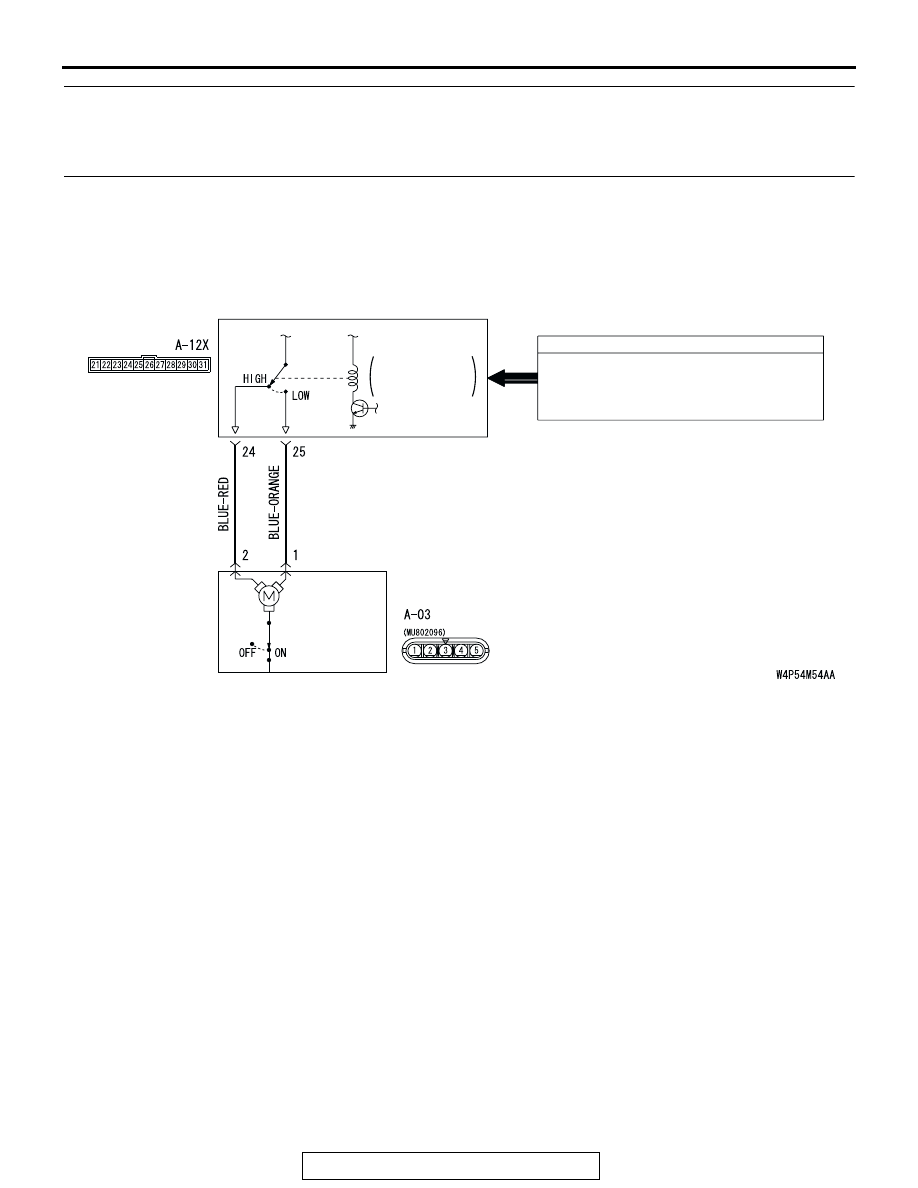

Windshield Wiper Motor Circuit

AC305206

A-03 (B)

CONNECTOR: A-03

AI

AC305977

CONNECTOR: A-12X

AF

SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-278

DIAGNOSIS

Required Special Tools:

• MB991223: Harness Set

• MB991958: Scan Tool (MUT-III Sub Assembly)

• MB991824: Vehicle Communication Interface (V.C.I.)

• MB991827: MUT-III USB Cable

• MB991910: MUT-III Main Harness A

• MB991813: SWS Monitor Kit

• MB991806: SWS Monitor Cartridge

• MB991812: SWS Monitor Harness (For Column-ECU)

• MB991822: Probe Harness
