SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-271

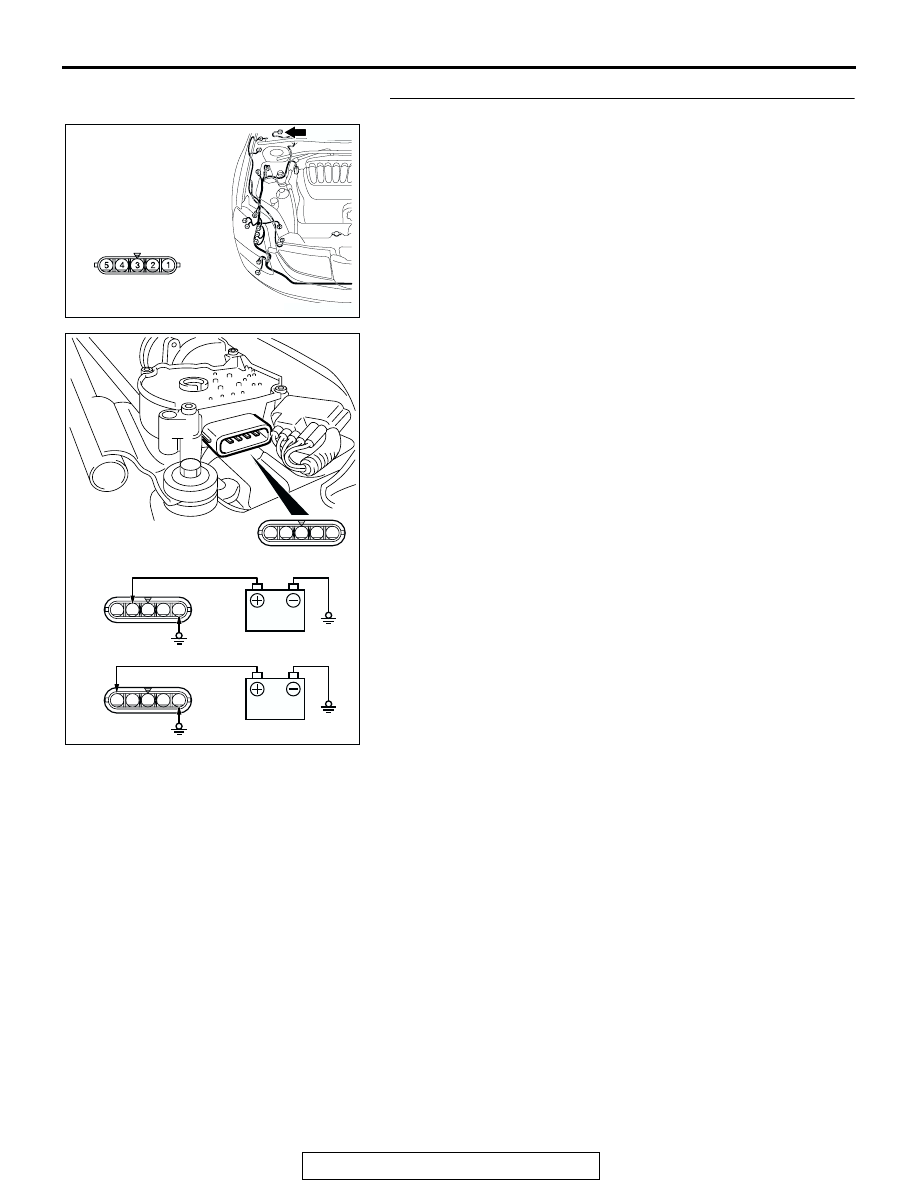

STEP 4. Check the windshield wiper motor.

(1) Disconnect windshield wiper motor connector A-03.

(2) Connect a battery to the windshield wiper motor as shown.

Then check that the windshield wiper motor operates
normally at high and low speeds.

Q: Does the windshield wiper motor operate normally?

YES : Go to Step 5.
NO :  Replace the windshield wiper motor. Verify that the

windshield wiper works normally.

AC305206

A-03 (B)

HARNESS SIDE

CONNECTOR: A-03

AH

AC306750

1

2

3

4

5

1

2

3

4

5

1

2

3

4

5

CHECK OPERATION

LOW SPEED

HIGH SPEED

AB

SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-272

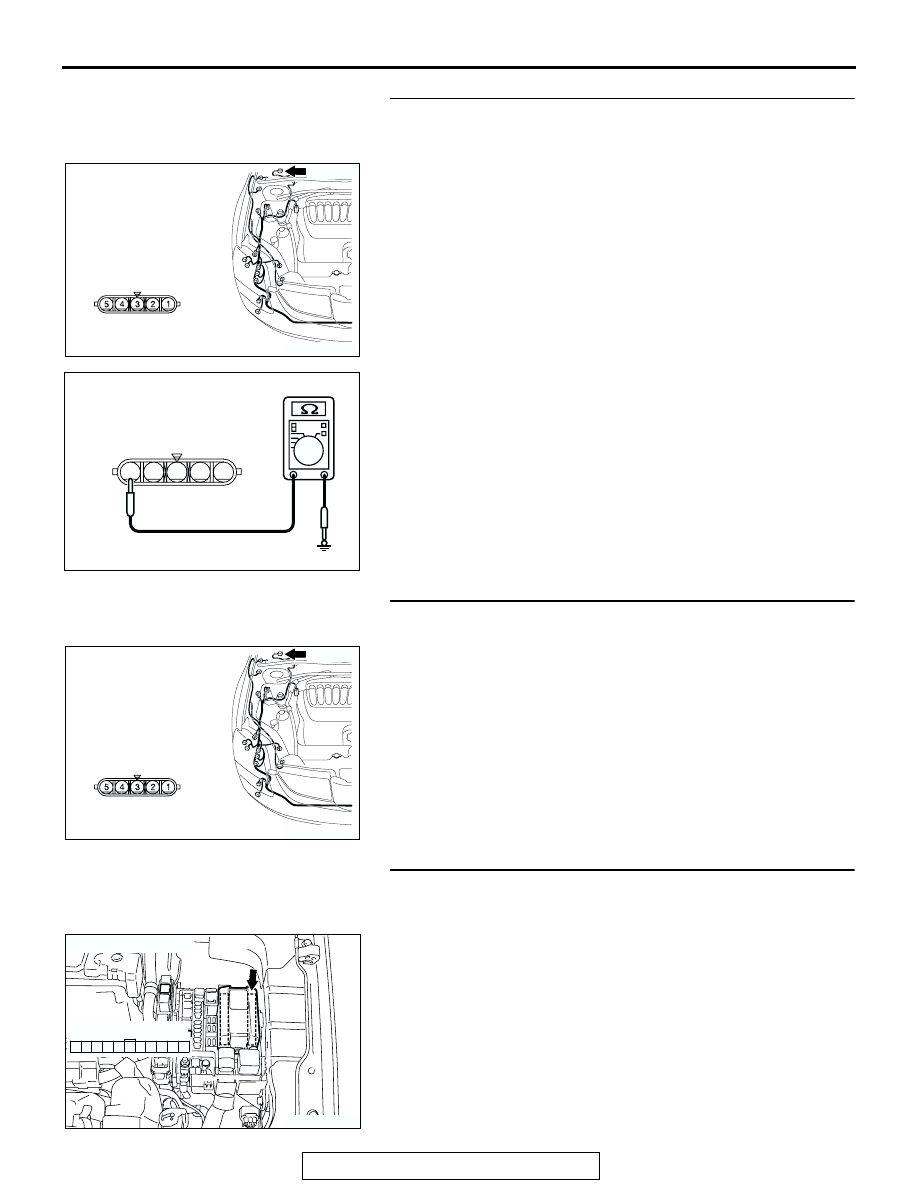

STEP 5. Check the ground circuit to the windshield wiper
motor. Measure the resistance at the windshield wiper
motor connector A-03.

(1) Disconnect windshield wiper motor connector A-03 and

measure the resistance available at the wiring harness side
of the connector.

(2) Measure the resistance value between terminal 5 and

ground.

• The resistance should be 2 ohms or less.

Q: Is the measured resistance 2 ohms or less?

YES : Go to Step 7.
NO :  Go to Step 6.

STEP 6. Check the wiring harness between windshield
wiper motor connector A-03 (terminal 5) and ground.

Q: Is the wiring harness between windshield wiper motor

connector A-03 (terminal 5) and ground in good
condition?
YES : No action is necessary and testing is complete.
NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. Verify the
windshield wiper works normally.

STEP 7. Check front-ECU connector A-12X for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.

Q: Is front-ECU connector A-12X in good condition?

YES : Go to Step 8.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

. Verify that the windshield wiper works

normally.

AC305206

A-03 (B)

HARNESS SIDE

CONNECTOR: A-03

AH

AC209364CV

CONNECTOR A-03
(HARNESS SIDE)

4

5

2

3

1

AC305206

A-03 (B)

HARNESS SIDE

CONNECTOR: A-03

AH

AC305977

CONNCTOR: A-12X

AI

21

22

23

24

25

26

27

28

29

30

31

RELAY BOX SIDE

SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-273

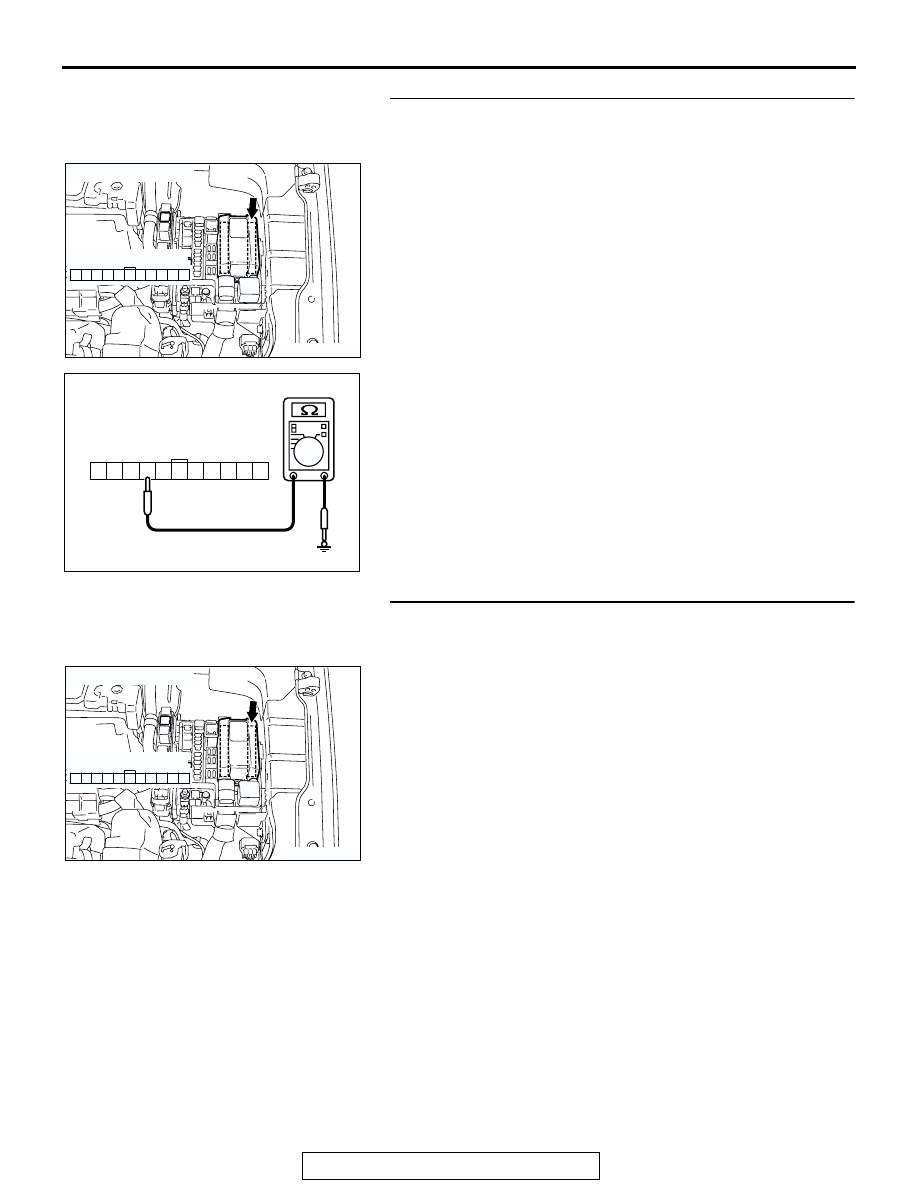

STEP 8. Check the ignition switch (ACC) circuit to the
front-ECU. Measure the voltage at front-ECU connector
A-12X.

(1) Disconnect front-ECU connector A-12X and measure the

resistance available at the relay box side of the connector.

(2) Turn the ignition switch to the "ON" position.

(3) Measure the voltage between terminal 28 and ground.

• The voltage should measure approximately 12 volts

(battery positive voltage).

Q: Is the measured voltage approximately 12 volts (battery

positive voltage)?
YES : Replace the front-ECU. Verify that the windshield

wiper works normally.

NO :  Go to Step 9.

STEP 9. Check the wiring harness between front-ECU
connector A-12X (terminal 28) and the ignition switch

(ACC).

AC305977

CONNCTOR: A-12X

AI

21

22

23

24

25

26

27

28

29

30

31

RELAY BOX SIDE

AC209364CU

CONNECTOR A-12X
(RELAY BOX SIDE)

24

29

30

31

28 27

25

26

21

23 22

AC305977

CONNCTOR: A-12X

AI

21

22

23

24

25

26

27

28

29

30

31

RELAY BOX SIDE

SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-274

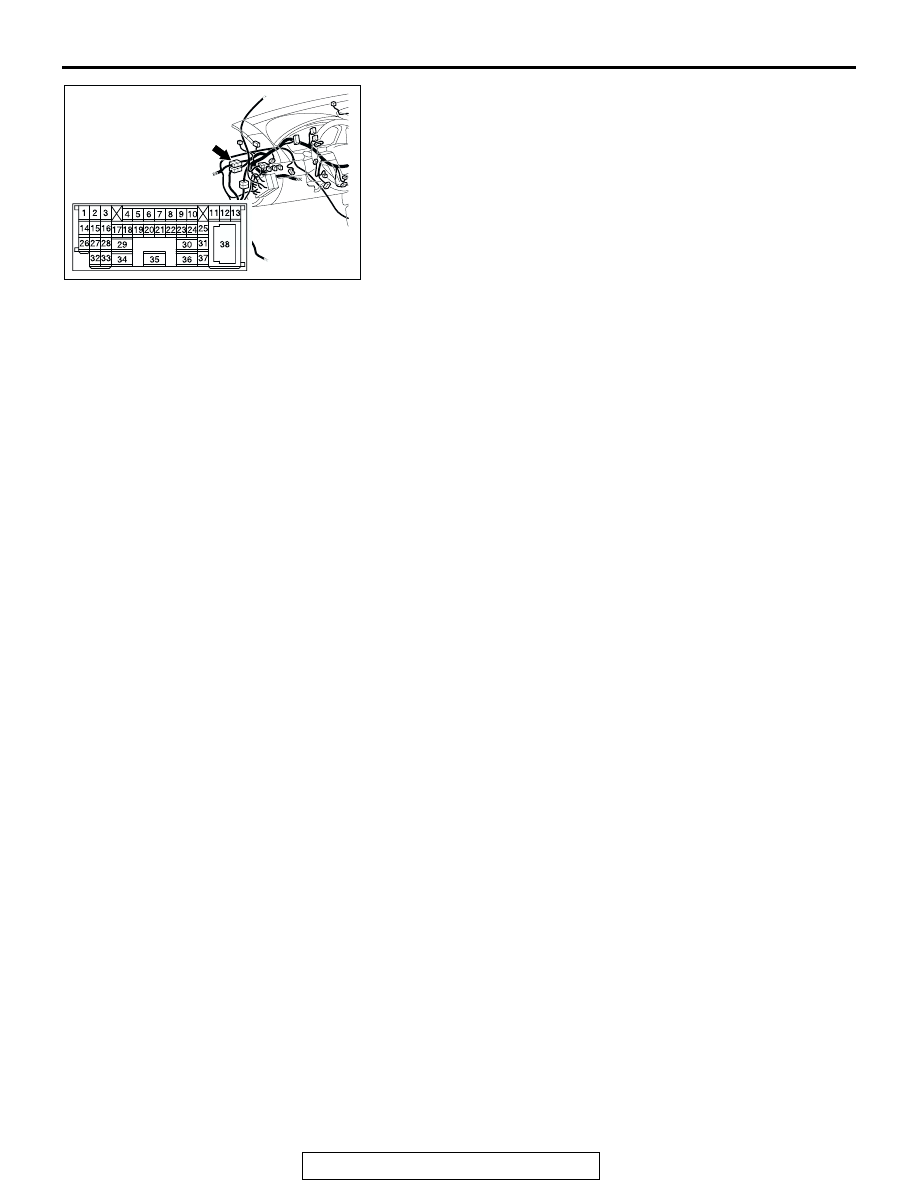

NOTE: Also check intermediate connector C-29 for loose, cor-
roded, or damaged terminals, or terminals pushed back in the
connector. If intermediate connector C-29 is damaged, repair or
replace the damaged component(s) as described in GROUP
00E, Harness Connector Inspection

P.00E-2

.

Q: Is the wiring harness between front-ECU connector

A-12X (terminal 28) and the ignition switch (ACC) in
good condition?
YES : No action is necessary and testing is complete.
NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. Verify that
the windshield wiper works normally.

AC305231AI

CONNECTOR: C-29
