IGNITION SYSTEM

TSB Revision

ENGINE ELECTRICAL

16-41

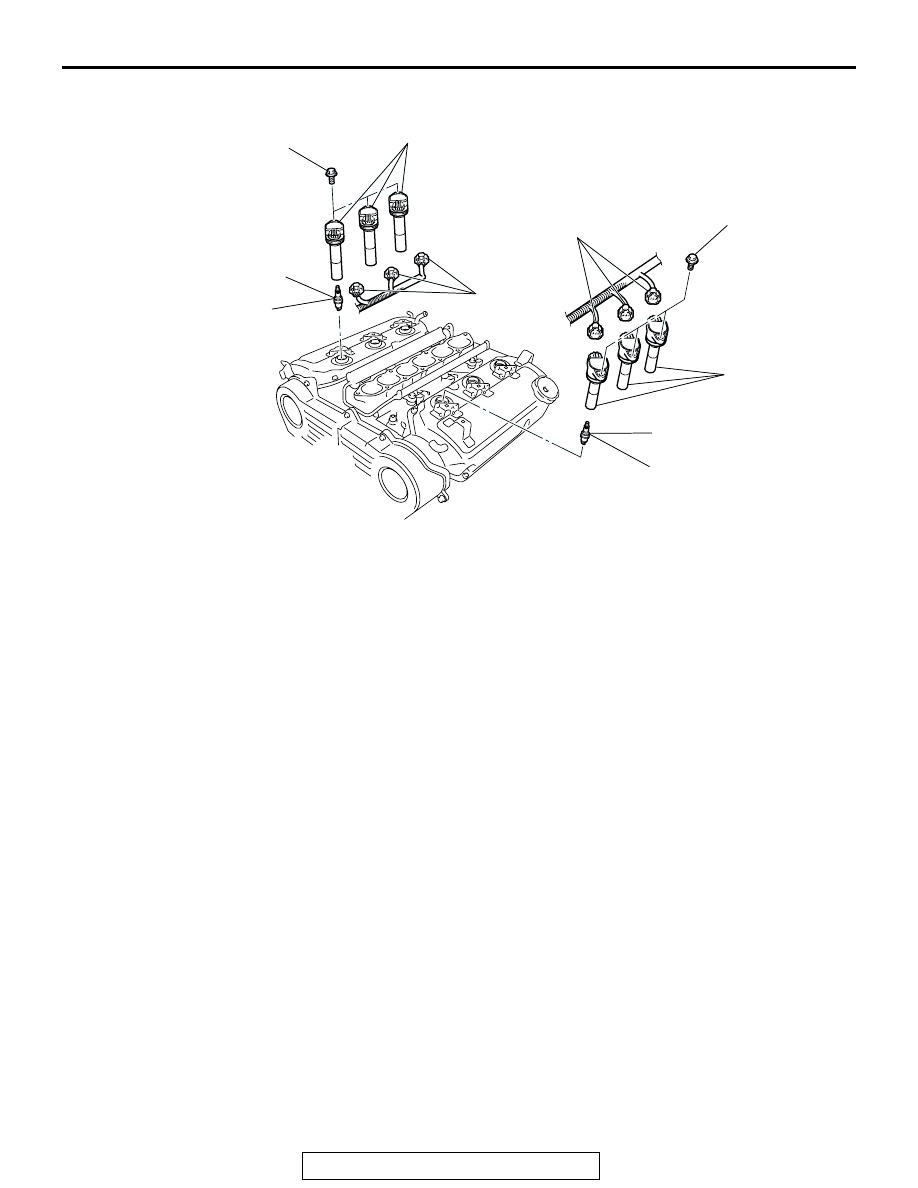

REMOVAL AND INSTALLATION <3.8L ENGINE>

M1163004000448

AC306928

10 ± 2 N·m
89 ± 17 in-lb

25 ± 4 N·m
18 ± 3 ft-lb

25 ± 4 N·m
18 ± 3 ft-lb

10 ± 2 N·m
89 ± 17 in-lb

1

2

3

4

5

6

AB

REMOVAL STEPS

•

ENGINE COVER (REFER TO
GROUP 11C, ENGINE ASSEMBLY

P.11C-15

).

1.

IGNITION COIL CONNECTORS
(LH)

2.

IGNITION COILS (LH)

3.

SPARK PLUGS (LH)

•

INTAKE MANIFOLD PLENUM
(REFER TO GROUP 15, INTAKE
MANIFOLD PLENUM

P.15-6

).

4.

IGNITION COIL CONNECTORS
(RH)

5.

IGNITION COILS (RH)

6.

SPARK PLUGS (RH)

REMOVAL STEPS (Continued)

IGNITION SYSTEM

TSB Revision

ENGINE ELECTRICAL

16-42

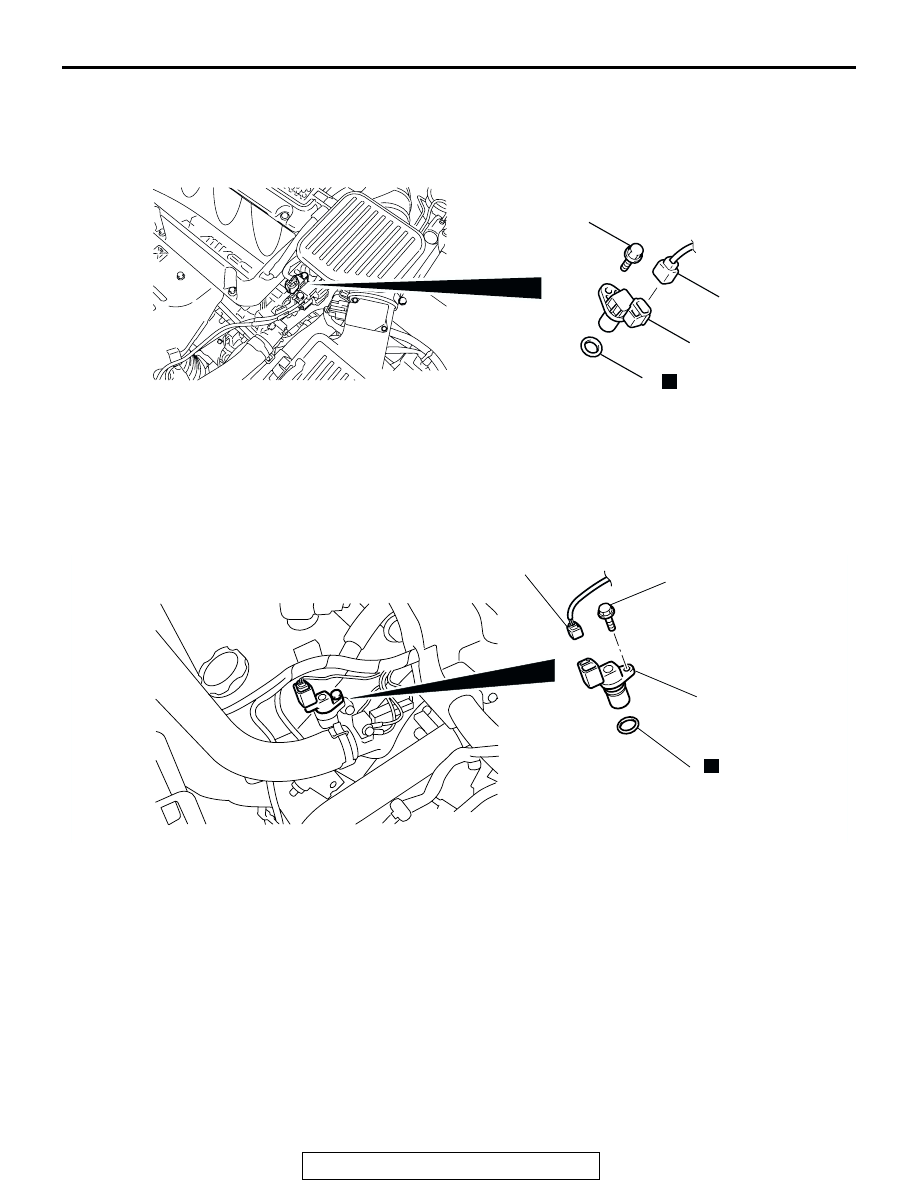

CAMSHAFT POSITION SENSOR

REMOVAL AND INSTALLATION <2.4L ENGINE>

M1163003400487

REMOVAL AND INSTALLATION <3.8L ENGINE>

M1163003400476

AC307968AB

11 ± 1 N·m
98 ± 8 in-lb

1

2

3

N

REMOVAL STEPS

1.

CAMSHAFT POSITION SENSOR
CONNECTOR

2.

CAMSHAFT POSITION SENSOR

3.

O-RING

REMOVAL STEPS (Continued)

AC205570 AB

11 ± 1 N·m
98 ± 8 in-lb

1

2

3

N

REMOVAL STEPS

1.

CAMSHAFT POSITION SENSOR
CONNECTOR

2.

CAMSHAFT POSITION SENSOR

3.

O-RING

REMOVAL STEPS (Continued)

IGNITION SYSTEM

TSB Revision

ENGINE ELECTRICAL

16-43

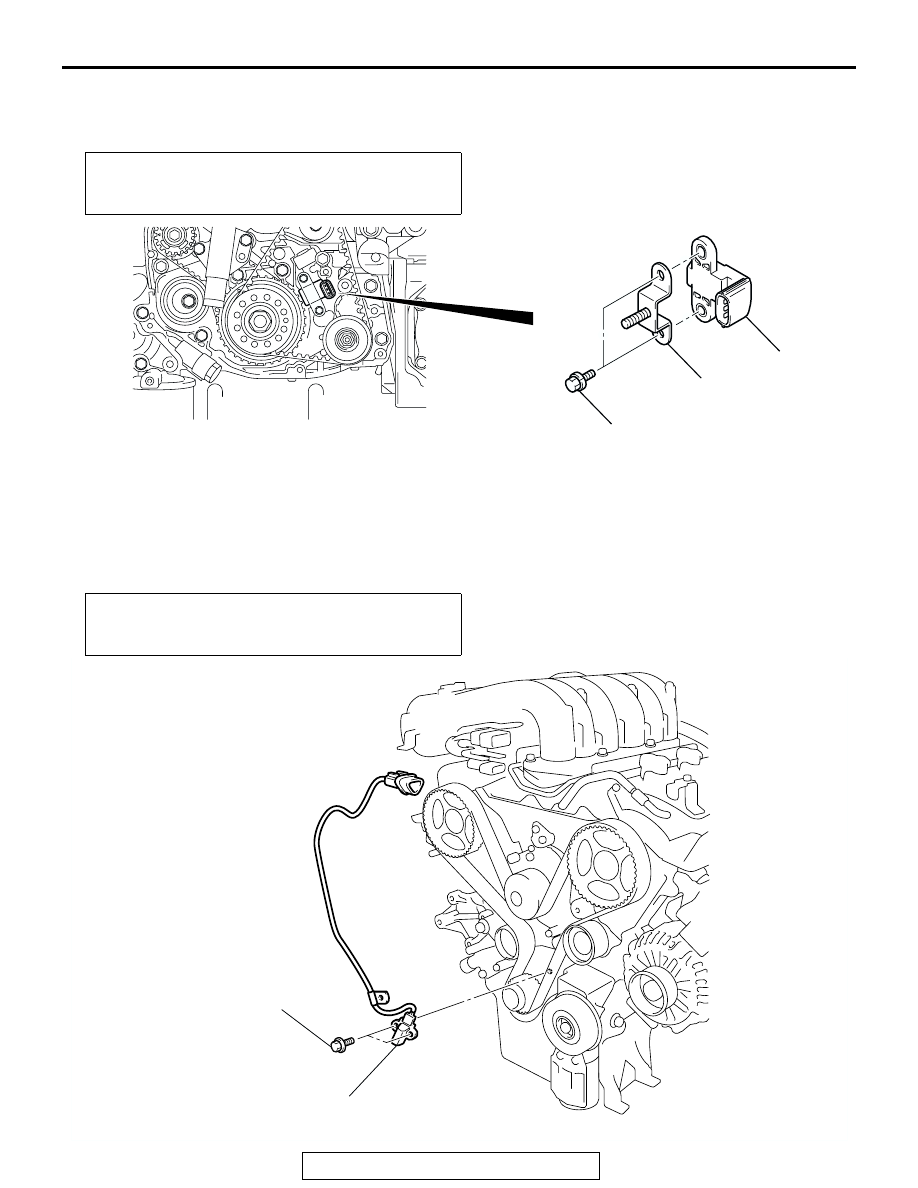

CRANKSHAFT POSITION SENSOR

REMOVAL AND INSTALLATION <2.4L ENGINE>

M1163003500484

REMOVAL AND INSTALLATION <3.8L ENGINE>

M1163003500473

Pre-removal and Post-installation Operation
Timing Belt Lower Cover Removal and Installation (Refer to
GROUP 11A, Timing Belt

P.11A-49

).

AC305391

1

2

8.5 ± 0.5 N·m
76 ± 4 in-lb

AC

REMOVAL STEPS

1.

TIMING BELT LOWER COVER
BRACKET

2.

CRANKSHAFT POSITION
SENSOR

Pre-removal and Post-installation Operation
Timing Belt Lower Cover Removal and Installation (Refer to
GROUP 11C, Timing Belt

P.11C-48

).

AC306927

CRANKSHAFT POSITION SENSOR

AB

9.0 ± 1.0 N·m
80 ± 9 in-lb

IGNITION SYSTEM

TSB Revision

ENGINE ELECTRICAL

16-44

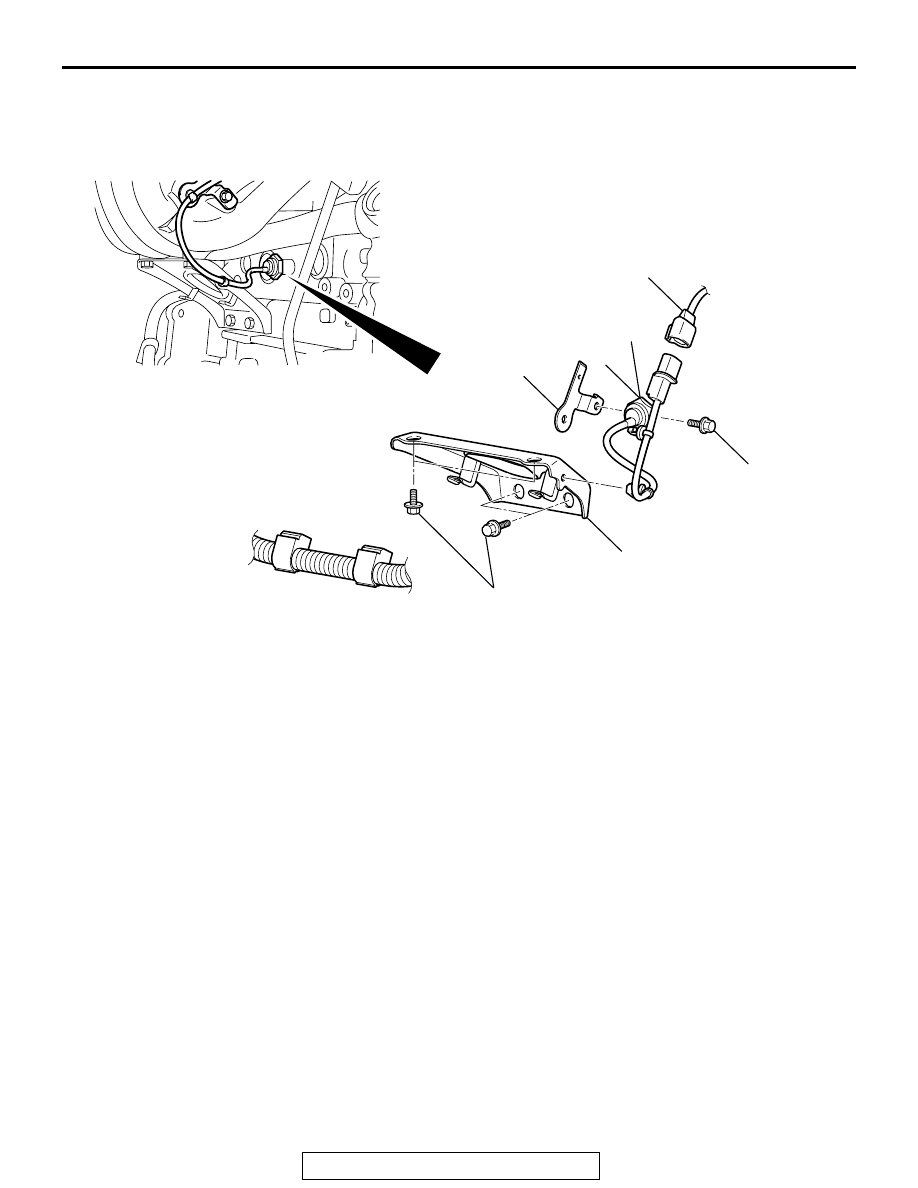

KNOCK SENSOR

REMOVAL AND INSTALLATION <2.4L ENGINE>

M1163002800590

Required Special Tool:
MD998773: Knock Sensor Wrench

AC302234

AC305130AC

11 ± 1 N·m
98 ± 8 in-lb

23 ± 2 N·m
17 ± 1 ft-lb

31 ± 3 N·m
23 ± 2 ft-lb

1

4

3

2

REMOVAL STEPS

1.

KNOCK SENSOR CONNECTOR

2.

INTAKE MANIFOLD STAY

<<A>>

>>A<<

3.

KNOCK SENSOR

4.

KNOCK SENSOR CONNECTOR
BRACKET

REMOVAL STEPS (Continued)
