IGNITION SYSTEM

TSB Revision

ENGINE ELECTRICAL

16-45

REMOVAL SERVICE POINT

.

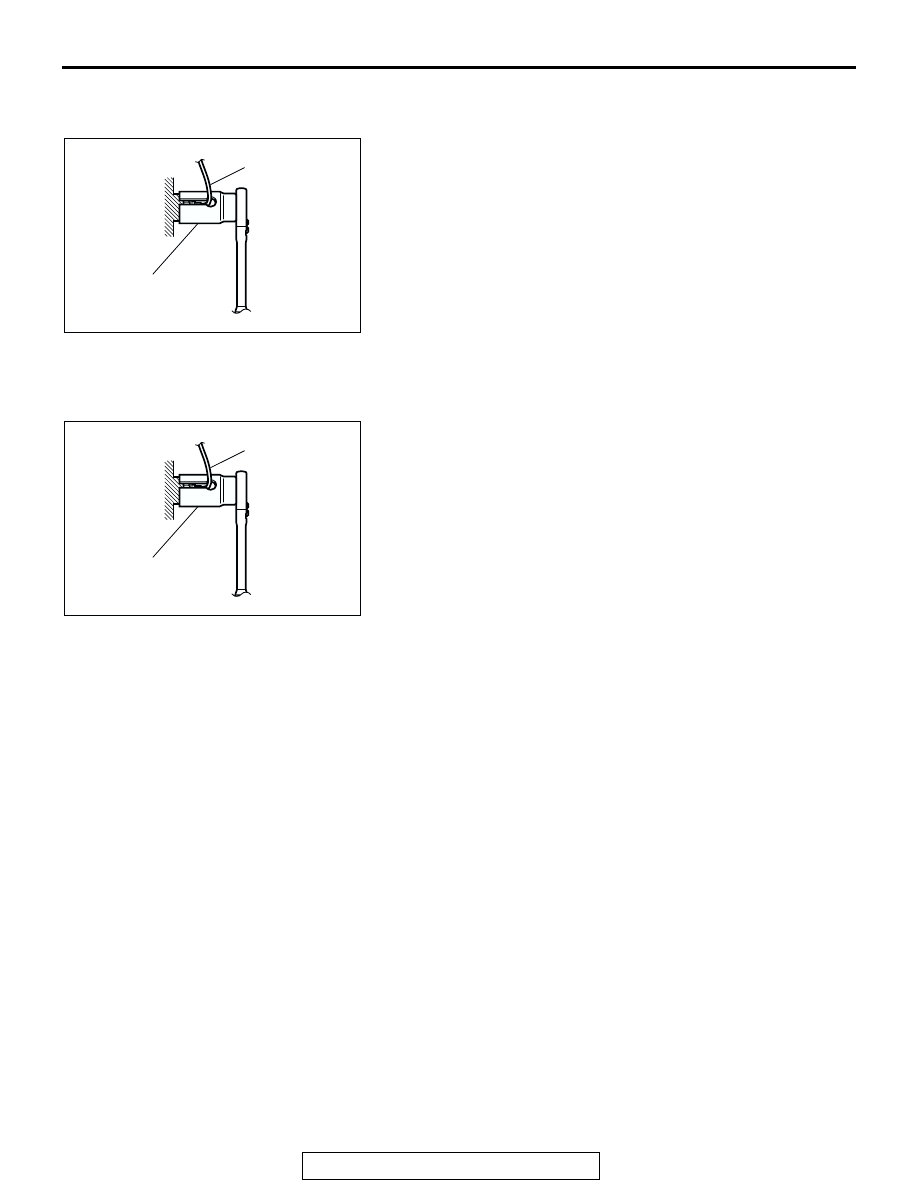

<<A>> KNOCK SENSOR REMOVAL
Use special tool MD998773 to remove the knock sensor.

INSTALLATION SERVICE POINT

.

>>A<< KNOCK SENSOR INSTALLATION
Use special tool MD998773 to install the knock sensor.

AC100807

MD998773

KNOCK SENSOR

AB

AC100807

MD998773

KNOCK SENSOR

AB

IGNITION SYSTEM

TSB Revision

ENGINE ELECTRICAL

16-46

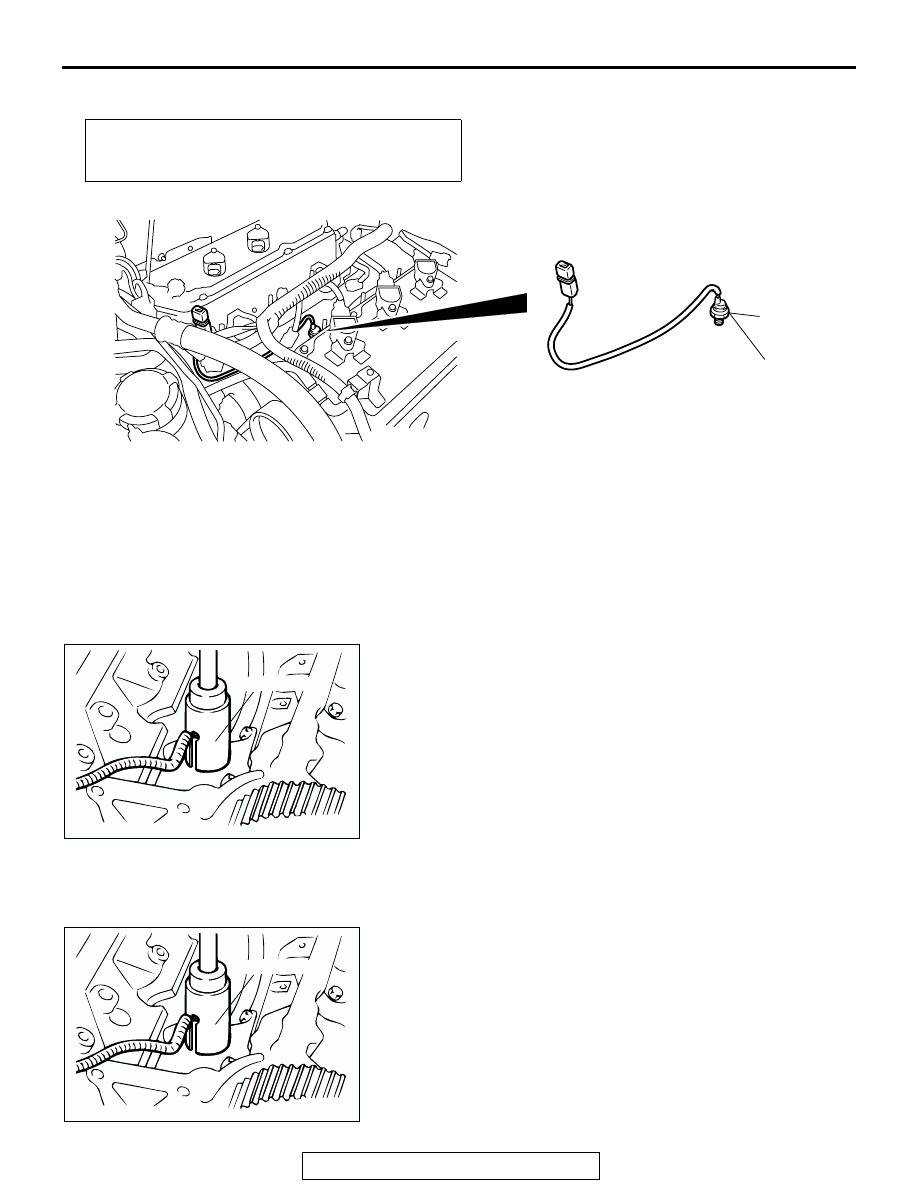

REMOVAL AND INSTALLATION <3.8L ENGINE>

M1163002800589

Required Special Tool:
MD998773: Knock Sensor Wrench

REMOVAL SERVICE POINT

.

<<A>> KNOCK SENSOR REMOVAL
Use special tool MD998773 to remove the knock sensor.

INSTALLATION SERVICE POINT

.

>>A<< KNOCK SENSOR INSTALLATION
Use special tool MD998773 to install the knock sensor.

Pre-removal and Post-installation Operation
Intake Manifold Removal and Installation (Refer to GROUP
15, Intake Manifold

P.15-12

).

AC307548

23 ± 2 N·m
17 ± 1 ft-lb

AB

1

REMOVAL

<<A>>

>>A<<

1.

KNOCK SENSOR

ACX02082AB

MD998773

ACX02082AB

MD998773

SPECIFICATIONS

TSB Revision

ENGINE ELECTRICAL

16-47

SPECIFICATIONS

FASTENER TIGHTENING SPECIFICATIONS

M1161002100506

<2.4L ENGINE>

<3.8L ENGINE>

ITEM

SPECIFICATION

Charging system
Connector bracket bolt

11

± 1 N⋅m (98 ± 8 in-lb)

Generator bolt

49

± 9 N⋅m (36 ± 7 ft-lb)

Generator mounting bracket bolt

49

± 9 N⋅m (36 ± 7 ft-lb)

Generator nut

44

± 10 N⋅m (33 ± 7 ft-lb)

Generator terminal nut

12

± 2 N⋅m (102 ± 22 in-lb)

Harness bracket bolt

14

± 1 N⋅m (120 ± 13 in-lb)

Ignition system
Camshaft position sensor bolt

11

± 1 N⋅m (98 ± 8 in-lb)

Crankshaft position sensor bolt

8.5

± 0.5 N⋅m (76 ± 4 in-lb)

Ignition coil bolt

10

± 2 N⋅m (89 ± 17 in-lb)

Intake manifold stay bolt

31

± 3 N⋅m (23 ± 2 ft-lb)

Knock sensor

23

± 2 N⋅m (17 ± 1 ft-lb)

Knock sensor connector bracket bolt

11

± 1 N⋅m (98 ± 8 in-lb)

Spark plug

25

± 4 N⋅m (18 ± 3 ft-lb)

Starting system
ATF warmer (transmission fluid cooler) bracket bolt

23

± 3 N⋅m (17 ± 2 ft-lb)

Starter bolt

30

± 3 N⋅m (23 ± 2 ft-lb)

Starter cover bolt

9.0

± 2.0 N⋅m (80 ± 17 in-lb)

Starter cover bracket bolt

49

± 9 N⋅m (36 ± 7 ft-lb)

Starter terminal nut

12

± 2 N⋅m (102 ± 22 in-lb)

ITEM

SPECIFICATION

Charging system
Generator bolt

49

± 9 N⋅m (36 ± 7 ft-lb)

Generator terminal nut

12

± 2 N⋅m (102 ± 22 in-lb)

Ignition system
Camshaft position sensor bolt

11

± 1 N⋅m (98 ± 8 in-lb)

Crankshaft position sensor bolt

9.0

± 1.0 N⋅m (80 ± 9 in-lb)

Ignition coil bolt

10

± 2 N⋅m (89 ± 17 in-lb)

Knock sensor

23

± 2 N⋅m (17 ± 1 ft-lb)

Spark plug

25

± 4 N⋅m (18 ± 3 ft-lb)

Starting system

SPECIFICATIONS

TSB Revision

ENGINE ELECTRICAL

16-48

GENERAL SPECIFICATIONS

M1161000200262

<2.4L ENGINE>

Starter bolt

30

± 3 N⋅m (23 ± 2 ft-lb)

Starter cover bolt

4.9

± 1.0 N⋅m (44 ± 8 in-lb)

Starter terminal nut

12

± 2 N⋅m (102 ± 22 in-lb)

ITEM

SPECIFICATION

ITEMS

SPECIFICATIONS

Generator
Type

Positive battery positive voltage sensing

Identification number

A3TG2192ZC

Part No.

MN183451

Rated output V/A

12/110

Voltage regulator

Electronic built-in type

Starter Motor
Type

Reduction drive with planetary gear

Identification number

M0T20672ZC

Part No.

1810A001

Rated output kW/V

1.4/12

No. of pinion teeth

8

Ignition Coil
Type

Molded 4 coil

Spark plugs
NGK

LZFR6AI
