INSPECTION

M1162001300102

.

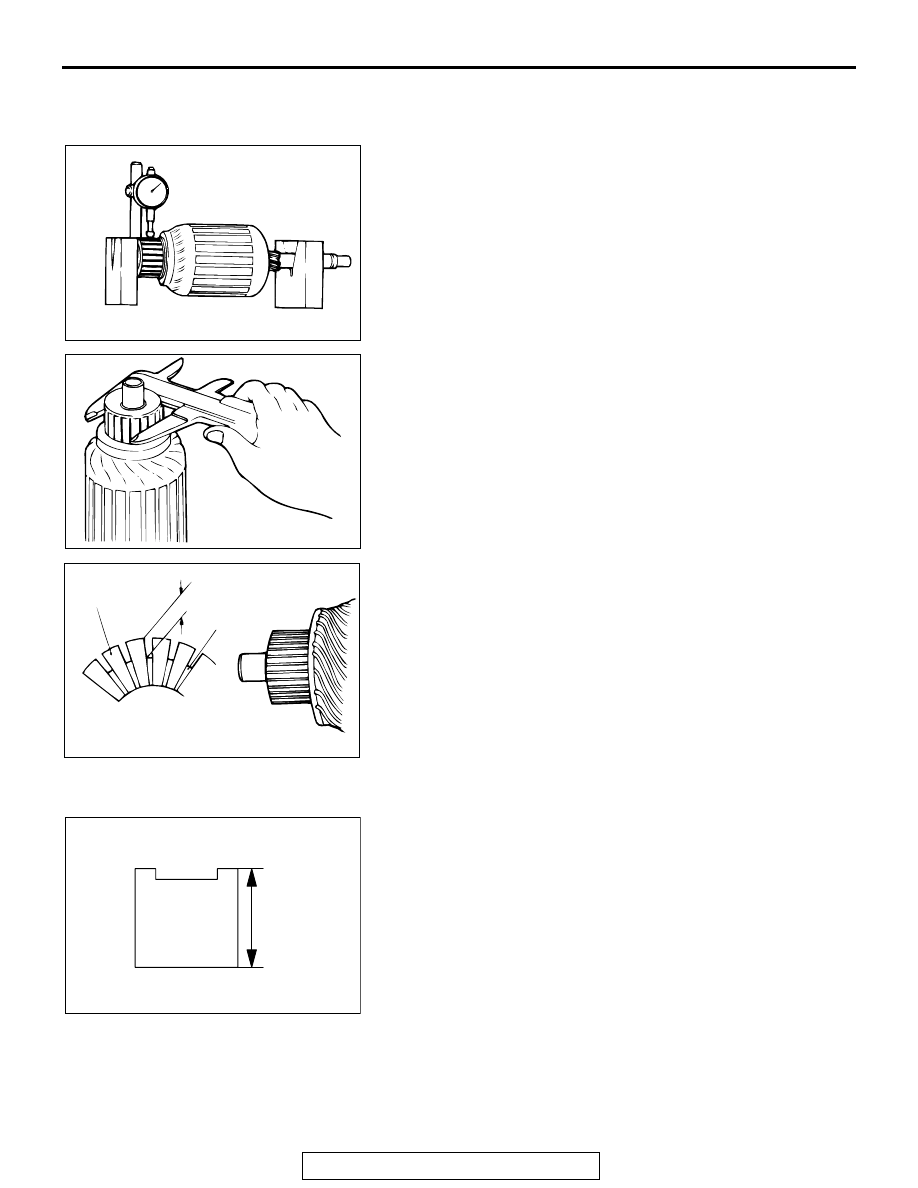

COMMUTATOR CHECK
1. Place the armature on a pair of V-blocks, and check the

deflection by using a dial gauge.

Standard value: 0.05 mm (0.002 inch)
Limit: 0.1 mm (0.004 inch)

2. Check the outer diameter of the commutator.

Standard value: 29.4 mm (1.16 inches)
Minimum limit: 28.8 mm (1.13 inches)

3. Check the depth of the undercut between segments.

Standard value: 0.5 mm (0.02 inch)
Minimum limit: 0.2 mm (0.008 inch)

.

BRUSH CHECK
1. Check the brush for roughness of the surface that contacts

the commutator and check the brush length. Replace the
brush holder if this measurement exceeds the limit.

Minimum limit:

 7.0 mm (0.28 inch)

2. If the contacting surface has been corrected or the brush

has been replaced, correct the contacting surface by
winding sandpaper around the commutator.

.

AKX00373

AKX00374

AKX00375

SEGMENT

UNDERCUT

MICA

AB

AK101390

LIMIT LENGTH

AB

STARTING SYSTEM

TSB Revision

ENGINE ELECTRICAL

16-34

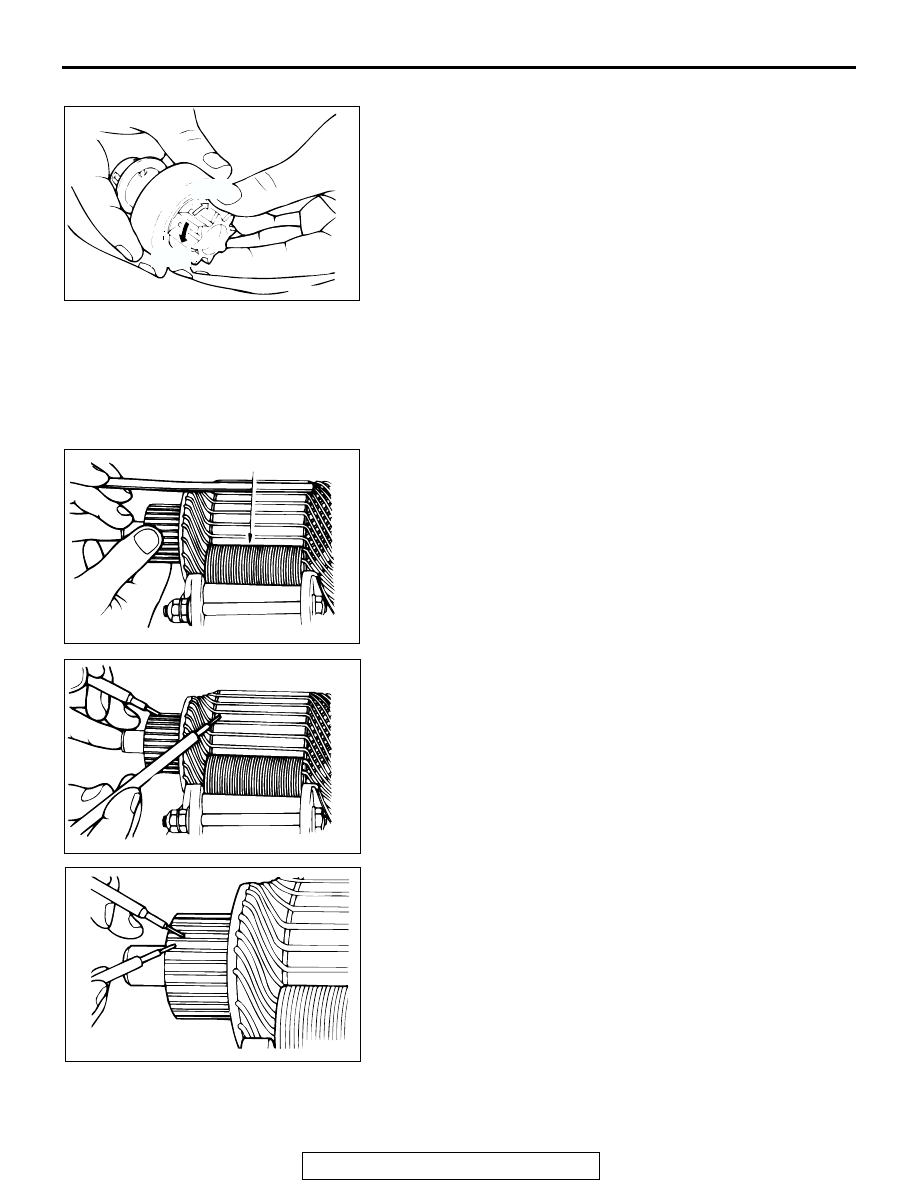

OVERRUNNING CLUTCH CHECK
1. While holding the clutch housing, rotate the pinion. The drive

pinion should rotate smoothly in one direction, but should
not rotate in the opposite direction. If the clutch does not
function properly, replace the overrunning clutch assembly.

2. Inspect the pinion for wear or burrs. If the pinion is worn or

burred, replace the overrunning clutch assembly. If the
pinion is damaged, also inspect the ring gear for wear or
burrs.

.

FRONT AND REAR BRACKET BUSHING CHECK
Inspect the bushing for wear or burrs. If the bushing is worn or
burred, replace the front bracket assembly or rear bracket
assembly.

.

ARMATURE CHECK
1. Check that the armature coil is not grounded.
2. Place the armature in a growler.
3. Hold a thin steel blade parallel and just above while rotating

the armature slowly in the growler. A shorted armature will
cause a blade to vibrate and be attracted to the core.
Replace the shorted armature.

4. Check the insulation between the armature coil cores and

the commutator segments. They are normal if there is no
continuity.

5. Check for continuity between the segments. The condition is

normal if there is continuity.

AKX00378

FREE

LOCK

AB

AKX00379

GROWLER

AB

AKX00380

AKX00381

IGNITION SYSTEM

TSB Revision

ENGINE ELECTRICAL

16-35

IGNITION SYSTEM

GENERAL DESCRIPTION

M1163000100272

<2.4L ENGINE>

This system is provided with four ignition coils with
built-in ignition power transistors for each of the cylin-
ders.
Interruption of the primary current flowing in the pri-
mary side of ignition coil generates a high voltage in
the secondary side of ignition coil.
The powertrain control module (PCM) controls the
four ignition power transistors to turn them alter-
nately ON and OFF. This causes the primary cur-
rents in the ignition coils to be alternately interrupted
and allowed to flow to fire the cylinders in the order
1-3-4-2.

The PCM determines which ignition coil should be
controlled by means of the signals from the camshaft
position sensor which is incorporated in the camshaft
and from the crankshaft position sensor which is
incorporated in the crankshaft.
It also detects the crankshaft position to provide igni-
tion at the most appropriate timing in response to the
engine operation conditions.
When the engine is cold or operated at high alti-
tudes, the ignition timing is slightly advanced to pro-
vide optimum performance.

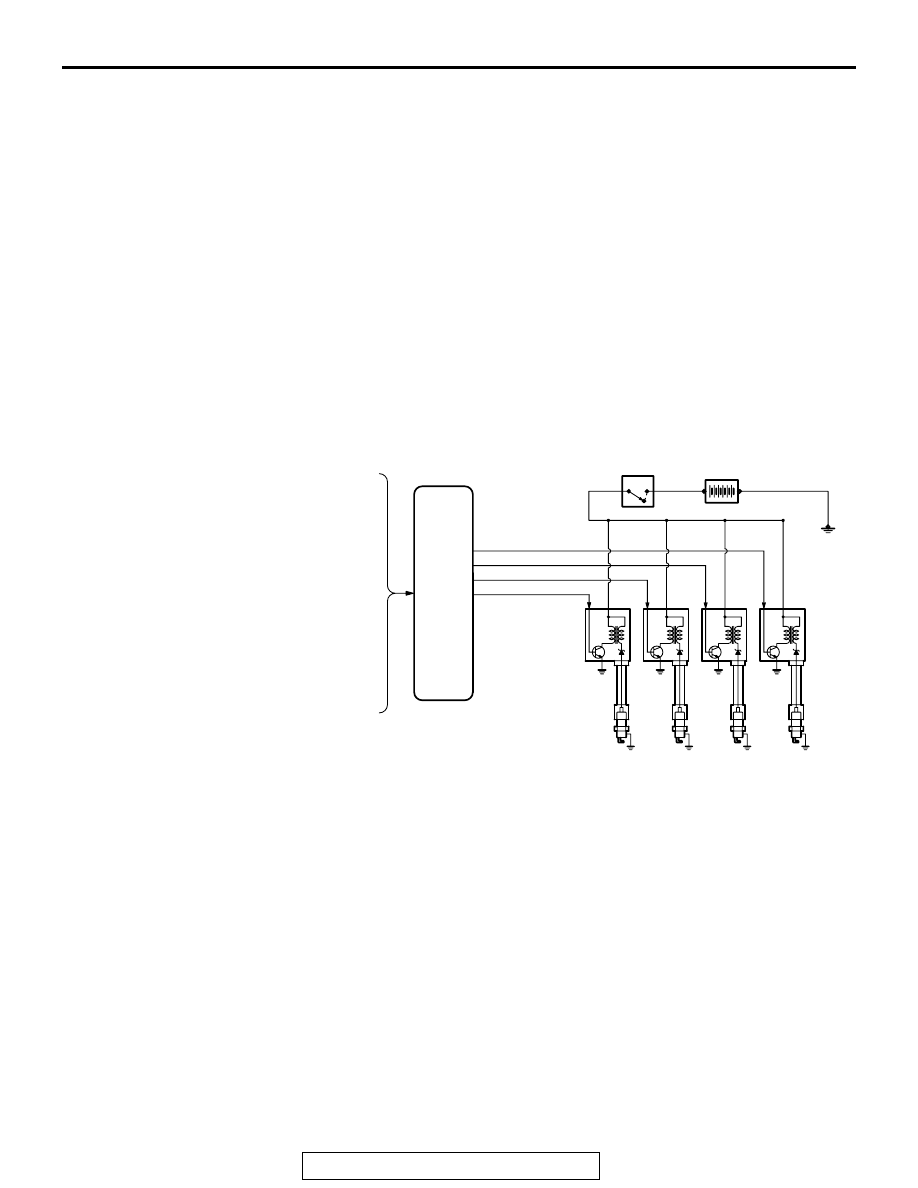

AK304112AB

PCM

IGNITION SWITCH - ST

IGNITION COIL

SPARK PLUG

CYLINDER No.

BATTERY

1

2

3

4

INTAKE AIR TEMPERATURE SENSOR

CAMSHAFT POSITION SENSOR

CRANKSHAFT POSITION SENSOR

TRANSMISSION RANGE SWITCH

IGNITION SWITCH-ST

KNOCK SENSOR

ENGINE COOLANT TEMPERATURE SENSOR

MASS AIRFLOW SENSOR

IGNITION SYSTEM

TSB Revision

ENGINE ELECTRICAL

16-36

<3.8L ENGINE>

This system is provided with six ignition coils with
built-in ignition power transistors for each of the cylin-
ders.
Interruption of the primary current flowing in the pri-
mary side of ignition coil generates a high voltage in
the secondary side of ignition coil.
The powertrain control module (PCM) controls the
three ignition power transistors to turn them alter-
nately ON and OFF. This causes the primary cur-
rents in the ignition coils to be alternately interrupted
and allowed to flow to fire the cylinders in the order
1-2-3-4-5-6.

The PCM determines which ignition coil should be
controlled by means of the signals from the camshaft
position sensor which is incorporated in the camshaft
and from the crankshaft position sensor which is
incorporated in the crankshaft.
It also detects the crankshaft position to provide igni-
tion at the most appropriate timing in response to the
engine operation conditions.
When the engine is cold or operated at high alti-
tudes, the ignition timing is slightly advanced to pro-
vide optimum performance.

SPECIAL TOOLS

M1163000600073

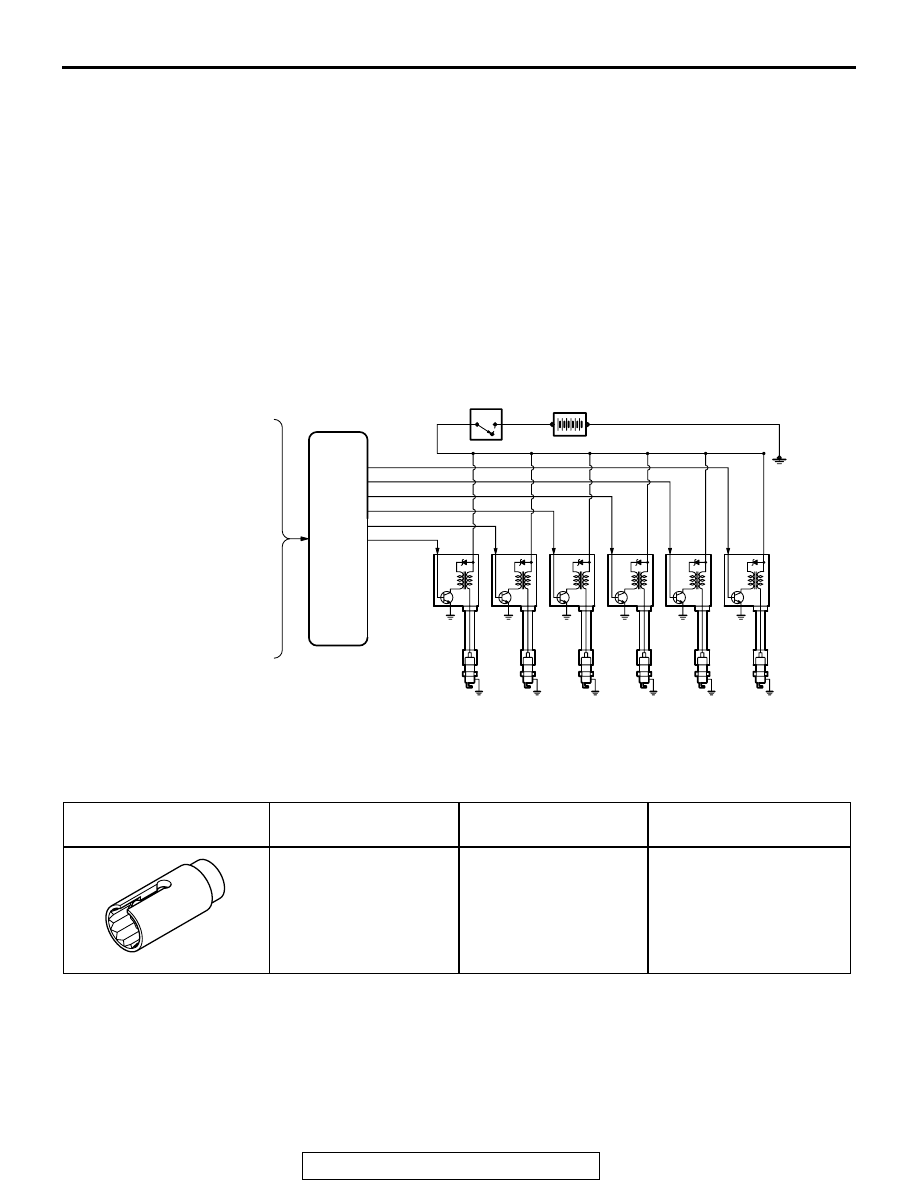

AK303636AB

MASS AIRFLOW
SENSOR

PCM

IGNITION
SWITCH - ST

IGNITION
COIL

SPARK PLUG

CYLINDER No.

BATTERY

1

2

3

4

5

6

INTAKE AIR
TEMPERATURE SENSOR

ENGINE COOLANT
TEMPERATURE SENSOR

CAMSHAFT POSITION
SENSOR

CRANKSHAFT POSITION
SENSOR

TRANSMISSION RANGE



SWTCH

IGNITION SWITCH-ST

KNOCK SENSOR

TOOL

TOOL NUMBER AND
NAME

SUPERSESSION

APPLICATION

MD998773
Knock sensor wrench

MD998773-01

Knock sensor removal
and installation
