GENERAL DESCRIPTION

TRACTION CONTROL SYSTEM (TCL)

13D-3

COMPONENTS AND FUNCTIONS

COMPONENT

FUNCTION

ABS/TCL-ECU

The wheelspin of the drive wheels (front wheels) is detected based on
signals from the wheel spin sensors.

Engine control information is sent to PCM, based on wheelspin
information and the engine information from PCM.

The diagnostic trouble code and input check code are sent to the data
link connector.

An illumination signal is sent to the "TCL OFF" indicator light, based on
the signal from the TCL switch.

An illumination signal is sent to the TCL work indicator light, based on
the TCL operation state.

Data link connector

If the MUT-III scan tool is connected, the diagnostic trouble code and input
check code from the ABS/TCL-ECU can be read.

PCM

The engine information necessary for TCL control is sent to
ABS/TCL-ECU.

The engine control information from ABS/TCL-ECU is used to determine
engine output.

"TCL OFF" indicator light

Turns ON when the TCL switch is turned OFF, and notifies the TCL
function is inactive.

Turns ON or flashes when the TCL function is inactive because of the
TCL system fail-safe function, and notifies the abnormal condition in the
TCL system.

TCL switch

Turns ON and OFF the TCL function through switch operations.

TCL work indicator light

Flashes when TCL is operating to notify the operation.

Illuminates when TCL fails to notify trouble.

Wheel speed sensor

Outputs signals directly proportional to the rotation speed of each wheel, to
ABS/TCL-ECU.

GENERAL DESCRIPTION

TRACTION CONTROL SYSTEM (TCL)

13D-4

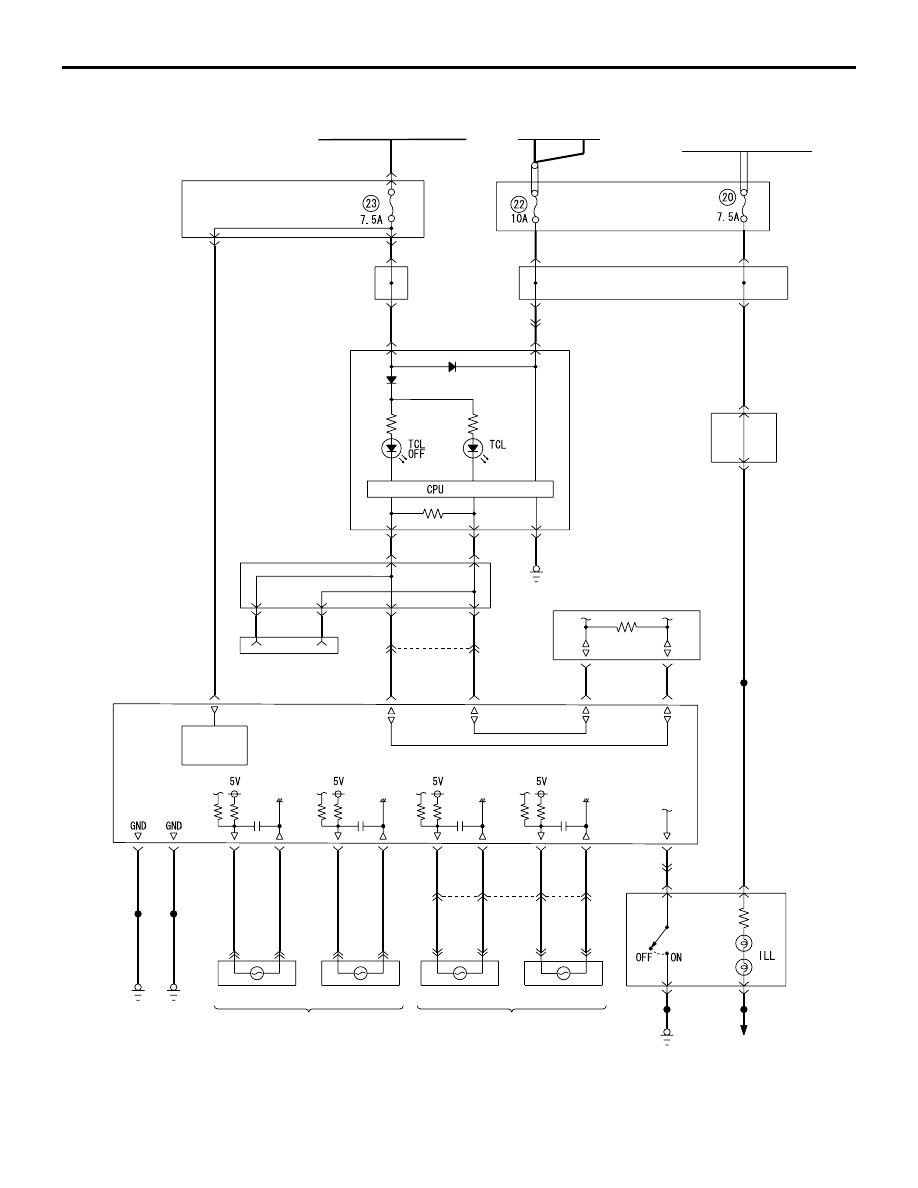

TCL ELECTRICAL CIRCUIT DIAGRAM

AC305718

IGNITION SWITCH (IG1)

JUNCTION
BLOCK

JOINT
CONNECTOR (2)

DATA LINK
CONNECTOR

JOINT
CONNECTOR (3)

POWERTRAIN CONTROL
MODULE (PCM)

ABS/TCL-ECU

(FRONT: LH)

(FRONT: RH)

(REAR: LH)

(REAR: RH)

WHEEL SPEED SENSOR

WHEEL SPEED SENSOR

BATTERY

RELAY
BOX

JOINT
CONNECTOR (1)

POWER
SUPPLY

COMBINATION
METER

FRONT-ECU
(TAILLIGHT RELAY)

JUNCTION
BLOCK

TCL
SWITCH

RHEOSTAT

CONSTRUCTION AND OPERATION

TRACTION CONTROL SYSTEM (TCL)

13D-5

CONSTRUCTION AND OPERATION

M2136001000017

SYSTEM OUTLINE

The wheel speed sensors transmit to ABS/TCL-ECU
such AC signals as have cycle changes directly pro-
portional to the rotation speed of each wheel.
ABS/TCL-ECU calculates the wheel rotation speed
of each wheel, based on signals from the wheel
speed sensors, and monitors the wheel spin of the
drive wheels (front wheels), based on differences in
rotation speed between the front and rear wheels.
Upon detection of the wheelspin of the drive wheels
(front wheels), ABS/TCL-ECU calculates an engine
control based on the wheelspin amount, the engine
information sent from PCM, and the ON/OFF infor-
mation from the TCL switch, and then outputs engine

torque control information to PCM. Also
ABS/TCL-ECU outputs an flash signal to the TCL
work indicator light on the combination meter, and
TCL work indicator light flashes to indicate TCL is at
work.
PCM controls the engine output, based on the
engine control information from ABS/TCL-ECU, in
order to prevent wheelspin.
ABS/TCL-ECU monitors the operation state of the
TCL system. If an abnormal condition arises in the
TCL system and the fail-safe function works,
ABS/TCL-ECU outputs an illumination signal to the
TCL OFF indicator light and TCL work indicator light
on the combination meter to illuminate it, thereby
indicating the TCL system abnormal condition. In
addition, connecting the MUT-III scan tool to the data
link connector allows abnormal conditions of the TCL
system to be checked.

Block Diagram

SELF-DIAGNOSIS AND SERVICE DATA
OUTPUT FUNCTIONS

.

Self-diagnosis
When there is a cancellation of the TCL system oper-
ation not intentionally made by the driver, it is possi-
ble to determine the cause simply by reading the
diagnostic trouble code.

.

AC305719

ABS/TCL-ECU

WHEEL SPEED
SENSOR
(FRONT: LH)

WHEEL SPEED
SENSOR
(FRONT: RH)

WHEEL SPEED
SENSOR
(REAR: LH)

WHEEL SPEED
SENSOR
(REAR: RH)

TCL SWITCH

PCM

TCL WORK
INDICATOR LIGHT

"TCL OFF"
INDICATOR LIGHT

COMBINATION METER

DATA LINK
CONNECTOR

WHEEL
ROTATION
SIGNAL

WHEEL
ROTATION
SIGNAL

WHEEL
ROTATION
SIGNAL

WHEEL
ROTATION
SIGNAL

ON/OFF
SIGNAL

ENGINE
TORQUE
CONTROL
INFORMATION

ENGINE
INFORMATION

ILLUMINATION
SIGNAL

ILLUMINATION
/FLASHING
SIGNAL

CONSTRUCTION AND OPERATION

TRACTION CONTROL SYSTEM (TCL)

13D-6

Diagnostic Trouble Code Chart

NOTE: Since the TCL system is controlled with the same ABS/TCL-ECU used to control the ABS system, the
codes (with a *) used only for the ABS system also appear.

.

CODE NO.

MAJOR CONTENTS OF DIAGNOSIS

C1200

Front right wheel speed sensor malfunction

C1201

Front right wheel speed sensor invalid signal

C1205

Front left wheel speed sensor malfunction

C1206

Front left wheel speed sensor invalid signal

C1210

Rear right wheel speed sensor malfunction

C1211

Rear right wheel speed sensor invalid signal

C1215

Rear left wheel speed sensor malfunction

C1216

Rear left wheel speed sensor invalid signal

C1226*

ABS front right solenoid inlet valve

C1231*

ABS front right solenoid outlet valve

C1236*

ABS front left solenoid valve inlet valve

C1241*

ABS front left solenoid valve outlet valve

C1246*

ABS rear right solenoid valve inlet valve

C1251*

ABS rear right solenoid valve outlet valve

C1256*

ABS rear left solenoid valve inlet valve

C1261*

ABS rear left solenoid valve outlet valve

C1266*

ABS hydraulic unit motor stuck

C1273*

ABS hydraulic unit motor drive circuit stuck off

C1274*

ABS hydraulic unit motor drive circuit stuck on

C1278*

ABS solenoid valve power circuit stuck off

C1279*

ABS solenoid valve power circuit stuck on

C1395*

Brake fluid filling incompleted

C1396

Engine torque intervention refusal

C1397

Transmission range switch failure

C1607

ABS/TCL-ECU failure

C1860

ABS/TCL-ECU power supply high voltage

C1861

ABS/TCL-ECU power supply low voltage

U1073

CAN communications system bus off

U1100

CAN communications system time out error engine related data

U1101

CAN communications system time out error A/T related data

U1120

CAN communications system TCL uncontrollable by engine malfunction

U1400

Dynamic range error APS1
