PANIC ALRAM SYSTEM

CHASSIS ELECTRICAL

54A-23

PANIC ALRAM SYSTEM

M2540001400016

A panic alarm system has been installed which,
when a panic alarm button is pressed, flashes head-
lights and sounds a horn to inform people in the
vicinity of anomalies.
Panic alarm system operation table

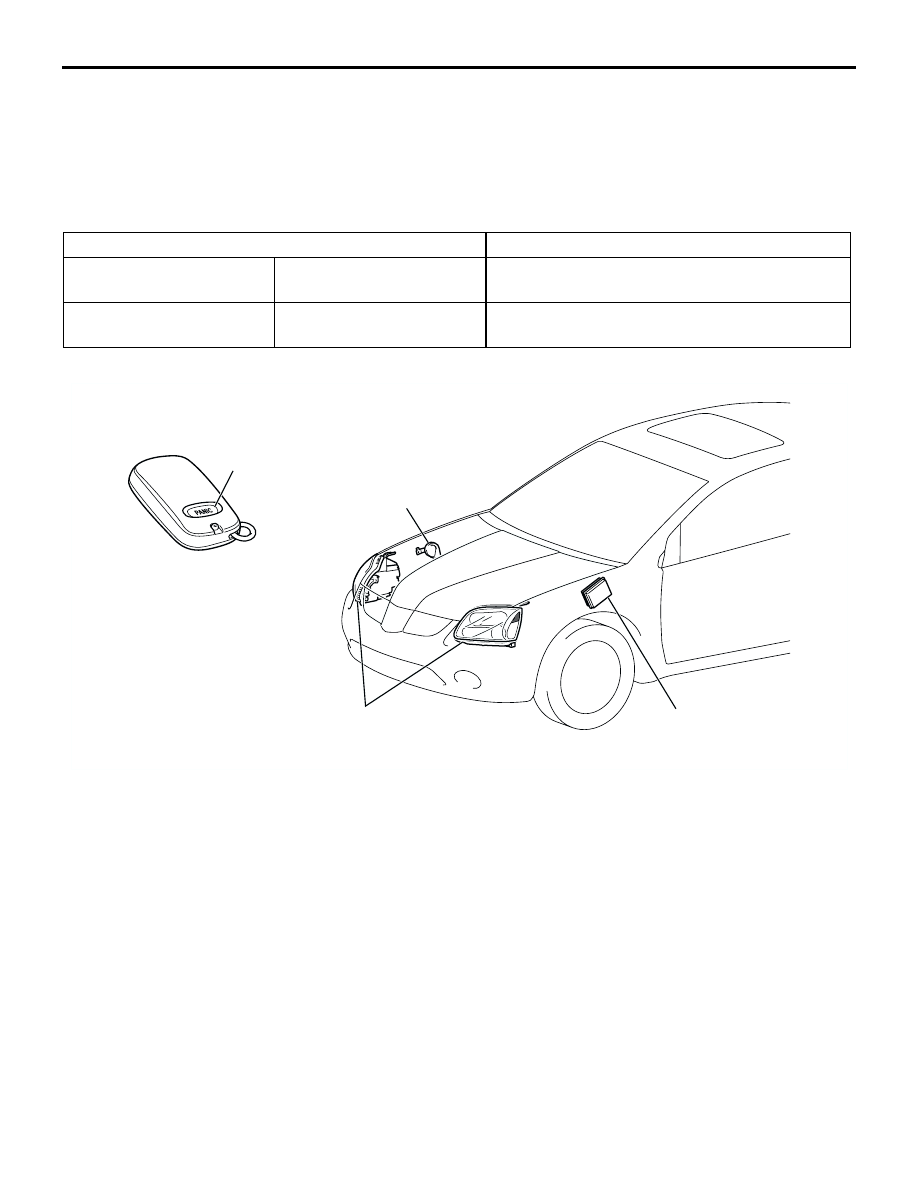

CONSTRUCTION DIAGRAM

OPERATION OF TRANSMITTER

OPERATION OF PANIC ALARM SYSTEM

Panic button

Press once

Starts the panic alarm (headlights flash and horn
honks for three minutes)

Lock button, Unlock button,
Trunk button, Panic button

Press again

Stops the panic alarm in progress

AC306745AB

ETACS-ECU

HORN

HEADLIGHT ASSEMBLY

PANIC BUTTON

NOTES

13D-1

GROUP 13D

TRACTION

CONTROL SYSTEM

(TCL)

CONTENTS

GENERAL DESCRIPTION. . . . . . . . .

13D-2

CONSTRUCTION AND OPERATION

13D-5

GENERAL DESCRIPTION

TRACTION CONTROL SYSTEM (TCL)

13D-2

GENERAL DESCRIPTION

M2136000100011

The traction control system (TCL) controls engine
output to prevent the wheelspin of the drive wheels
(front wheels) for improved stability.

In general, drivers adjust pedal depression amounts
to control engine output. When an action such an
excessive pedal depression amount causes the spin
of the drive wheels (front wheels), TCL controls the
engine output instead of the driver to reduce the bur-
den on him.

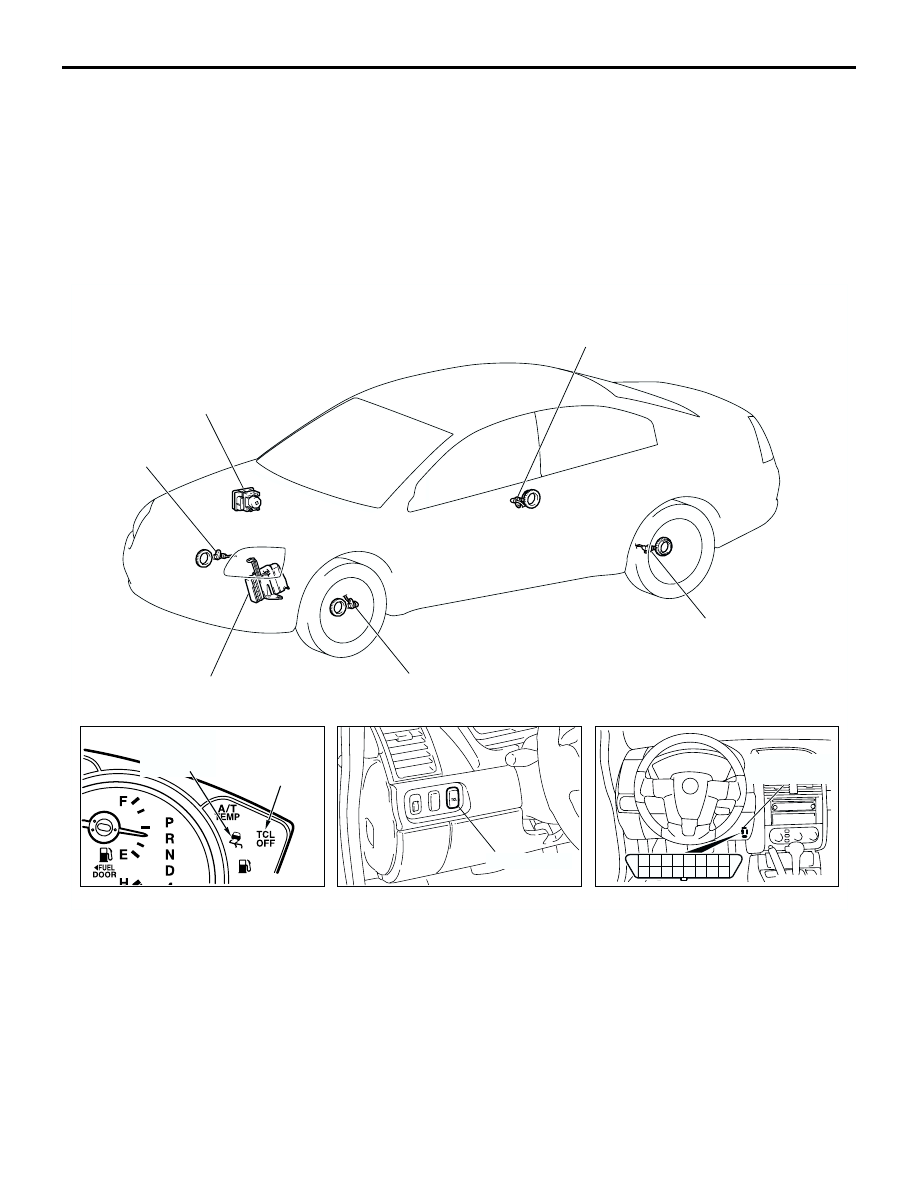

CONSTRUCTION DIAGRAM

AC305708

AC305706

AC305703

9 10 11 12 13 14 15 16

1

2 3

4 5 6 7 8

AC305705

AC305707

WHEEL SPEED SENSOR

PCM

HYDRAULIC UNIT
ASSEMBLY
(BUILT-IN ABS/TCL-ECU)

"TCL OFF"
INDICATOR
LIGHT

TCL SWITCH

DATA LINK
CONNECTOR

TCL WORK
INDICATOR
LIGHT

WHEEL SPEED SENSOR

WHEEL SPEED SENSOR

WHEEL SPEED
SENSOR

AB
