MULTI-CENTER DISPLAY

CHASSIS ELECTRICAL

54A-19

CONSTRUCTION DIAGRAM

AC306904AB

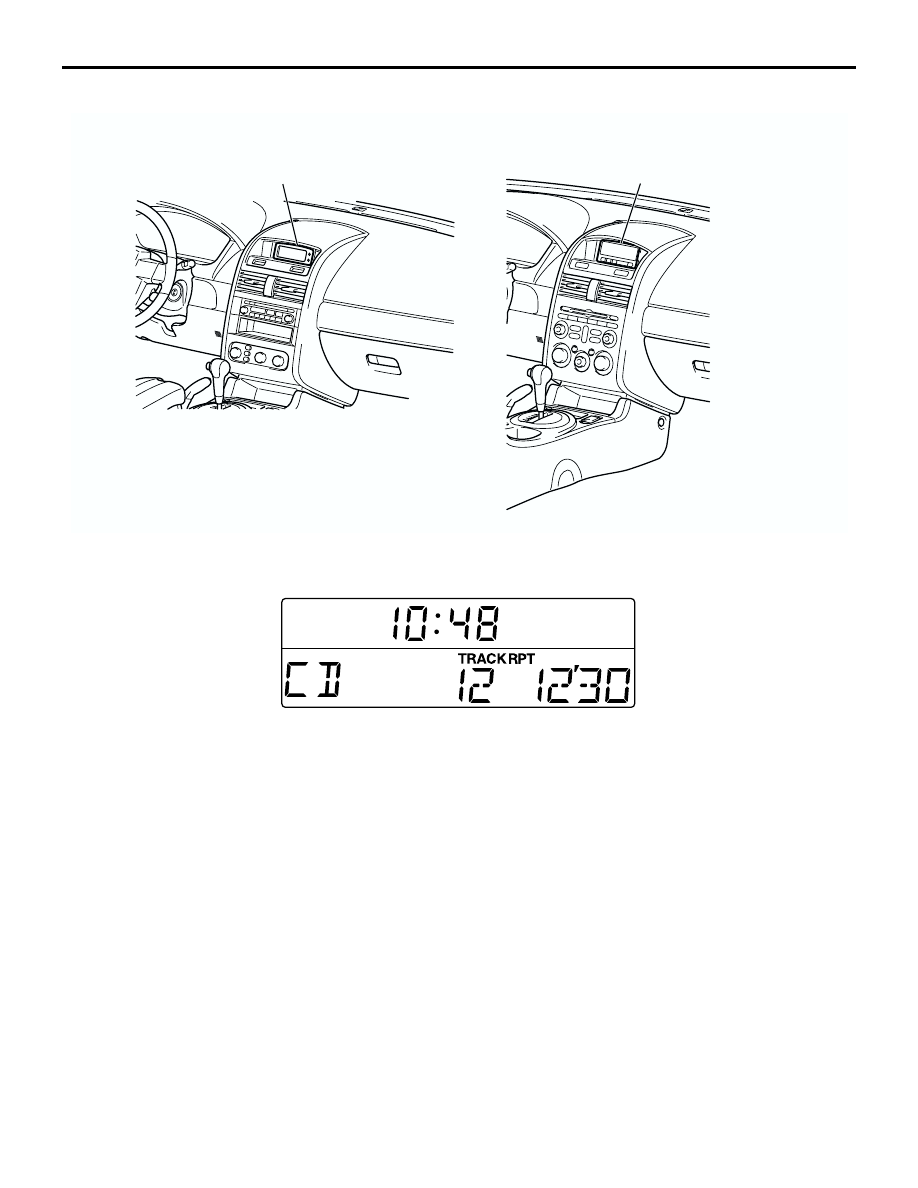

MULTI-CENTER DISPLAY (LOW GRADE TYPE)

MULTI-CENTER DISPLAY (MIDDLE GRADE TYPE)

AC207233

AB

<MULTI-CENTER DISPLAY (LOW GRADE TYPE)>

CLOCK  DISPLAY/AUDIO OPERATION INFORMATION DISPLAY

MULTI-CENTER DISPLAY

CHASSIS ELECTRICAL

54A-20

AC306903AC

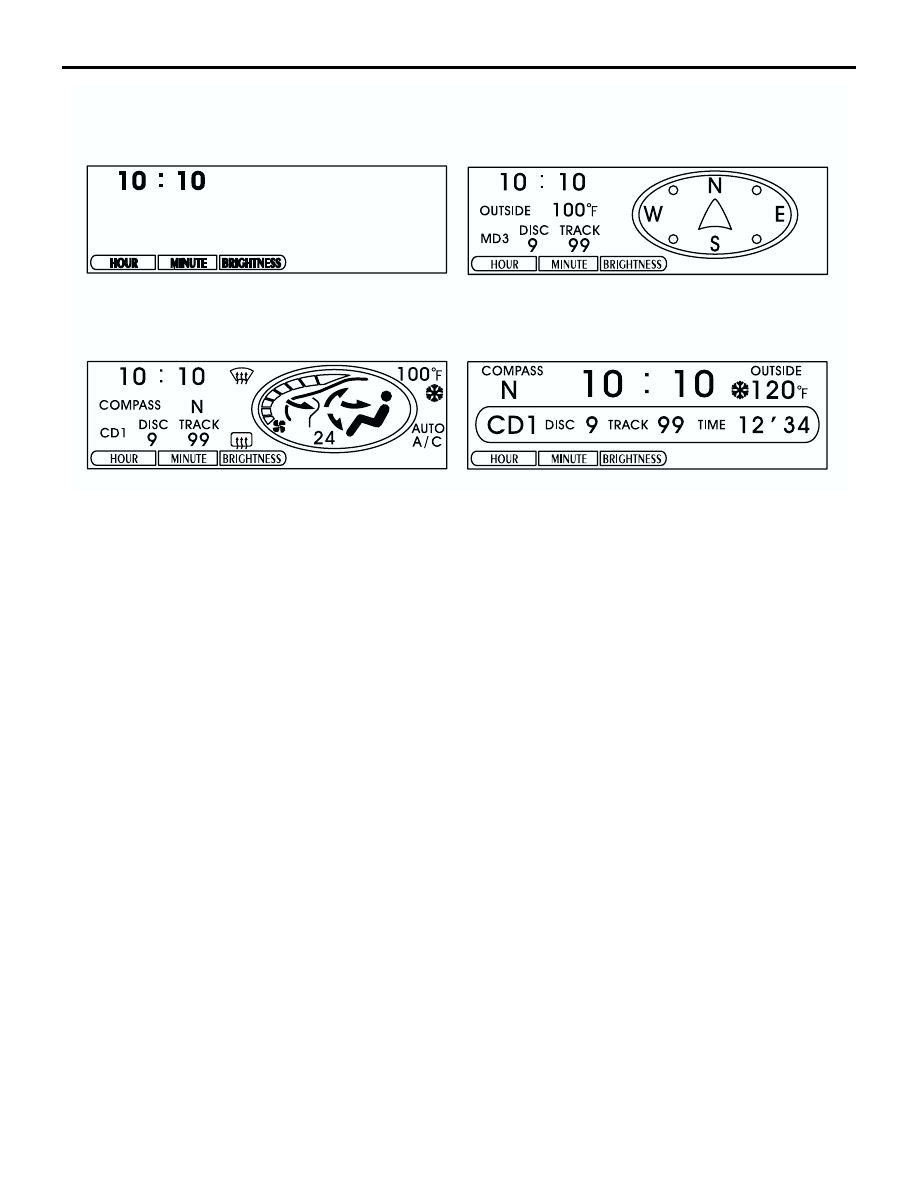

<MULTI-CENTER DISPLAY (MIDDLE GRADE TYPE)>

CLOCK DISPLAY

ENVIRONMENT INFORMATION DISPLAY

AIR CONDITIONER INFORMATION DISPLAY

ENTERTAINMENT INFORMATION DISPLAY

MULTI-CENTER DISPLAY

CHASSIS ELECTRICAL

54A-21

SYSTEM BLOCK DIAGRAM

AC209646AB

MULTI-CENTER DISPLAY

CLOCK DISPLAY

AUDIO OPERATION
INFORMATION DISPLAY

AUDIO

<MULTI-CENTER DISPLAY (LOW GRADE TYPE)>

MULTI-CENTER DISPLAY

CLOCK DISPLAY

AIR CONDITIONING
DISPLAY

CONFIGURATION
FUNCTION

OUTSIDE TEMPERATURE

AUDIO DISPLAY

COMPASS DISPLAY

ETACS-ECU

AMBIENT AIR
TEMPERATURE
SENSOR

AUDIO

A/C ECU

<MURUTI-CENTER DISPLAY (MIDDLE GRADE TYPE)>

CAN

COMPASS

ACCESSORY SOCKET

CHASSIS ELECTRICAL

54A-22

CAN COMMUNICATION INPUT SIGNALS TABLE

DTC CODE TABLE

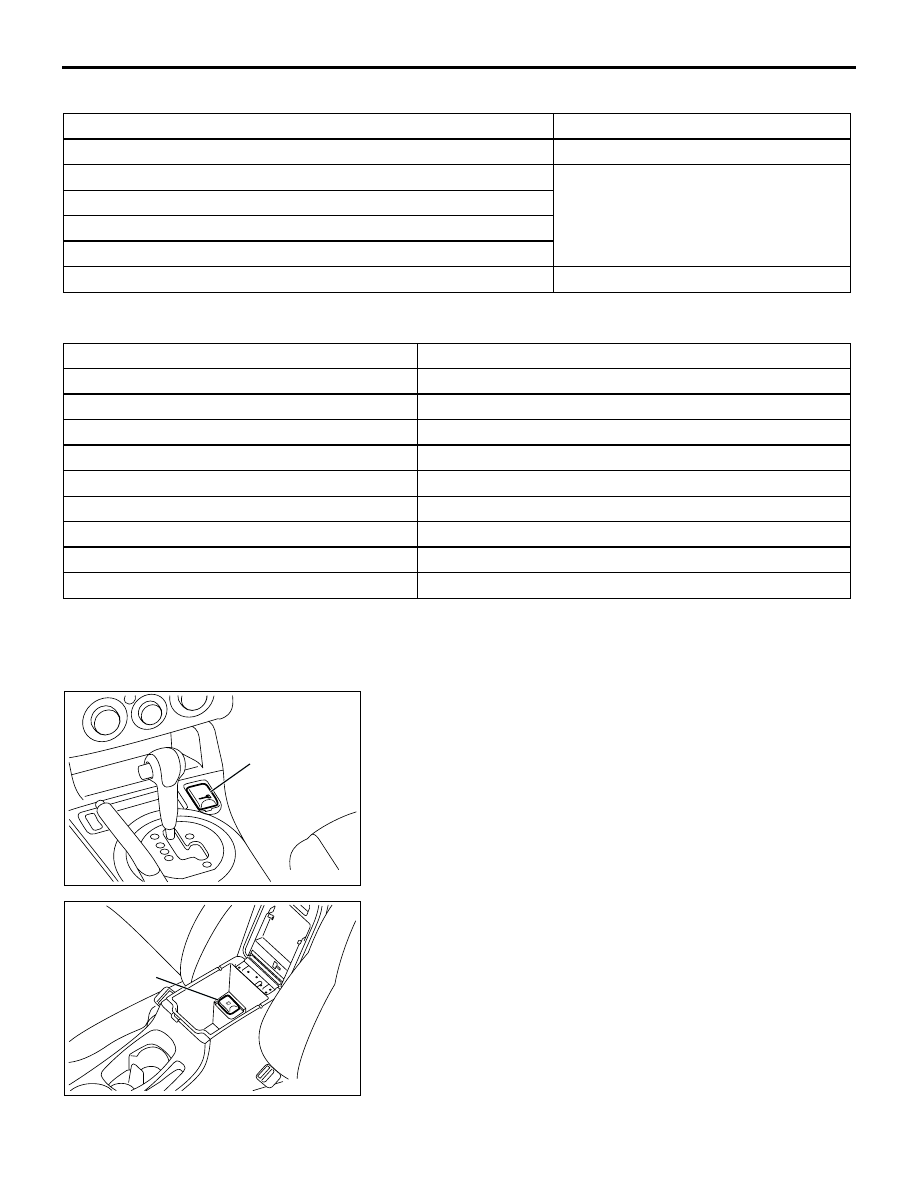

ACCESSORY SOCKET

M2540008000116

An accessory socket has been installed in the front of the floor
console and inside the console box. Since power is always
supplied to the accessory sockets in the console box, it is con-
venient for charging a cellular telephone and others. If a cigar
lighter plug offered by the dealer has been used, the accessory
socket in the front of the floor console could be as a cigar
lighter.

SIGNAL

TRANSMITTER ECU

Vehicle stop signal

Powertrain control module

Set temperature signal

A/C-ECU

Ambient temperature signal
Fan air volume signal
Air outlet mode signal
Customize signal

ETACS-ECU

DTC CODE NO.

DIAGNOSTIC ITEM

010

Bus off

011

Engine-related timeout

012

Transmission-related timeout

013

A/C-ECU timeout/not equipped

014

Combination meter timeout/not equipped

019

ETACS-ECU timeout

020

Engine-related failure data

021

Combination meter-related failure data

022

A/C-ECU-related failure data

POWER

OUTLET

AC306477

AB

ACCESSORY
SOCKET

AC306478

PO

WER

OUTLET

12V 120W

AB

ACCESSORY
SOCKET
