TECHNICAL FEATURES

GENERAL

00-7

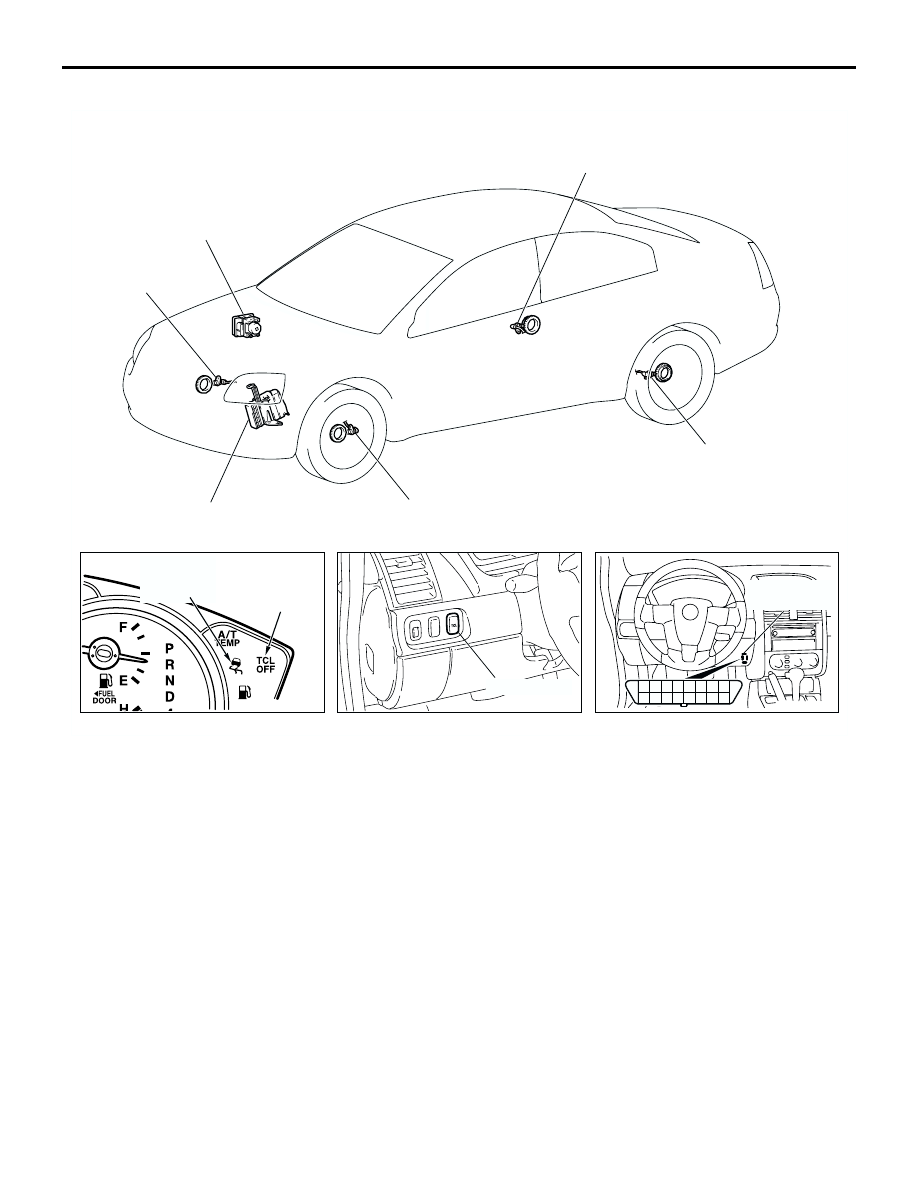

CONSTRUCTION DIAGRAM

AC305708

AC305706

AC305703

9 10 11 12 13 14 15 16

1

2 3

4 5 6 7 8

AC305705

AC305707

WHEEL SPEED SENSOR

PCM

HYDRAULIC UNIT
ASSEMBLY
(BUILT-IN ABS/TCL-ECU)

"TCL OFF"
INDICATOR
LIGHT

TCL SWITCH

DATA LINK
CONNECTOR

TCL WORK
INDICATOR
LIGHT

WHEEL SPEED SENSOR

WHEEL SPEED SENSOR

WHEEL SPEED
SENSOR

AB

TECHNICAL FEATURES

GENERAL

00-8

PASSIVE SAFETY

M2000032000145

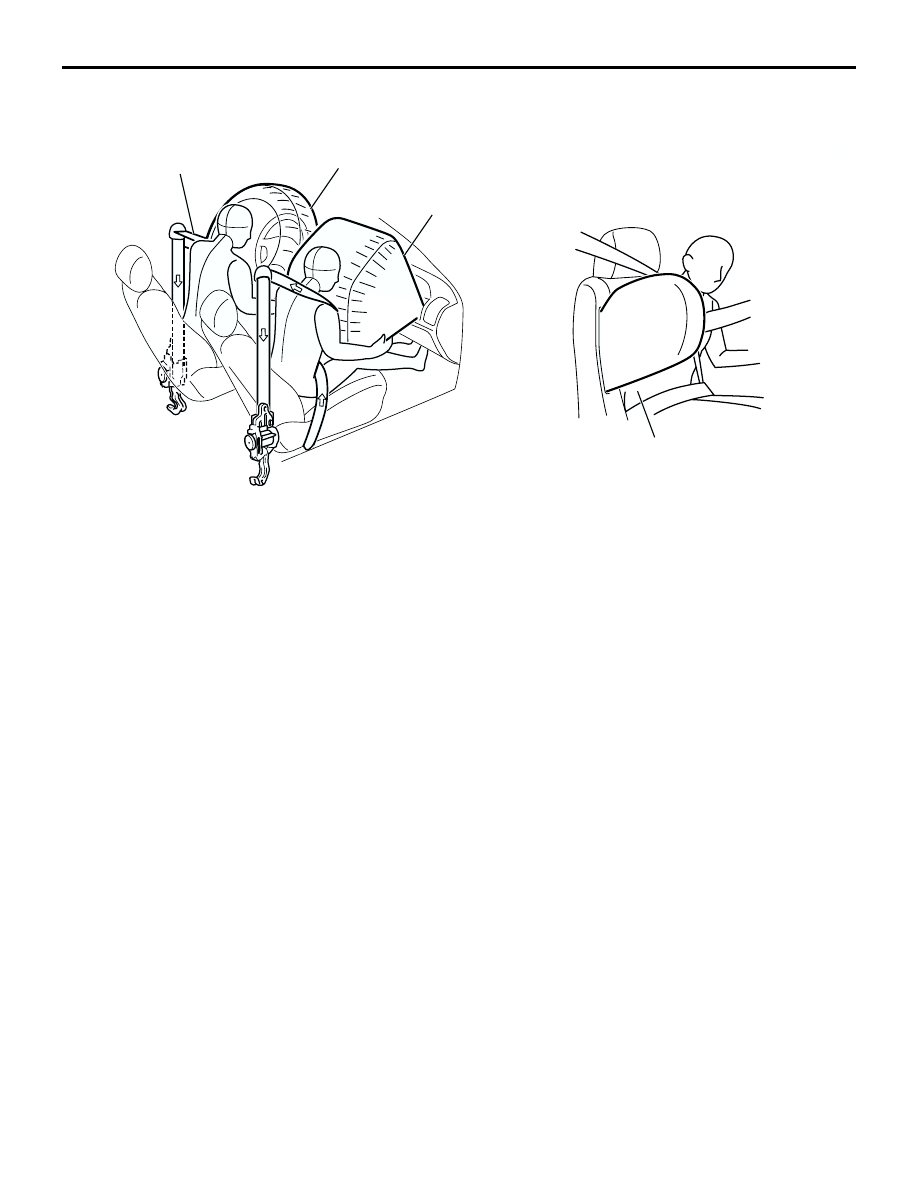

SRS AIR BAGS

Dual Supplemental Restraint System (SRS) front air
bags deploy only upon detection of frontal impact.
For the passenger and driver seat airbags, an
advanced airbag system has been employed that
optimally controls the inflation sizes of the airbags in
two steps in accordance with collision level and
driver

⋅

and passenger information detected.

When used in combination with the 3-point ELR seat
belts, they significantly reduce head and upper torso
injury to front-seat occupants.

The seat belts with pre-tensioner work simulta-
neously with the SRS. The pre-tensioner takes up
seat slack immediately when a collision takes place
by restraining the front passengers sooner than the
SRS. This prevents the passengers from moving for-
ward.
In the case of side impact, the airbags concealed at
the sides of the front seats instantly inflate. The side
airbags soften blows to the front passengersWhether
the pretensioner is activated or deactivated depends
on the use of the seatbelt.

AC308646AB

SIDE-AIRBAG

PASSENGER'S
(FRONT) AIR BAG

DRIVER'S AIR BAG

SEAT BELT PRE-TENSIONER

TECHNICAL FEATURES

GENERAL

00-9

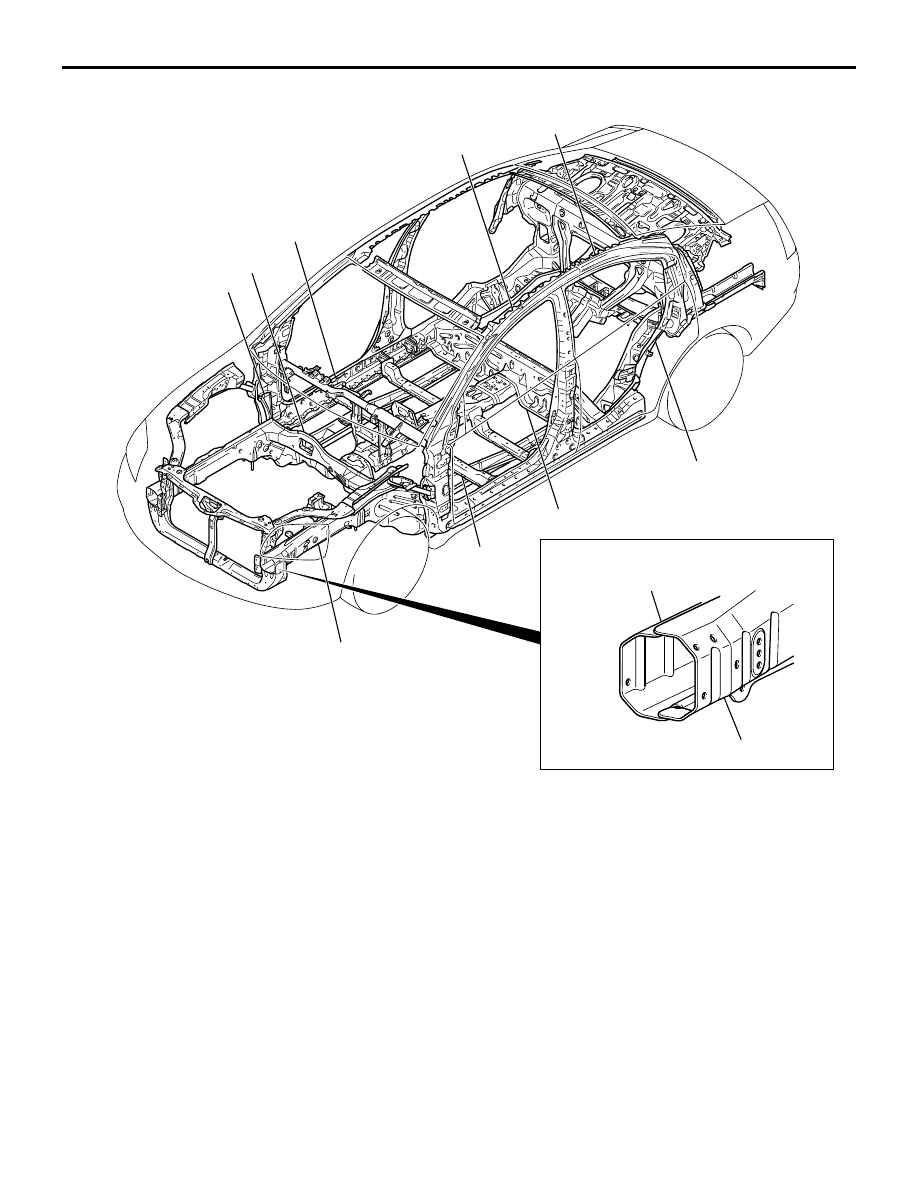

BODY CONSTRUCTION

.

A high-energy absorbing front and rear sidemember
structure and high rigidity structure combination alle-
viates passenger injury, maintains cabin space and
improves passenger rescue upon impact from all
directions.
1. Front side member is straighter and has

octagonal cross sections.

2. Dash brace reinforcement is used.
3. Dash panel crossmember upper is used.
4. High rigidity side sill outer reinforcement inner is

used.

5. Large side sill reinforcement is used.

6. High rigidity side roof rail reinforcement rear is

used.

7. Rear floor sidemember is straighter and has large

cross section.

8. High rigidity rear floor crossmember is used.
9. High rigidity front floor crossmember front is used.

OTHER SAFETY FEATURES

•

3-point ELR seat belts

•

Front fog lights <GTS>

•

Child-protection rear door locks

•

Child restraint fitting

AB301107

1

2

3

7

5

8

6

4

9

FRONT SIDEMEMBER INNER

FRONT SIDEMEMBER OUTER

OCTAGONAL CROSS SECTION

AB

TECHNICAL FEATURES

GENERAL

00-10

ENVIRONMENTAL PROTECTION

M2000027000194

Mitsubishi has given careful consideration to protec-
tion of natural resources and the environment in the
vehicle. Environmentally friendly features are shown
below.

Items Dealing with Environmental Protection

SERVICEABILITY AND RELIABILITY

M2000028000197

MUT-III (Multi Use Tester-III)

Comprehensive improvements have been made to
the MUT-II, a tester for diagnosing problems with the
electronic control system. For easier servicing, the
newly developed MUT-III has greatly improved func-
tions and is much easier to use. The MUT-III
expands the functions of the MUT-II in the following
ways:

1. Interactive Error Diagnosis

•

In response to the nature of the problem, the
corresponding troubleshooting page from the
maintenance manual is retrieved.

•

Service data is displayed, and from the actua-
tor test screen, the page of the maintenance
manual is retrieved for a list of inspection ref-
erence values.

2. Service Manual Viewer

•

The new model guide and maintenance man-
ual can be displayed on a personal computer
monitor.

3. CAN* bus diagnostics

•

Auto diagnosis function for the CAN commu-
nications bus line.

NOTE: *CAN: Controller Area Network (for further
details, refer to Group 54C

P.54C-2

.)

ENHANCED DIAGNOSIS SYSTEM

Diagnosis functions have been included for the fol-
lowing systems, so that it is possible to use the scan
tool to read the diagnosis codes and service data
and to carry out actuator tests. In addition, it is possi-
ble to read the diagnosis codes by the flashing of the
warning light in some systems.

•

PCM

•

ABS

•

TCL

•

Automatic A/C

•

ETACS

•

Multi-center display (MIDDLE GRADE TYPE)

•

Combination meter

•

SRS

PREVENTION OF
ATMOSPHERIC
POLLUTION

PARTS NAME

MAIN DETAIL

Air pollution control

Cylinder head gasket

Metal materials reduce the volume of incomplete
combustion generated between the cylinder block and
cylinder head, and suppress the level of unburned
hydrocarbon (HC).

Fuel hose (engine side)

Plastic used for lower HC emission.

Extending life

Transmission fluid/filter

Low maintenance

Weight reduced (for
better fuel efficiency)

Intake manifold

More parts have been made with plastic.

Reduction of toxic
substances

Body paint

Uses lead-free materials

Recycling

Air intake hose, plastic
parts (100g and over)

Easily recyclable.

Scuff plate, trunk floor
board, etc.

Uses material recycled in-plant.
