CYLINDER HEAD GASKET

TSB Revision

ENGINE MECHANICAL <3.8L ENGINE>

11C-47

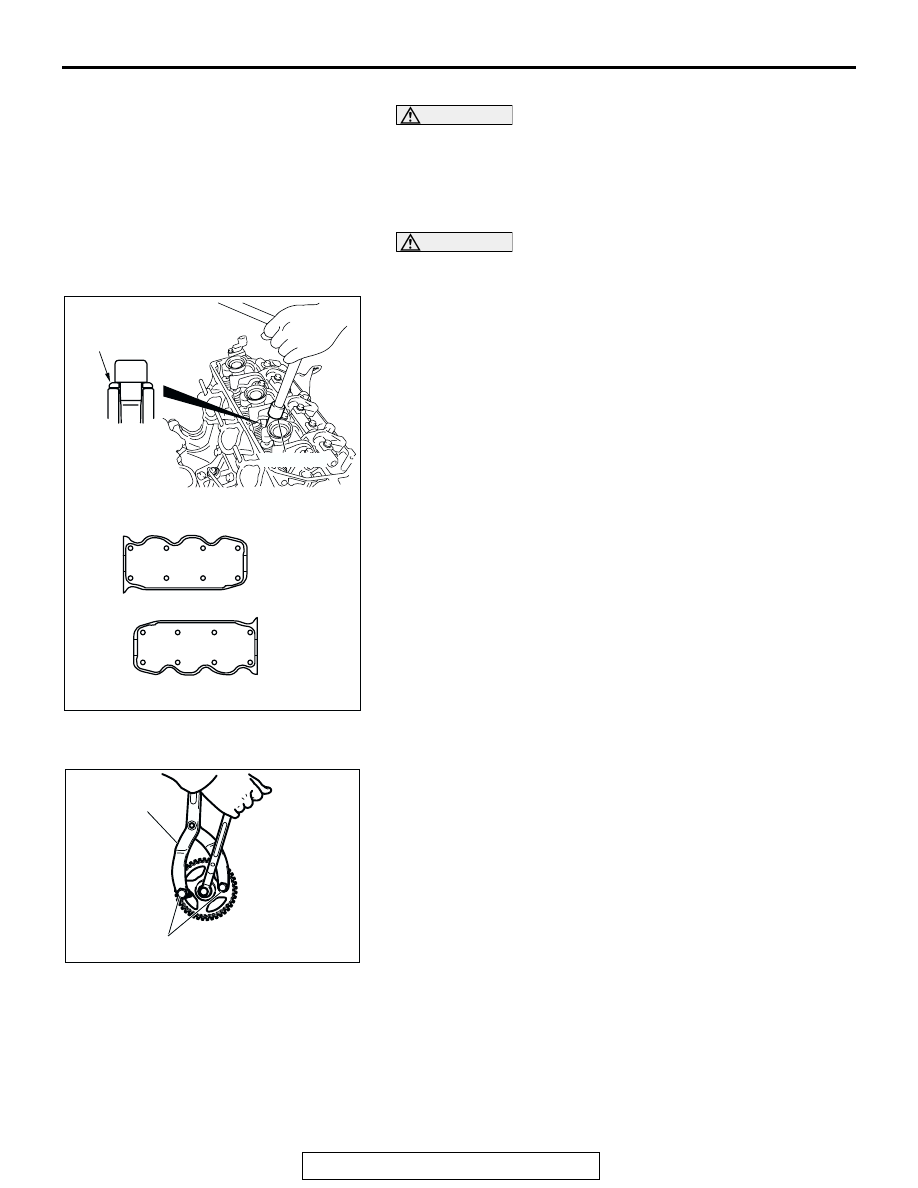

>>B<< CYLINDER HEAD ASSEMBLY INSTALLATION

CAUTION

Be careful that no foreign material gets into the cylinder,
coolant passages or oil passages. Engine damage may
result.
1. Use a scraper to clean the gasket surface of the cylinder

head assembly.

CAUTION

Install the head bolt washers with the beveled side facing
upwards as shown in the illustration.
2. Using special tool MD998051 and a torque wrench, tighten

the bolts to the specified torque in the order shown in the
illustration. (in two or three cycles)

Tightening torque: 108

± 5 N⋅m (80 ± 3 ft-lb) → 0 N⋅m (0

in-lb)

→ 108 ± 5 N⋅m (80 ± 3 ft-lb)

.

>>C<< CAMSHAFT SPROCKET INSTALLATION
1. Use special tools MD998715 and MB990767 in the same

way as during removal to install the camshaft sprocket.

2. Tighten the camshaft sprocket mounting bolt to the specified

torque.

Tightening torque: 88

± 10 N⋅m (65 ± 7 ft-lb)

AC206709

MD998051

CYLINDER
HEAD BOLT
WASHER

EXHAUST SIDE

EXHAUST SIDE

INTAKE SIDE

RIGHT BANK

LEFT BANK

1

2

3

4

5

6

7

8

1

2

3

4

5
6

7

8

AB

ACX00301AB

MB990767

MD998715

TIMING BELT

TSB Revision

ENGINE MECHANICAL <3.8L ENGINE>

11C-48

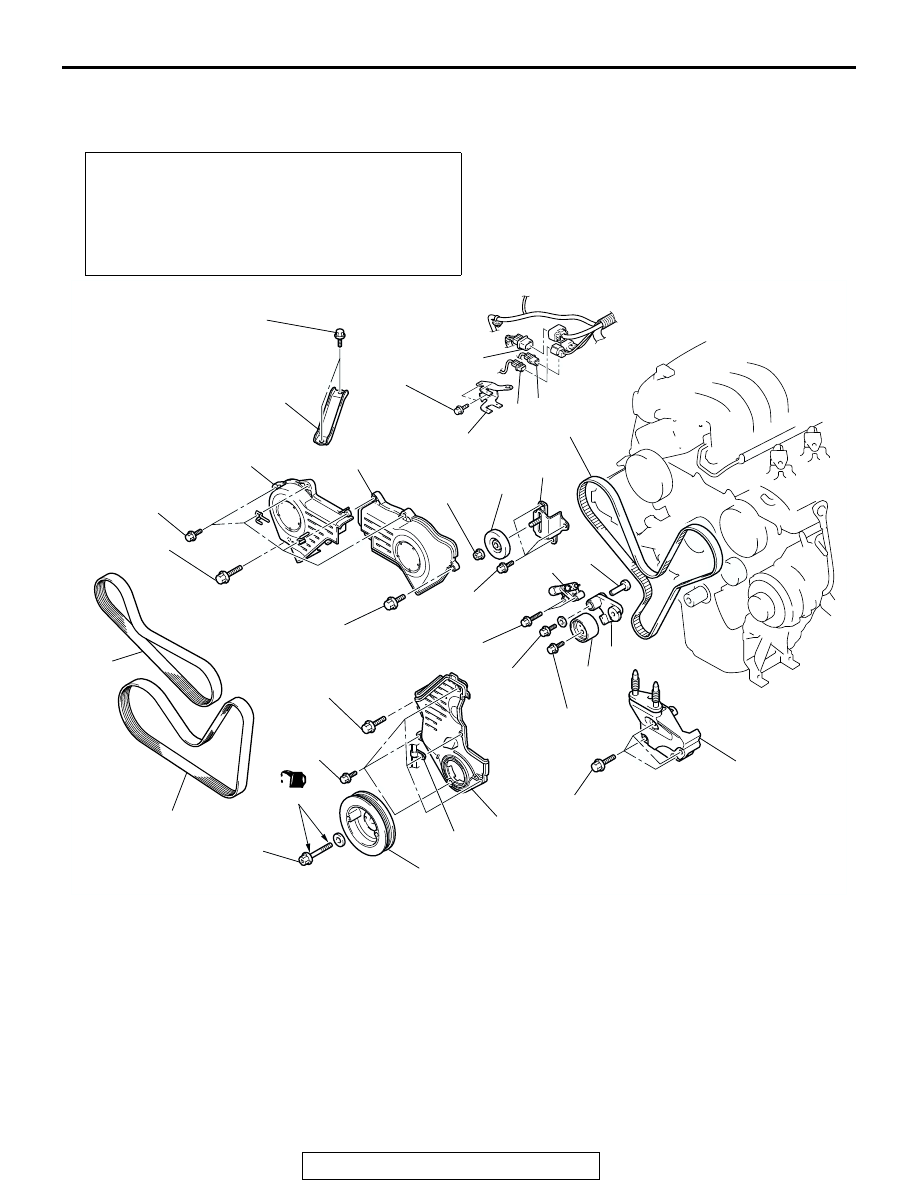

TIMING BELT

REMOVAL AND INSTALLATION

M1112004300775

Pre-removal and Post-installation Operation
• Engine Cover Removal and Installation (Refer to

P.11C-15

.)

• Under Cover Removal and Installation (Refer to GROUP

51, Under Cover

P.51-11

.)

• Side Under Cover Removal and Installation (Refer to

GROUP 51, Under Cover

P.51-11

.)

AC306787

45 ± 5 N·m
34 ± 3 ft-lb

48 ± 6 N·m
36 ± 4 ft-lb

44 ± 10 N·m
33 ± 7 ft-lb

23 ± 3 N·m
17 ± 2 ft-lb

41 ± 8 N·m
30 ± 6 ft-lb

14 ± 1 N·m
120 ± 13 in-lb

11 ± 1 N·m
98 ± 8 in-lb

185 N·m
136 ft-lb

14 ± 1 N·m
120 ± 13 in-lb

14 ± 1 N·m
120 ± 13 in-lb

11 ± 1 N·m
98 ± 8 in-lb

49 ± 9 N·m
36 ± 7 ft-lb

36 ± 6 N·m
27 ± 4 ft-lb

11 ± 1 N·m
98 ± 8 in-lb

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

AB

(ENGINE OIL)

REMOVAL STEPS

1.

GENERATOR DRIVE BELT

2.

POWER STEERING OIL PUMP
DRIVE BELT

<<A>>

>>C<<

3.

CRANKSHAFT PULLEY

4.

CONTROL WIRING HARNESS
AND INJECTOR WIRING
HARNESS COMBINATION
CONNECTOR

5.

KNOCK SENSOR CONNECTOR

6.

CRANKSHAFT POSITION
SENSOR CONNECTOR

7.

CONNECTOR BRACKET

8.

ENGINE MOUNT STAY

9.

TIMING BELT FRONT UPPER
COVER, RIGHT

10. TIMING BELT FRONT UPPER

COVER, LEFT

11. TENSIONER PULLEY
12. TENSIONER BRACKET
13. CRANKSHAFT POSITION

SENSOR HARNESS CLAMP

14. TIMING BELT LOWER COVER

REMOVAL STEPS (Continued)

TIMING BELT

TSB Revision

ENGINE MECHANICAL <3.8L ENGINE>

11C-49

Required Special Tools:

• MB991800: Pulley Holder

• MB991802: Pin B

• MD998767: Tensioner Pulley Socket Wrench

• MD998769: Crankshaft Pulley Spacer

REMOVAL SERVICE POINTS

.

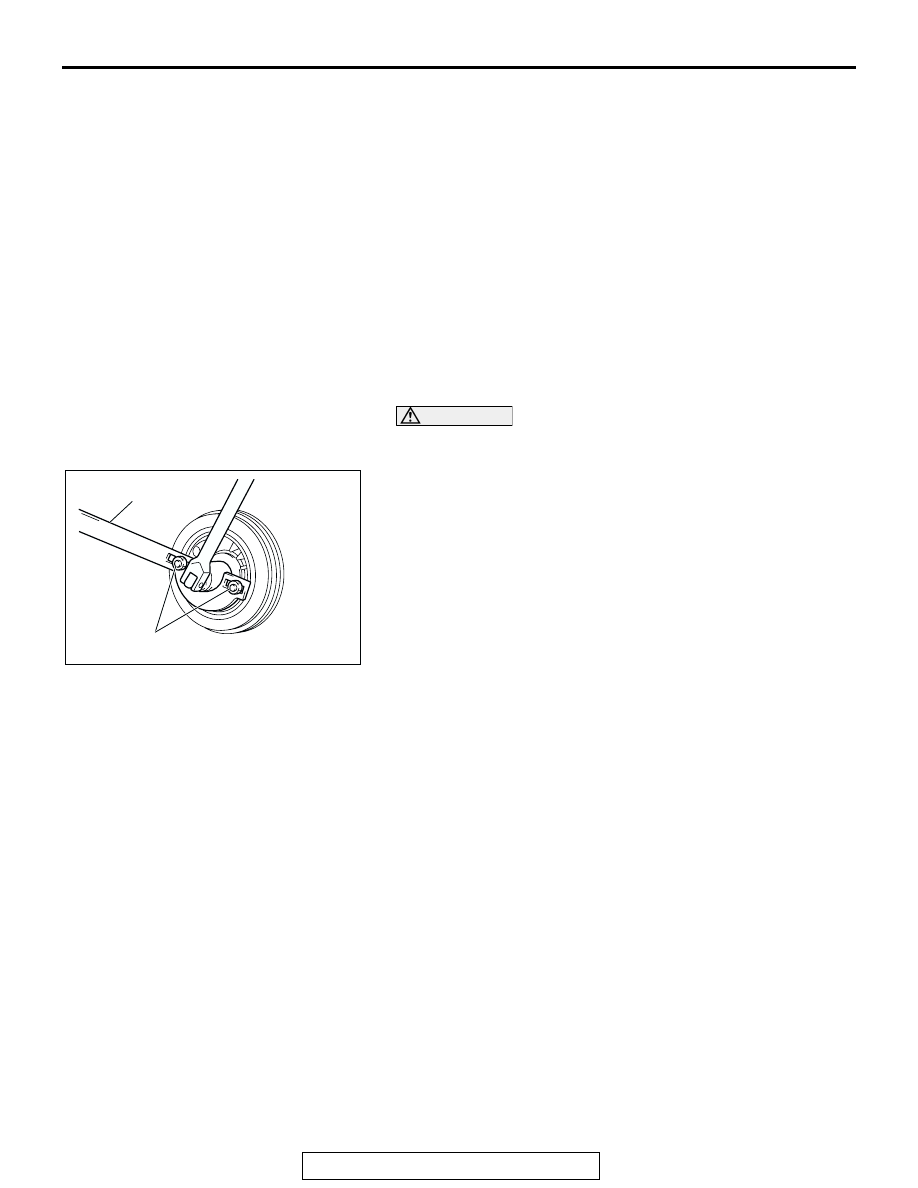

<<A>> CRANKSHAFT PULLEY REMOVAL

CAUTION

Use only the specified special tools, or a damaged pulley
damper could result.
Use special tools MB991800 and MB991802 to remove the
crankshaft pulley from the crankshaft.

.

•

ENGINE FRONT MOUNTING
BRACKET (REFER TO GROUP
32, ENGINE MOUNTING

P.32-4

.)

15. ENGINE SUPPORT BRACKET

<<B>>

>>B<<

16. TIMING BELT

>>A<<

17. AUTO-TENSIONER
18. TENSIONER PULLEY
19. TENSIONER ARM
20. SHAFT

REMOVAL STEPS (Continued)

ACX01675AB

MB991800

MB991802

TIMING BELT

TSB Revision

ENGINE MECHANICAL <3.8L ENGINE>

11C-50

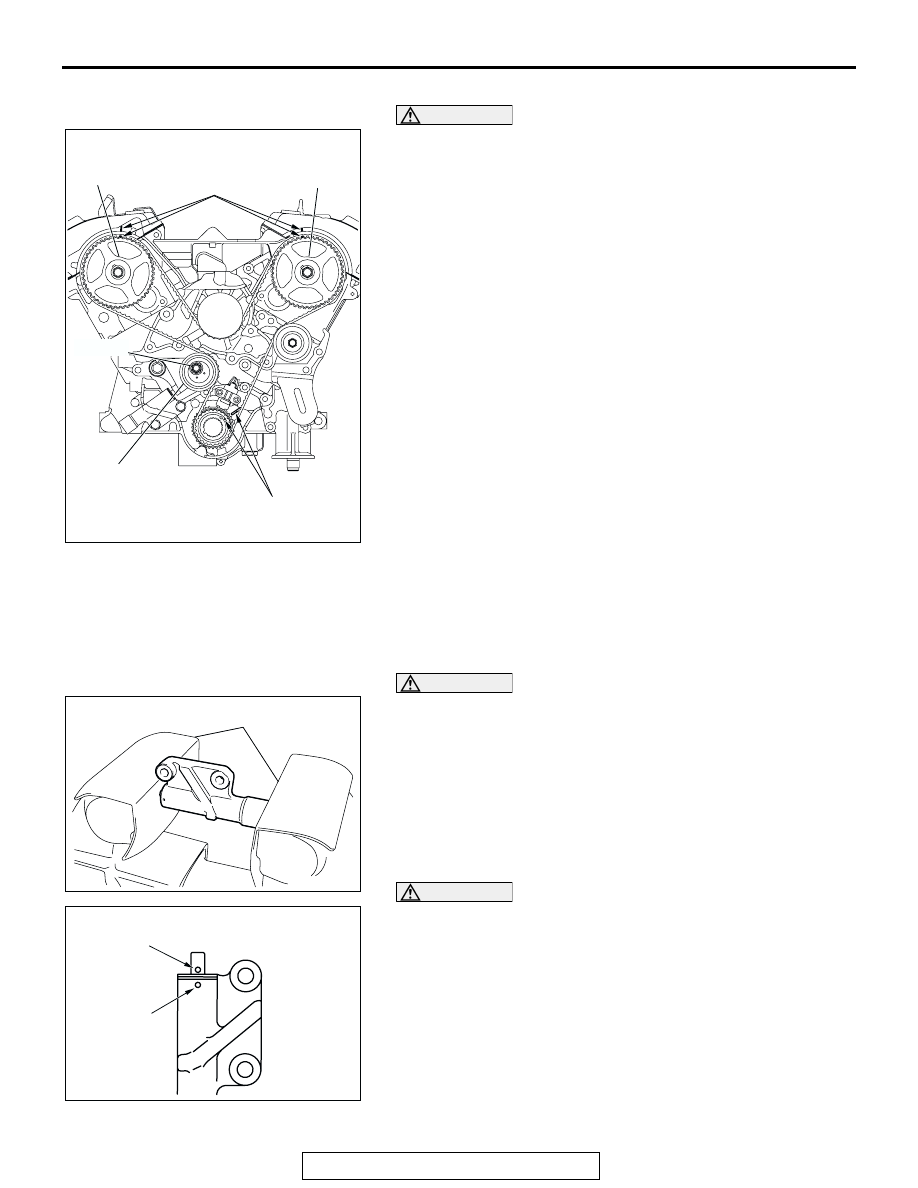

<<B>> TIMING BELT REMOVAL

CAUTION

Never turn the crankshaft counterclockwise.
1. Turn the crankshaft clockwise to align each timing mark and

to set the number 1 cylinder to compression top dead center.

2. If the timing belt is to be reused, chalk an arrow on the flat

side of the belt, indicating the clockwise direction.

3. Loosen the center bolt of the tensioner pulley, then remove

the timing belt.

INSTALLATION SERVICE POINTS

.

>>A<< AUTO-TENSIONER INSTALLATION
1. If the auto-tensioner rod remains fully extended, set

according to the following procedure.

CAUTION

Place the auto-tensioner perpendicular to the jaws of the
vice.

(1) Place two dolly blocks in a vice as shown in the

illustration, and then place the auto-tensioner in the vice.

CAUTION

Never compress the pushrod too fast, or it may be dam-
aged.

(2) Slowly compress the pushrod of the auto-tensioner until

pin hole A in the pushrod is aligned with pin hole B in the
cylinder.

(3) Insert the setting pin into the pin holes once they are

aligned.
NOTE: If replacing the auto-tensioner, the pin will already
be inserted into the pin holes of the new part.

AC206490

TIMING MARK

TIMING MARK

CENTER
BOLT

TENSION
PULLEY

CAMSHAFT
SPROCKET
(LEFT BANK)

CAMSHAFT
SPROCKET
(RIGHT BANK)

AB

AC205272

DOLLY BLOCKS

AB

AC206607

PIN HOLE A

PIN HOLE B

AB
