Mitsubishi Galant (2004+). Manual - part 1566





SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-157

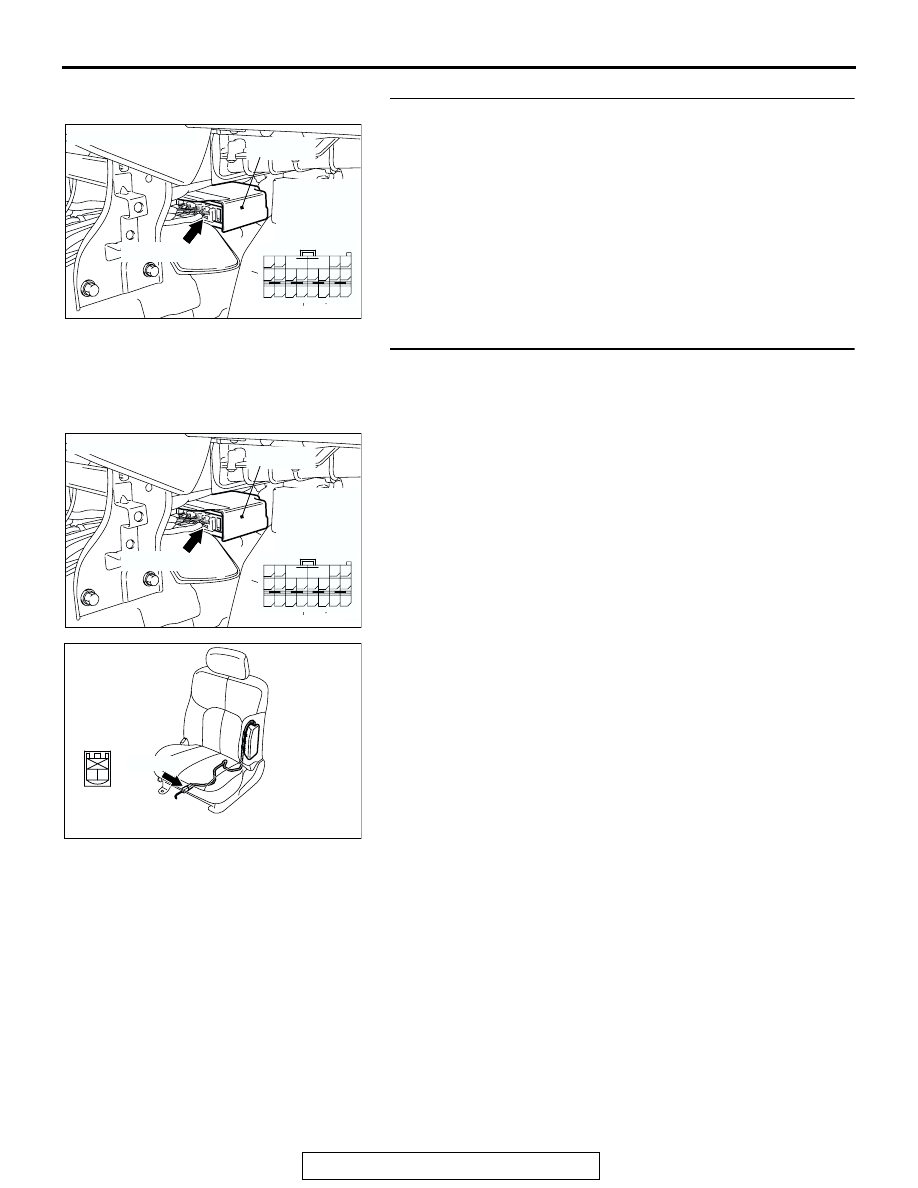

STEP 4. Check SRS-ECU connector C-122.

Q: Is the connector correctly engaged?

YES : Go to Step 5.
NO :  Engage the connector correctly. Then go to Step 9.

STEP 5. Check SRS-ECU connector C-122 and side-airbag
module (LH) connector D-24. (Using scan tool MB991958,
read the diagnostic trouble code.)
(1) Disconnect the negative battery terminal.

(2) Disconnect connectors C-122 and D-24, and then

reconnect them.

(3) Connect the negative battery terminal.
(4) Erase the diagnostic trouble code memory, and check the

diagnostic trouble code.

Q: Is DTC B1430 out put?

YES : Go to Step 6.
NO :  The procedure is complete. It is assumed that DTC

B1430 set because connector C-122 or D-24 was
engaged improperly.

AC305362

CONNECTOR: C-122

C-122 (Y)

AI

SRS-ECU

C-122
Harness side
connector
(rear view)

A

B

18

10

15

7

13

5

14

6

16

8

17

9

19

11

20

12

1 2

3 4

AC305362

CONNECTOR: C-122

C-122 (Y)

AI

SRS-ECU

C-122
Harness side
connector
(rear view)

A

B

18

10

15

7

13

5

14

6

16

8

17

9

19

11

20

12

1 2

3 4

AC307778

CONNECTOR : D-24

AC

D-24 (R)

2

1

HARNESS SIDE
CONNECTOR
(REAR VIEW)

SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-158

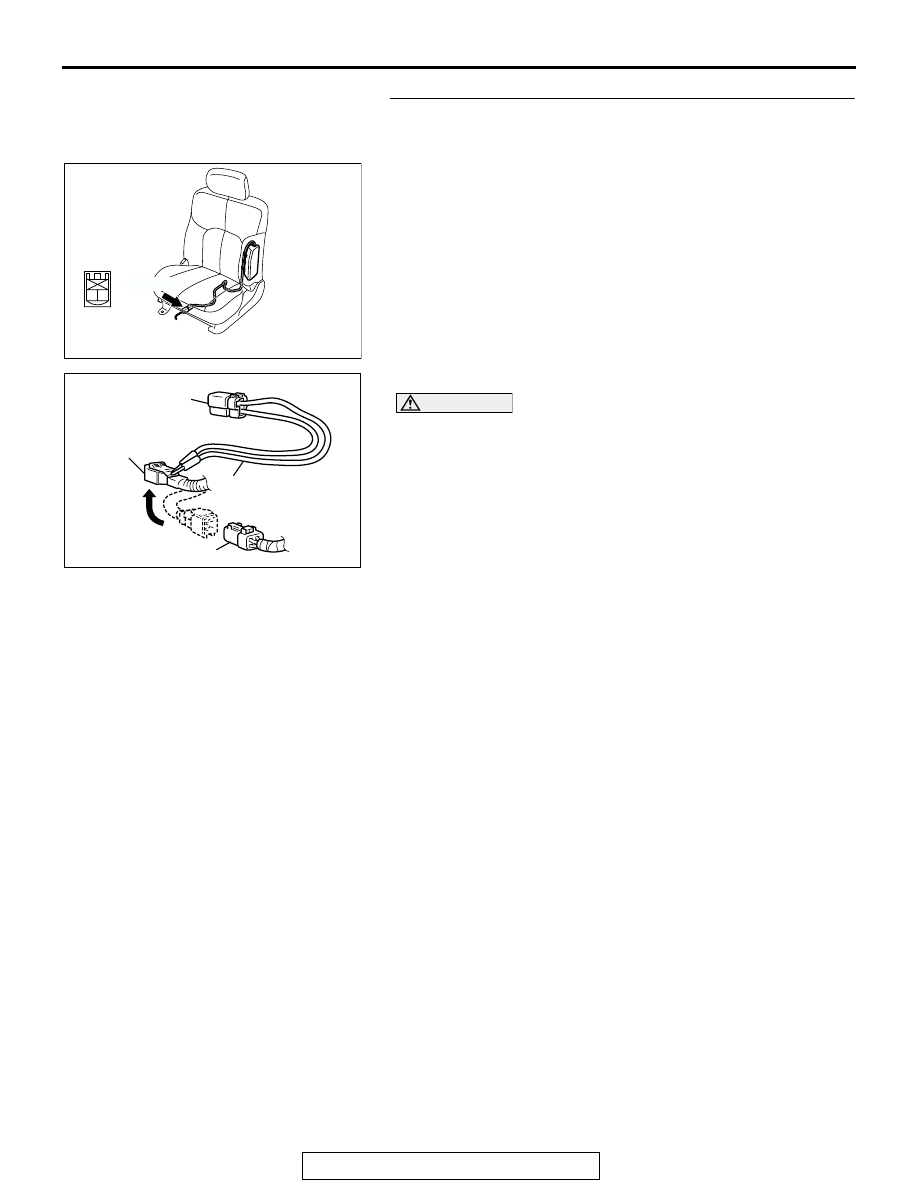

STEP 6. Check the side-airbag module (LH). (Using scan
tool MB991958, read the diagnostic trouble code.)

(1) Disconnect the negative battery terminal.
(2) Disconnect the side-airbag module (LH) connector D-24.

(3) Connect special tool MB991865 to special tool MB991866.

CAUTION

Do not insert a test probe into the terminal from its front
side directly, as the connector contact pressure may be
weakened.
(4) Insert special tool MB991866 into the D-24 harness side

connector by backprobing.

(5) Connect the negative battery terminal.
(6) Erase diagnostic trouble code memory, and check the

diagnostic trouble code.

Q: Is DTC B1430 set?

YES : Go to Step 7.
NO :  Replace the seatback frame of the front seat (LH).

(Refer to GROUP 52A, Front Seat

P.52A-26

). The

go to Step 9.

AC307778

CONNECTOR : D-24

AC

D-24 (R)

2

1

HARNESS SIDE
CONNECTOR
(REAR VIEW)

AC006042 BP

MB991866
(RESISTOR HARNESS)

D-24 HARNESS SIDE
CONNECTOR

D-24 SIDE-AIRBAG
MODULE (LH) CONNECTOR

MB991865 (DUMMY
RESISTOR: 3



Ω)

SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-159

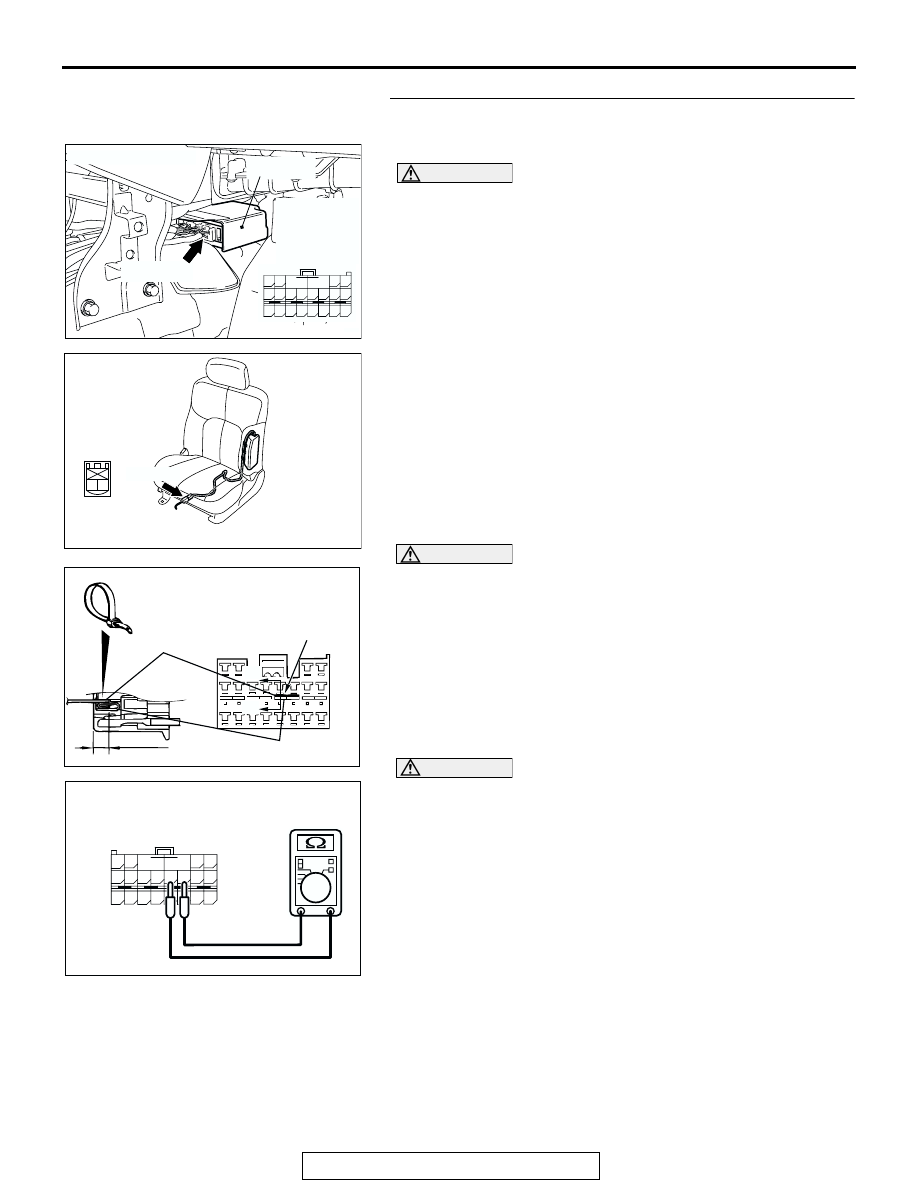

STEP 7. Check the side-airbag module (LH) circuit.
Measure the resistance at the SRS-ECU connector C-122.

(1) Disconnect SRS-ECU connector C-122.

DANGER

To prevent the air bag from deploying unintentionally,
disconnect the side-airbag module (LH) connector
D-24 to short the squib circuit.

(2) Disconnect left hand side-airbag module (LH) connector

D-24.

CAUTION

Insert an insulator such as a cable tie to a depth of 4mm
(0.16 inch) or more, otherwise the short spring will not be
released.
(3) Insert a cable tie [3 mm (0.12 inch) wide, 0.5 mm (0.02 inch)

thick] between terminals 9, 10 and the short spring to
release the short spring.

CAUTION

Do not insert a test probe into the terminal from its front
side directly, as the connector contact pressure may be
weakened.
(4) Check for continuity between C-122 harness side connector

terminals 9 and 10.
It should be open circuit.

Q: Is the circuit normal?

YES : Erase the diagnostic trouble code memory, and check

the diagnostic trouble code. If DTC B1430 sets,
replace the SRS-ECU. (Refer to

P.52B-365

). Then go

to Step 9.

NO :  Go to Step 8.

AC305362

CONNECTOR: C-122

C-122 (Y)

AI

SRS-ECU

C-122
Harness side
connector
(rear view)

A

B

18

10

15

7

13

5

14

6

16

8

17

9

19

11

20

12

1 2

3 4

AC307778

CONNECTOR : D-24

AC

D-24 (R)

2

1

HARNESS SIDE
CONNECTOR
(REAR VIEW)

AC308175AB

A

A

C-122 HARNESS SIDE
CONNECTOR (FRONT VIEW)

TERMINAL

SHORT SPRING

4 mm (0.16 inch) OR MORE

SEC-
TION
A - A

CABLE TIE

AC308174

A

B

18

10

15

7

13

5

14

6

16

8

17

9

19

11

20

12

1 2

3 4

C-122 HARNESS SIDE
CONNECTOR
(REAR VIEW)

AB

SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-160

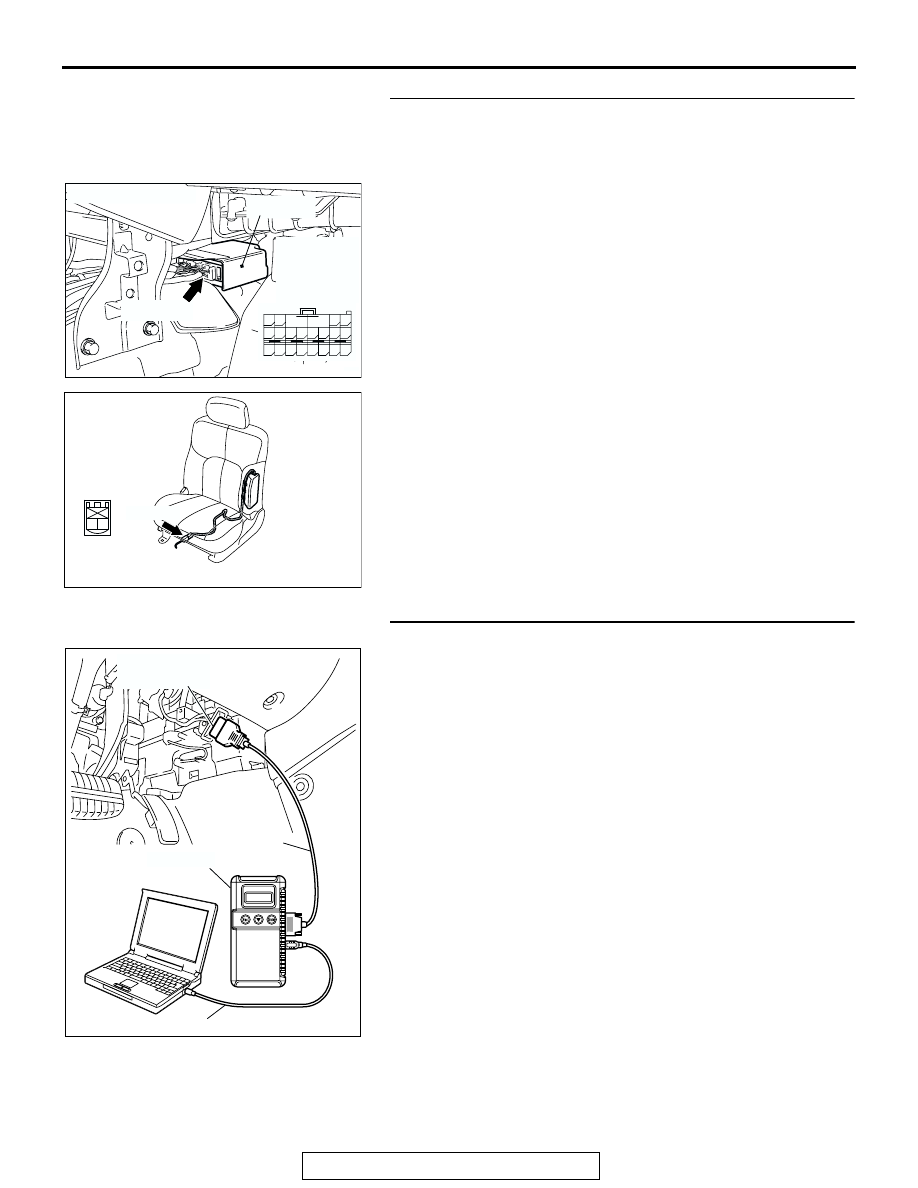

STEP 8. Check the harness wires for short circuit between
SRS-ECU connector C-122 (terminal No.9 and 10) and
side-airbag module (LH) connector D-24 (terminal No.1 and
2).

Q: Are the harness wires between SRS-ECU connector

C-122 (terminal No.9 and 10) and side-airbag module
(LH) connector D-24 (terminal No.1 and 2) in good
condition?
YES :
Go to Step 9.
NO :  Replace the harness wires between SRS-ECU

connector C-110 and side-airbag module (LH)
connector D-24. Then go to Step 9.

STEP 9. Recheck for diagnostic trouble code.

Check again if the DTC is set.
(1) Erase the DTC.
(2) Turn the ignition switch to the "ON" position.

(3) Check if the DTC is set.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is DTC B1430 set?

YES : Return to Step 1.
NO :  The procedure is complete.

AC305362

CONNECTOR: C-122

C-122 (Y)

AI

SRS-ECU

C-122
Harness side
connector
(rear view)

A

B

18

10

15

7

13

5

14

6

16

8

17

9

19

11

20

12

1 2

3 4

AC307778

CONNECTOR : D-24

AC

D-24 (R)

2

1

HARNESS SIDE
CONNECTOR
(REAR VIEW)

AC305412

AB

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827
