Mitsubishi Galant (2004+). Manual - part 1497





MULTI-CENTER DISPLAY

TSB Revision

CHASSIS ELECTRICAL

54A-231

FAILURE DIAGNOSIS SERVICE MODE
FUNCTION  <MIDDLE GRADE TYPE>

The multi-center display unit (middle grade type) with
the following functions for the failure diagnosis ser-
vice.

.

Starting up the service mode
1. ignition switch "LOCK" (OFF) position.
2. Turn the ignition switch to the "ACC" position while

depressing the "DISP" button on the multi-center display unit
(middle grade type). After approximately 5 seconds, the
service mode start-up screen is displayed.

.

Service mode function

CONTENTS

Service
function

Communication check

The multi-center display checks communication conditions
below, and shows the check result on the screen. Turn the
ignition switch to the ON position before using this
function.

• M bus communication condition between the

multi-center display unit (middle grade type) and the
audio system

• Communication condition between the (middle grade

type) multi-center display unit and relevant units (such
as ETACS-ECU)

Monitor check

Checks whether the screen display functions.

Compass check

Checks whether the geomagnetism sensor are working
normally.

Vehicle check

Displays current vehicle conditions below

• Displays the current condition of the lighting switch.

• Displays the current position of the ignition switch.

• Displays the current voltage of the battery

Auto check

Checks the following items automatically.

• Communication check

• Monitor check

• Compass check

• Vehicle check

AC208698AB

MULTI-CENTER DISPLAY

TSB Revision

CHASSIS ELECTRICAL

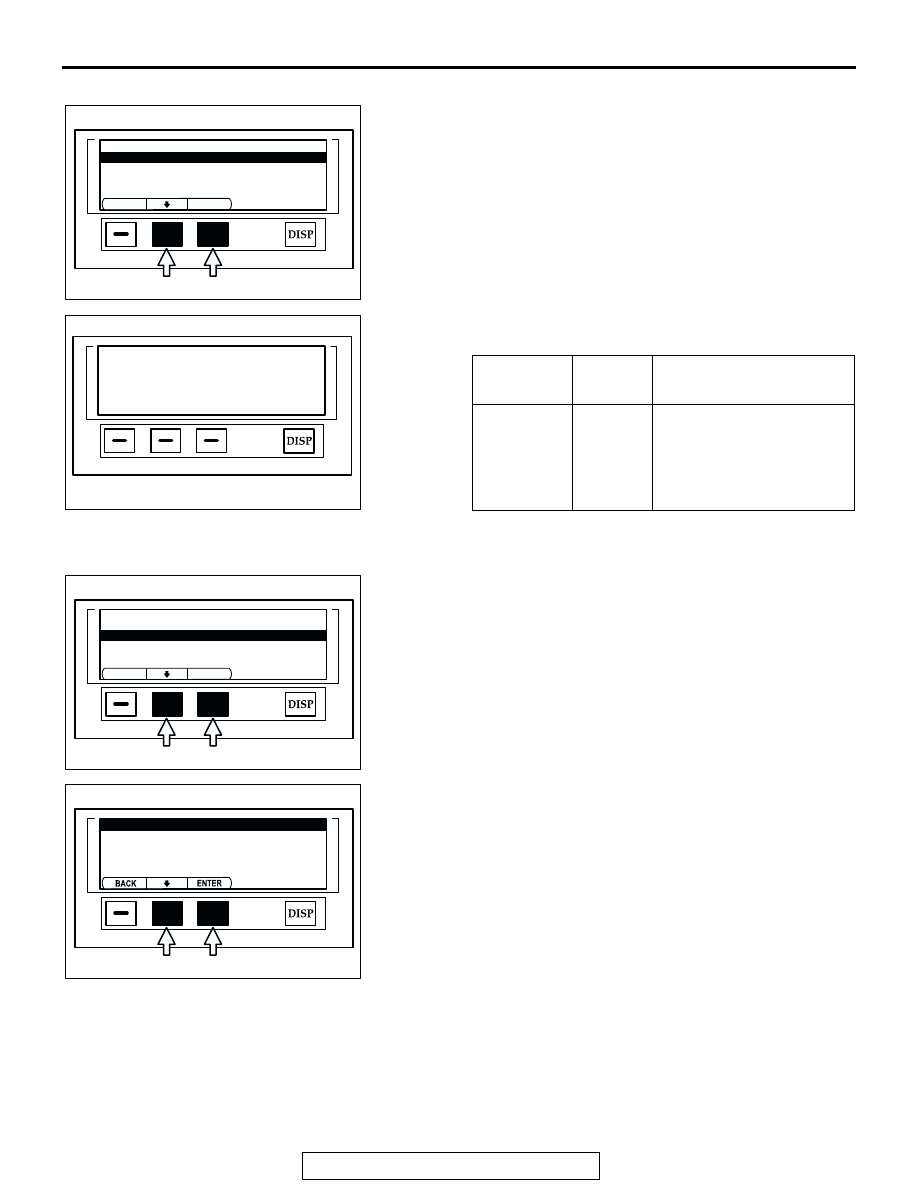

54A-232

Communication check
1. Activate the service mode start-up screen.
2. ignition switch "ON" position.
3. Choose "communication check mode" by pressing the

function button switch 2.

4. Execute "ENTER" by pressing the function button switch 3.

5. The multi-center display checks the communication

conditions and displays the check result.

.

Monitor check
1. Choose "Monitor check" from the service mode start-up

screen by pressing function button switch 2, and then
execute "ENTER" by pressing function button switch 3.

2. Choose a color by function button switch 2, and then

execute "ENTER" by function button switch 3. You can
check the chosen color on the screen.

.

CHECK
ITEM

DISPLAY CONTENT OR

CONDITION

M bus and
CAN bus
communicat
ions

• OK

• NG

OK:

NG: Open circuit, or

communication error
caused by failure in
relevant unit(s)

BACK

ENTER

Service  mode

1. Communication  check

2. Monitor  check

3. Compass  check

4. Vehicle  check

5. Auto  check

AC208699

AB

Communication check result

M-BUS             : OK
CAN-BUS        : OK

AC208700AB

BACK

ENTER

Service  mode

1. Communication  check

2. Monitor  check

3. Compass  check
4. Vehicle  check
5. Auto  check

AC208701AB

Color

Gray
White
Black

AC208702 AB

MULTI-CENTER DISPLAY

TSB Revision

CHASSIS ELECTRICAL

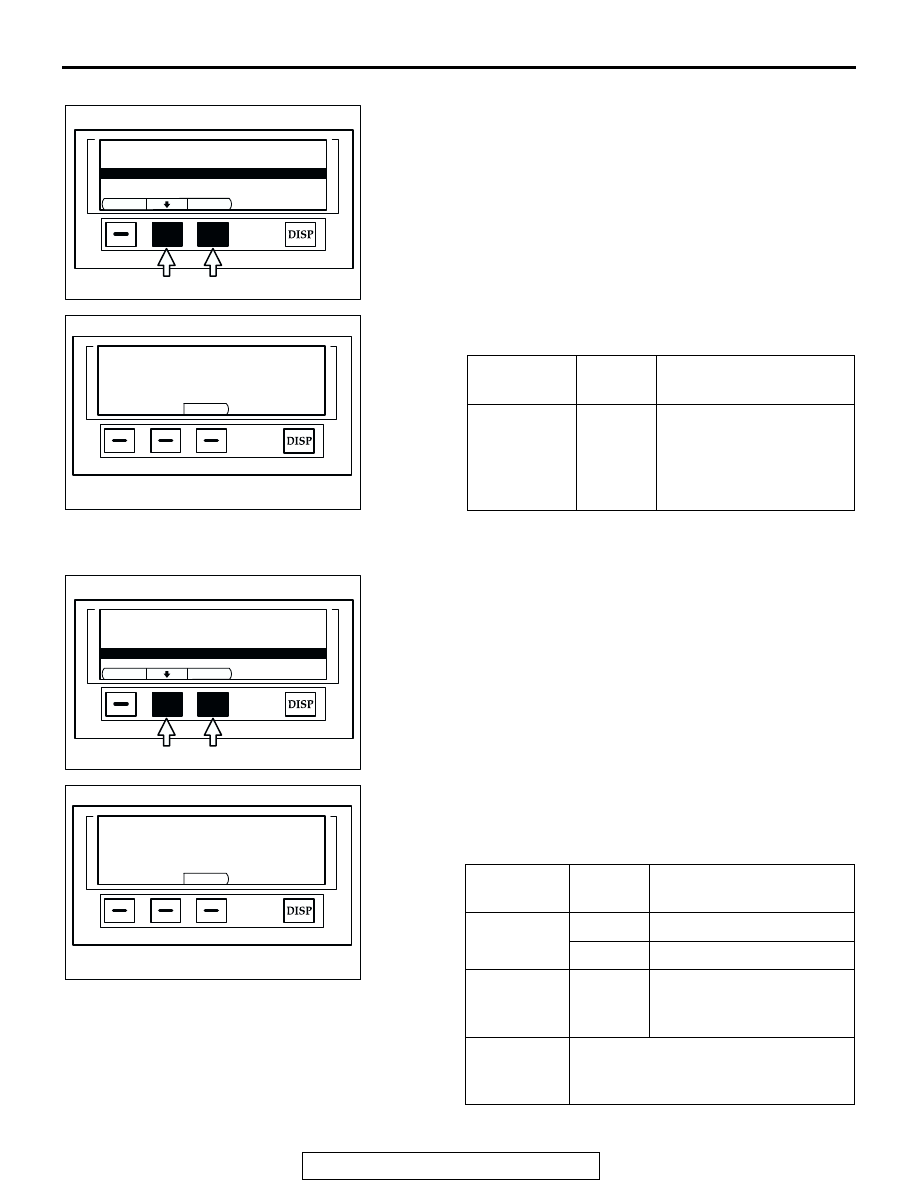

54A-233

Compass check
1. Choose "Compass check" from the service mode start-up

screen by pressing function button switch 2, and then
execute a check by pressing function button switch 3.

2. The multi-center display performs check and then displays

the check result.

.

Vehicle check
1. Choose "vehicle check" from the service mode start-up

screen by pressing function button switch 2, and then
execute a check by pressing function button switch 3.

2. The multi-center display performs check and displays the

check result. Operate the lighting switch or the ignition
switch. Check whether the multi-center display screen
corresponds to that operation.

.

CHECK
ITEM

DISPLAY CONTENT OR

CONDITION

Communicati
on check with
compass
sensor

• OK

• NG

OK:

NG: Open circuit, or

communication error
caused by failure in
relevant unit(s)

BACK

ENTER

Service  mode

1. Communication  check
2. Monitor  check

3. Compass  check

4. Vehicle  check
5. Auto  check

AC208703 AB

Communication check result

Compass  sensor

ENTER

AC208704

AB

CHECK
ITEM

DISPLAY CONTENT OR

CONDITION

Illumination

ILL: ON

 If the lighting switch is ON

ILL: OFF If the lighting switch is OFF

ignition
switch
position

• IG

• ACC

Displays the current
position of the ignition
switch.

Battery
positive
voltage

Displays the voltage.

BACK

ENTER

Service  mode

1. Communication  check
2. Monitor  check

3. Compass  check

4. Vehicle  check

5. Auto  check

AC208705AB

Vehicle signal check

ILL                       : OFF
Key position       : ACC
Voltage                : 14.9V

ENTER

AC208706AB

MULTI-CENTER DISPLAY

TSB Revision

CHASSIS ELECTRICAL

54A-234

Auto check
1. Activate the service mode start-up screen.
2. Turn the ignition switch to  "ON" position.
3. Choose "Auto check" by pressing function button switch 2.
4. Execute "ENTER" by pressing the function button switch 3.
5. The multi-center display unit checks the communication

condition, and then shows the check results of
"Communication check", "Monitor check", "Compass check",
and "Vehicle check". Then the multi-center display ceases
CAN communication in approximately seven seconds.

.

Release of service mode
Move from the check result screen to the service mode start-up
screen by pressing "ENTER" above function button switch 3. If
you press "BACK" above function button switch 1 during pro-
cessing, the checks will be cancelled and the screen returns to
service mode start-up screen.

Fail-safe function of the multi-center display unit
(middle grade type)

If abnormal power supply voltage or abnormally high tempera-
ture is detected in the multi-center display unit (middle grade
type), a fail-safe function will be activated to protect the unit,
and then blank the screen.

Fail-safe function is activated when:
Power supply voltage is abnormal

• Excessively low voltage: Power supply voltage remains

9 volts or less for approximately 10 seconds.

• Excessively high voltage: Power supply voltage remains

17 volts or more for approximately 10 seconds.

Abnormally high temperature is detected in the unit.

• Internal temperature remains 95°C (203°F) for 60 sec-

onds.

If an abnormal voltage or temperature is detected, the
multi-center display unit will sound its buzzer to indicate this
and activate a message to blank the screen in approximately
seven seconds.
NOTE: The unit blanks the screen immediately when the power
supply voltage reaches 18 volts.

Fail-safe function is deactivated when:
Power supply voltage is abnormal

• The fail-safe function will be deactivated if the power

supply voltage remains 10 volts or more for approxi-
mately five seconds, or the ignition switch is turned to
the "LOCK" (OFF) position.

• The fail-safe function will be deactivated if the power

supply voltage remains 17 volts or less for approxi-
mately five seconds or more, or the ignition switch is
turned to the "LOCK" (OFF) position.

Abnormally high temperature is detected in the unit.

BACK

ENTER

Service  mode

1. Communication  check
2. Monitor  check

3. Compass  check
4. Vehicle  check

5. Auto  check

AC208707AB
