COMBINATION METER ASSEMBLY AND VEHICLE SPEED SENSOR

TSB Revision

CHASSIS ELECTRICAL

54A-103

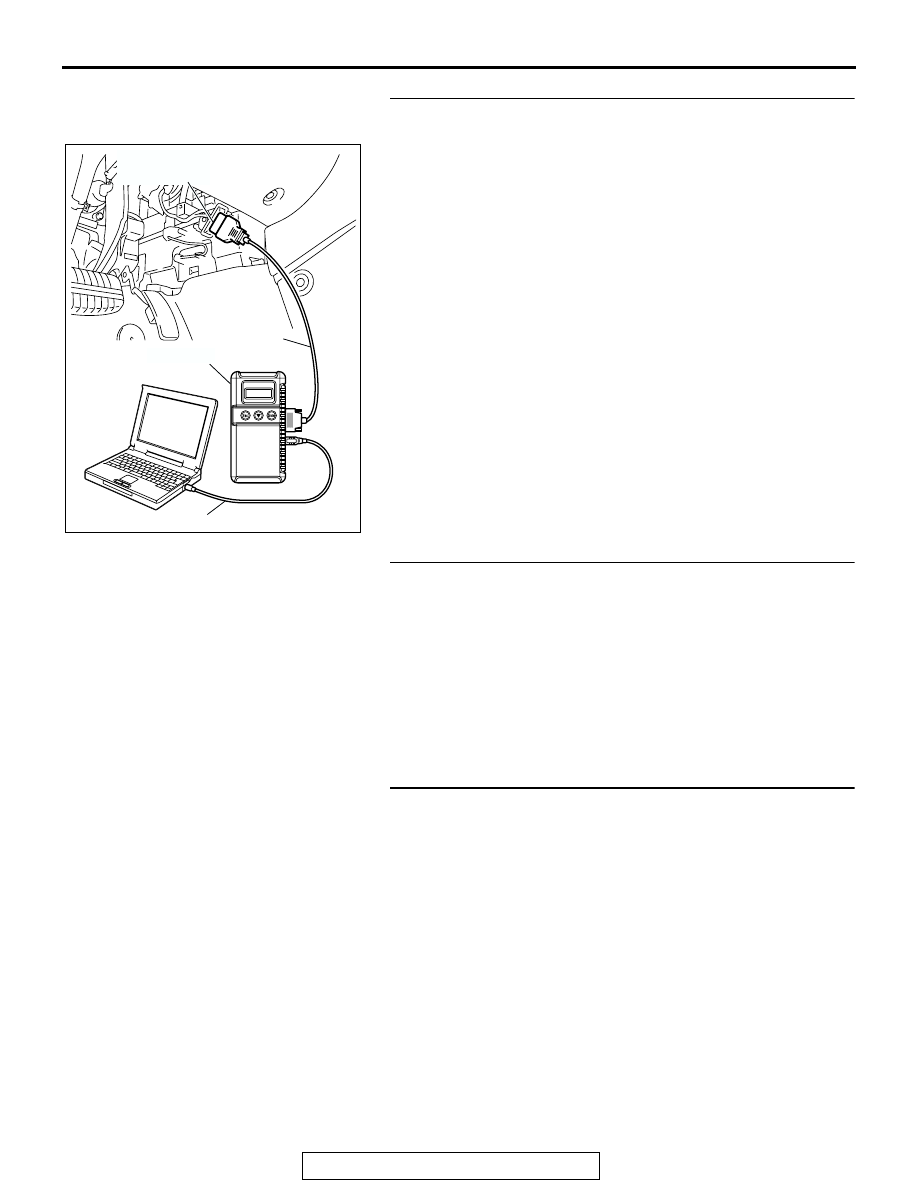

STEP 1. Using scan tool MB991824, diagnose the CAN bus
line.
(1) Connect scan tool MB991958 to the data link connector.
(2) Turn the ignition switch to "ON" position.
(3) Diagnose the CAN bus line.
Q: Is the check result satisfactory?

YES : Go to Step 2.
NO :  Repair the CAN bus lines. (Refer to GROUP 54C,

Diagnosis-Can Bus Diagnostic Chart

P.54C-14

). On

completion, go to Step 3.

STEP 2. Using scan tool MB991958, read MFI diagnostic
trouble code.
Check if an MFI system DTC is set.
Q: Is the DTC set?

YES : Diagnose the MFI system by referring to GROUP

13A, MFI Diagnosis

− Diagnostic Trouble Code Chart

P.13A-34

 or GROUP 13B, MFI Diagnosis

−

Diagnostic Trouble Code Chart

P.13B-33

. On

completion, go to Step 3.

NO :  Go to Step 3.

Step 3. Retest the system.
Check to see that the engine coolant temperature gauge oper-
ates normally.
Q: Is the check result satisfactory?

YES : The procedure is complete. (If no malfunctions are

found in all steps, an intermittent malfunction is
suspected. Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points-How to
Cope with Intermittent Malfunction

P.00-6

).

NO :  Replace combination meter and then go to step 1.

AC305412

AB

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

COMBINATION METER ASSEMBLY AND VEHICLE SPEED SENSOR

TSB Revision

CHASSIS ELECTRICAL

54A-104

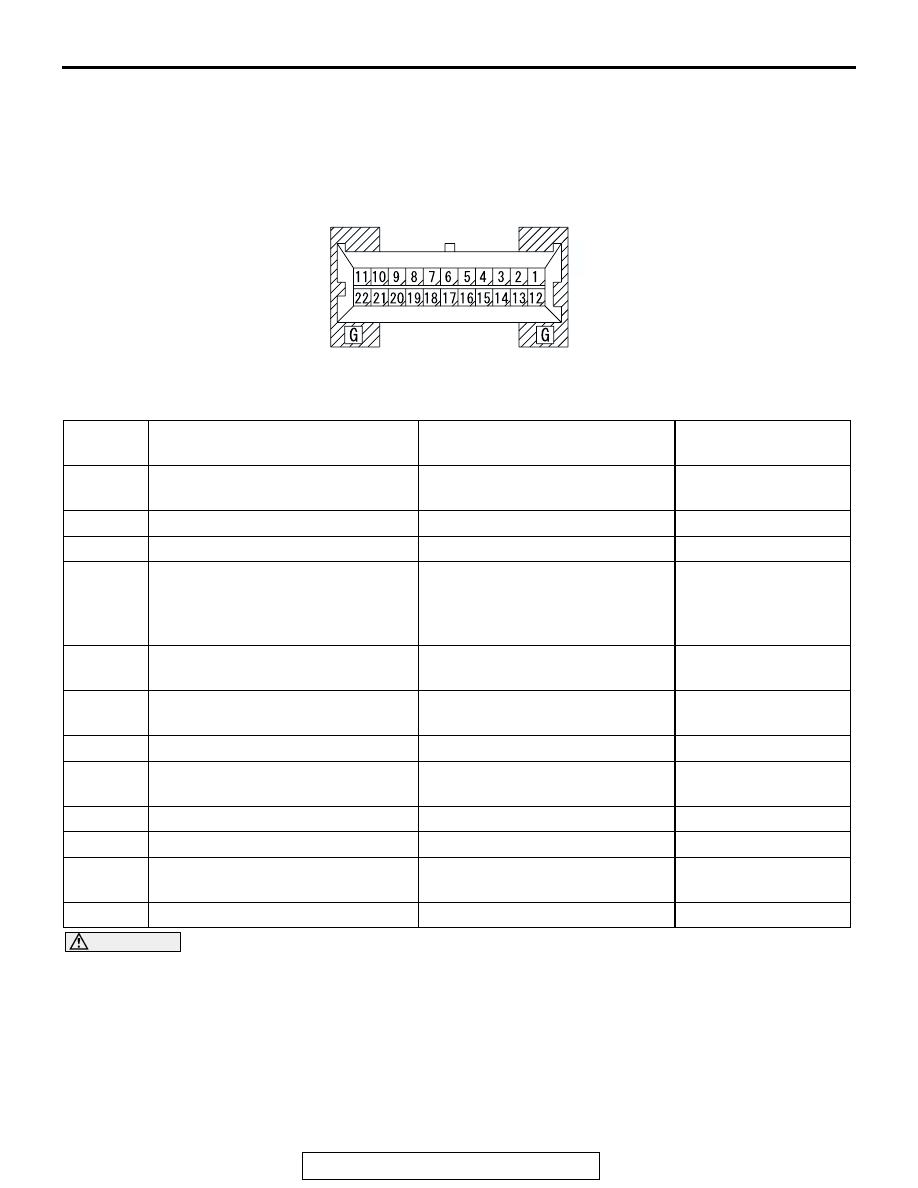

COMBINATION METER TERMINAL CHECK

M1543026700010

Measure the voltage between terminals using a volt-
meter.

NOTE: The combination meter connector is fixed on the instrument panel directly, so you can not take mea-
surement by backprobing.

CAUTION

Never take a measurement at terminals 14 and
15. If you do this, the CAN bus lines will be
impaired.

AC211750

COMBINATION METER CONNECTOR
COMPONENT SIDE

AD

C-101

Terminal
No.

Check item

Check condition

Normal condition

1

Battery power supply

Always

Battery positive
voltage

3

Gauge ground

Always

0 V

5

Ground

Always

0  V

7

Parking brake switch and brake
fluid level switch

• Ignition switch: ON or parking

brake switch: ON

• Ignition switch: ON or brake

fluid level switch: ON

-

8

Seat belt switch

Ignition switch: ON or driver’s
seat belt not fastened

-

9

Engine oil pressure switch

Ignition switch: ON or engine oil
pressure switch: ON

-

11

GENERATOR

-

-

12

Ignition switch (IG1) power supply

Ignition switch: ON

Battery positive
voltage

13

Fuel gauge

Always

-

19

Immobilizer

-

-

21

Illumination (power supply)

Lighting switch: ON

Battery positive
voltage

22

Illumination (ground)

Always

0 V

COMBINATION METER ASSEMBLY AND VEHICLE SPEED SENSOR

TSB Revision

CHASSIS ELECTRICAL

54A-105

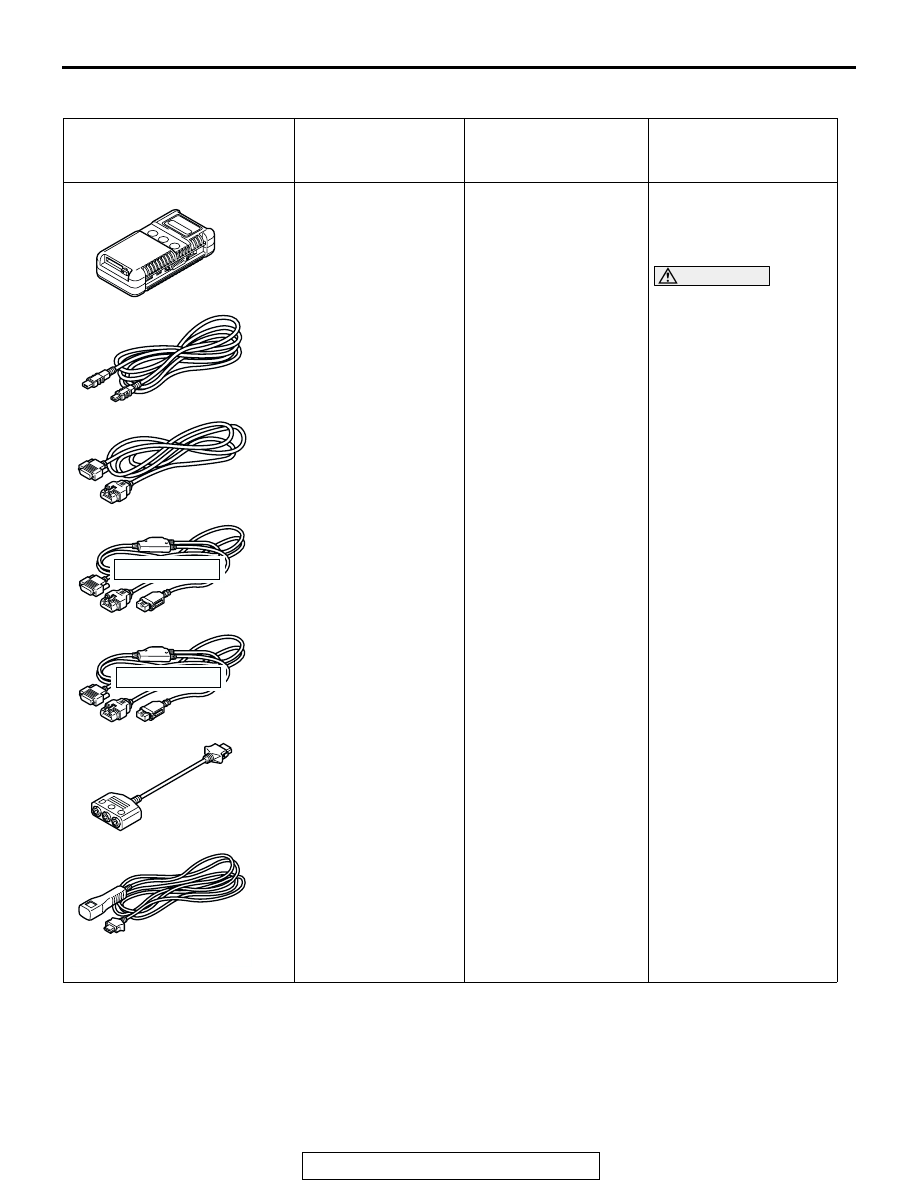

SPECIAL TOOLS

M1543000601771

TOOL

TOOL NUMBER
AND NAME

REPLACED BY
MILLER TOOL
NUMBER

APPLICATION

MB991958

A: MB991824
B: MB991827
C: MB991910
D: MB991911
E: MB991914
F: MB991825
G: MB991826

MUT-III Sub
Assembly

A: Vehicle

communication
interface (V.C.I.)

B: MUT-III USB cable
C: MUT-III main

harness A
(Vehicles with CAN
communication
system)

D: MUT-III main

harness B
(Vehicles without
CAN
communication
system)

E: MUT-III main

harness C (for
Daimler Chrysler
models only)

F: MUT-III

measurement
adapter Harness

G: MUT-III trigger

harness

MB991824-KIT
NOTE: G: MB991826
MUT-III Trigger Harness
is not necessary when
pushing V.C.I. ENTER
key.

• Reading diagnostic

trouble code

• Estimated vehicle

speed sent

CAUTION

MUT-III main harness A
(MB991910) should be
used. MUT-III main
harness B and C
should not be used for
this vehicle.

MB991910

MB991826

MB991958

MB991911

MB991914

MB991824

MB991827

MB991825

DO NOT USE

A

B

C

D

E

F

G

DO NOT USE

COMBINATION METER ASSEMBLY AND VEHICLE SPEED SENSOR

TSB Revision

CHASSIS ELECTRICAL

54A-106

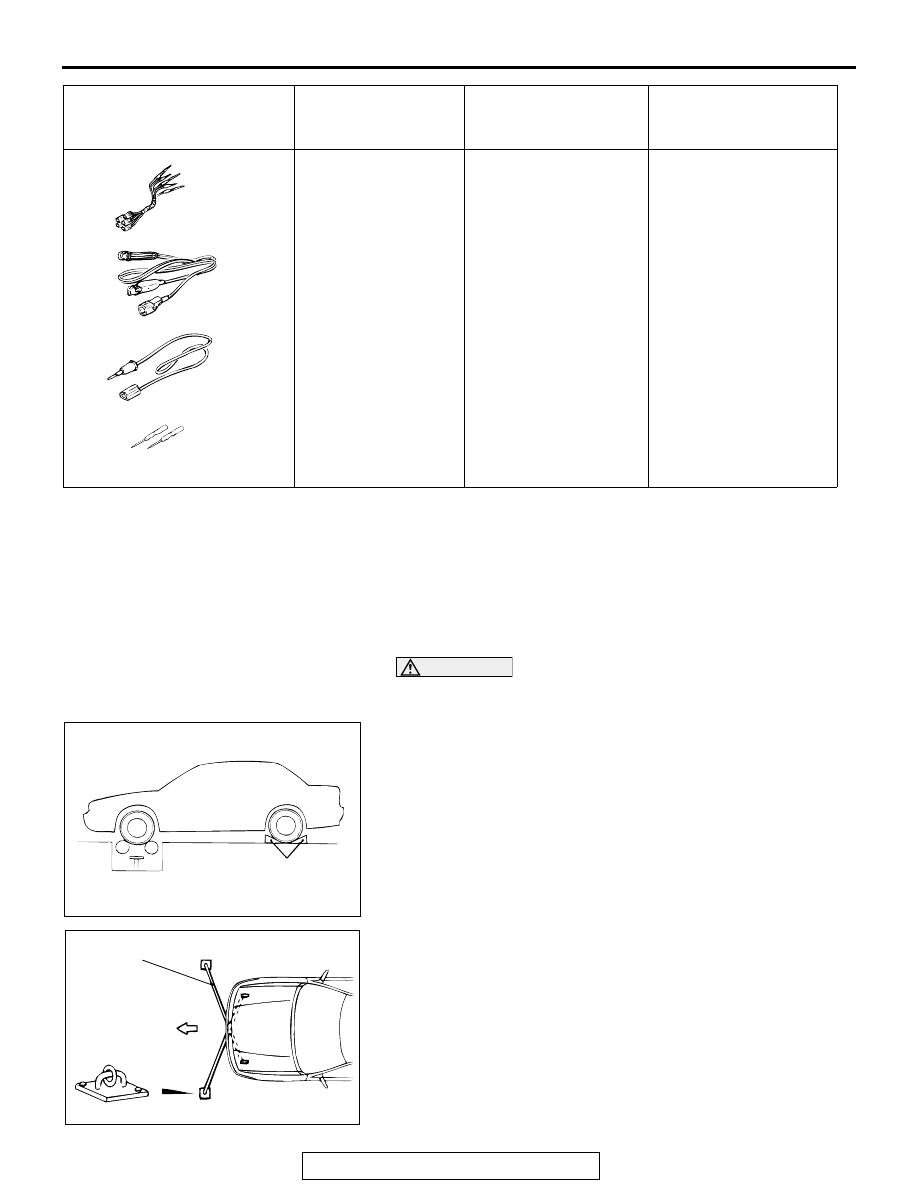

ON-VEHICLE SERVICE

SPEEDOMETER CHECK

M1543000900445

1. Adjust the pressure of tires to the specified level (Refer to

GROUP 31, On-vehicle Service

P.31-7

).

CAUTION

Do not accelerate or decelerate suddenly during servicing
work.
2. Set the vehicle onto a speedometer tester and use wheel

chocks to hold the rear wheels.

3. To prevent the front wheel from moving from side to side,

attach tension bars to the tie-down hook, and secure both
ends to anchor plates.

4. To prevent the vehicle from moving, attach a chain or wire to

the rear retraction hook, and make sure the end of the chain
or wire is secured.

5. Check if the speedometer indicator range is within the

standard values.

Standard value <except vehicles for CANADA>:

MB991223
A: MB991219
B: MB991220
C: MB991221
D: MB991222

Harness set

A: Test harness
B: LED harness
C: LED harness

adapter

D: Probe

General service tool
(jumper)

Making voltage and
resistance
measurements during
troubleshooting

A: Connect pin contact

pressure inspection

B: Power circuit

inspection

C: Power circuit

inspection

D: Commercial tester

connection

TOOL

TOOL NUMBER
AND NAME

REPLACED BY
MILLER TOOL
NUMBER

APPLICATION

MB991223

A

D

C

B

AF

AC001287AB

WHEEL CHOCKS

ACX00775 AB

FRONT

ANCHOR PLATE

PULLER
