COMBINATION METER ASSEMBLY AND VEHICLE SPEED SENSOR

TSB Revision

CHASSIS ELECTRICAL

54A-99

STEP 9. Check fuel pump module connector D-18 and fuel
level sensor (sub) connector D-17 for loose, corroded or
damaged terminals, or terminals pushed back in the
connector.
Q: Is fuel pump module connector D-18 and fuel level

sensor (sub) connector D-17 in good condition?
YES : Go to Step 10.
NO :  Repair or replace the component(s). Refer to GROUP

00E, Harness Connector Inspection

P.00E-2

. The fuel

gauge should now operate normally.

STEP 10. Check the wiring harness between fuel pump
module connector D-18 (terminal 2) and fuel level sensor
(sub) connector D-17 (terminal 1).
Q: Is the wiring harness between fuel pump module

connector D-18 (terminal 2) and fuel level sensor (sub)
connector D-17 (terminal 1) in good condition?
YES : Go to Step 11.
NO :  Repair the wiring harness. The fuel gauge should now

operate normally.

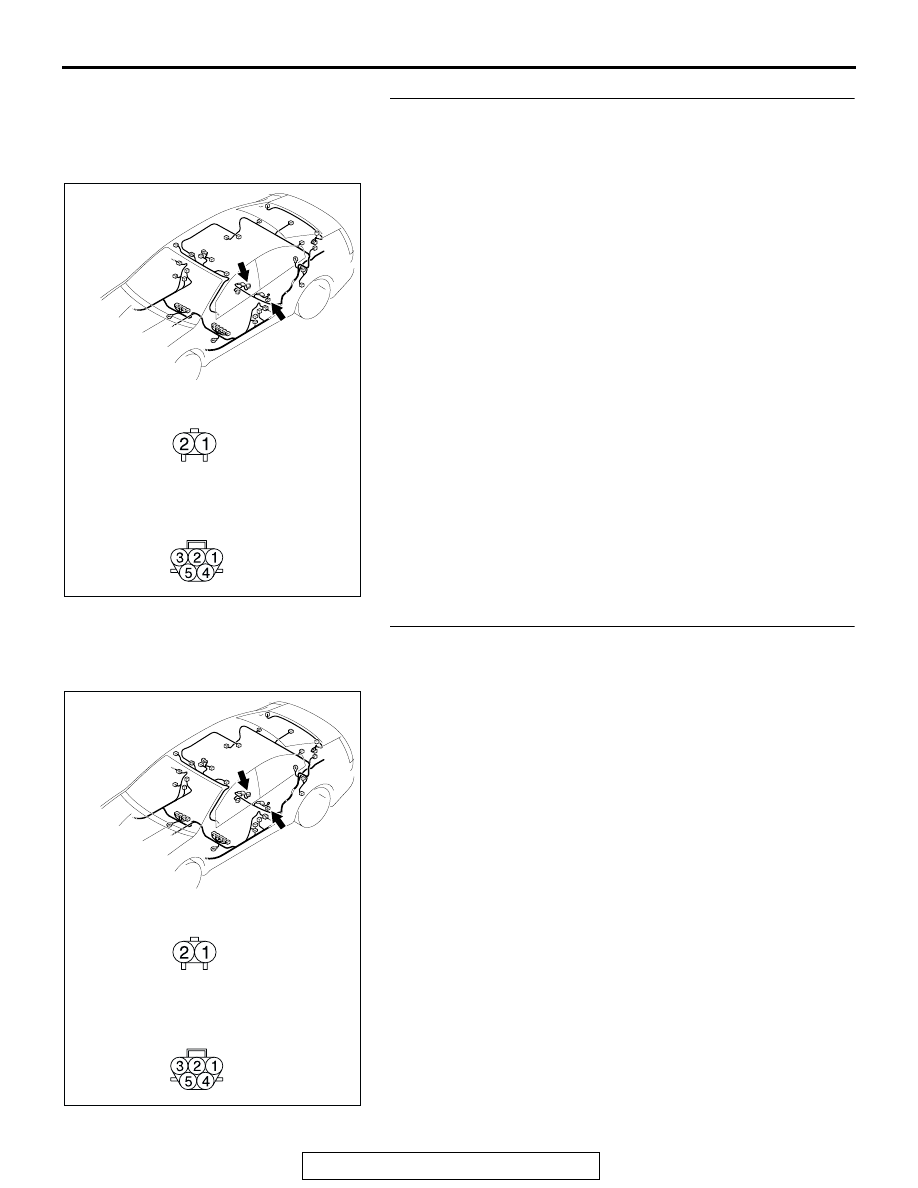

AC305269

D-17

D-18 (GR)

AE

CONNECTORS: D-17, D-18

HARNESS SIDE

D-17

HARNESS SIDE

D-18

AC305269

D-17

D-18 (GR)

AE

CONNECTORS: D-17, D-18

HARNESS SIDE

D-17

HARNESS SIDE

D-18

COMBINATION METER ASSEMBLY AND VEHICLE SPEED SENSOR

TSB Revision

CHASSIS ELECTRICAL

54A-100

STEP11. Retest the system.
 Check that the fuel gauge works normally.
Q: Is the fuel gauge normal?

YES : The procedure is complete. (If no malfunctions are

found in all steps, an intermittent malfunction is
suspected. Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points-How to
Cope with Intermittent Malfunction

P.00-6

).

NO :  Replace the combination meter.

COMBINATION METER ASSEMBLY AND VEHICLE SPEED SENSOR

TSB Revision

CHASSIS ELECTRICAL

54A-101

INSPECTION PROCEDURE 10: Engine Coolant Temperature Gauge does not Work (other meters
work).

ABS-ECU OR ABS/TCL-ECU

JOINT
CONNECTOR (3)

COMBINATION
METER

DATA LINK
CONNECTOR

WITHOUT ELECTRONIC
BRAKE-FORCE
DISTRIBUTION (EBD)
AND ANTI-LOCK
BRAKING SYSTEM
(ABS)

WITH ELECTRONIC
BRAKE-FORCE
DISTRIBUTION (EBD)
AND ANTI-LOCK
BRAKING SYSTEM
(ABS)

WITH ELECTRONIC
BRAKE-FORCE
DISTRIBUTION (EBD)
AND ANTI-LOCK
BRAKING SYSTEM
(ABS)

WITHOUT
ELECTRONIC
BRAKE-FORCE
DISTRIBUTION
(EBD) AND ANTI-
LOCK BRAKING
SYSTEM (ABS)

ENGINE
COOLANT
TEMPERATURE
SENSOR

POWERTRAIN
CONTROL MODULE

TEMP
GAUGE

CPU

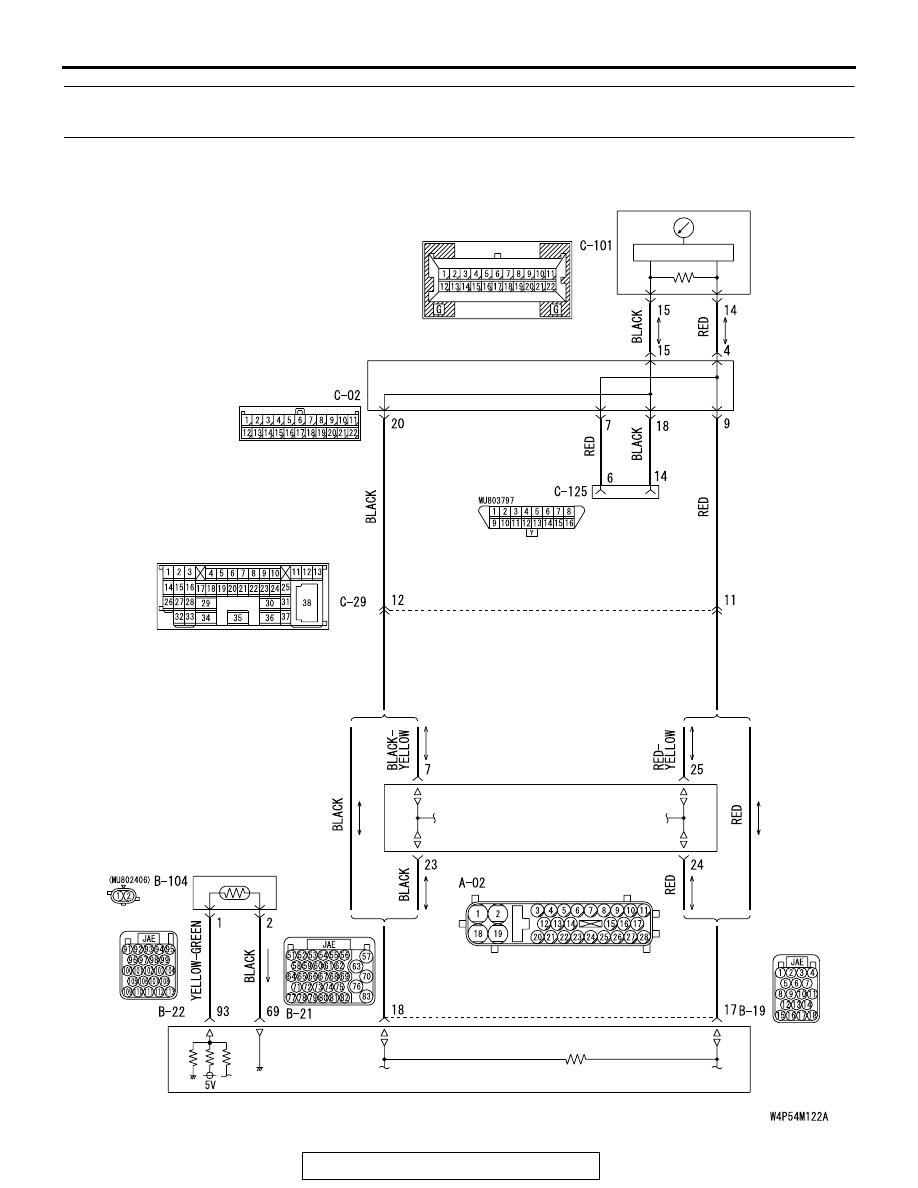

Engine Coolant Temperature Gauge Circuit

COMBINATION METER ASSEMBLY AND VEHICLE SPEED SENSOR

TSB Revision

CHASSIS ELECTRICAL

54A-102

.

CIRCUIT OPERATION
The engine coolant temperature sensor sends signal
to the combination meter via the powertrain control
module and the CAN bus line.

.

TECHNICAL DESCRIPTION (COMMENT)
If only the engine coolant temperature gauge does
not operate, the powertrain control module system,
the combination meter, the wiring harness or its con-
nector may be defective.

.

TROUBLESHOOTING HINTS

• Malfunction of the powertrain control module.

• Malfunction of the combination meter.

• The wiring harness or connectors may have

loose, corroded, or damaged terminals, or termi-
nals pushed back in the connector.

DIAGNOSIS

Required Special Tools:

• MB991958: Scan Tool (MUT-III Sub Assembly)

• MB991824: Vehicle Communication Interface (V.C.I.)

• MB991827: MUT-III USB Cable

• MB991911: MUT-III Main Harness A (Vehicles with CAN

communication system)

AC305206

CONNECTOR: A-02

AO

A-02 (GR)

AC305216

CONNECTORS: B-19, B-21, B-22, B-104

AG

B-19 (B)

B-22 (B)

B-21 (B)

B-104 (B)

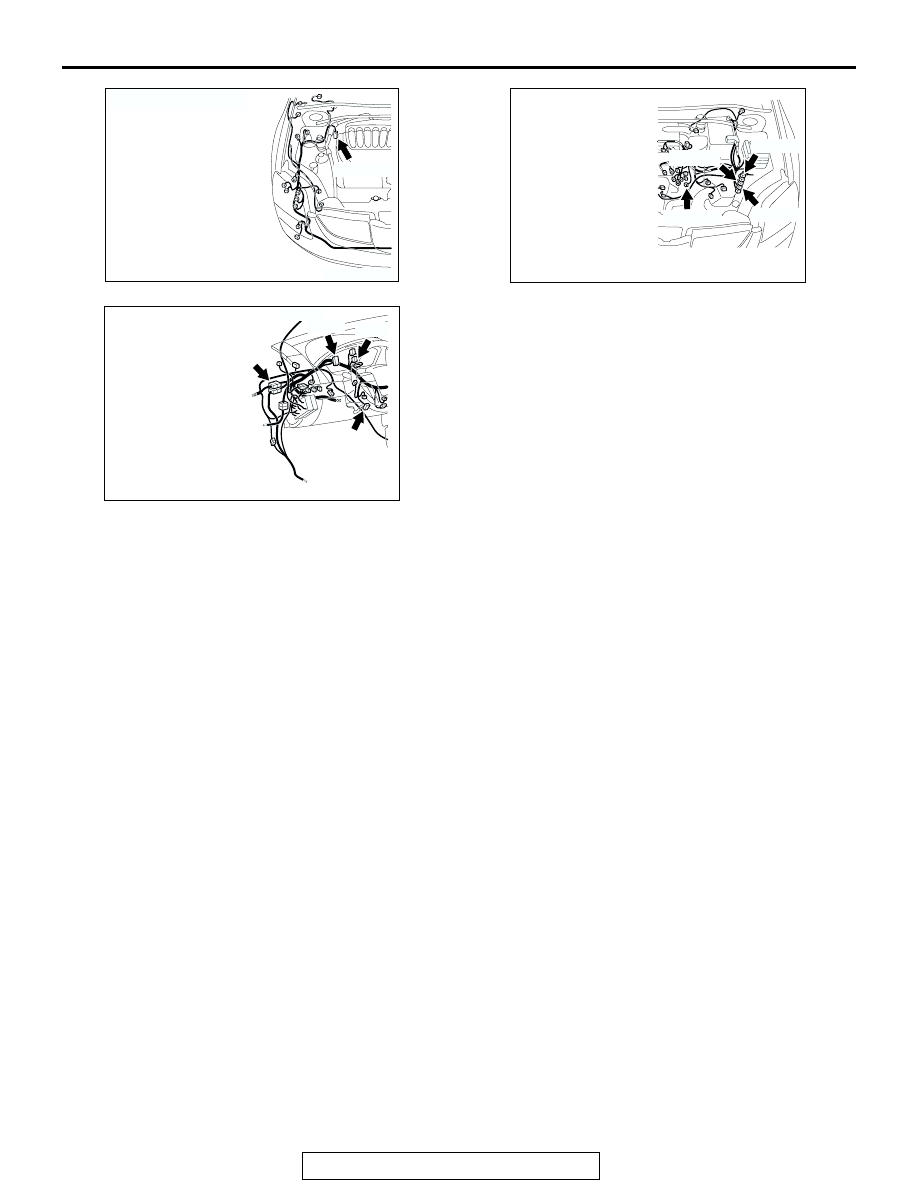

AC305231

C-02

C-29

C-101

C-125 (B)

DC

CONNECTORS: C-02, C-29, C-101, C-125
