MARK

TSB Revision

EXTERIOR

51-25

2. Installation procedure

(1) Use 3M

 AAD Part number 8906 or equivalent to clean

the mark installation surfaces on the body.

CAUTION

When attaching the marks, the ambient temperature
should be 20

° − 38°C (60° − 100°F) and the air should be

completely free of dust. If the ambient temperature is lower
than 20

°C (60°F), the marks and the places on the vehicle

body where the marks are to be attached should be heated
to 20

° − 38°C (60° − 100°F).

(2) Peel off the protection sheet on the back of the marks to

affix it in position.

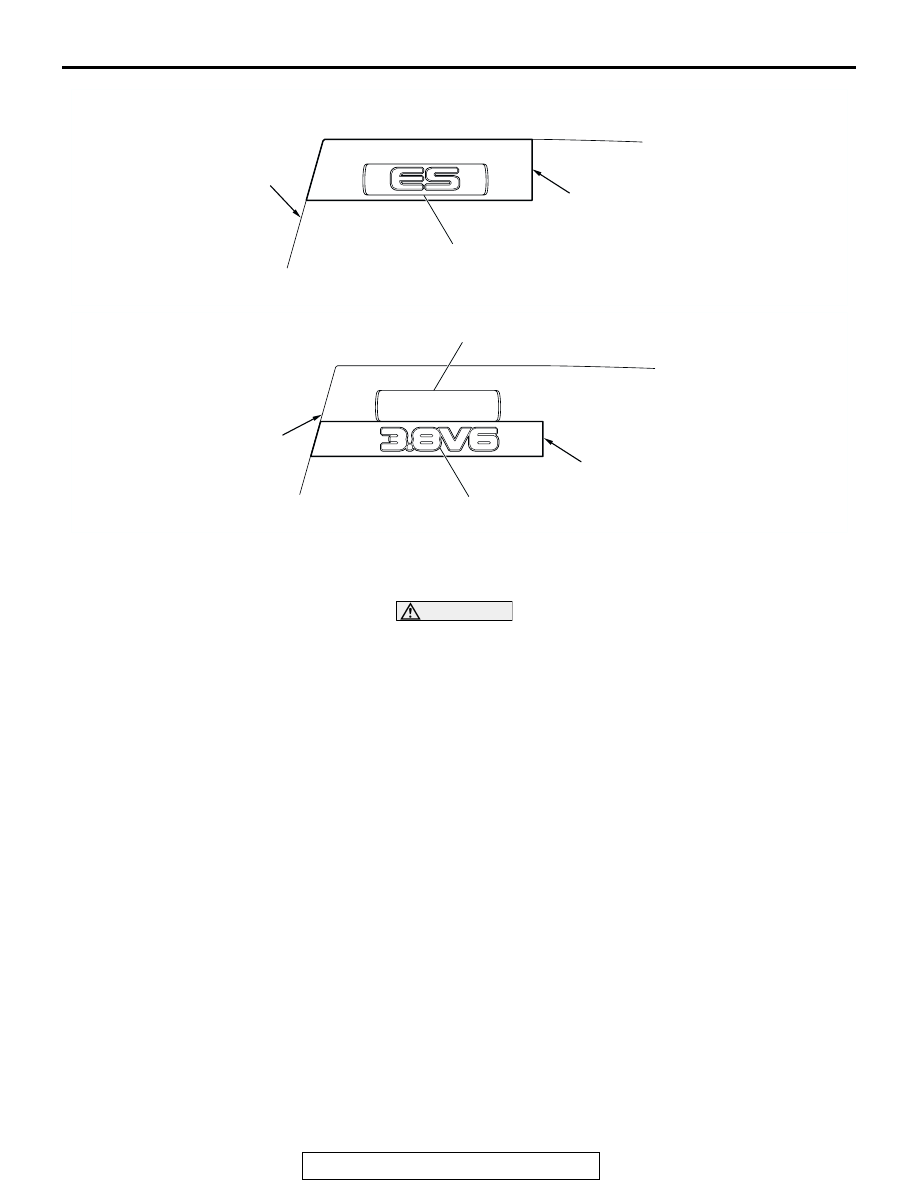

AC305982

REAR BUMPER END LINE

AB

4. GRADE MARK

APPLICATION TAPE

GRADE MARK

AC306556

APPLICATION TAPE

REAR BUMPER END LINE

5. 3.8 V6 MARK

3.8 V6 MARK

GRADE MARK

AB

DOOR MIRROR

TSB Revision

EXTERIOR

51-26

DOOR MIRROR

GENERAL DESCRIPTION

M1511000100570

OPERATION DOOR MIRROR

Remote Controlled Mirror Operation

• The mirror on the door mirror moves up/down

and left/right by operating the remote controlled
door mirror switch when the ignition switch is in
the "ON" or "ACC" position.

Heated Door Mirror operation

• The rear window defogger relay switch is acti-

vated (ON) by turning on the A/C-ECU built-in
rear window defogger switch when the ignition
switch is in the "ON" position. When the rear win-
dow defogger relay is turned ON, power is sup-

plied to the rear window defogger and door
mirror, and the heater of the door mirror (heated
door mirror) starts operations. The rear window
defogger comes with a timer function and will
automatically turn OFF the switch approximately
16 minutes after the rear window defogger switch
is turned ON. The heated door mirror operations
are also terminated along with the rear window
defogger, at this time.

HEATED DOOR MIRROR DIAGNOSIS

TROUBLESHOOTING STRATEGY

M1511014600170

Diagnosis should be carried out by the following pro-
cedures.
1. Gather the information from the customer.
2. Verify that the condition described by the

customer exists.

3. Find the malfunction by the following Symptom

Chart.

4. Verify the malfunction is eliminated.

TROUBLE SYMPTOM CHART

M1511015000171

SYMPTOMS

INSPECTION
PROCEDURE

REFERENCE
PAGE

All heated door mirrors do not operate

1

P.51-27

The right or left heated door mirror does not operate

2

P.51-32

DOOR MIRROR

TSB Revision

EXTERIOR

51-27

SYMPTOM PROCEDURES

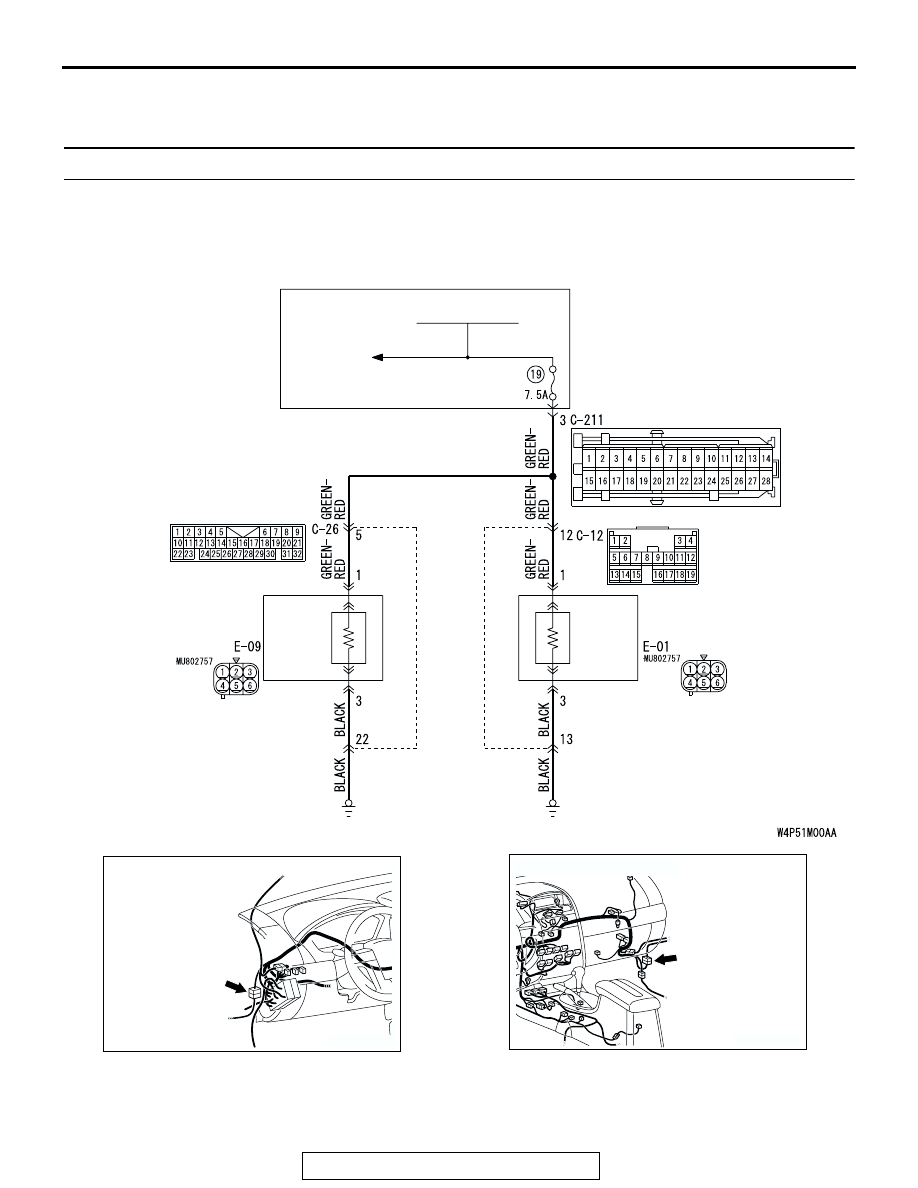

INSPECTION PROCEDURE 1: All Heated Door Mirrors do not Operate

JUNCTION
BLOCK

DEFOGGER
RELAY

DEFOGGER

REMOTE
CONTROLLED
MIRROR (LH)

REMOTE
CONTROLLED
MIRROR (RH)

MIRROR
HEATER

MIRROR
HEATER

Heated door mirror Circuit

AC307119

CONNECTOR: C-26

AB

AC307118

CONNECTOR: C-12

AB

DOOR MIRROR

TSB Revision

EXTERIOR

51-28

.

CIRCUIT OPERATION
If both of the door mirror heaters do not operate nor-
mally it may be due to a malfunction in the rear win-
dow defogger system.

.

TROUBLESHOOTING HINTS

• Malfunction of the rear window defogger system

• The wiring harness or connectors may have

loose, corroded or damaged terminals, or termi-
nals pushed back in the connector.

DIAGNOSIS

Required Special Tools:

• MB991223: Test Harness Set

STEP 1. Check the rear window defogger.

Check that the rear window defogger works normally as fol-
lows.
(1) Turn the ignition switch to the "ON" position.
(2) Push the rear window defogger switch to operate the

defogger.

Q: Does the defogger work normally?

YES : Go to Step 2.
NO :  Because of malfunction of the rear window defogger,

carry out the troubleshooting (Refer to GROUP 55A,
Manual A/C Diagnosis

P.55A-112

).

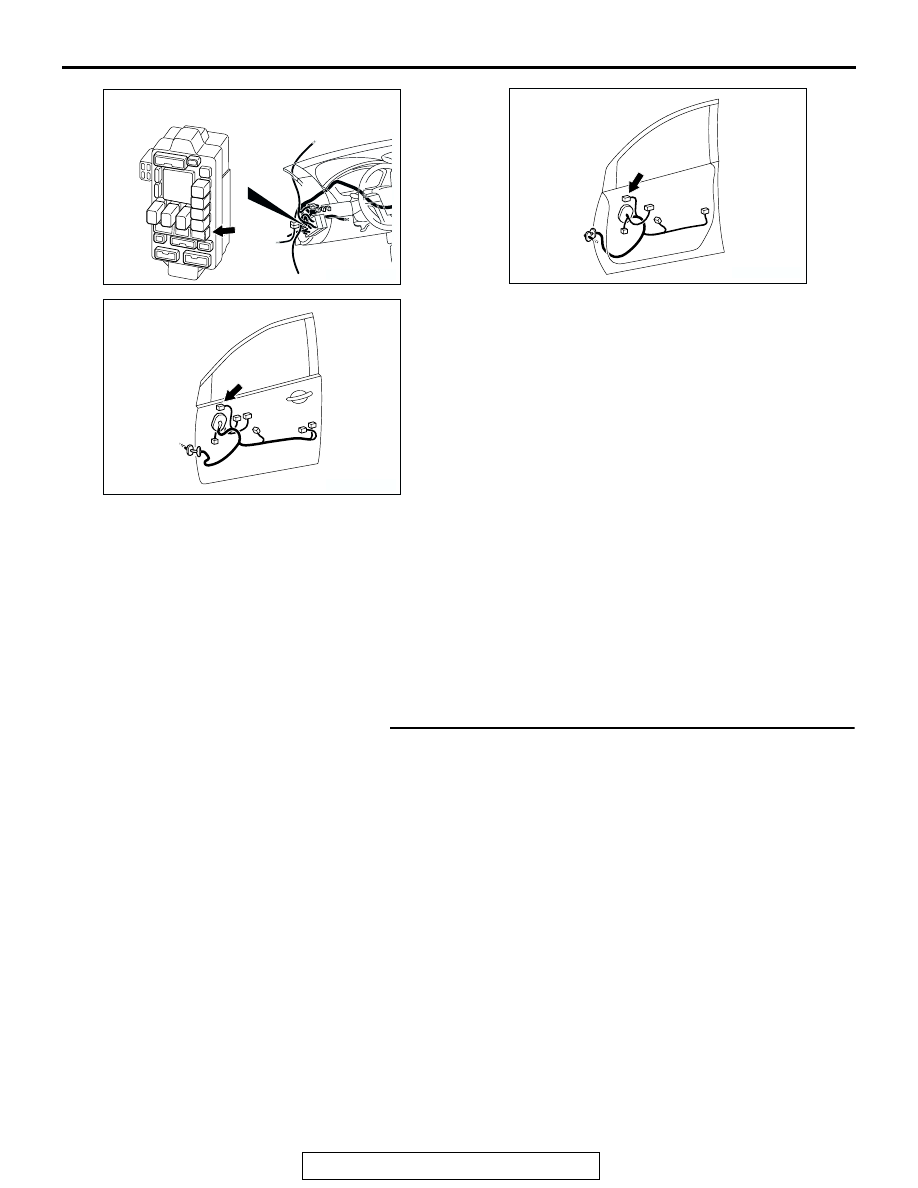

AC307121

JUNCTION BLOCK (FRONT VIEW)

CONNECTOR: C-211

AB

AC307125

E-09 (GR)

CONNECTOR: E-09

AB

AC307124

E-01 (GR)

CONNECTOR: E-01

AB
