Mitsubishi Galant (2004+). Manual - part 1368





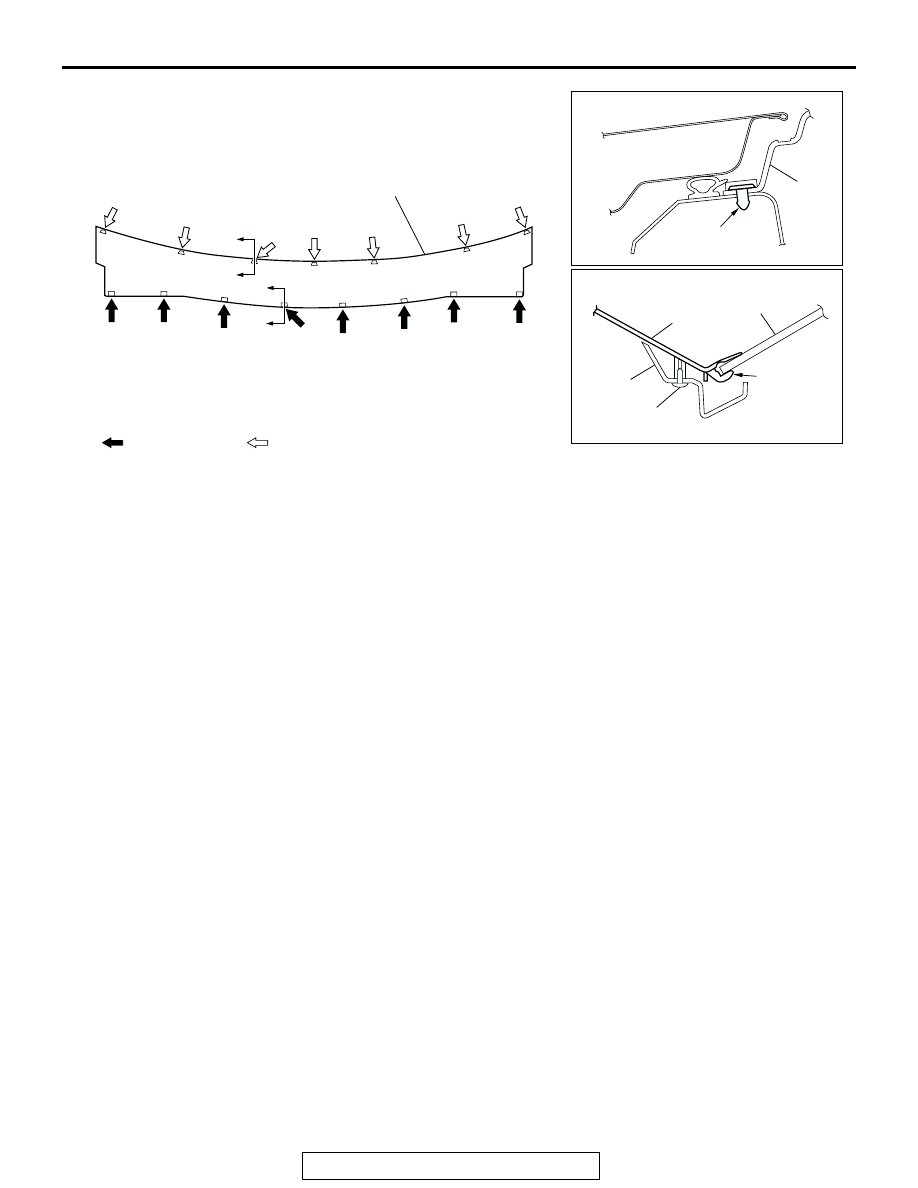

WINDSHIELD WIPER AND WASHER

TSB Revision

EXTERIOR

51-17

NOTE: For removal and installation of the wiper and
washer switch, refer to GROUP 54A, Column switch

P.54A-132

.

AC306703

SECTION B – B

SECTION C – C

5

5

6

CLIP

CLAW

VIEW A

NOTE

: CLIP POSITION

: CLAW POSITION

C

C

WINDSHIELD

SCREW

5

AB

B

B

WIPER BLADE REMOVAL STEPS

>>B<<

1. WIPER BLADE ASSEMBLY

>>B<<

2. WIPER BLADE RUBBER

>>A<<

3. WIPER ARM AND BLADE

ASSEMBLY

WINDSHIELD WIPER MOTOR AND
LINK ASSEMBLY REMOVAL STEPS
4. FENDER HOLE COVER
5. FRONT DECK GARNISH

ASSEMBLY

6. GUTTER
7. WINDSHIELD WIPER MOTOR AND

LINK ASSEMBLY

8. FENDER COVER

WINDSHIELD WIPER MOTOR AND
LINK ASSEMBLY REMOVAL STEPS

WINDSHIELD WIPER AND WASHER

TSB Revision

EXTERIOR

51-18

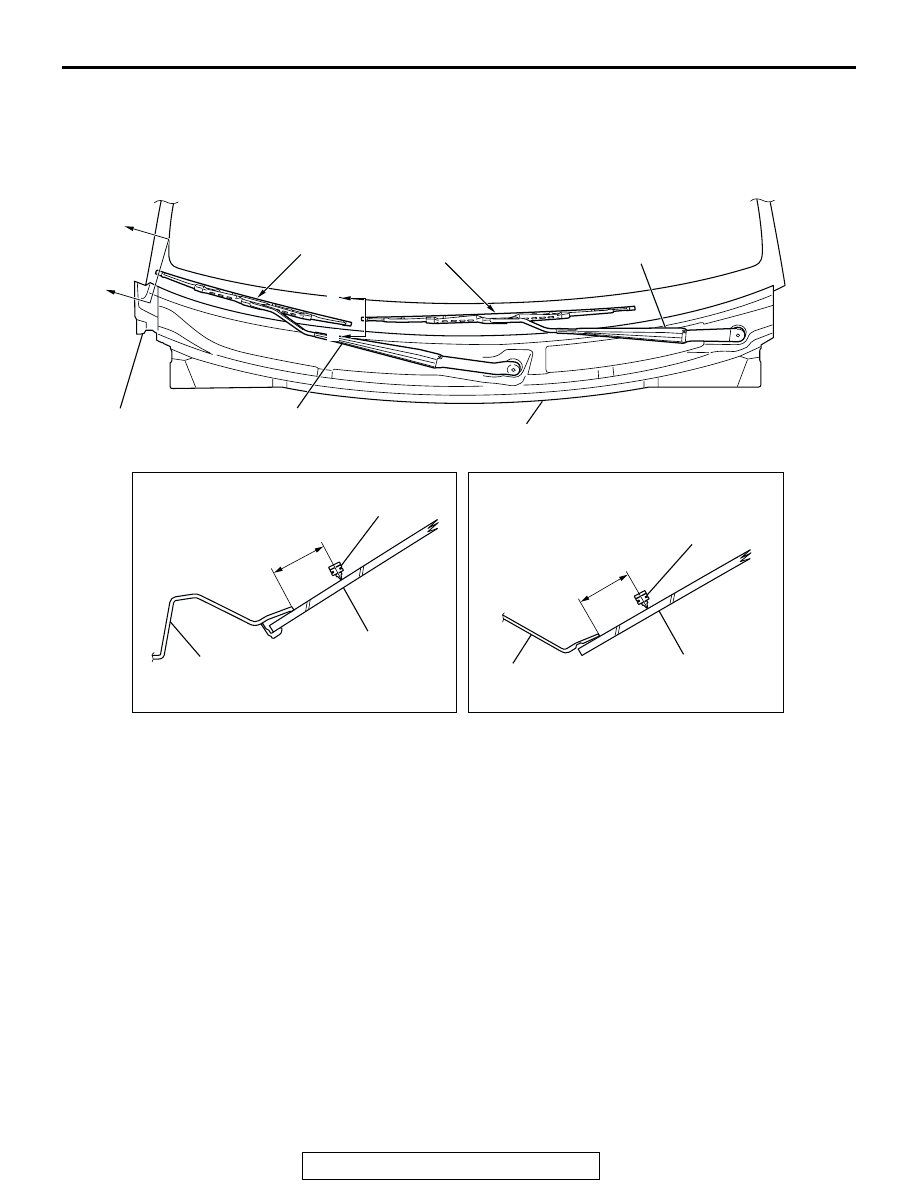

INSTALLATION SERVICE POINTS

.

>>A<< WIPER ARM AND BLADE ASSEMBLY INSTALLA-
TION

Install the wiper blade at the position specified above.

.

AC307178

AC306640

AC306641

AB

FENDER HOLE
COVER

FRONT DECK
GARNISH

FRONT DECK GARNISH

WIPER BLADE (LH)

PLACE WIPER BLADE ON THE
MARK OF WINDSHIELD

WIPER ARM AND
BLADE ASSEMBLY (RH)

WINDSHIELD GLASS

WINDSHIELD GLASS

WIPER BLADE (RH)

SECTION D – D

SECTION E – E

D

D

38 ± 5 mm
(1.50 ± 0.20 inch)

38 ± 5 mm
(1.50 ± 0.20 inch)

FENDER HOLE
COVER

E

E

WIPER ARM AND
BLADE ASSEMBLY (LH)

WINDSHIELD WIPER AND WASHER

TSB Revision

EXTERIOR

51-19

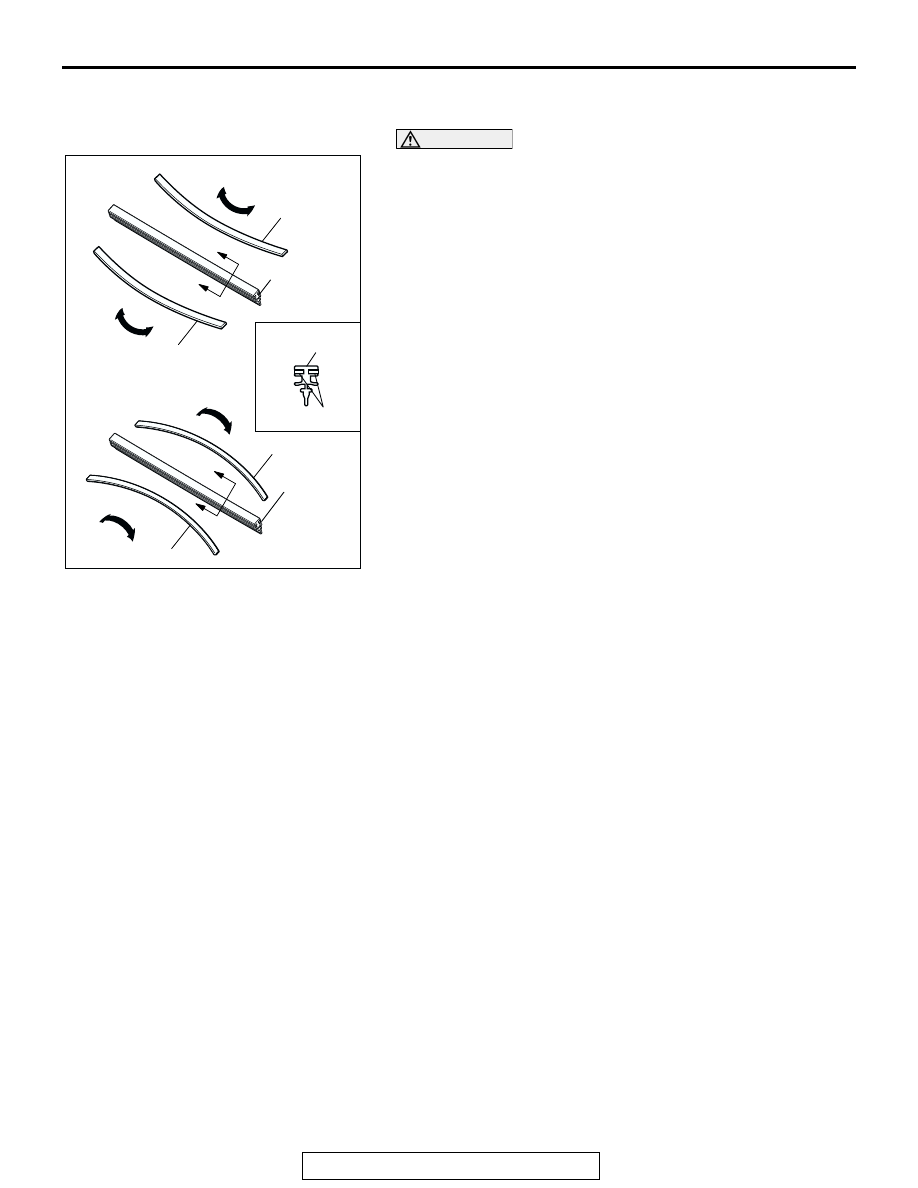

>>B<< WIPER BLADE RUBBER/ WIPER BLADE
ASSEMBLY INSTALLATION

CAUTION

Ensure that the backings are bent in the direction indi-
cated, and then install the backings to the wiper blade rub-
ber.

INSPECTION

M1511008000146

WINDSHIELD WIPER MOTOR CHECK

Inspect the windshield wiper motor by removing the harness
connector with the motor attached to the vehicle.

.

AC308476

AC

BACKING

BACKING

A

A

SECTION A – A

WIPER BLADE

BACKING

WIPER BLADE

BACKING

BACKING

A

A

<PASSENGER'S SIDE>

<DRIVER'S SIDE>

WIPER BLADE

WINDSHIELD WIPER AND WASHER

TSB Revision

EXTERIOR

51-20

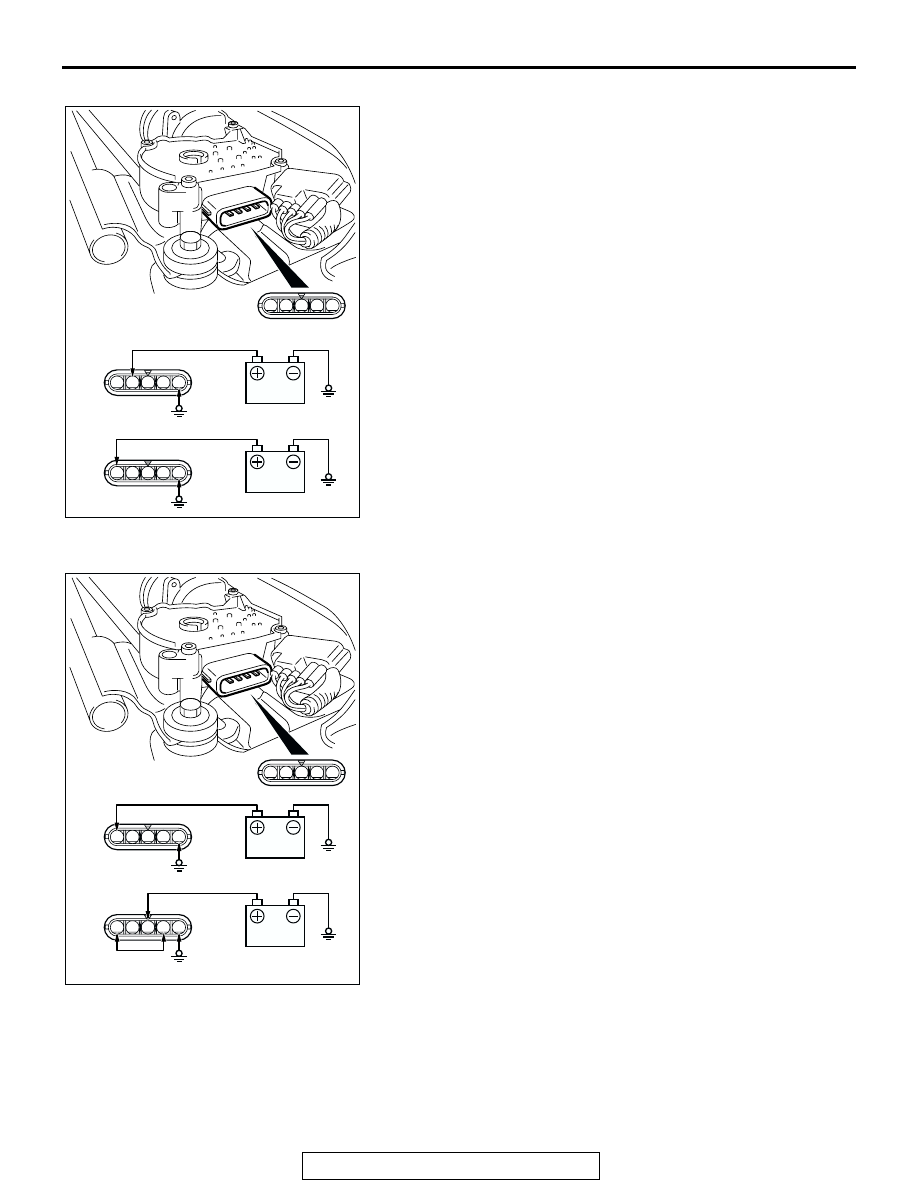

Wiper Motor at Low-Speed and High-Speed Operation
Connect the battery to the windshield wiper motor to inspect
the operation of motor rotation in low or high speed.

.

Wiper Motor at Stop Position Operation
1. Connect the battery to the windshield wiper motor as shown

in the illustration (A).

2. Run the windshield wiper motor at low speed, then

disconnect the battery in the middle of the motor turning and
check to see that the motor stops.

3. As shown in the illustration (B), connect the terminals of the

windshield wiper motor connectors.

4. Check to see that the windshield wiper motor runs at low

speed and then stops at the automatic stop position.

AC306750

1

2

3

4

5

1

2

3

4

5

1

2

3

4

5

CHECK OPERATION

LOW SPEED

HIGH SPEED

AB

1

2

3

4

5

AC306755

1

2

3

4

5

1

2

3

4

5

STOP POSITION CHECK

(B) AUTOMATICAL STOP

(A) LOW SPEED

AB
