WINDSHIELD WIPER AND WASHER

TSB Revision

EXTERIOR

51-13

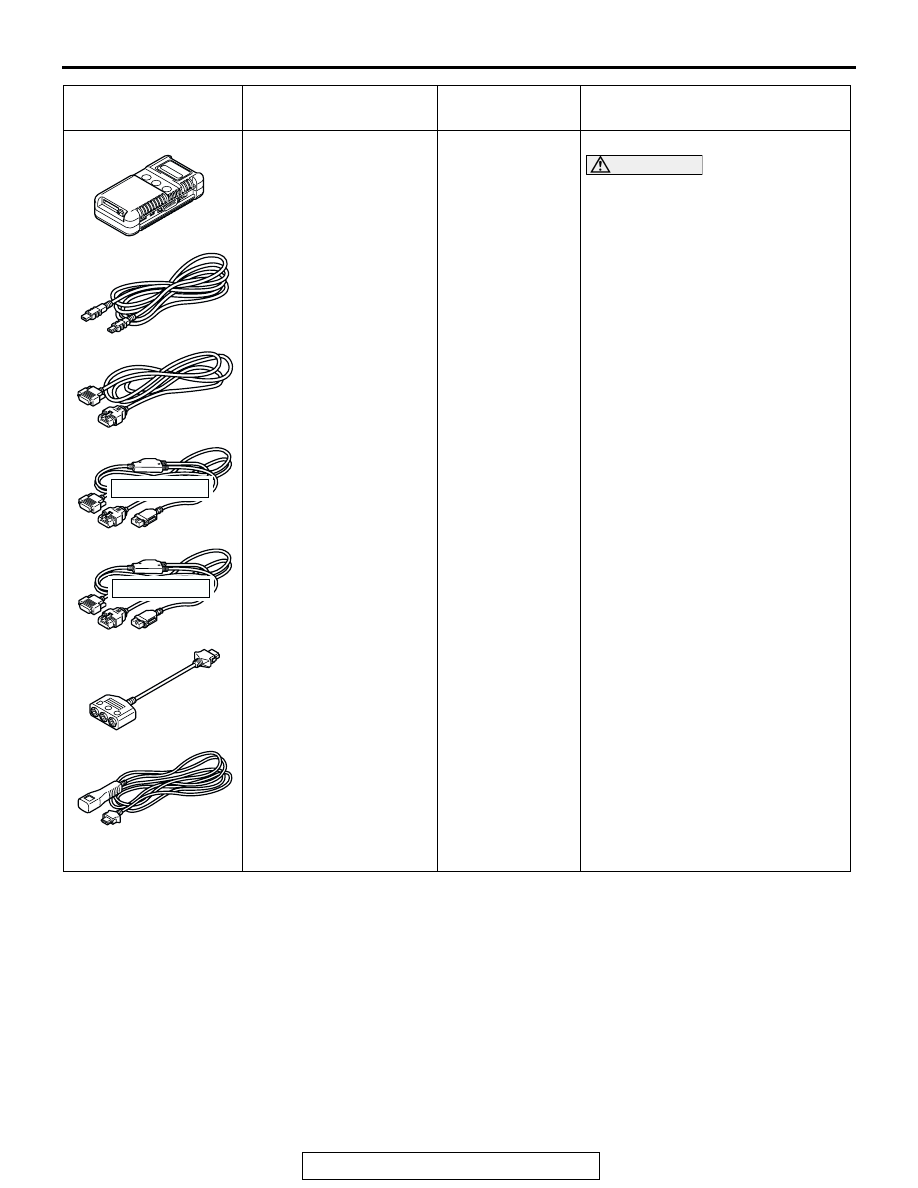

TOOL

TOOL NUMBER AND
NAME

SUPERSESSION APPLICATION

MB991958

A: MB991824
B: MB991827
C: MB991910
D: MB991911
E: MB991914
F: MB991825
G: MB991826

MUT-III sub assembly

A: Vehicle

Communication
Interface (V.C.I.)

B: MUT-III USB Cable
C: MUT-III Main Harness

A (Vehicles with CAN
communication
system)

D: MUT-III Main Harness

B (Vehicles without
CAN communication
system)

E: MUT-III Main Harness

C (for Chrysler models
only)

F: MUT-III Adapter

Harness

G: MUT-III Trigger

Harness

Windshield intermittent wiper check

CAUTION

For vehicles with CAN
communication, use MUT-III main
harness A to send simulated
vehicle speed. If you connect
MUT-III main harness B instead,
the CAN communication does
not function correctly.

MB991910

MB991826

MB991958

MB991911

MB991914

MB991824

MB991827

MB991825

DO NOT USE

A

B

C

D

E

F

G

DO NOT USE

WINDSHIELD WIPER AND WASHER

TSB Revision

EXTERIOR

51-14

ON-VEHICLE SERVICE

WINDSHIELD INTERMITTENT WIPER VOLUME
CHECK

M1511018900043

Required Special Tools:

• MB991958: Scan Tool (MUT-III Sub Assembly)

• MB991824: Vehicle Communication Interface (V.C.I.)

• MB991827: MUT-III USB Cable

• MB991910: MUT-III Main Harness A

If the windshield intermittent wiper interval control is operated,
the wiper interval should change.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.

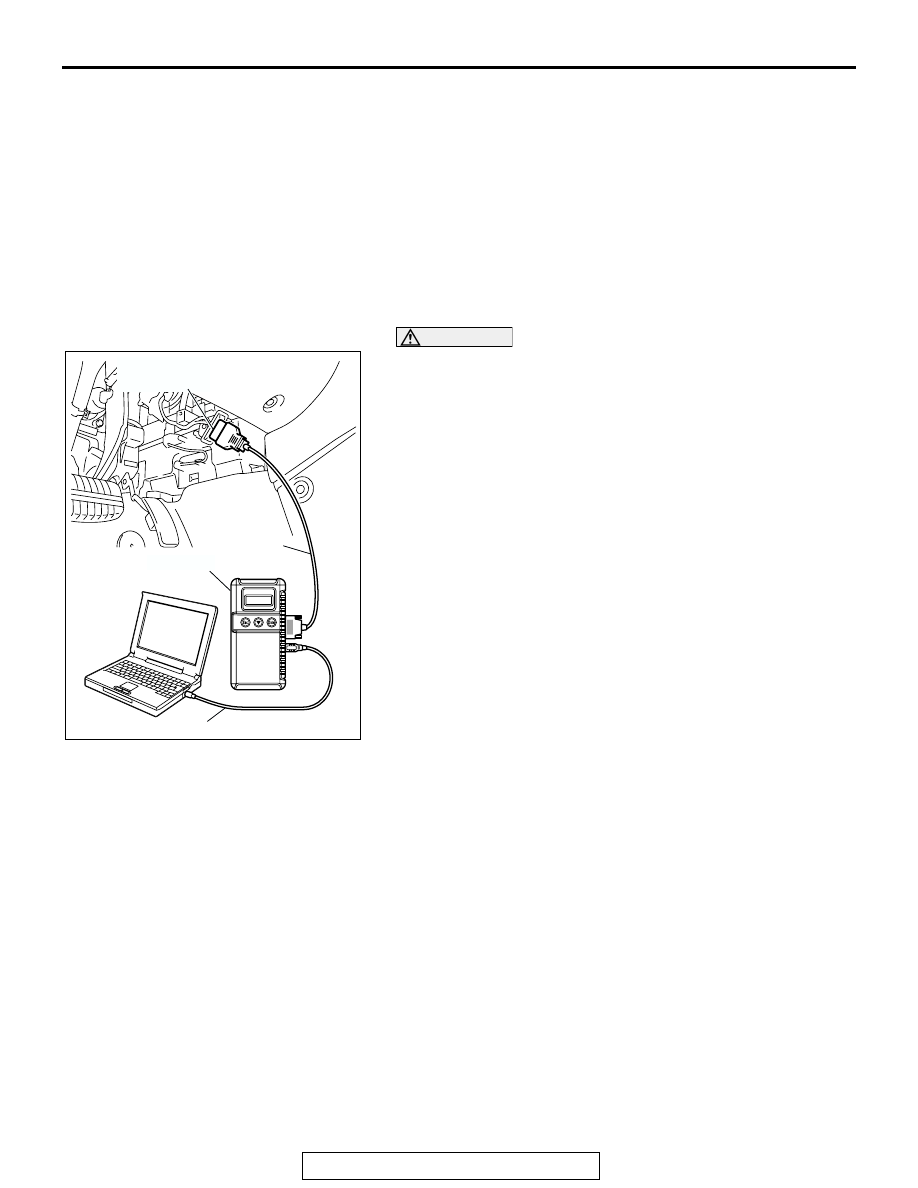

1. Connect scan tool MB991958 to the data link connector.
2. Turn the ignition switch to the "ON" position.
3. Operate scan tool MB991958 according to the procedure

below to display "Simulated Vehicle Speed Output."

(1) Select "SYSTEM SELECT."
(2) Select "SWS."
(3) Select "Simulated Vehicle Speed Output."

4. Holding the windshield intermittent wiper interval control,

input the simulated vehicle speed with scan tool MB991958
and check that the wiper interval changes as the vehicle
speed changes.

5. If not, carry out the troubleshooting (Refer to GROUP 54B,

SWS Diagnosis

P.54B-59

).

AC305412

AB

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

WINDSHIELD WIPER AND WASHER

TSB Revision

EXTERIOR

51-15

WINDSHIELD WASHER FLUID EJECTION CHECK

M1511018400060

The windshield washer nozzle aiming cannot be adjusted. If the
washer nozzles do not spray washer fluid within the windshield
wiper wiping area, check the nozzles as follows:
1. Check that the windshield washer nozzles are fitted on the

hood correctly, and reinstall them if necessary.

2. If the windshield washer nozzles are damaged, replace

them (Refer to

P.51-22

).

AC307151 AB

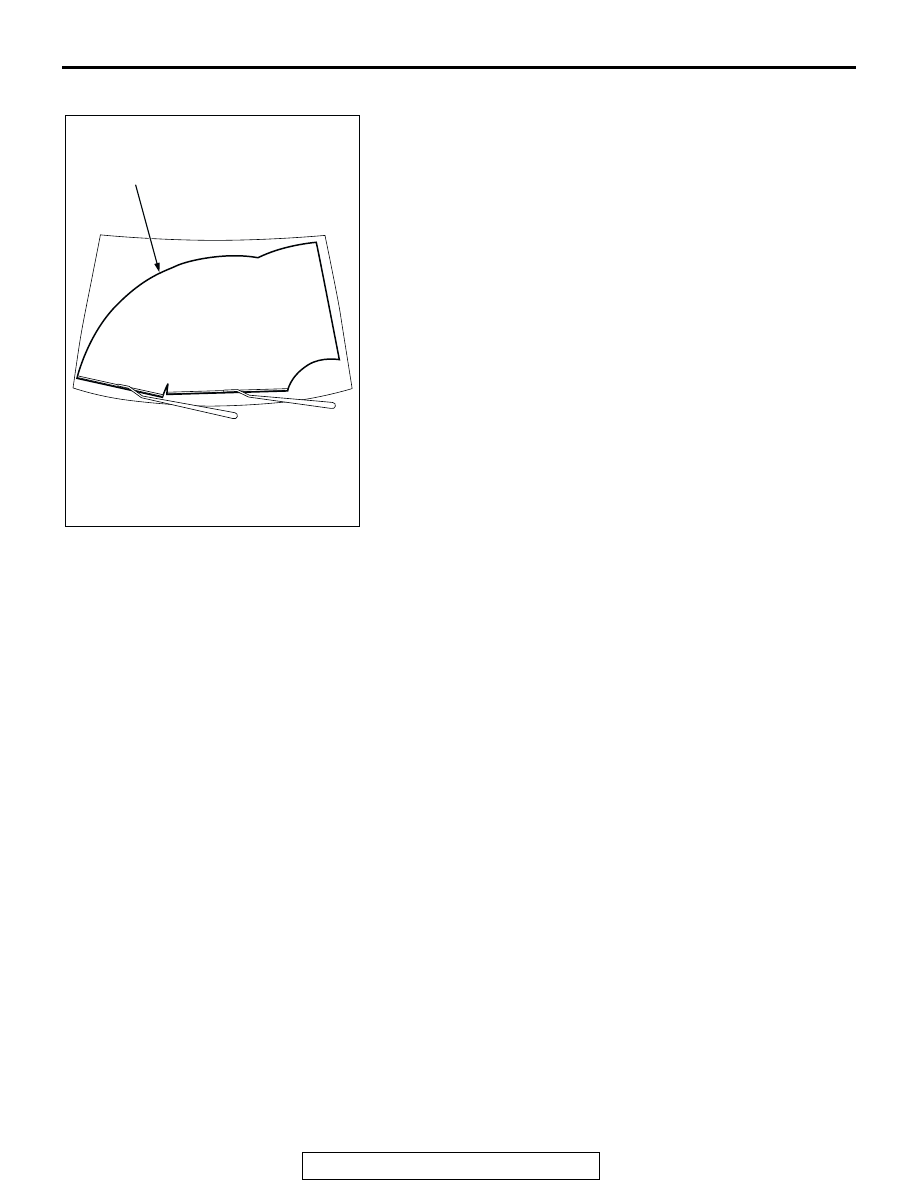

WINDSHIELD WIPER WIPING AREA

WINDSHIELD WIPER AND WASHER

TSB Revision

EXTERIOR

51-16

WINDSHIELD WIPER

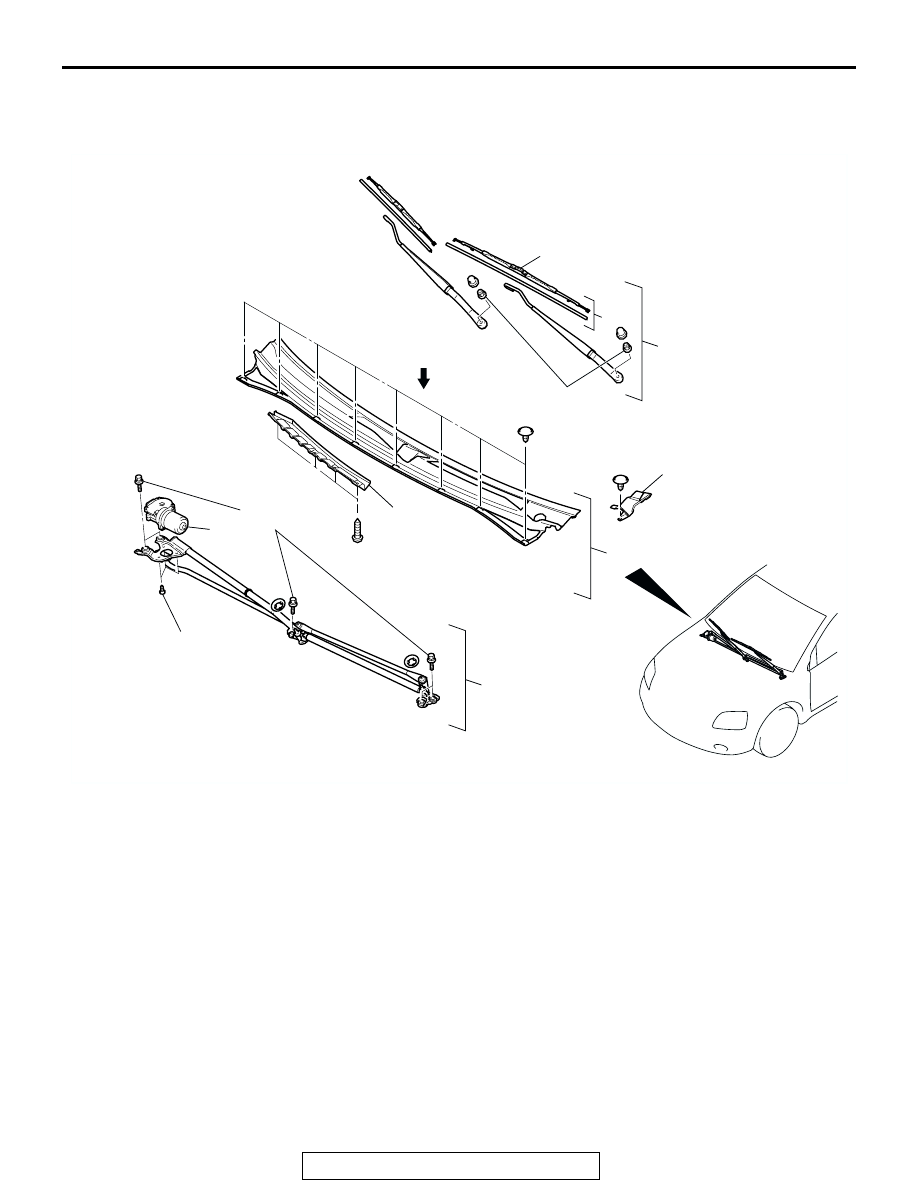

REMOVAL AND INSTALLATION

M1511007900168

AC306698

AB

1

2

8

4.9 ± 0.5 N·m
43 ± 4 ft-lb

7.5 ± 1.4 N·m
66 ± 13 ft-lb

A

37 ± 3 N·m
18 ± 1 ft-lb

7

3

4

5

6
