RADIATOR GRILLE

TSB Revision

EXTERIOR

51-5

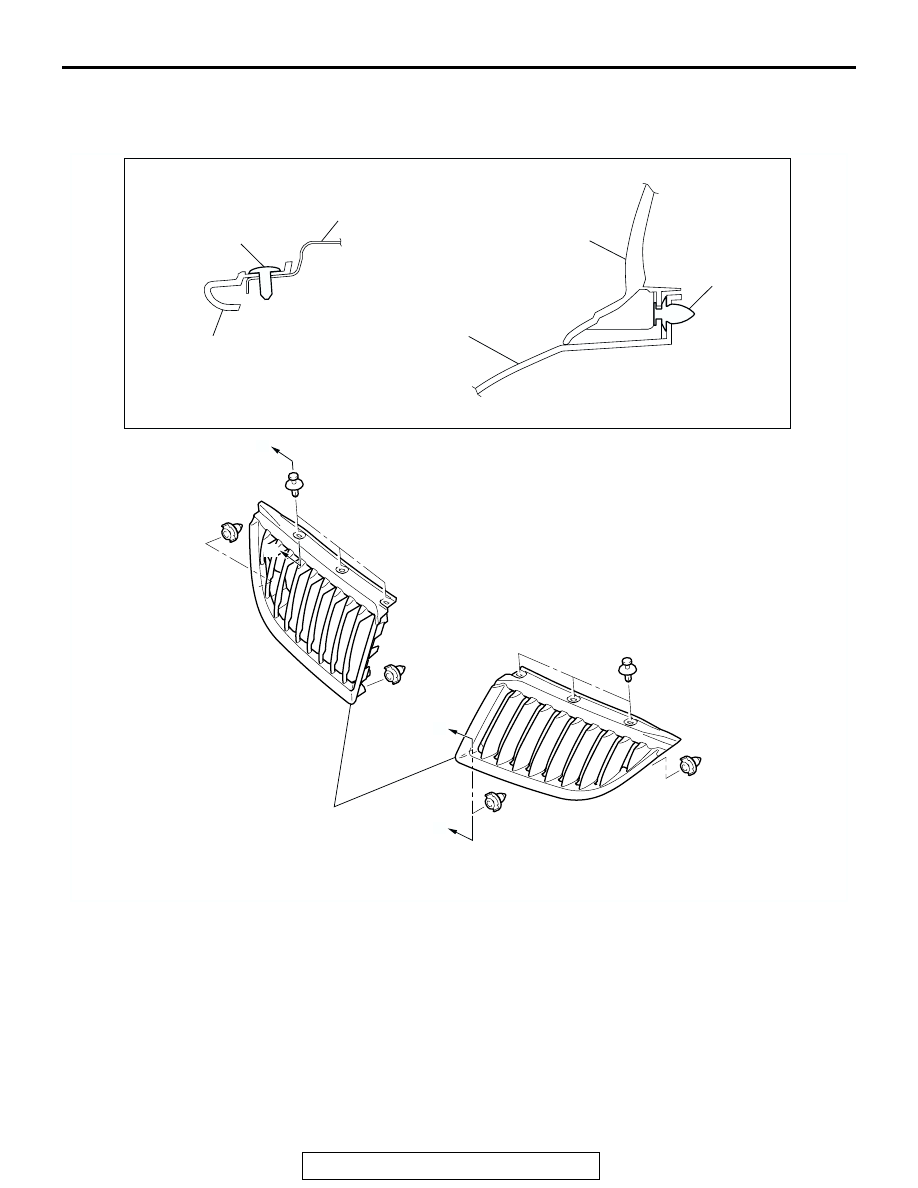

RADIATOR GRILLE

REMOVAL AND INSTALLATION

M1511002900237

AC306184

AB

SECTION B – B

SECTION A – A

CLIP

CLIP

RADIATOR GRILLE

RADIATOR GRILLE

RADIATOR GRILLE

FRONT BUMPER

FRONT END

UPPER BAR

B

B

A

A

GARNISHES AND MOLDINGS

TSB Revision

EXTERIOR

51-6

GARNISHES AND MOLDINGS

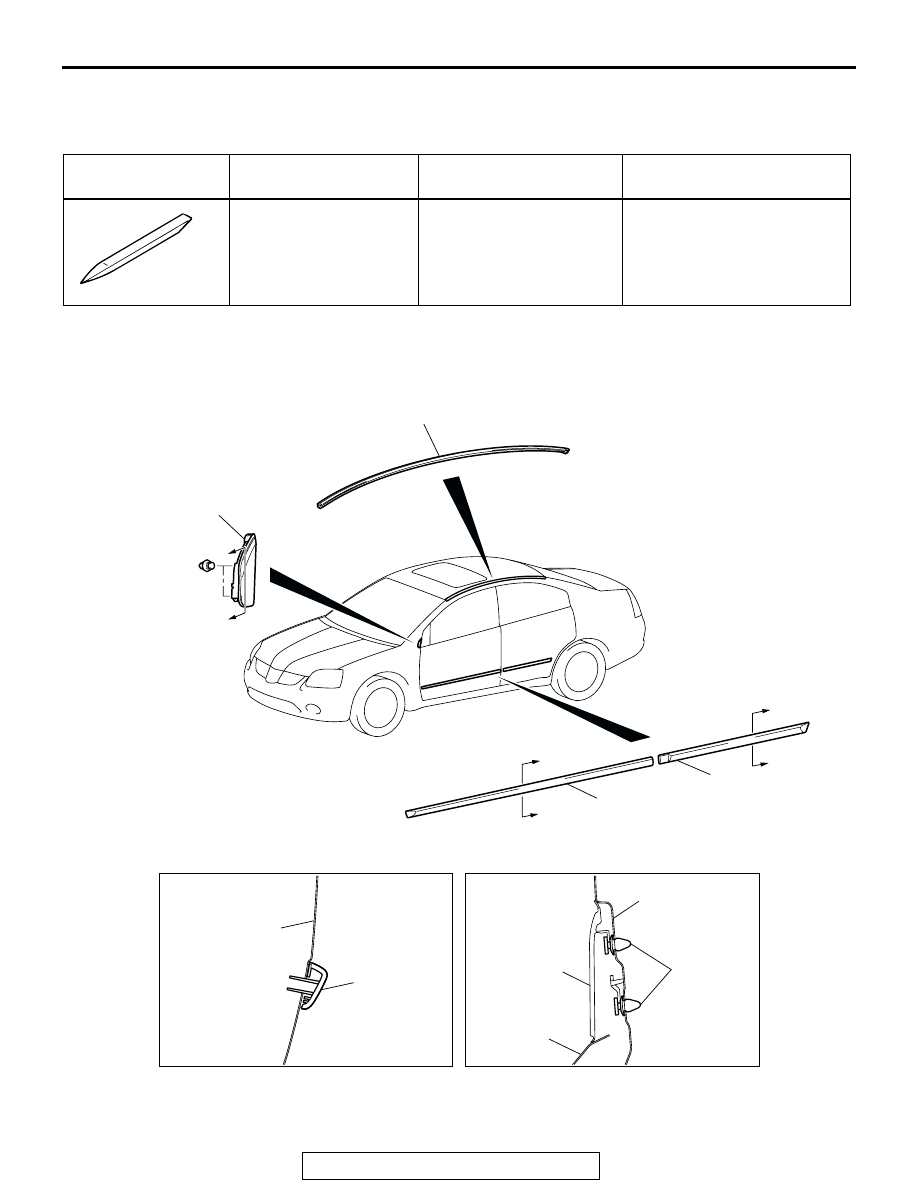

SPECIAL TOOLS

M1511000601158

MOLDINGS

REMOVAL AND INSTALLATION

M1511004700165

TOOL

TOOL NUMBER AND
NAME

SUPERSESSION

APPLICATION

MB990784 Ornament
remover

General service tool

Side protector moulding
Roof drip molding

MB990784

AC306486

AB

2

4

3

1

A

A

A

A

B

B

AB

AC306021

AC306022

AC307267 AB

SECTION A – A

SECTION B – B

3

1, 2

CLIP

DOOR OUTER
PANEL

FRONT FENDER

SIDE OUTER PANEL

GARNISHES AND MOLDINGS

TSB Revision

EXTERIOR

51-7

Required Special Tools:

• MB990784: Ornament Remover

ADHESIVE TAPE POSITION

REMOVAL

<<A>> >>A<<

1. FRONT DOOR SIDE PROTECTOR

MOULDING

<<A>> >>A<<

2. REAR DOOR SIDE PROTECTOR

MOULDING

ROOF DRIP MOULDING REMOVAL
STEPS

<<A>> >>A<<

3. ROOF DRIP MOULDING

FRONT DELTA GARNISH REMOVAL
STEPS
4. FRONT DELTA GARNISH

AC306520 AB

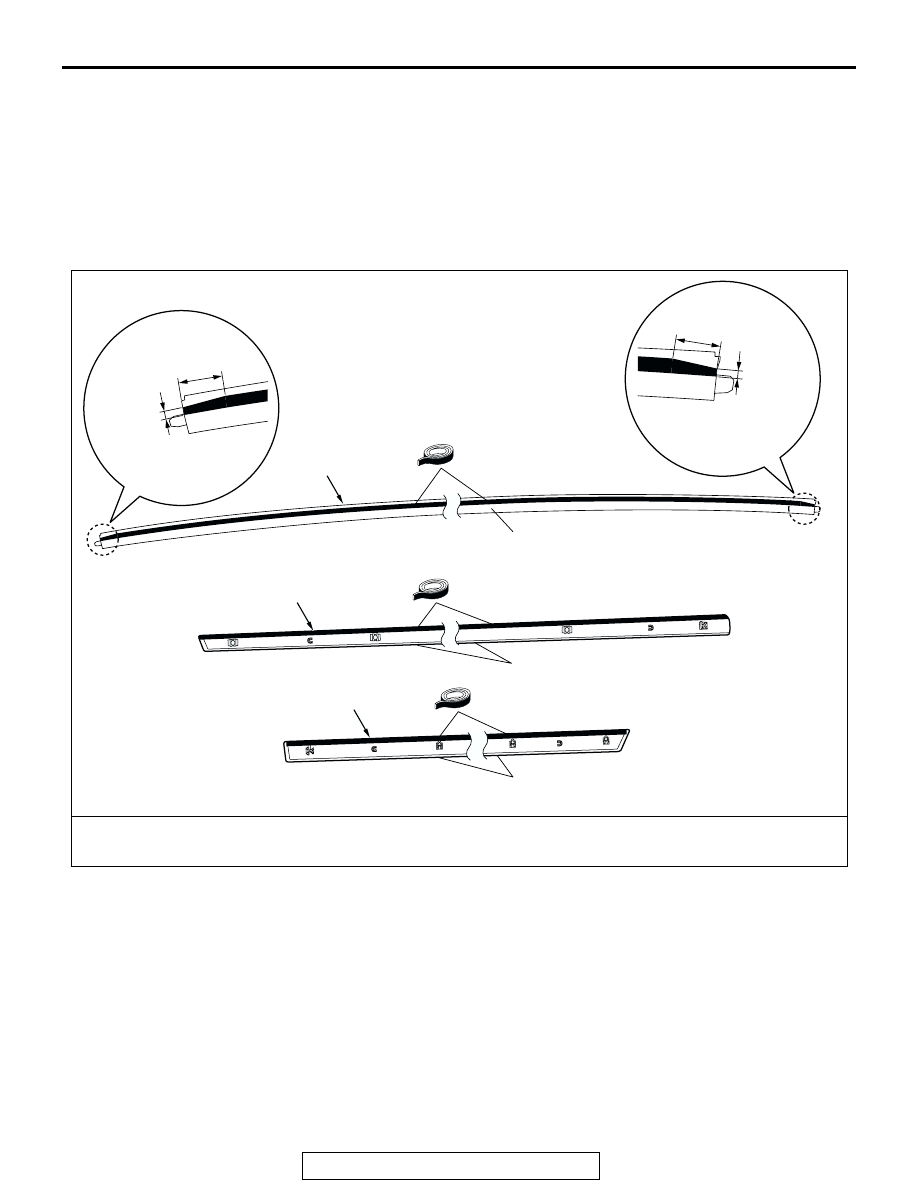

ADHESIVE TAPE: DOUBLE-SIDED TAPE
                                     A: 10.0 mm ( 0.39 in ) WIDTH AND 1.52 mm ( 0.06 in ) THICKNESS,
                                     B: 8.0 mm ( 0.32 in ) WIDTH AND 1.2 mm ( 0.05 in ) THICKNESS

FRONT DOOR SIDE PROTECTOR MOULDING

REAR DOOR SIDE PROTECTOR MOULDING

ROOF DRIP MOULDING

B

B

A

36.5 ± 1 mm
(1.44 ± 0.04 inch)

29 ± 1 mm
(1.14 ± 0.04 inch)

5.5 ± 0.5 mm
(0.22 ± 0.02 inch)

6.4 ± 0.5 mm
(0.25 ± 0.02 inch)

GARNISHES AND MOLDINGS

TSB Revision

EXTERIOR

51-8

REMOVAL SERVICE POINTS

.

<<A>> SIDE PROTECTOR MOULDING/ROOF DRIP MOUL-
DING REMOVAL
Gently lift and remove the side protector moulding/roof drip
moulding. If there is any double-sided tape remaining on the
side protector moulding, remove according to the following
instructions.
<Remove double-sided tape remaining on the body sur-
face>
1. Attach protection tape all the way along the edges of the

double-sided tape which is still adhering to the body.

2. Scrape off the double-sided tape with a resin spatula as

much as possible.

3. Peel off the protection tape.
4. Use a shop towel moistened with 3M

 AAD Part number

8906 or equivalent to wipe the body.

.

<Remove double-sided tape remaining on SIDE PROTEC-
TOR MOULDING/ROOF DRIP MOULDING and adhere dou-
ble-sided tape (when re-using SIDE PROTECTOR
MOULDING/ROOF DRIP MOULDING)>
1. Scrape off the double-sided tape on the side protector

moulding with a resin spatula as much as possible.

2. Use a shop towel moistened with 3M

 AAD Part number

8906 or equivalent to wipe the side protector moulding
surface.

3. Remove only a small portion of the residual adhesive.
4. Apply primer to adherence area of the side protector

moulding, then adhere the double-sided tape as specified on
the side protector moulding (Refer to double-sided tape
adherence location ).

AC000420

DOUBLE-SIDED TAPE

PROTECTION TAPE

AB

AC000421

DOUBLE-SIDED TAPE

AB

AC000422
