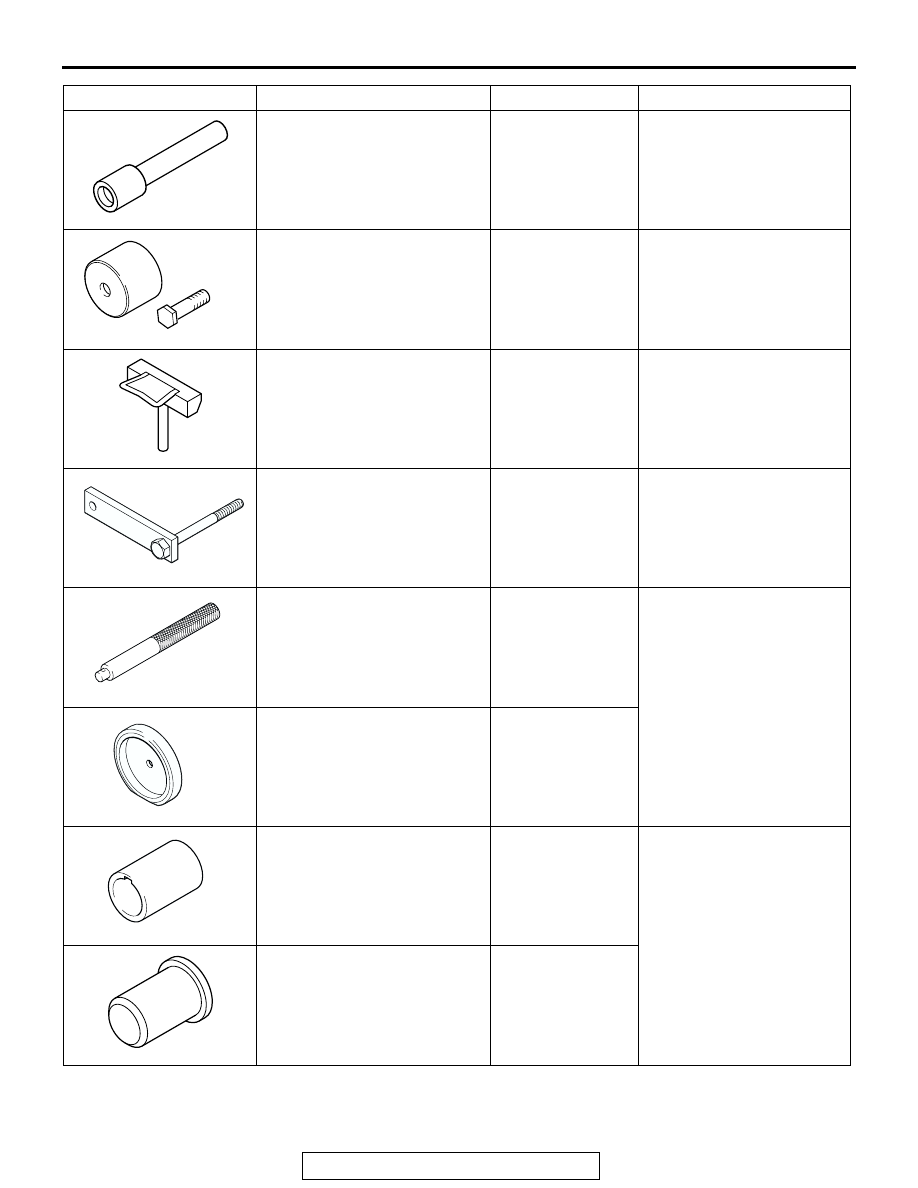

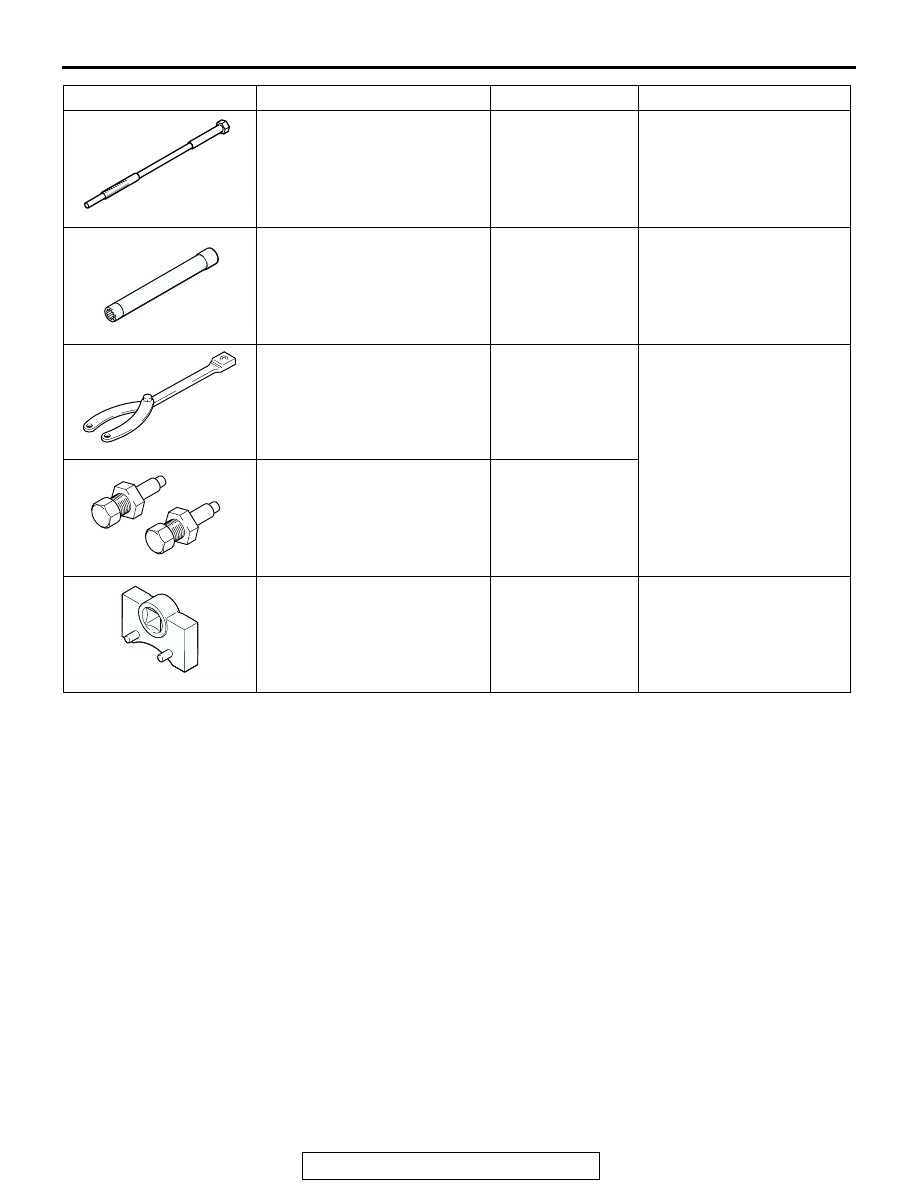

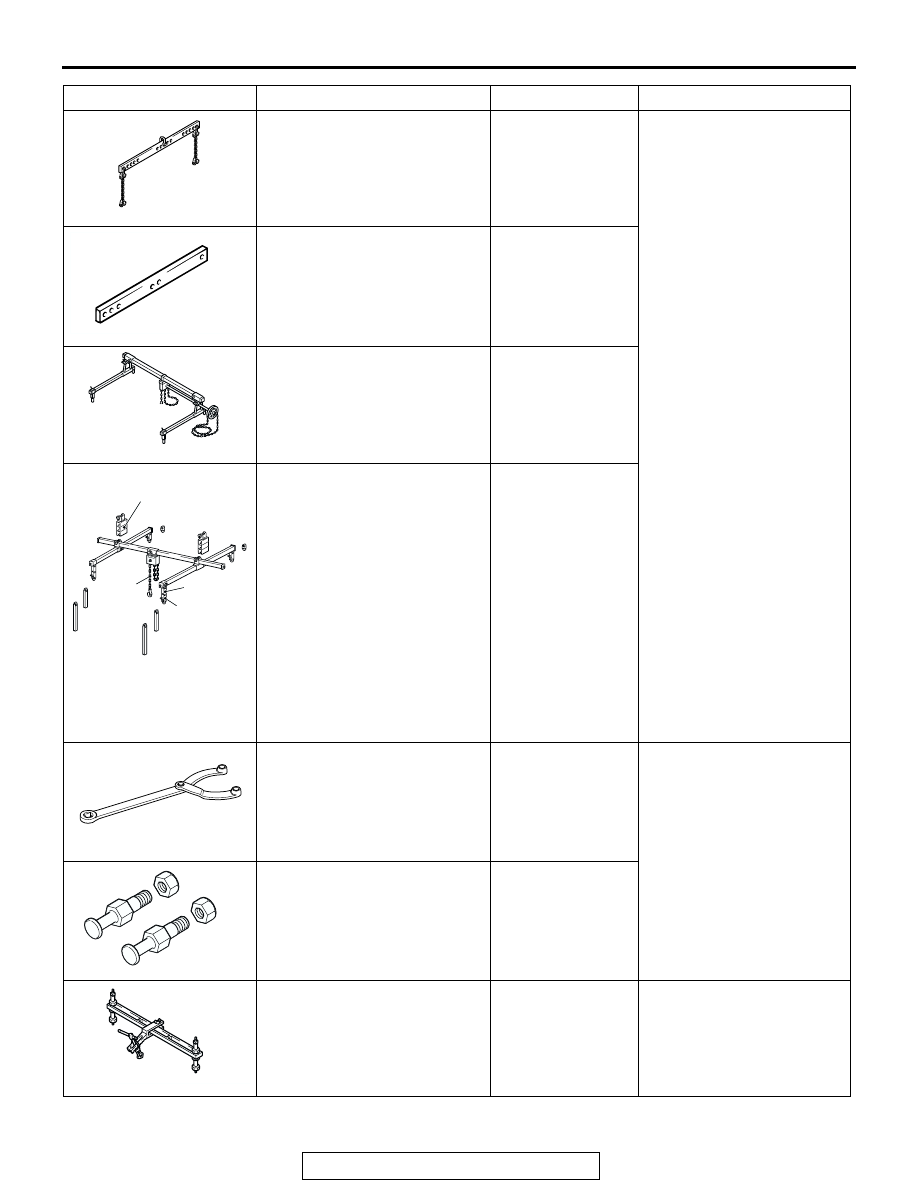

SPECIAL TOOLS

TSB Revision

ENGINE MECHANICAL <2.4L ENGINE>

11A-5

MB991454
Engine hanger balancer

MZ203827-01

When the engine hanger is
used: Supporting the
engine assembly during
removal and installation of
the transaxle assembly
NOTE: Special tool
MB991454 is a part of
engine hanger attachment
set MB991453.

MB991527
Hanger

Tool not available

MB991895
Engine hanger

Tool not available

MB991928
Engine hanger

A: MB991929

Joint (50)

× 2

B: MB991930

Joint (90)

× 2

C: MB991931

Joint (140)

× 2

D: MB991932

Foot (standard)

× 4

E: MB991933

Foot (short)

× 2

F: MB991934

Chain and hook assembly

Tool not available

MB990767
Front hub and flange yoke
holder

MB990767-01

Holding the camshaft
sprocket

MD998719
Pin

MIT308239

MD998772
Valve spring compressor

General service
tool

Compressing valve spring

TOOL

TOOL NUMBER AND NAME SUPERSESSION

APPLICATION

B991454

B991527

MB991895

B991928

SLIDE BRACKET (HI)

B990767

D998719

MD998772

SPECIAL TOOLS

TSB Revision

ENGINE MECHANICAL <2.4L ENGINE>

11A-6

MD998774
Valve stem seal installer

MD998774-01

Valve stem seal installation

MD998713
Camshaft oil seal installer

MD998713-01

Camshaft oil seal
installation

MD998727
Oil pan remover

MD998727-01

Oil pan removal

MD998781
Flywheel stopper

General service
tool

Supporting the A/T drive
plate

MB990938
Installer bar

MB990938-01

Crankshaft rear oil seal
installation

MD998776
Crankshaft rear oil seal
installer

MD998776-01

MD998285
Crankshaft front oil seal guide

MD998285-01

Crankshaft front oil seal
installation

MD998375
Crankshaft front oil seal
installer

MD998375-01

TOOL

TOOL NUMBER AND NAME SUPERSESSION

APPLICATION

D998713

D998727

D998781

B990938

D998776

D998285

SPECIAL TOOLS

TSB Revision

ENGINE MECHANICAL <2.4L ENGINE>

11A-7

MD998738
Adjusting bolt

MD998738-01

Supporting the timing belt
tensioner arm and timing
belt tensioner adjuster

MB991654
Cylinder head bolt wrench (12)

General service
tool

Removal and installation of
cylinder head bolt

MB991367
Special spanner

MB991367-01

Holding the crankshaft
camshaft drive sprocket

MB991385
Pin

MIT217213

MD998767
Tensioner wrench

MD998752-01

Valve timing belt tension
adjustment

TOOL

TOOL NUMBER AND NAME SUPERSESSION

APPLICATION

D998738

B991654

B991367

B991385

D998767

ON-VEHICLE SERVICE

TSB Revision

ENGINE MECHANICAL <2.4L ENGINE>

11A-8

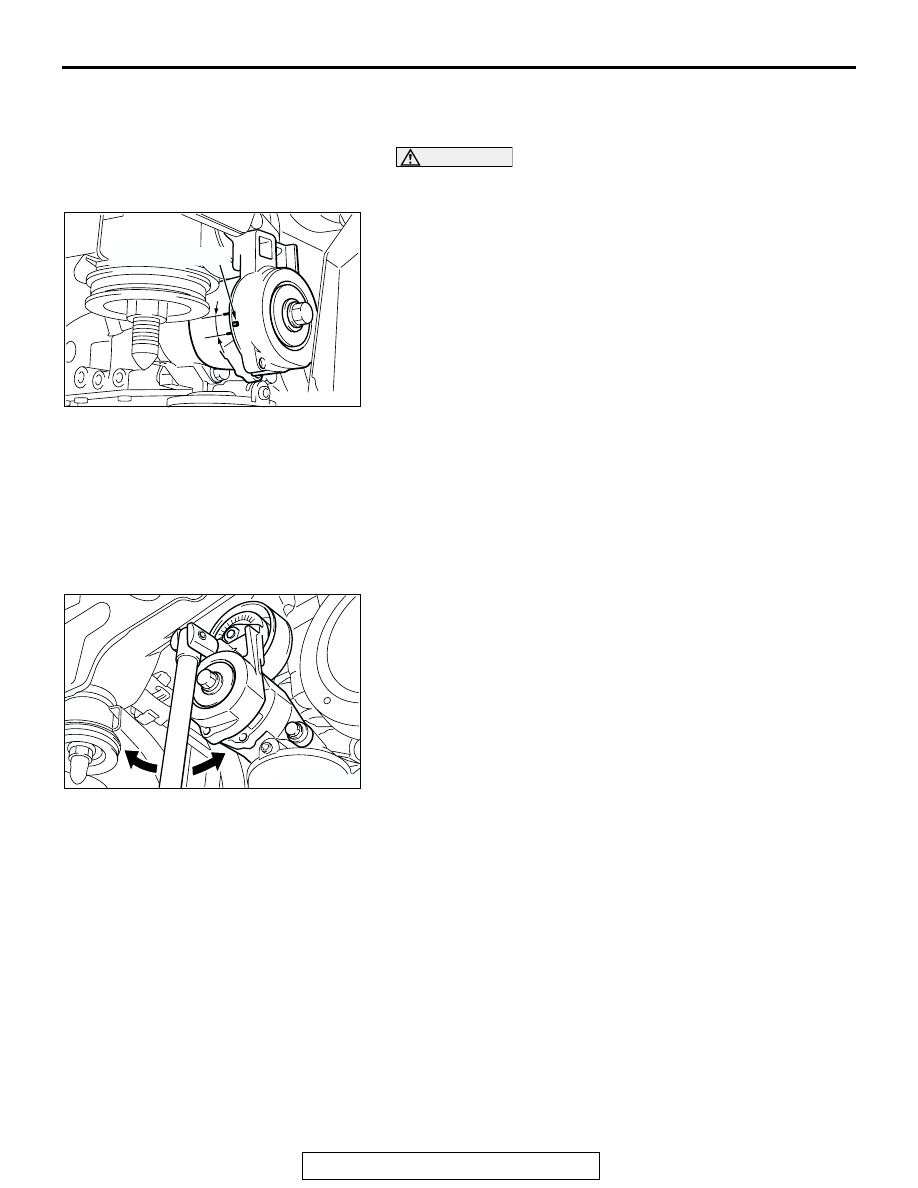

ON-VEHICLE SERVICE

DRIVE BELT TENSION CHECK

M1111003100485

CAUTION

Check the drive belt tension after turning the crankshaft
clockwise one turn or more.
1. Make sure that the indicator mark is within the area marked

with A in the illustration.

2. If the mark is out of the area, replace the drive belt. (Refer to

P.11A-26

NOTE: The drive belt tension adjustment is not necessary
as auto-tensioner is adopted.

AUTO-TENSIONER CHECK

M1111003000217

OPERATION CHECK

1. Turn OFF the engine from the idle state then check to see

that the drive belt is not protruding from the pulley width of
the auto-tensioner.

2. Remove the drive belt. (Refer to

P.11A-26

3. Securely insert the spindle handle or ratchet handle with a

12.7 mm (1/2-inch) insertion angle into the jig hole of the
auto tensioner. Turn the auto-tensioner to the left and right
to check and see that there is no threading.

4. If there are any problems in the procedure 1 or 3, replace

the auto-tensioner. (Refer to

P.11A-49

5. Install the drive belt. (Refer to

P.11A-26

FUNCTION CHECK

You can verify if the auto-tensioner is defective or not by check-
ing the drive belt tension.

When using scan tool MB991958

Required Special Tools:

• MB991668: Belt Tension Meter Set

• MB991958: Scan Tool (MUT-III Sub Assembly)

• MB991824: V.C.I.
