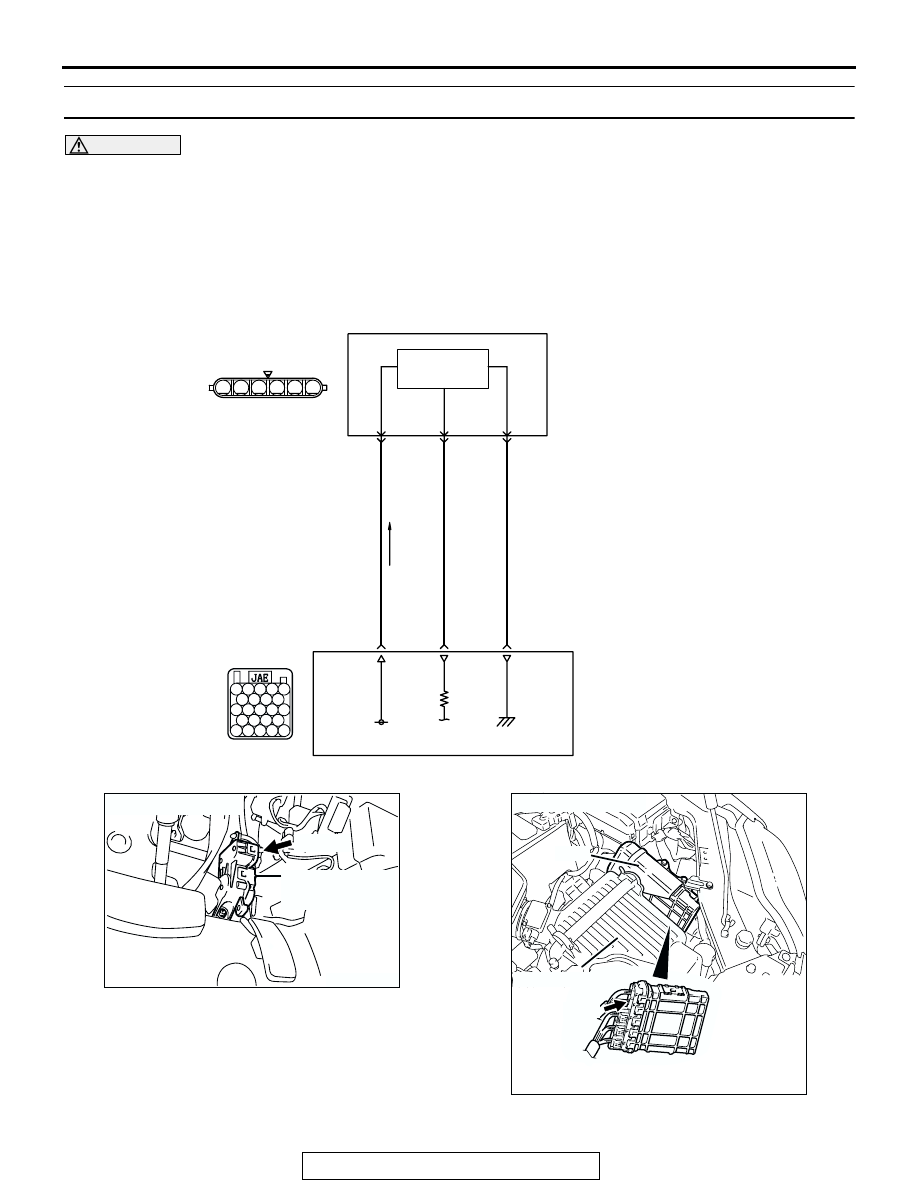

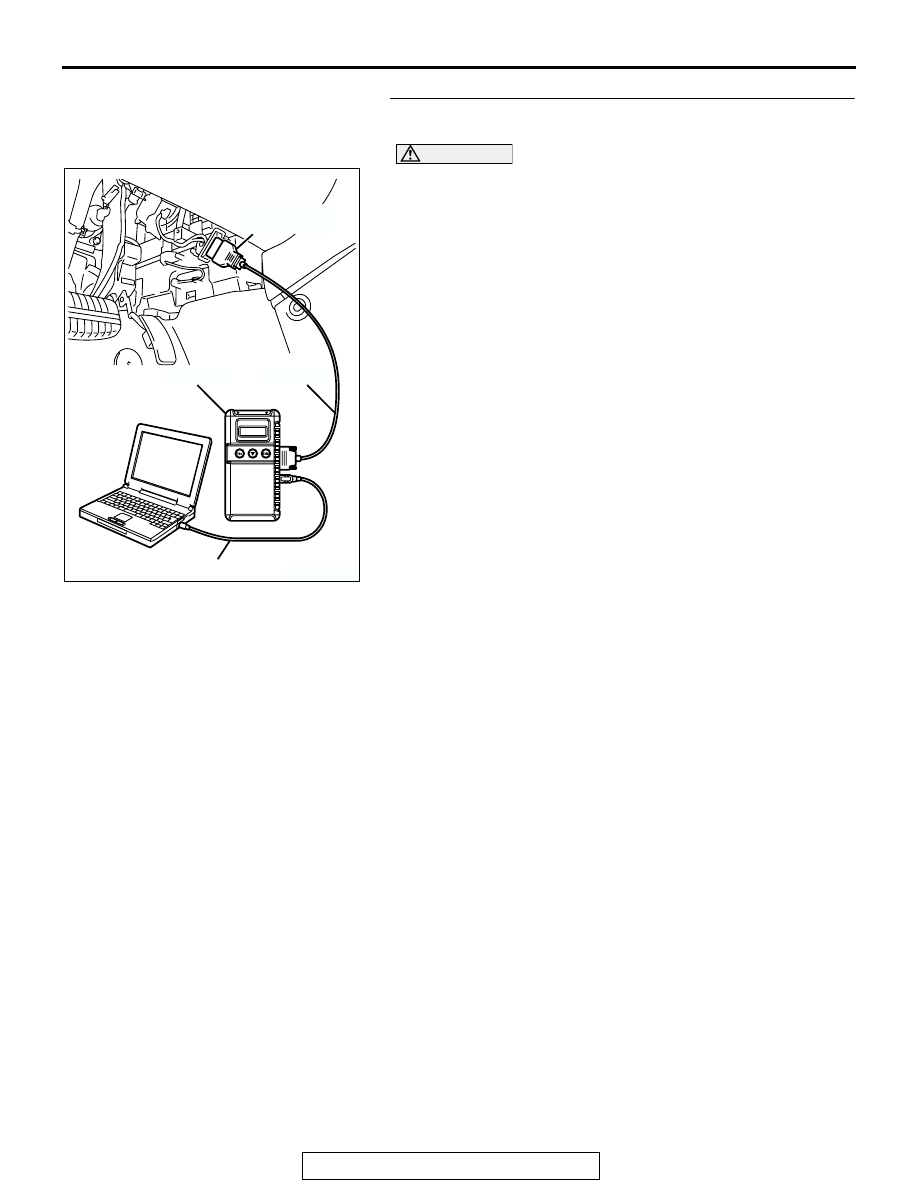

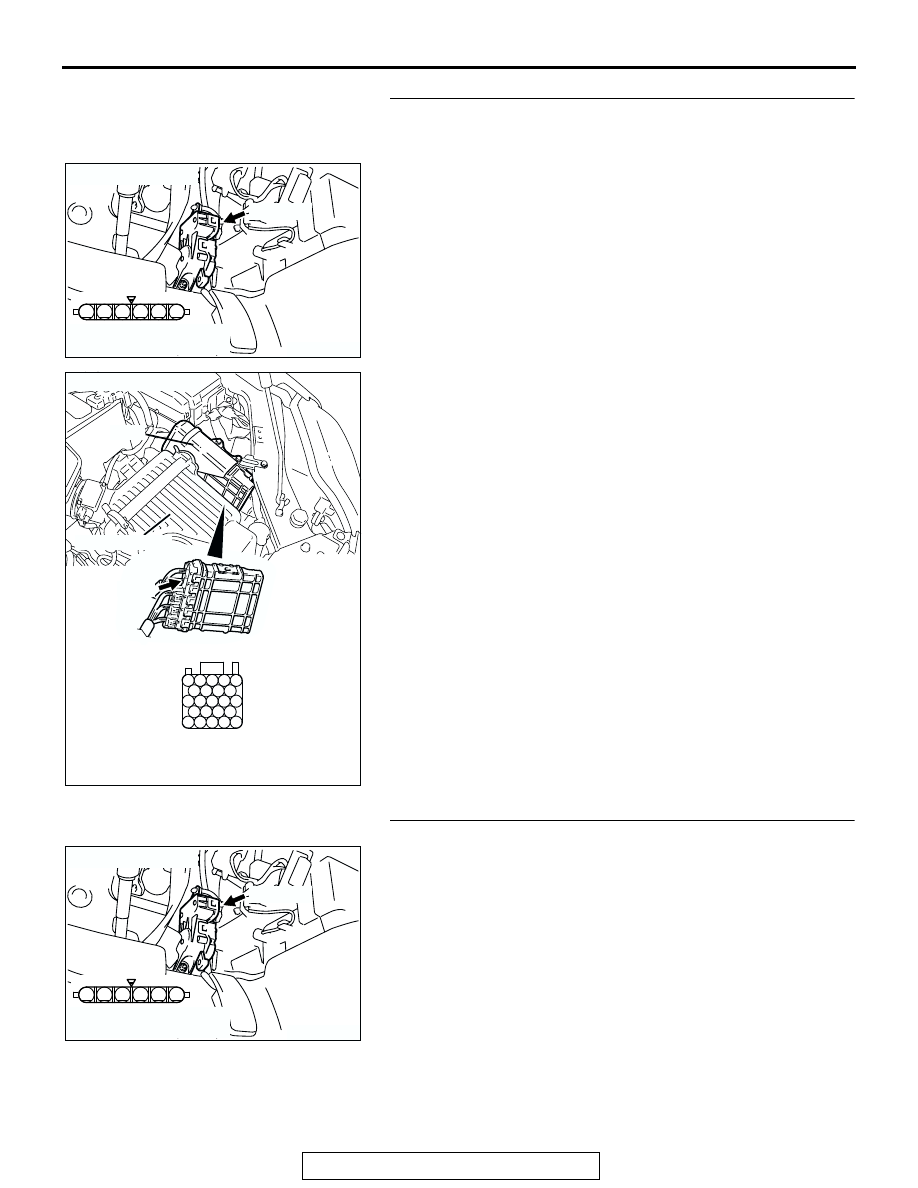

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS TSB Revision MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE> 13A-873 STEP 9. Check for harness damage between accelerator Q: Is the harness wire in good condition? YES : Go to Step 10. STEP 10. Replace the accelerator pedal position sensor. (1) Replace the accelerator pedal position sensor. (3) After the DTC has been deleted, read the DTC again. YES : Replace the PCM. Then go to Step 11. AK303906 1 6 5 4 3 2 AB C-24 (B) CONNECTOR: C-24 HARNESS CONNECTOR: AK303092 25 21 24 23 22 29 28 27 26 34 33 32 31 30 38 37 36 35 43 42 41 40 39 CONNECTOR: B-20 B-20 PCM AB HARNESS CONNECTOR: AIR CLEANER AK303906 1 6 5 4 3 2 AB C-24 (B) CONNECTOR: C-24 HARNESS CONNECTOR: |
