BODY CONSTRUCTION CHARACTERISTICS

TSB Revision

BODY CONSTRUCTION

1-13

AB301207AB

9

15

2

4

6

1

3

5

7

8

10

11

12

13

14

16

17

18 19

20

22

23

24

25

26

27

28

21

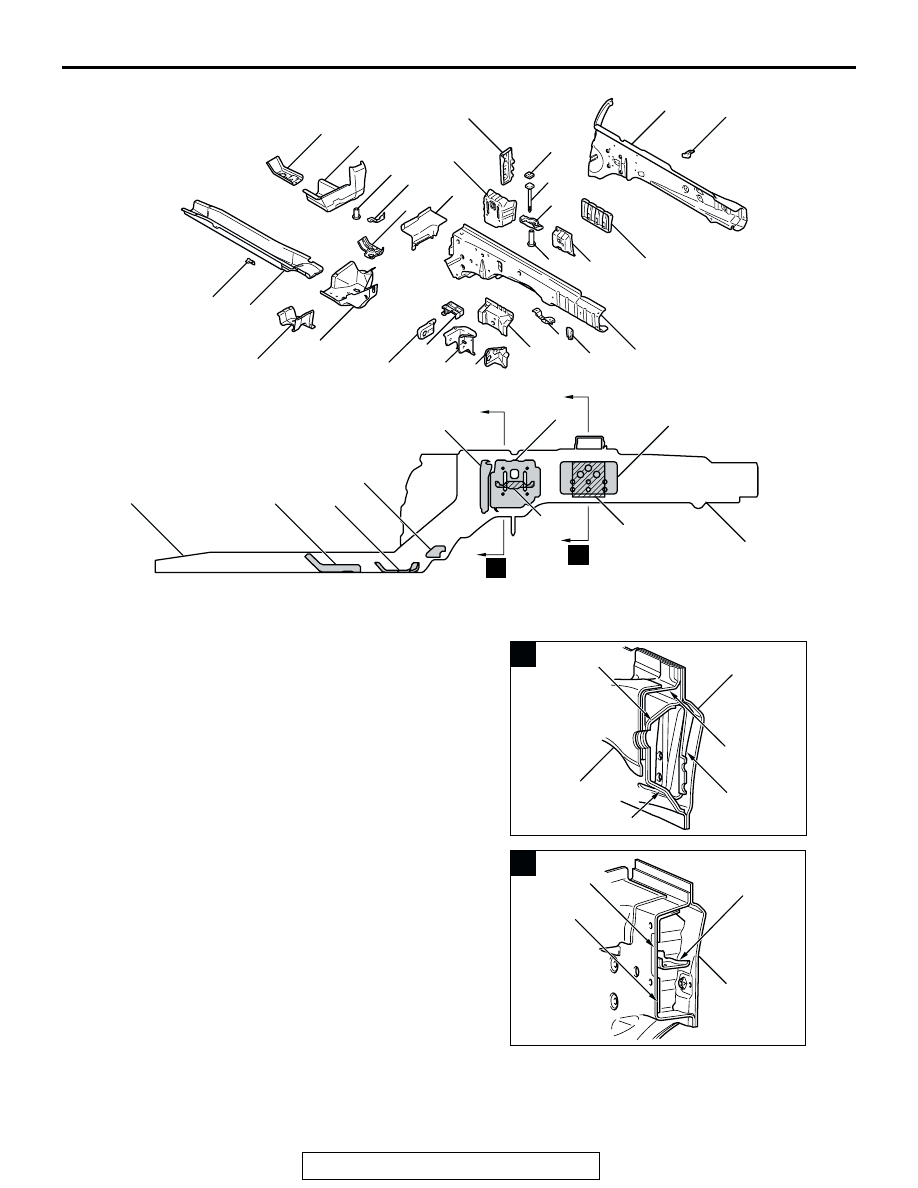

LEFT SIDE

AB301314AB

17

9

3

5

11

12

20

A

B

6

21

19

1.

FRONT SIDEMEMBER BRACE LOWER

2.

DASH CROSSMEMBER EXTENSION LOWER

3.

FRONT SIDEMEMBER REAR B

4.

FUEL PIPE BRACKET

5.

TIE DOWN REINFORCEMENT

6.

PIPE SUPPORT REAR

7.

PIPE NUT

8.

FRONT SIDEMEMBER REAR A

9.

SIDE STEP A REINFORCEMENT

10. DASH CROSSMEMBER EXTENSION UPPER
11. PIPE SUPPORT FRONT
12. FRONT SIDEMEMBER BULKHEAD REAR
13. RETAINER
14. FRONT SIDEMEMBER OUTER
15. BRAKE HOSE BRACKET
16. SQUARE HEAD BOLT
17. FRONT SUSPENSION SUPPORT BULKHEAD

FRONT

18. PIPE
19. FRONT SIDEMEMBER INNER BULKHEAD
20. FRONT SIDEMEMBER REINFORCEMENT FRONT

OUTER

21. FRONT SIDEMEMBER INNER
22. CONDENSER TANK BRACKET
23. AIR CLEANER BRACKET
24. TRANSAXLE MOUNT GUSSET
25. TRANSAXLE MOUNT SUPPORT FRONT

26. TRANSAXLE MOUNT BRACKET
27. HARNESS PROTECTOR BRACKET
28. TRANSAXLE MOUNT SUPPORT REAR

AB301309

20

14

21

24

AB

A

26

19

AB301310

14

21

11

AB

B

17

BODY CONSTRUCTION CHARACTERISTICS

TSB Revision

BODY CONSTRUCTION

1-14

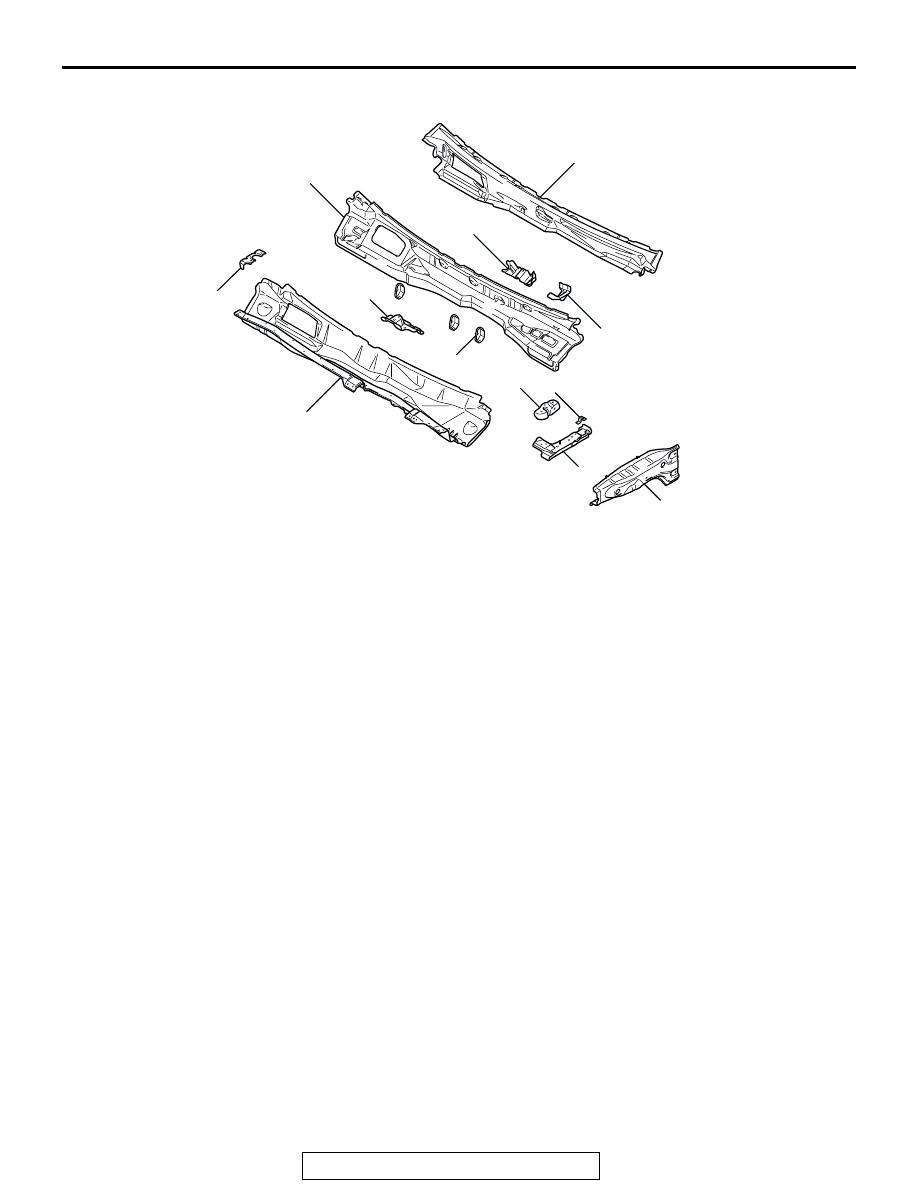

FRONT DECK

AB301145AB

5

6

8

7

9

10

1

2

3

4

11

12

1.

COWL TOP PANEL LOWER

2.

WIPER MOTOR BRACKET

3.

WIPER BRACKET CENTER

4.

COWL TOP INNER BULKHEAD

5.

COWL TOP PANEL INNER

6.

PEDAL SUPPORT BRACKET

7.

COWL TOP PANEL UPPER

8.

DECK STAY BRACKET

9.

WIPER BRACKET SIDE

10. FENDER BRACKET UPPER
11. FRONT UPPER FRAME EXTENSION INNER
12. UPPER FRAME

BODY CONSTRUCTION CHARACTERISTICS

TSB Revision

BODY CONSTRUCTION

1-15

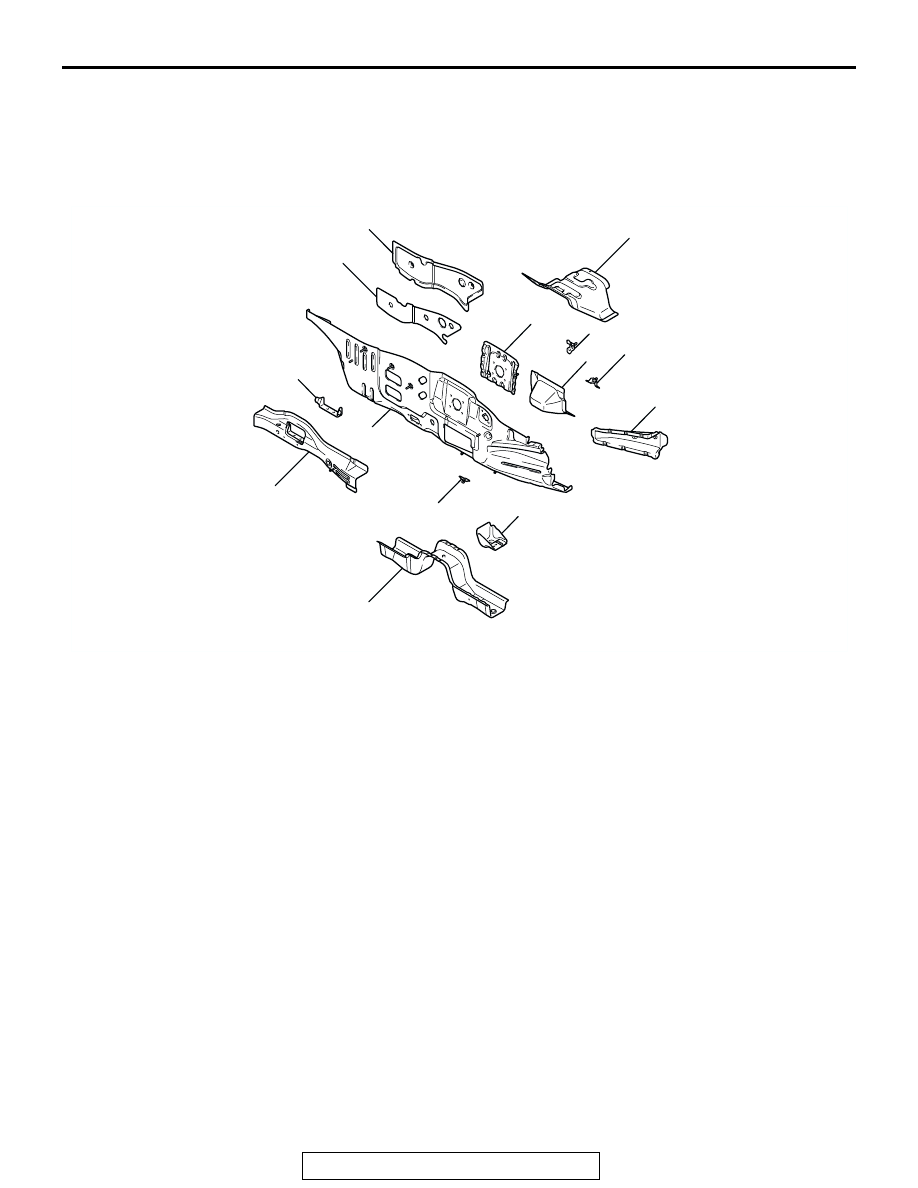

DASH PANEL

•

A large dash crossmember and dash brace
installed in the chassis is used to disperse energy
upon impact efficiently, so that cabin deformation
is suppressed.

•

Plate thickness of dash panel is increased to sup-
press cabin deformation and improve sound insu-
lation upon impact.

•

A dash panel deadening sheet has been used for
the dash panel to suppress noise and vibration
from the engine.

AB301146AB

1

2

3

7

5

6

8

9

10

4

11

12

13

14

1.

DASH CROSSMEMBER LOWER

2.

DASH CROSSMEMBER

3.

PARTITION PLATE

4.

DASH PANEL

5.

DASH PANEL DEADENING SHEET

6.

DASH PANEL DEADENING SUPPORT

7.

DASH PANEL REINFORCEMENT

8.

DASH LOWER EXTENSION

9.

ACCELERATOR PEDAL BRACKET

10. STEERING COVER BRACKET
11. ACCELERATOR STOPPER BRACKET
12. DASH BRACE REINFORCEMENT
13. PCV BRACKET
14. BACKBONE BRACE BRACKET LOWER FRONT

BODY CONSTRUCTION CHARACTERISTICS

TSB Revision

BODY CONSTRUCTION

1-16

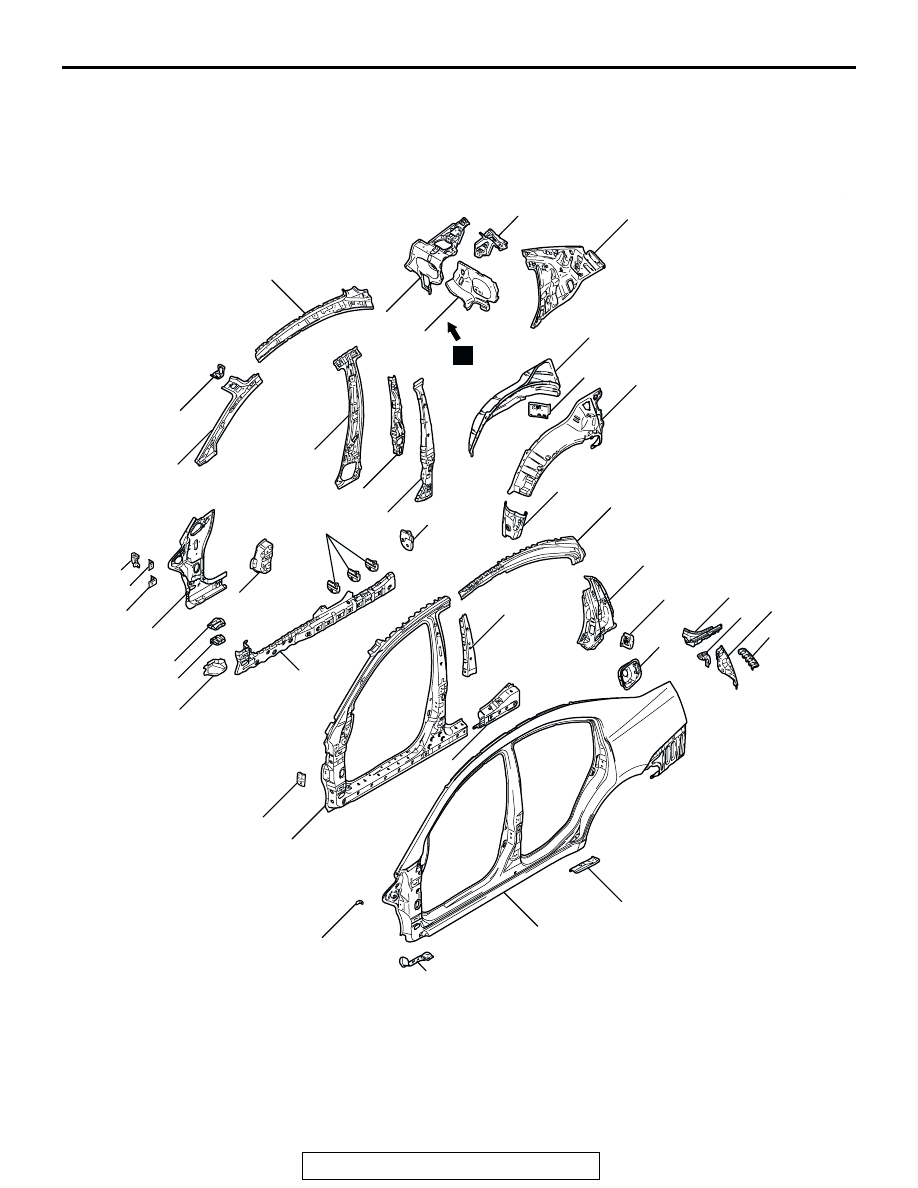

SIDE BODY

M4010011000147

SIDE STRUCTURE

High rigidity cabin structure has maintained the cabin
space and improved the passenger rescue upon
impact.

AB301198AB

1

2

3

4

6

5

7

8

9

11

12

13

37

36

35

34

25

26

24

21

23

22

27

28

33

32

31

30

29

15

19

16

17

18

20

14

10

38

39

40

41

A
