Mitsubishi Galant (2004+). Manual - part 3





BODY CONSTRUCTION CHARACTERISTICS

TSB Revision

BODY CONSTRUCTION

1-9

NOTES

BODY CONSTRUCTION CHARACTERISTICS

TSB Revision

BODY CONSTRUCTION

1-10

FENDER SHIELD

.

AB301332

1

2

10

9

8

4

5

6

7

RIGHT SIDE

LEFT SIDE

11

12

13

14

15

16

17

18

19

3

19

2

17

14

10

9

8

4

5

6

7

11

12

13

20

AB

A

B

1.

WASHER TANK BRACKET

2.

SHIELD PLATE

3.

FRONT UPPER FRAME BRACE

4.

FRONT UPPER FRAME INNER

5.

UPPER FRAME BULKHEAD

6.

FRONT UPPER FRAME OUTER

7.

UPPER FRAME REINFORCEMENT

8.

FRONT PILLAR TO UPPER FRAME BRACE

9.

SPRING HOUSE PANEL UPPER

10. SPRING HOUSE BRACKET
11. FRONT UPPER FRAME GUSSET

12. SPRING HOUSE GUSSET
13. SPRING HOUSE BRACE INNER
14. SPRING HOUSE PANEL
15. SPRING HOUSE PANEL REINFORCEMENT
16. ENGINE MOUNT REINFORCEMENT
17. FRONT FENDER SHIELD
18. POWER STEERING RESERVOIR TANK BRACKET
19. FRONT SIDEMEMBER
20. RELAY BOX BRACKET

BODY CONSTRUCTION CHARACTERISTICS

TSB Revision

BODY CONSTRUCTION

1-11

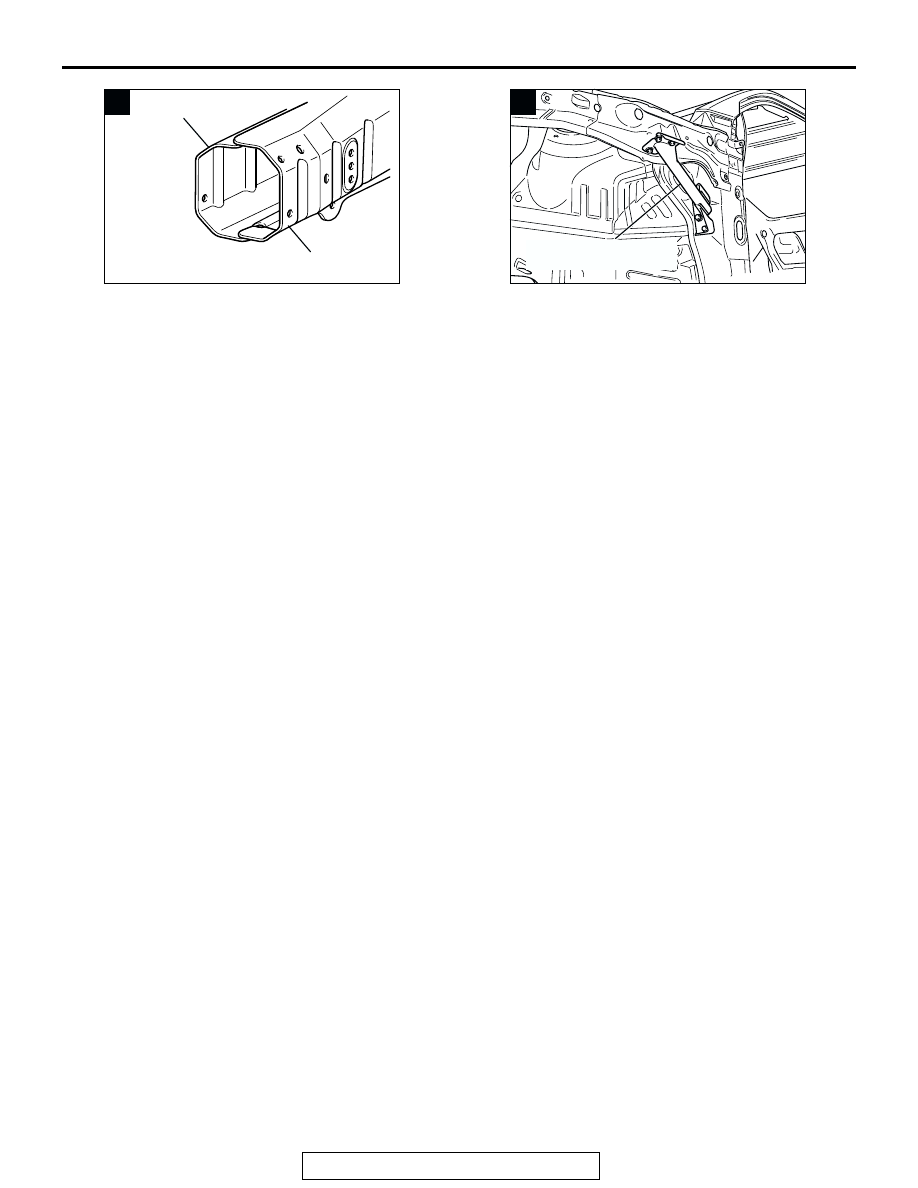

The front side member has been straighter and had
eight - square cross sectional structure to efficiently
absorb energy upon impact.

.

The front pillar to upper frame brace has been
adopted to heighten the body rigidity of front suspen-
sion assembling support area, so that the body tor-
sional rigidity and driving stability have been
improved.

AB301103

AB

A

FRONT SIDEMEMBER OUTER

FRONT SIDEMEMBER
INNER

AB301101AB

B

FRONT PILLAR TO
UPPER FRAME BRACE

BODY CONSTRUCTION CHARACTERISTICS

TSB Revision

BODY CONSTRUCTION

1-12

FRONT SIDEMEMBER REINFORCEMENT

AB301206AB

19

15

14

16

18

2

3

4

5

6

7

8

9

10

12

17

11

13

20

1

RIGHT SIDE

AB301313AB

1

6

A

B

11

19

5

3

17

10

13

14

1.

FRONT SIDEMEMBER INNER

2.

PIPE

3.

FRONT SUSPENSION SUPPORT BULKHEAD
FRONT

4.

SQUARE HEAD BOLT

5.

FRONT SIDEMEMBER BULKHEAD FRONT

6.

ENGINE MOUNT REINFORCEMENT LOWER

7.

FRONT SIDEMEMBER OUTER

8.

BRAKE HOSE BRACKET

9.

RETAINER

10. FRONT SIDEMEMBER BULKHEAD REAR
11. PIPE SUPPORT FRONT
12. FRONT SIDEMEMBER REAR A
13. SIDE STEP A REINFORCEMENT
14. FRONT SIDEMEMBER REAR B
15. DASH CROSSMEMBER EXTENSION LOWER
16. FRONT SIDEMEMBER BRACE LOWER
17. TIE DOWN REINFORCEMENT
18. DASH CROSSMEMBER EXTENSION UPPER
19. PIPE SUPPORT REAR
20. PIPE NUT

AB301311AB

A

1

7

5

6

AB301312

11

7

B

3

AB

1
