DASH PANEL

TSB Revision

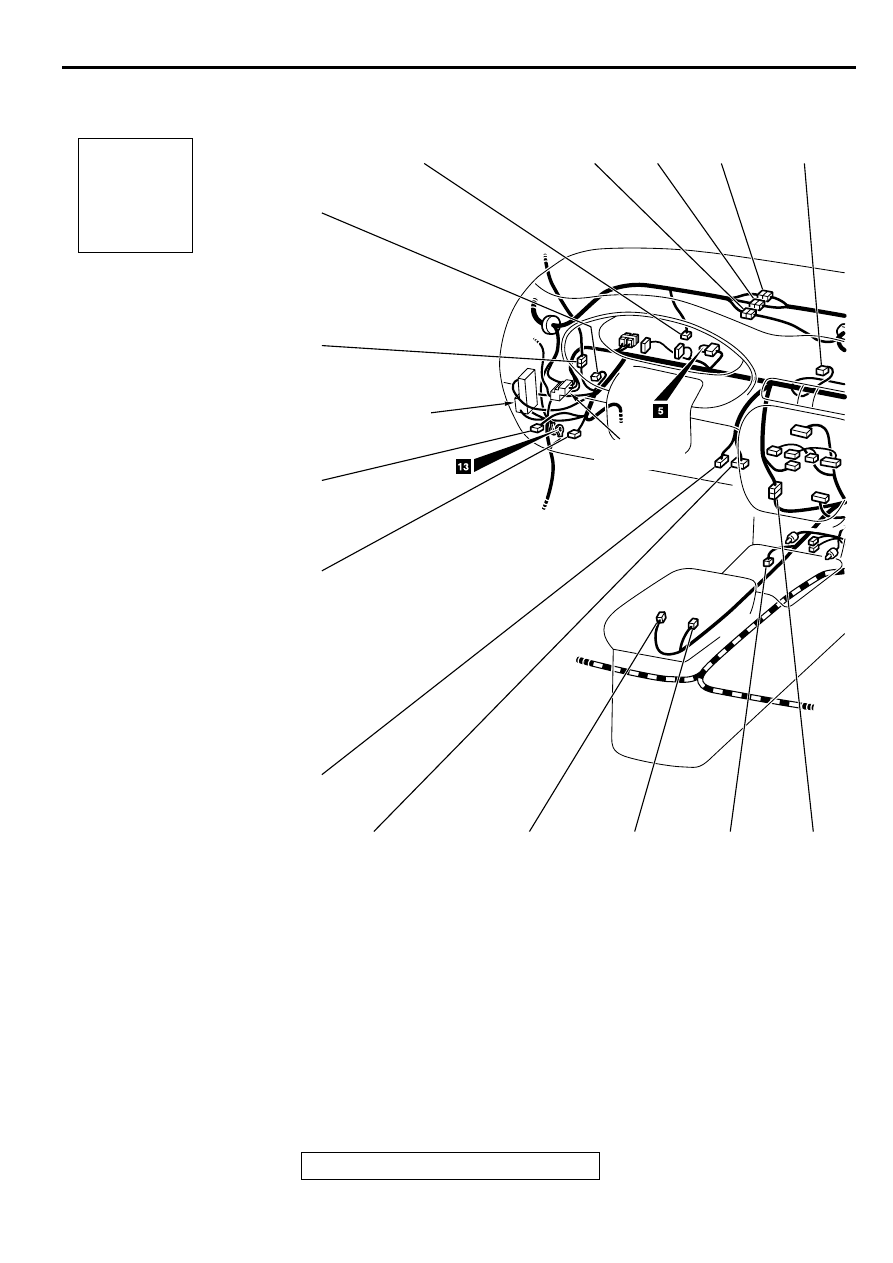

CONFIGURATION DIAGRAMS

80A-16

DA SH PA N EL

M1801000600069

AC001195

Connector
symbol

-03
thru
-28

C

AB

C-25

JUNCTION
BLOCK

CONNECTOR
BLOCK (LH)

C-03

C-04

C-05

C-06

C-07

C-17

C-19

C-20

C-22

C-23

C-24

C-26

C-27

C-28

C-03

(4)

STOPLIGHT SWITCH

C-04

(8)

FRONT WIRING HARNESS (LH)
AND CONTROL WIRING HARNESS
COMBINATION

C-05

(14)

FRONT WIRING HARNESS (LH)
AND FRONT WIRING HARNESS
(RH) COMBINATION

C-06

(2-B)

FRONT WIRING HARNESS (LH)
AND FRONT WIRING HARNESS
(RH) COMBINATION

C-07

(4)

HAZARD WARNING LIGHT SWITCH

C-08

(2)

CENTER SPEAKER

C-09

(2-R)

AIR BAG MODULE (SQUIB)
 (PASSENGER'S SIDE)

C-10

(7)

OUTSIDE/INSIDE AIR SELECTION
DAMPER CONTROL MOTOR

C-11

(2)

BLOWER MOTOR

C-12

(14-BR) INSTRUMENT PANEL WIRING

HARNESS AND FRONT WIRING
HARNESS (RH) COMBINATION

C-13

(8)

FRONT WIRING HARNESS (RH)
AND FLOOR WIRING HARNESS
(RH) COMBINATION <ABS>

C-14

(4)

RESISTOR

DASH PANEL

TSB Revision

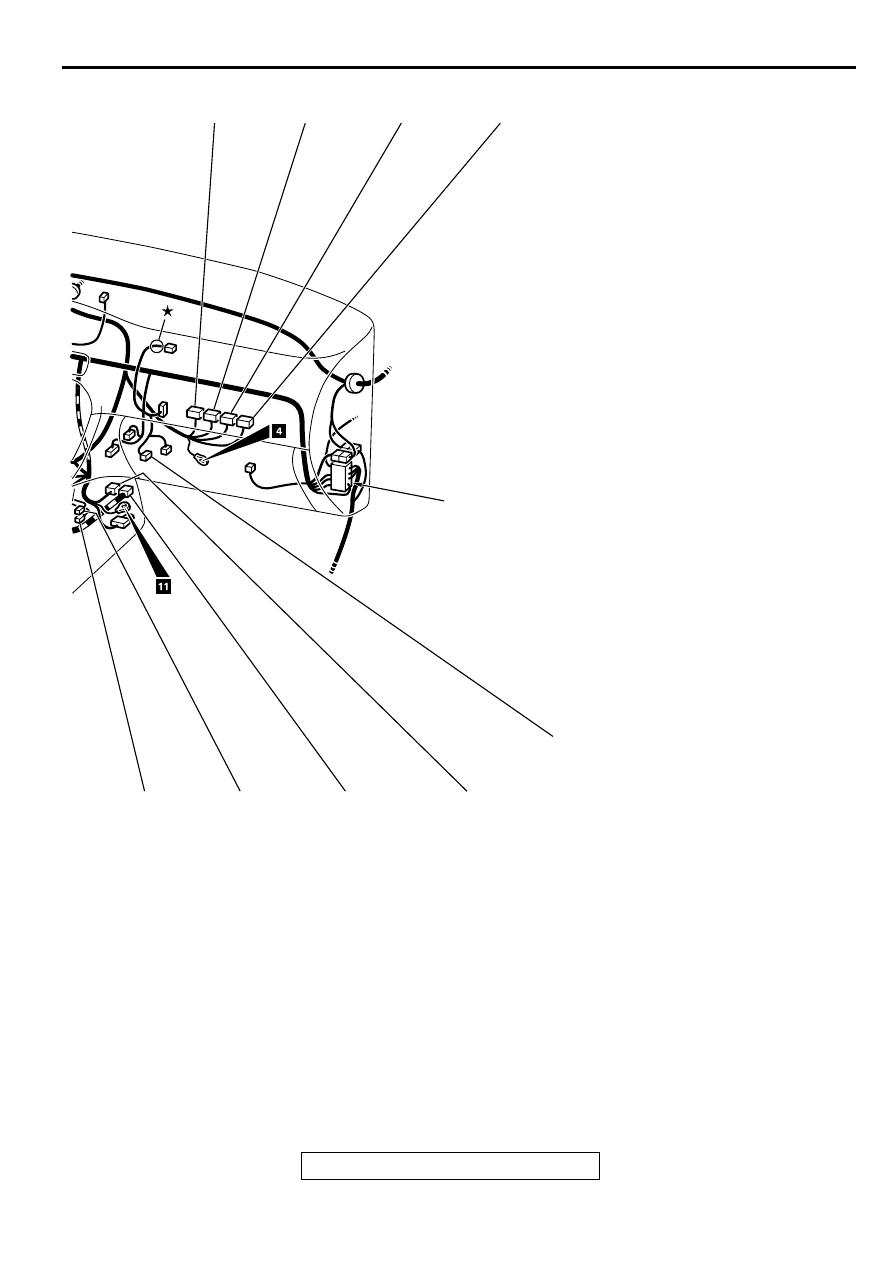

CONFIGURATION DIAGRAMS

80A-17

AC001196AB

CONNECTOR
BLOCK (RH)

C-08

C-09

C-10

C-11

C-12

C-13

C-14

C-15

C-16

CONNECTOR COLOR
CODE
B:BLACK
BR:BROWN
G:GREEN
GR:GRAY
L:BLUE
NONE:MILK WHITE
O:ORANGE
R:RED
V:VIOLET
Y:YELLOW

C-15

(20-B)

AUTOMATIC COMPRESSOR
CONTROLLER <HEATER AND A/C>

C-16

(8-B)

A U TO M AT IC  C O M P R E S S O R
C O N T R O LLE R  <A /C  (3.0L E N G IN E ) >

C-17

(38)

INSTRUMENT PANEL WIRING
HARNESS AND CONTROL WIRING
HARNESS COMBINATION

C-19

(6)

HEATED OXYGEN SENSOR (REAR)
<2.4L ENGINE>

C-20

(2)

A/T SELECTOR LEVER POSITION
ILLUMINATION LIGHT

C-22

(1-B)

PARKING BRAKE SWITCH

C-23

(16-B)

DATA LINK CONNECTOR

C-24

(12)

DATA LINK CONNECTOR

C-25

(7)

FOG LIGHT SWITCH

C-26

(11)

REMOTE CONTROLLED MIRROR
SWITCH

C-27

(4)

INSTRUMENT PANEL WIRING
HARNESS AND ROOF WIRING
HARNESS COMBINATION

C-28

(3)

RHEOSTAT

DASH PANEL

TSB Revision

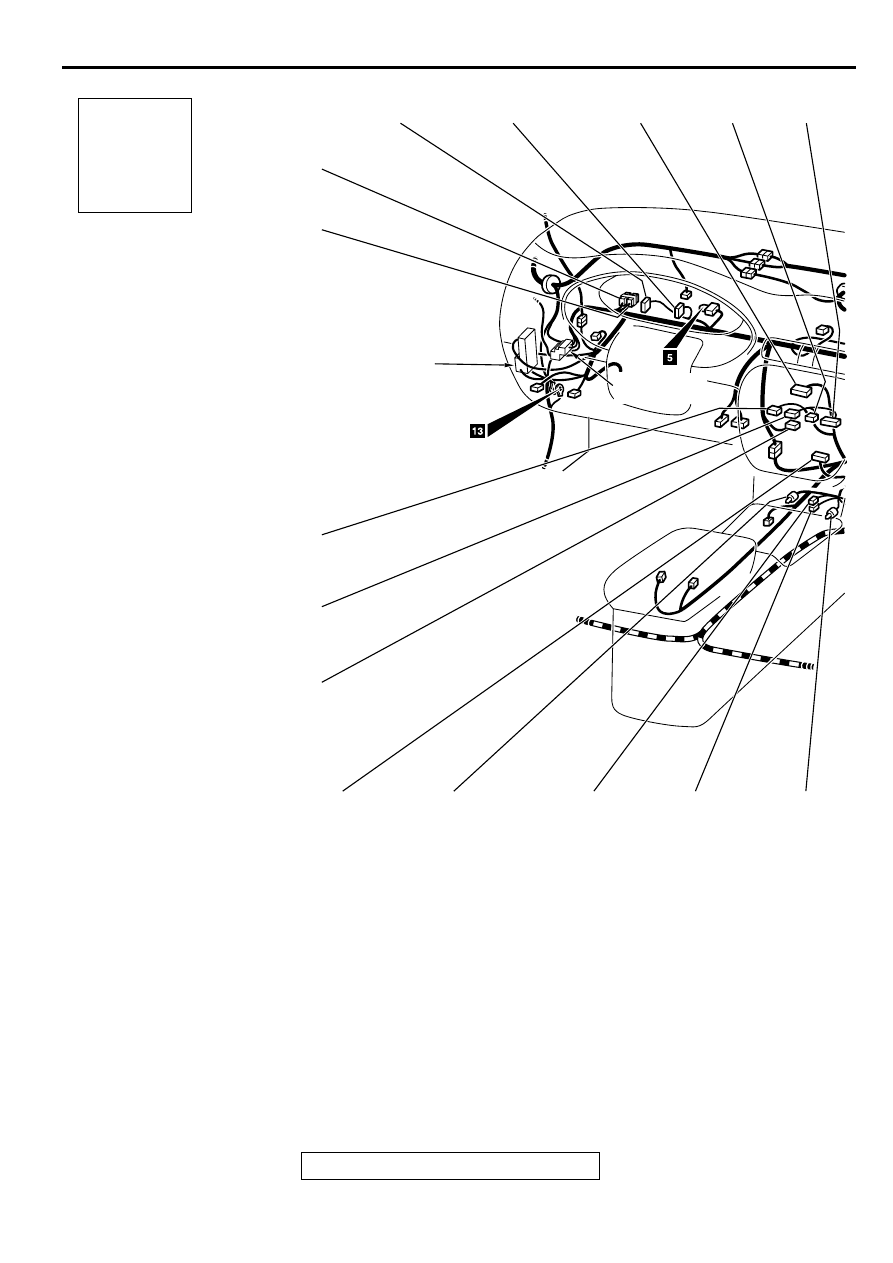

CONFIGURATION DIAGRAMS

80A-18

AC001195

Connector
symbol

-29
thru
-57,
-88,
-89

C

AC

CONNECTOR
BLOCK (LH)

JUNCTION
BLOCK

C-29

C-30

C-31

C-32

C-33
C-34

C-48

C-49

C-50

C-51

C-52

C-89

C-53

C-54

C-57

C-56

C-29

(16-B)

COMBINATION METER

C-30

(16)

COMBINATION METER

C-31

(14)

RADIO AND TAPE PLAYER

C-32

(3)

DEFROSTER SWITCH

C-33

(12)

OUTSIDE/INSIDE AIR SELECTION
SWITCH <WITHOUT A/C>

C-34

(12)

A/C SWITCH <WITH A/C>

C-39

(35-GR) POWERTRAIN CONTROL MODULE

C-40

(26-GR) POWERTRAIN CONTROL MODULE

C-41

(28-GR) POWERTRAIN CONTROL MODULE

C-42

(30-GR) POWERTRAIN CONTROL MODULE

C-44

(16-Y)

SRS-ECU

C-45

(22-Y)

SRS-ECU <WITH SIDE AIR BAG>

C-46

(1-B)

ACCESSORY SOCKET

C-47

(1)

ACCESSORY SOCKET

DASH PANEL

TSB Revision

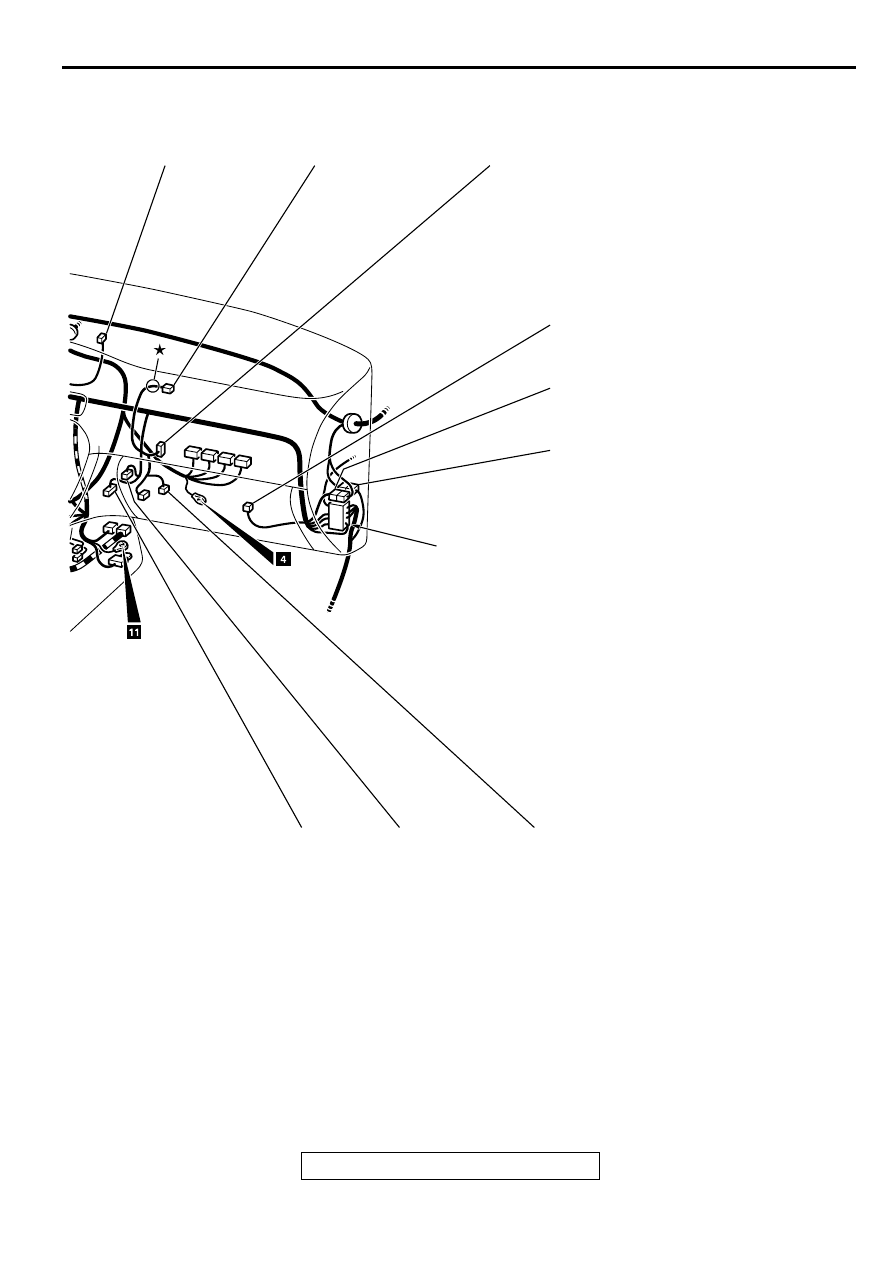

CONFIGURATION DIAGRAMS

80A-19

AC001196

CONNECTOR COLOR
CODE
B:BLACK
BR:BROWN
G:GREEN
GR:GRAY
L:BLUE
NONE:MILK WHITE
O:ORANGE
R:RED
V:VIOLET
Y:YELLOW

AC

CONNECTOR
BLOCK (RH)

C-39

C-40

C-41

C-42

C-88

C-44

C-45

C-46

C-47

C-48

(2)

CIGARETTE LIGHTER
ILLUMINATION LIGHT

C-49

(1-B)

CIGARETTE LIGHTER

C-50

(1)

CIGARETTE LIGHTER

C-51

(2)

ASHTRAY ILLUMINATION LIGHT

C-52

(16-B)

AUTO-CRUISE CONTROL-ECU

C-53

(6)

BLOWER SWITCH

C-54

(2)

HEATER CONTROL PANEL
ILLUMINATION LIGHT

C-56

(33)

JOINT CONNECTOR (2)

C-57

(33)

JOINT CONNECTOR (1)

C-88

(2)

THERMISTER SENSOR <HEATER
AND A/C>

C-89

(12)

IMMOBILIZER-ECU
