DASH PANEL

TSB Revision

CONFIGURATION DIAGRAMS

80A-20

AC001331

Connector
symbol

-58
thru
-72

C

CONNECTOR COLOR CODE
B:BLACK
BR:BROWN
G:GREEN
GR:GRAY
L:BLUE

NONE:MILK WHITE
O:ORANGE
R:RED
V:VIOLET
Y:YELLOW

AB

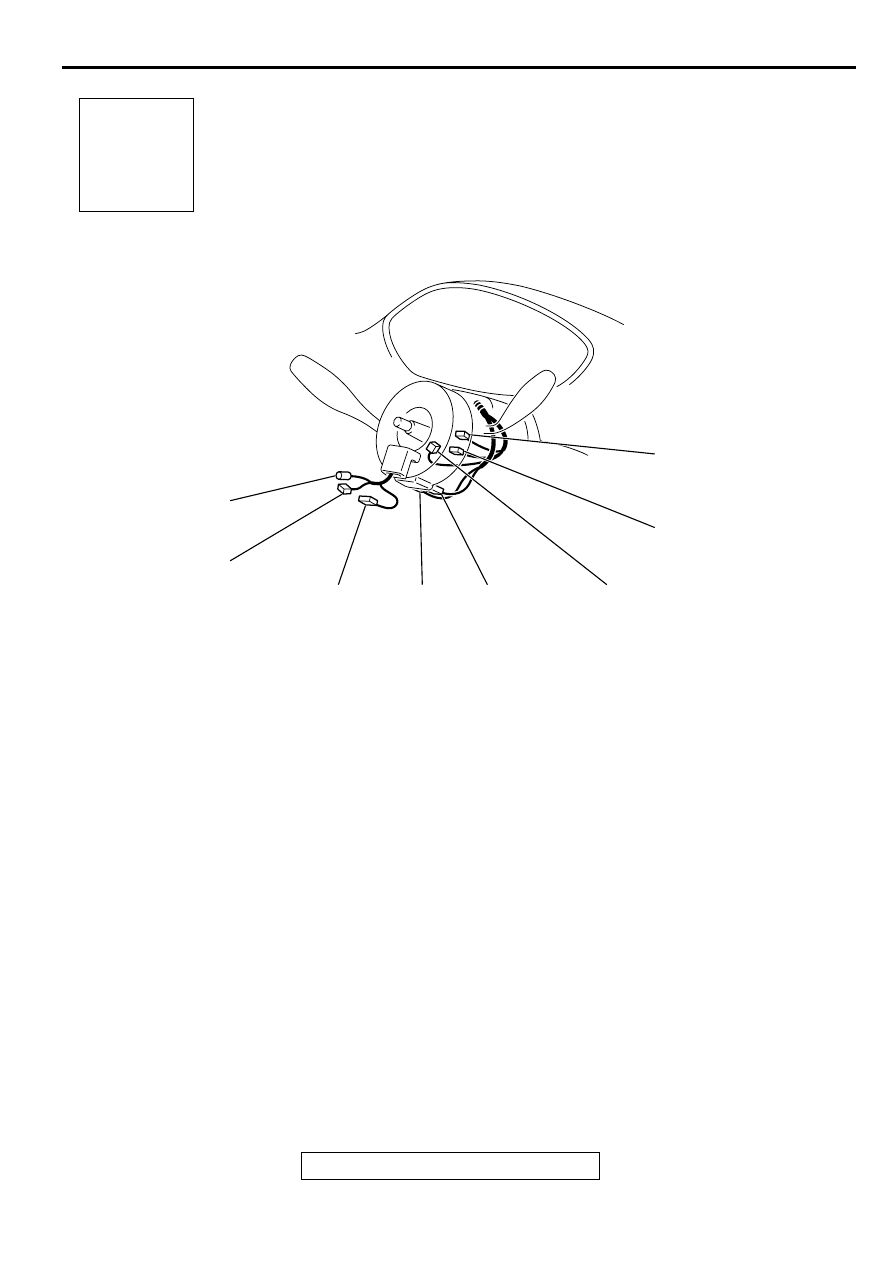

STEERING COLUMN

C-58

C-59

C-60

C-61

C-62

C-63

C-64

C-65

C-58

(6)

IGNITION SWITCH

C-59

(7)

KEY REMINDER SWITCH

C-60

(10)

COLUMN SWITCH

C-61

(4)

CLOCK SPRING

C-62

(2-Y)

CLOCK SPRING

C-63

(2)

AIR BAG MODULE (SQUIB)
(DRIVER'S SIDE)

C-64

(3)

AUTO-CRUISE CONTROL SWITCH

C-65

(1)

HORN SWITCH

C-66

(38)

INSTRUMENT PANEL WIRING
HARNESS AND FRONT WIRING
HARNESS (LH) COMBINATION

C-67

(43)

INSTRUMENT PANEL WIRING
HARNESS AND FLOOR WIRING
HARNESS (LH) COMBINATION

C-68

(32-B)

IN S TR U M EN T  PA N EL W IR IN G
H AR N E S S AN D  FR O N T  D O O R
W IR IN G  H A R N ES S  (LH ) C O M B IN ATIO N

DASH PANEL

TSB Revision

CONFIGURATION DIAGRAMS

80A-21

AC001197AB

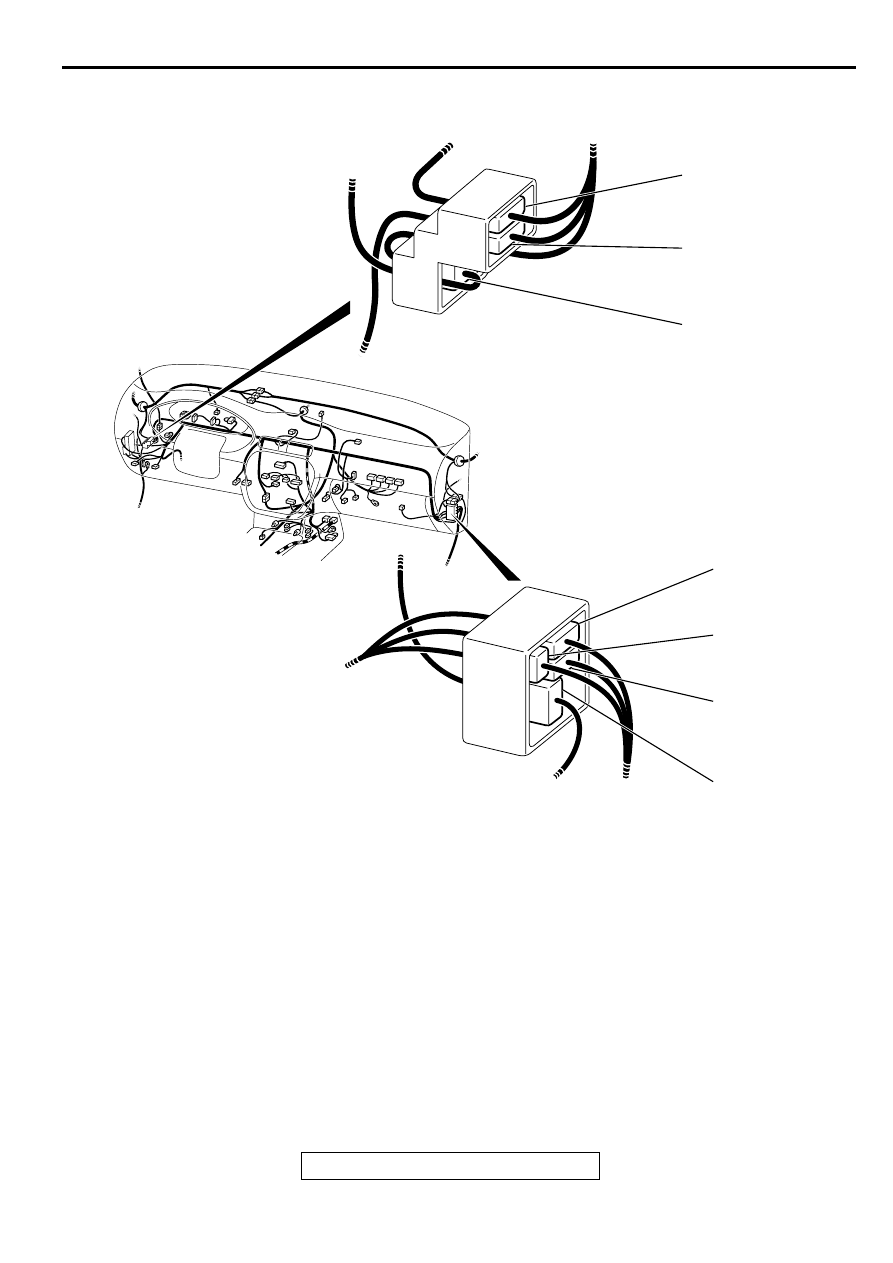

CONNECTOR BLOCK (RH)

CONNECTOR BLOCK (LH)

C-66

C-67

C-68

C-69

C-70

C-71

C-72

C-69

(10)

INSTRUMENT PANEL WIRING
HARNESS AND FLOOR WIRING
HARNESS (RH) COMBINATION
 <7-SPEAKER SYSTEM>

C-70

(4)

INSTRUMENT PANEL WIRING
HARNESS AND FLOOR WIRING
HARNESS (RH) COMBINATION

C-71

(22)

INSTRUMENT PANEL WIRING
HARNESS AND FLOOR WIRING
HARNESS (RH) COMBINATION

C-72

(32)

IN S TR U M EN T PAN EL W IR IN G
H AR N ESS AN D  FR O N T D O O R
W IR IN G  H AR N ESS (R H ) C O M BIN ATIO N

DASH PANEL

TSB Revision

CONFIGURATION DIAGRAMS

80A-22

AC001199AB

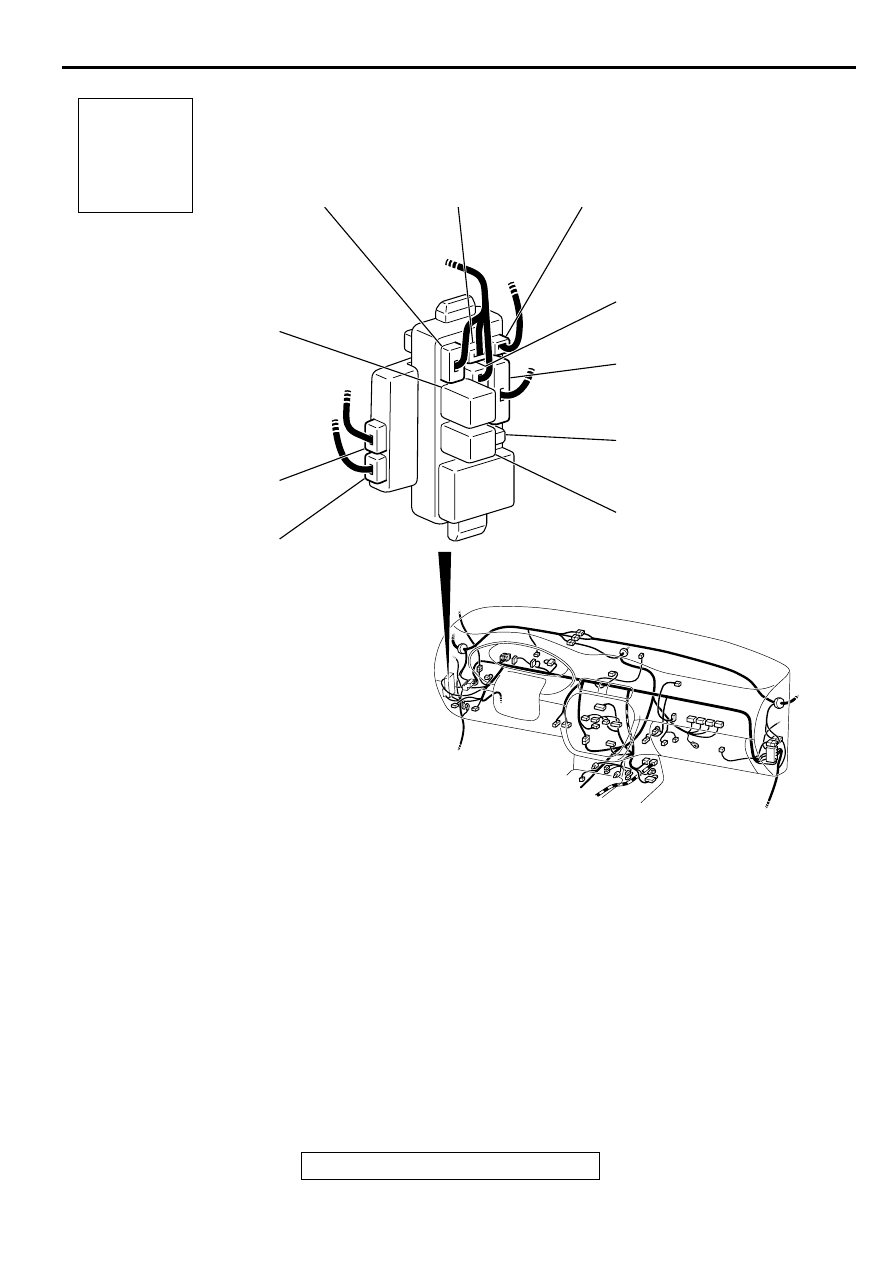

JUNCTION BLOCK

(FRONT VIEW)

Connector
symbol

-73
thru
-87

C

CONNECTOR COLOR
CODE
B:BLACK
BR:BROWN
G:GREEN
GR:GRAY
L:BLUE
NONE:MILK WHITE
O:ORANGE
R:RED
V:VIOLET
Y:YELLOW

C-73

C-74

C-76

C-77

C-78

C-79

C-80

C-82

C-81

C-83

C-73

(6-B)

INSTRUMENT PANEL WIRING
HARNESS AND JUNCTION BLOCK
COMBINATION

C-74

(10-B)

INSTRUMENT PANEL WIRING
HARNESS AND JUNCTION BLOCK
COMBINATION

C-76

(6-B)

ROOF WIRING HARNESS AND
JUNCTION BLOCK COMBINATION

C-77

(22-B)

INSTRUMENT PANEL WIRING
HARNESS AND JUNCTION BLOCK
COMBINATION

C-78

(20-B)

INSTRUMENT PANEL WIRING
HARNESS AND JUNCTION BLOCK
COMBINATION

C-79

(3)

NO CONNECTION

DASH PANEL

TSB Revision

CONFIGURATION DIAGRAMS

80A-23

AC001200AB

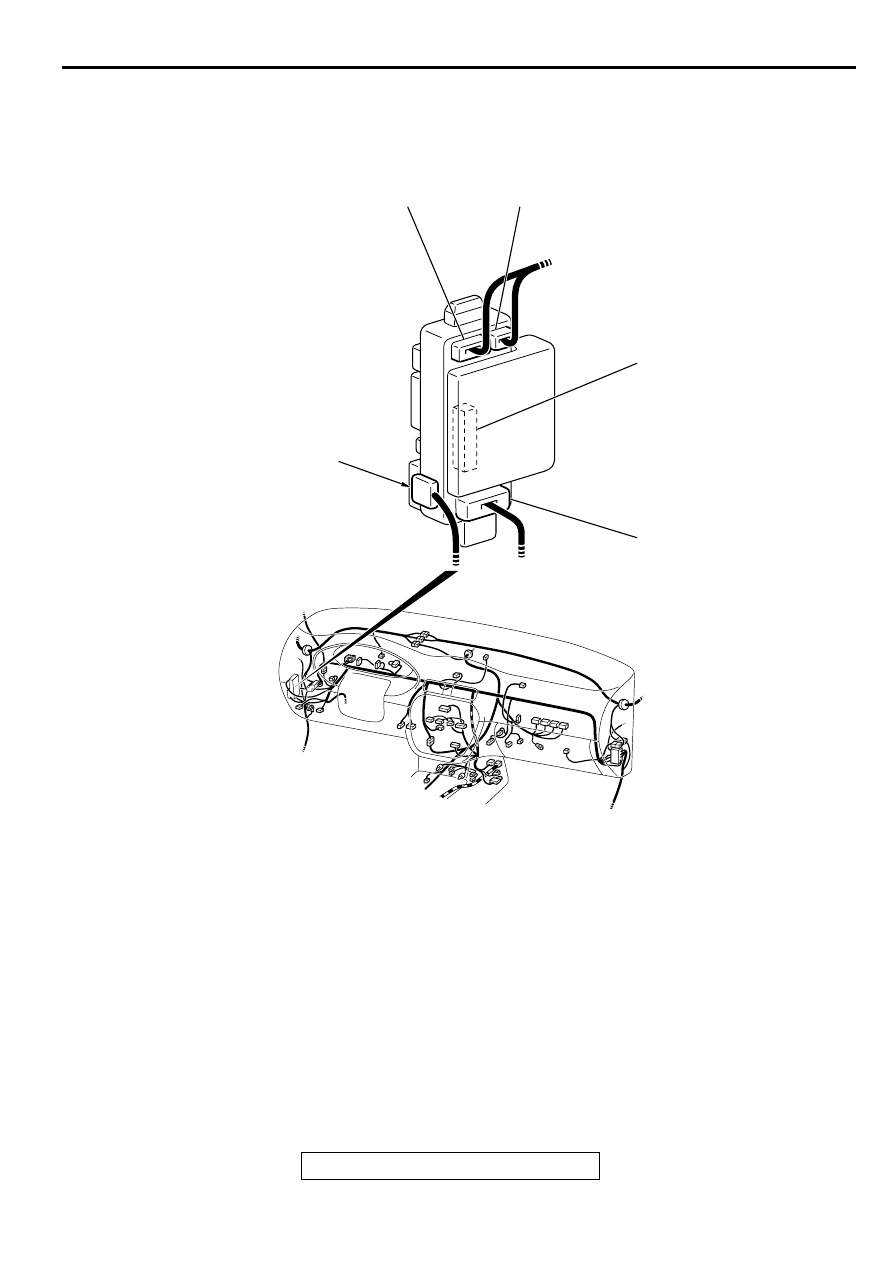

C-84

JUNCTION BLOCK

(REAR VIEW)

C-85

C-86

C-87

DEDICATED
FUSE

C-80

(5)

DEFOGGER RELAY

C-81

(20-B)

ETACS-ECU

C-82

(16-B)

ETACS-ECU

C-83

(5)

BLOWER RELAY

C-84

(18-B)

INSTRUMENT PANEL WIRING
HARNESS AND JUNCTION BLOCK
COMBINATION

C-85

(1-B)

INSTRUMENT PANEL WIRING
HARNESS AND JUNCTION BLOCK
COMBINATION

C-86

(20)

ETACS-ECU

C-87

(19-B)

FLOOR WIRING HARNESS (LH)
AND JUNCTION BLOCK
COMBINATION
