ENGINE AND TRANSAXLE <2.4L ENGINE>

TSB Revision

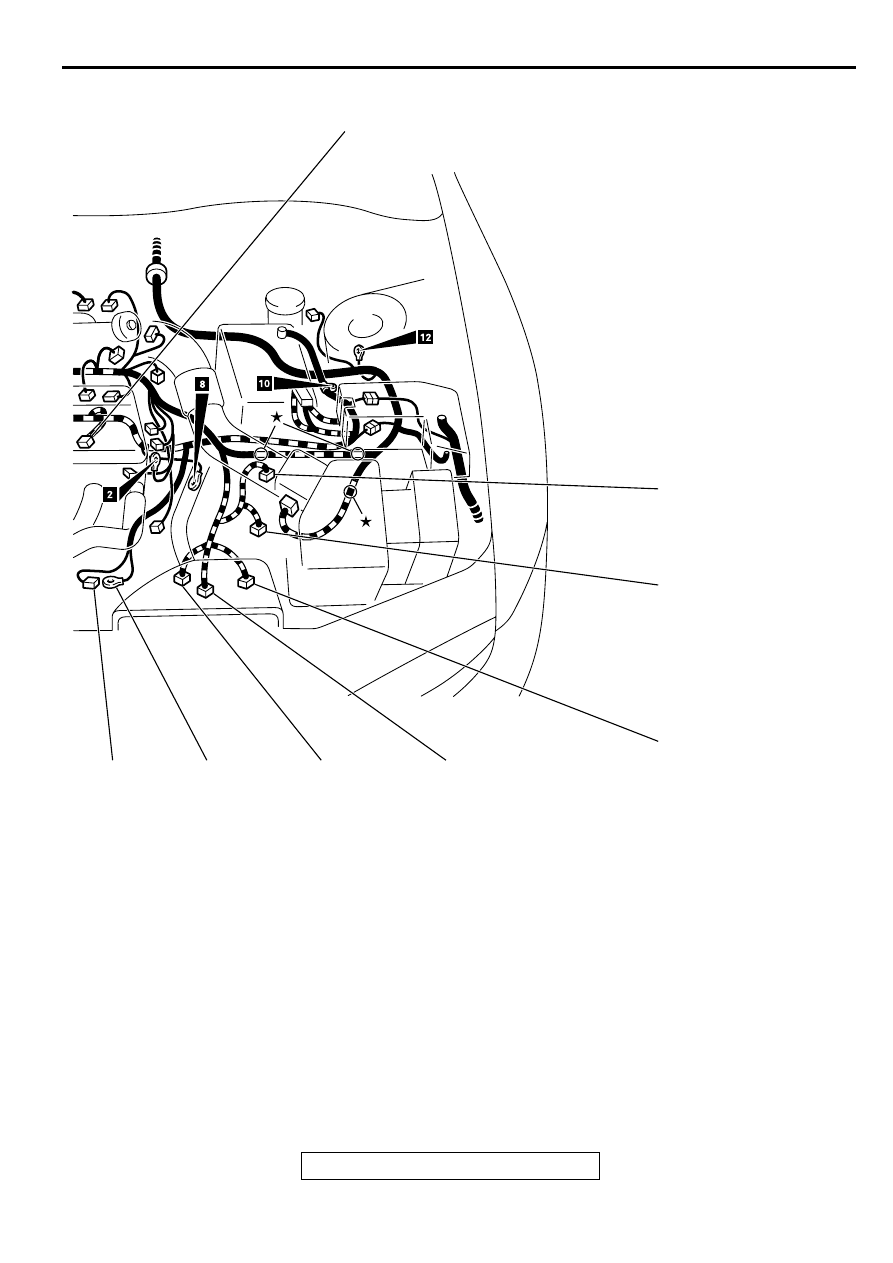

CONFIGURATION DIAGRAMS

80A-8

EN G INE A ND  TRA NSA XLE <2.4L ENG IN E>

M1801000400043

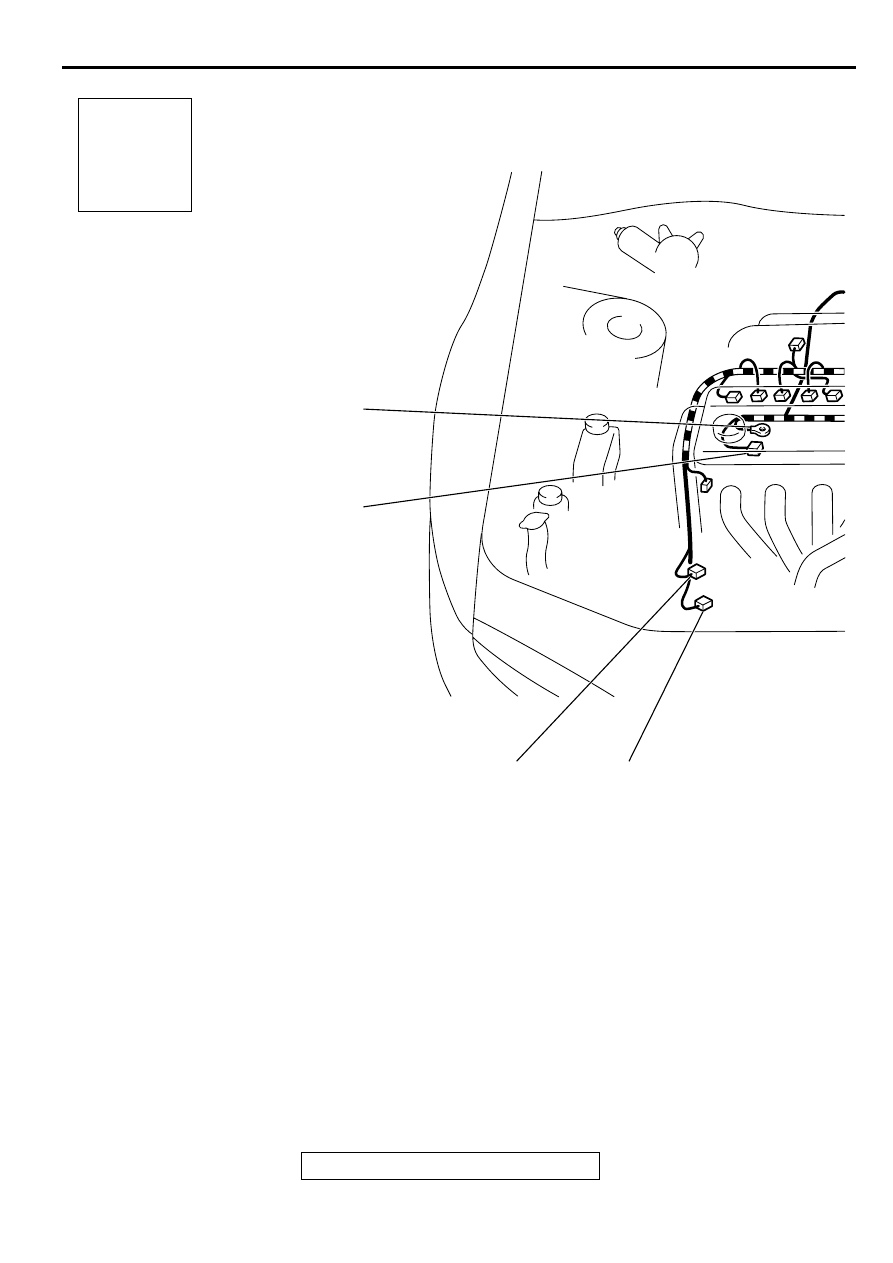

AC001191

Connector
symbol

-01
thru
-23

B

AB

B-01

B-23

B-22

B-21

B-20

B-19

B-18

CONNECTOR COLOR
CODE
B:BLACK
BR:BROWN
G:GREEN
GR:GRAY
L:BLUE
NONE:MILK WHITE
O:ORANGE
R:RED
V:VIOLET
Y:YELLOW

B-01

(4-B)

IGNITION FAILURE SENSOR

B-03

(2-BR)

EGR SOLENOID VALVE

B-04

(2-B)

EVAPORATIVE EMISSION PURGE
SOLENOID VALVE

B-05

(4-B)

THROTTLE POSITION SENSOR

B-06

(6-B)

IDLE AIR CONTROL MOTOR

B-07

(1-B)

ENGINE COOLANT TEMPERATURE
GAUGE UNIT

B-08

(2-B)

BRAKE FLUID LEVEL SWITCH

B-09

(3-GR)

IGNITION COIL 1

B-10

(4-B)

FRONT WIRING HARNESS (LH)
AND BATTERY WIRING HARNESS
COMBINATION

B-11

(8-B)

CONTROL WIRING HARNESS AND
BATTERY WIRING HARNESS
COMBITATION

ENGINE AND TRANSAXLE <2.4L ENGINE>

TSB Revision

CONFIGURATION DIAGRAMS

80A-9

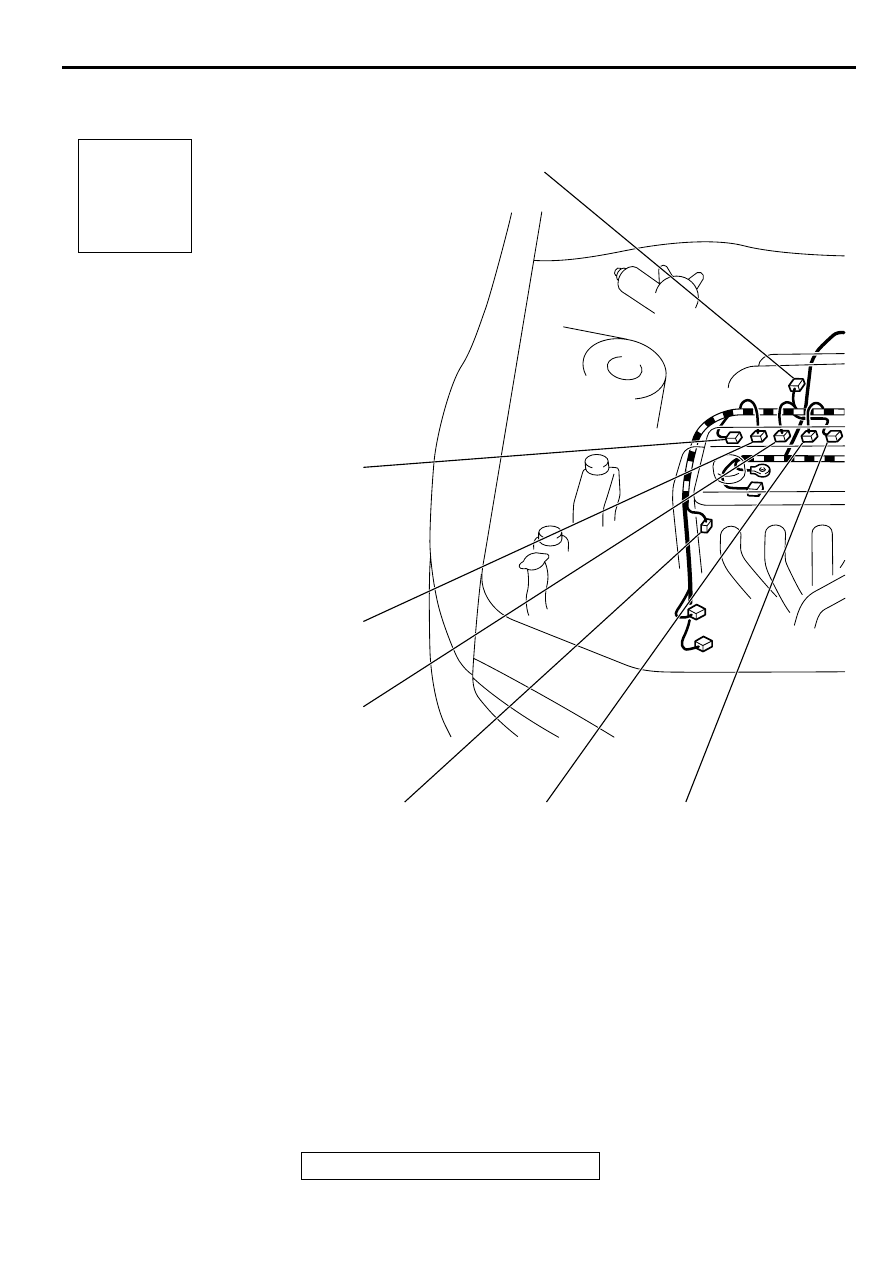

AC001192AB

B-03

B-04

B-05

B-06

B-07

B-08

B-09

B-10

B-11

B-12

B-13

B-14

B-16

B-15

B-17

B-12

(3-B)

CAMSHAFT POSITION SENSOR

B-13

(2-B)

ENGINE COOLANT TEMPERATURE
SENSOR

B-14

(7-B)

VOLUME AIR FLOW SENSOR

B-15

(4-B)

HEATED OXYGEN SENSOR
(FRONT)

B-16

(1-B)

CAPACITOR

B-17

(2-GR)

INJECTOR 4

B-18

(3-B)

MANIFOLD DIFFERENTIAL
PRESSURE SENSOR

B-19

(2-GR)

INJECTOR 3

B-20

(3-B)

CRANKSHAFT POSITION SENSOR

B-21

(2-GR)

INJECTOR 2

B-22

(2-GR)

INJECTOR 1

B-23

(3-GR)

IGNITION COIL 2

ENGINE AND TRANSAXLE <2.4L ENGINE>

TSB Revision

CONFIGURATION DIAGRAMS

80A-10

AC001191

Connector
symbol

-34
thru
-47

B

CONNECTOR COLOR
CODE
B:BLACK
BR:BROWN
G:GREEN
GR:GRAY
L:BLUE
NONE:MILK WHITE
O:ORANGE
R:RED
V:VIOLET
Y:YELLOW

AC

B-47

B-46

B-45

B-44

B-34

(1-B)

OIL PRESSURE SWITCH

B-35

(3-B)

VEHICLE SPEED SENSOR

B-37

(3-GR)

OUTPUT SHAFT SPEED SENSOR

B-38

(10-GR) A/T CONTROL SOLENOID VALVE

ASSEMBLY

B-39

(10-B)

PARK/NEUTRAL POSITION SWITCH

B-40

(3-B)

INPUT SHAFT SPEED SENSOR

B-42

(1)

STARTER

ENGINE AND TRANSAXLE <2.4L ENGINE>

TSB Revision

CONFIGURATION DIAGRAMS

80A-11

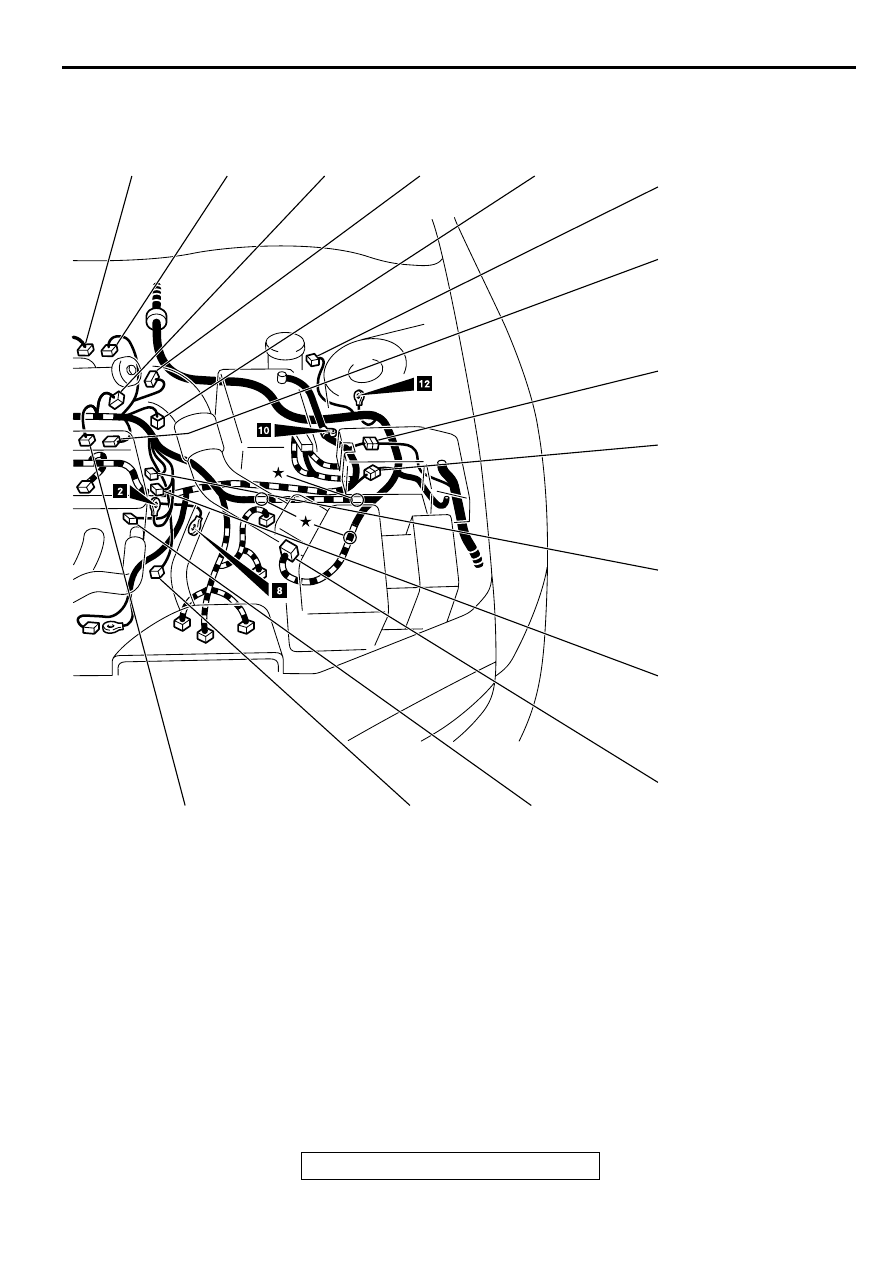

AC001192AC

B-34

B-35

B-37

B-38

B-39

B-40

B-42

B-43

B-43

(1-B)

STARTER

B-44

(1)

POWER STEERING PRESSURE
SWITCH

B-45

(1-B)

A/C COMPRESSOR ASSEMBLY

B-46

(4-GR)

GENERATOR

B-47

(1)

GENERATOR
