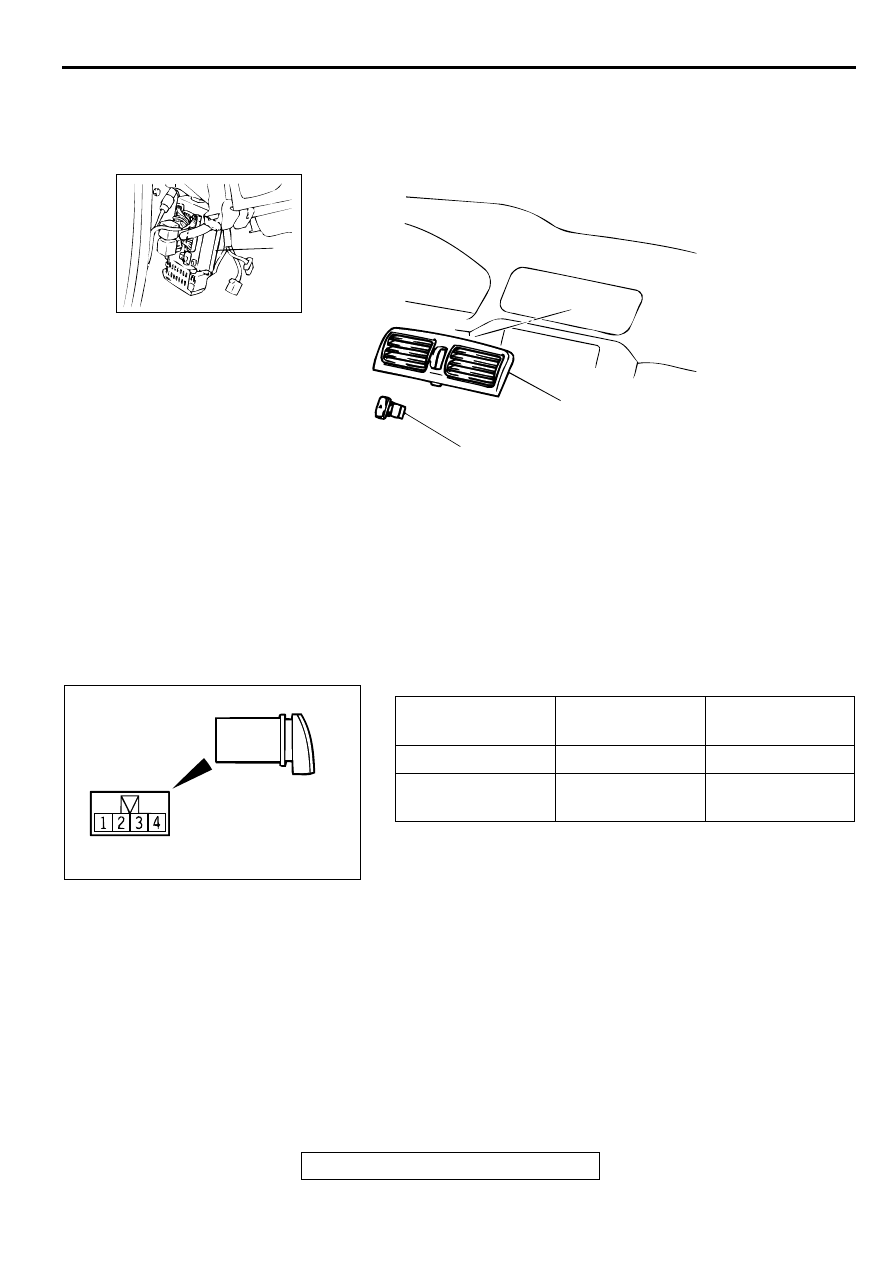

HAZARD WARNING LIGHT SWITCH

TSB Revision

CHASSIS ELECTRICAL

54A-81

POP-UP SWITCH AND FOG LIGHT SWITCH REMOVAL AND INSTALLATION

REMOVAL AND INSTALLATION

M1542006600115

INSPECTION

M1542006700101

HAZARD WARNING LIGHT SWITCH CONTINUITY
CHECK

AC002917

1

2

3

AB

1. ETACS-ECU (REFER TO GROUP

42, KEYLESS ENTRY SYSTEM

P.52A-11

.)

HAZARD WARNING LIGHT SWITCH
REMOVAL STEPS

•

.

RADIO, TAPE PLAYER AND CD PLAYER
(REFER TO

P.54A-150

.)

2. CENTER OUTLET ASSEMBLY
3. HAZARD WARNING LIGHT SWITCH

SWITCH POSITION TESTER

CONNECTION

SPECIFIED
CONDITION

Released

3

−

 4 (Illumination) Continuity

Pressed

1

−

 2 (Switch)

3

−

 4 (Illumination)

Continuity

AC001329AB

TSB Revision

CHASSIS ELECTRICAL

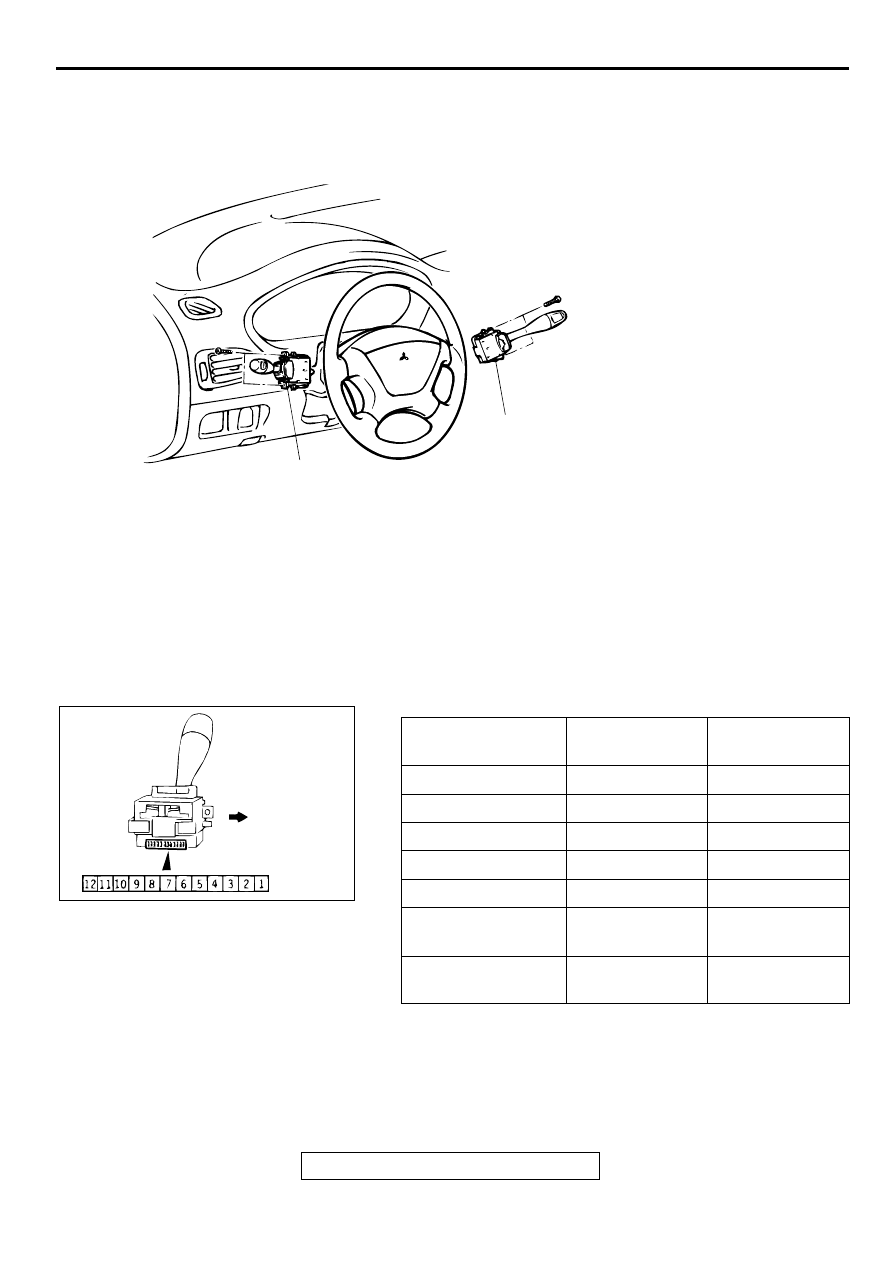

COLUMN SWITCH

54A-82

C O LU M N  SW ITC H

REMOVAL AND INSTALLATION

M1543009100156

INSPECTION

M1543008700155

TURN-SIGNAL AND LIGHTING SWITCH CHECK

AC002918

1

2

AB

REMOVAL STEPS

•

COLUMN COVER LOWER (REFER
TO

P.54A-26

.)

1. TURN-SIGNAL LIGHT AND

LIGHTING SWITCH

2. WINDSHIELD WIPER AND

WINDSHIELD WASHER SWITCH

REMOVAL STEPS (Continued)

SWITCH
POSITION

TESTER
CONNECTION

SPECIFIED
CONDITION

OFF

-

No continuity

Taillight switch ON

5-9

Continuity

Headlight switch ON 5-7-9

Continuity

Passing switch ON

2-12

Continuity

Dimmer switch ON

2-11-12

Continuity

Turn-signal light
switch (LH) ON

1-2Continuity

Turn-signal light
switch (RH) ON

2-3

Continuity

AC001332

UPPER SIDE

AB

HORN

TSB Revision

CHASSIS ELECTRICAL

54A-83

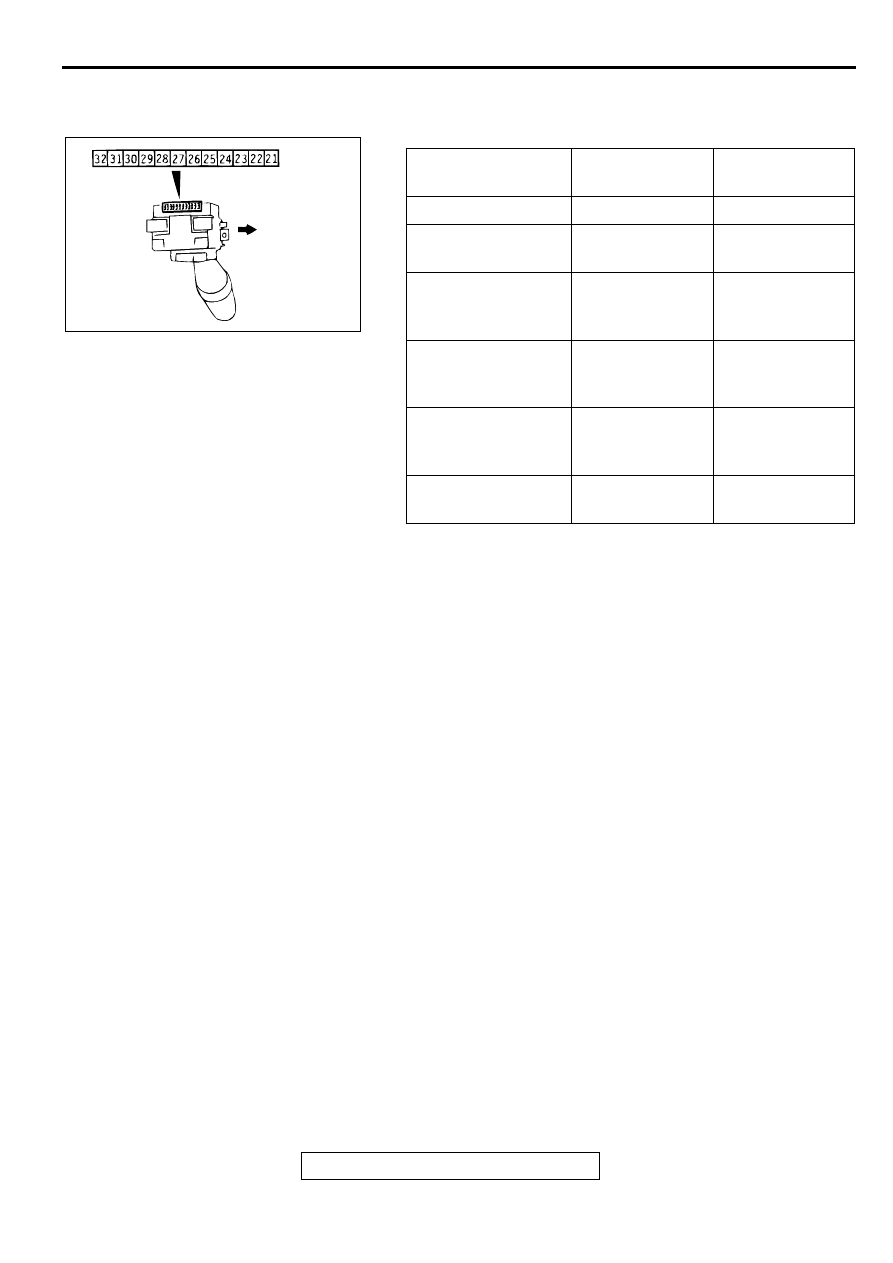

WINDSHIELD WIPER AND WINDSHIELD WASHER
SWITCH CHECK

Measure the resistance value at terminal numbers 27 and 28.
The resistance value should rise smoothly from approximately
0

Ω

 ("FAST" position) to approximately 1 kW ("SLOW"

position).

H O R N

DIAGNOSIS <VEHICLE WITH KEYLESS ENTRY SYSTEM OR THEFT ALARM SYSTEM>

M1543000700311

The keyless entry system horn answerback and
theft-alarm system are controlled by the Simplified
Wiring System (SWS). For troubleshooting, refer to
GROUP 54B, SWS Diagnosis

P.54B-9

.

SWITCH
POSITION

TESTER
CONNECTION

SPECIFIED
CONDITION

OFF

-

No continuity

Windshield wiper
mist switch ON

23-32

Continuity

Windshield
intermittent wiper
switch ON

23-31

Continuity

Windshield low-
speed wiper switch
ON

23-30

Continuity

Windshield high-
speed wiper switch
ON

21-23

Continuity

Windshield wiper
switch ON

22-23

Continuity

AC001333

UPPER SIDE

AB

TSB Revision

CHASSIS ELECTRICAL

HORN

54A-84

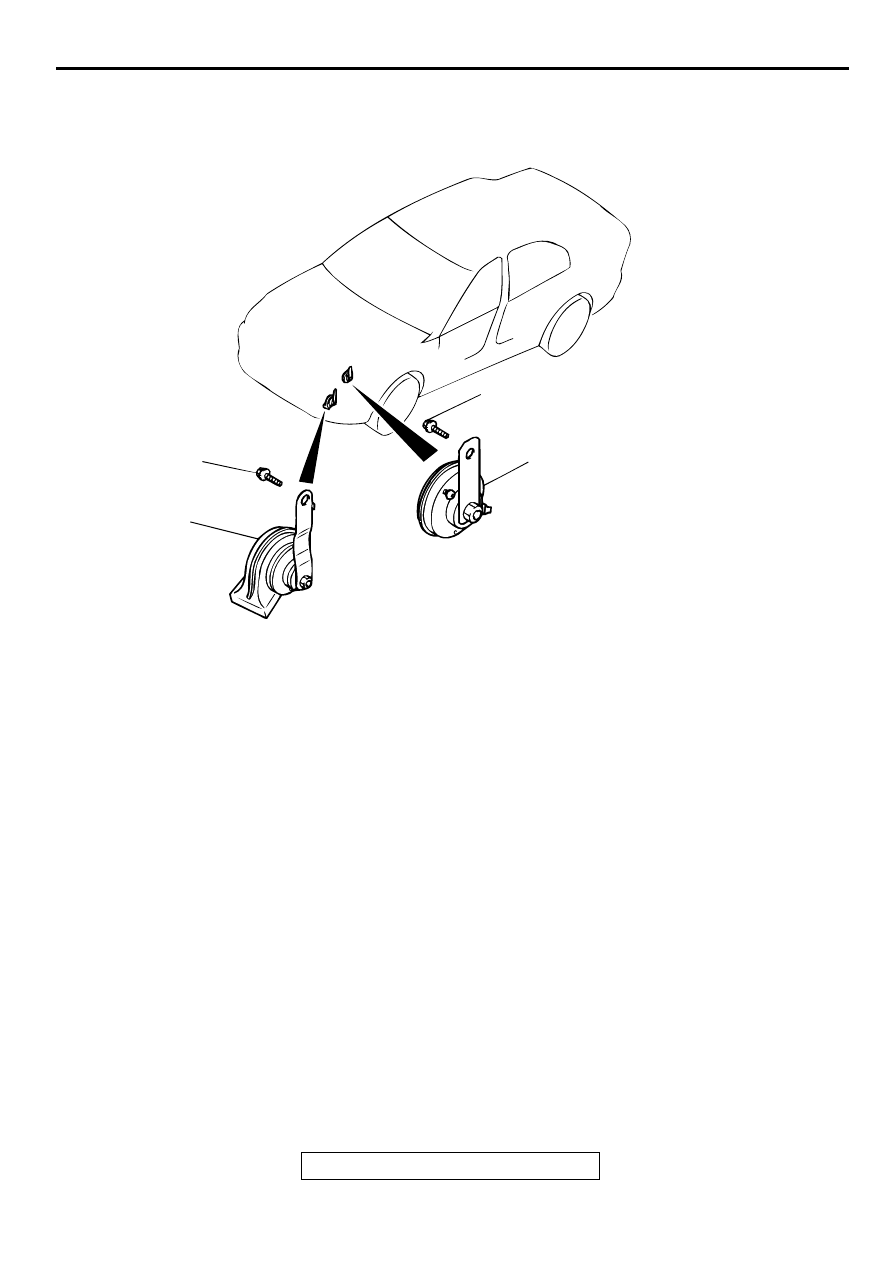

HORN REMOVAL AND INSTALLATION

REMOVAL AND INSTALLATION

M1543007900145

AC002919

2

1

22 N·m
15 ft-lb

22 N·m
15 ft-lb

AB

REMOVAL STEPS

•

AIR CLEANER (REFER TO GROUP 15, AIR
CLEANER

P.15-4

.)

1. THEFT-ALARM HORN
2. HORN

REMOVAL STEPS (Continued)
