FOG LIGHT

TSB Revision

CHASSIS ELECTRICAL

54A-73

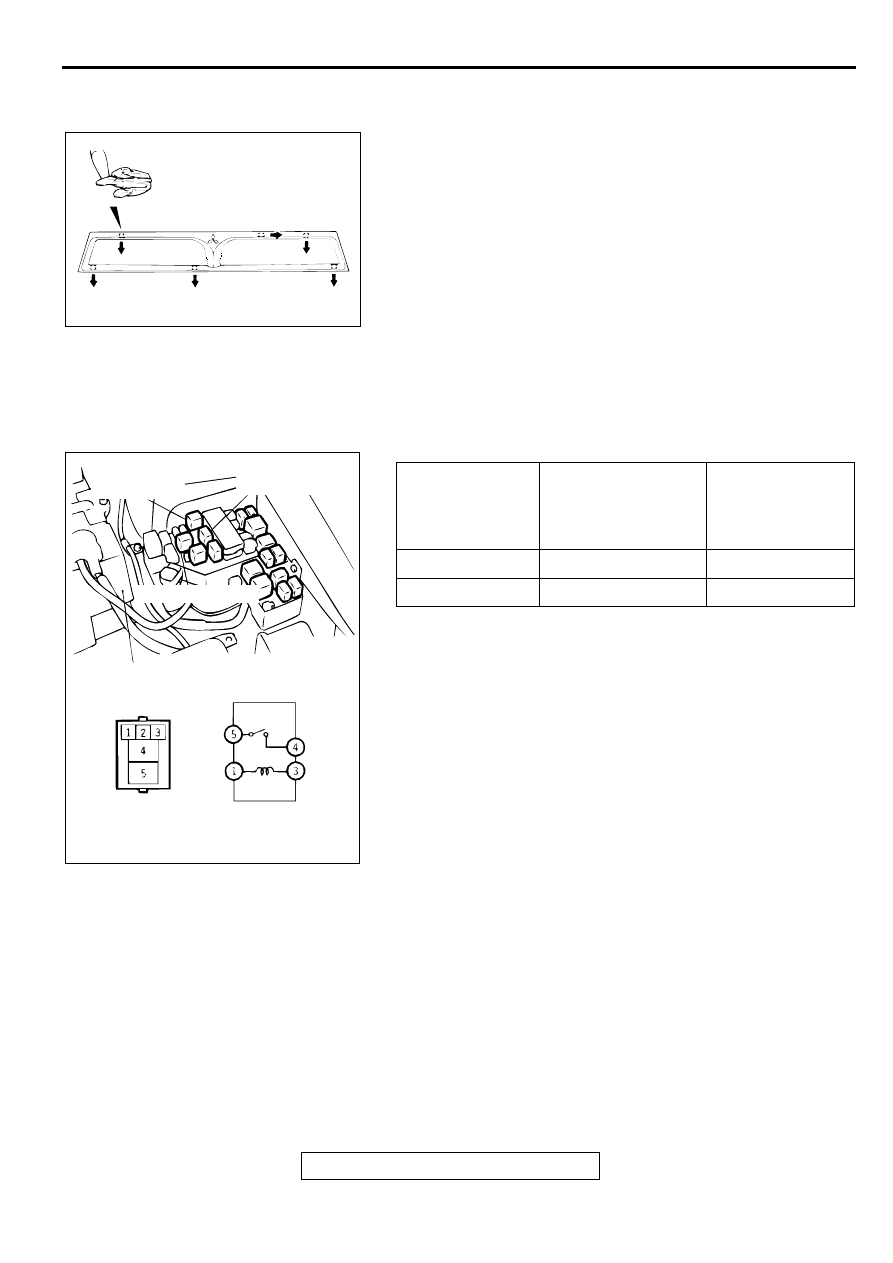

REMOVAL SERVICE POINT

<<A>> RADIATOR GRILLE REMOVAL
1. Remove the radiator grille by pushing all tabs of the radiator

grille clips in the direction of the arrows with a flat-tipped
screwdriver, then lightly pull the radiator grille toward you.

2. Removal the clips from the body, and install them to the

radiator grille temporarily for reinstallation.

INSPECTION

M1542008200072

HEADLIGHT RELAY(LOW),(HIGH) AND
TAILLIGHT RELAY CHECK

FO G LIG H T

FOG LIGHT DIAGNOSIS

M1542000700307

The fog lights are controlled by the Simplified Wiring
System (SWS). For troubleshooting, refer to GROUP
54B, SWS Diagnosis

P.54B-9

AC002902AB

BATTERY
VOLTAGE

TERMINAL NO. TO
BE CONNECTED
TO BATTERY

TERMINAL NO.
TO PERFORM
CONTINUITY
TEST

Supplied

1-3

4-5

Not supplied

1-3

AC002903AB

BATTERY

TAILLIGHT RELAY

HEADLIGHT
RELAY(LOW)

HEADLIGHT
RELAY(HIGH)

TSB Revision

CHASSIS ELECTRICAL

FOG LIGHT

54A-74

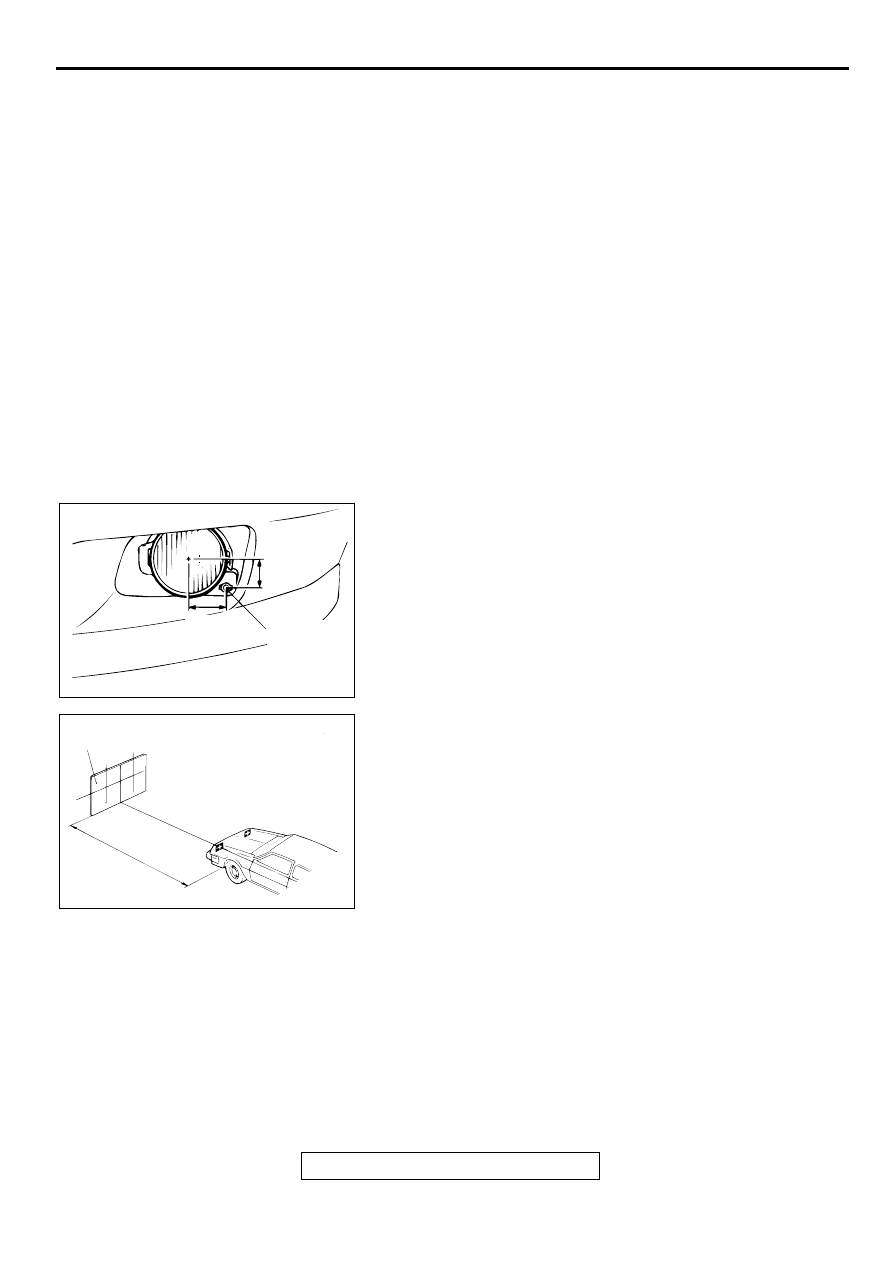

ON-VEHICLE SERVICE

FOG LIGHT AIMING

M1542001100104

1. Inspect for badly rusted or faulty fog light assemblies.

2. These conditions must be corrected before a satisfactory

adjustment can be made.

3. Place the vehicle on a level floor.

4. Bounce the front suspension through three (3) oscillations

by applying the body weight to the hood or bumper.

5. Inspect tire inflation, and adjust if necessary.

6. Rock the vehicle sideways to allow the vehicle to assume its

normal position.

7. If fuel tank is not full, place a weight in the trunk of the

vehicle to simulate weight of a full tank [3 kg (6.5 pounds)
per gallon.]

8. There should be no other load in the vehicle other than

driver or substituted weight of approximately 70 kg (150
pounds) placed in driver's position.

9. Thoroughly clean the fog light lenses.
10.Measure the center of the fog lights as shown in the

illustration.

11.Set the distance between the screen and the center of the

fog lights as shown in the illustration.

AC002904

ADJUSTING
SCREW

50(2.0)

37(1.5)

mm (in)

AC001310

SCREEN

7.6 m (25 ft)

FOG LIGHT

TSB Revision

CHASSIS ELECTRICAL

54A-75

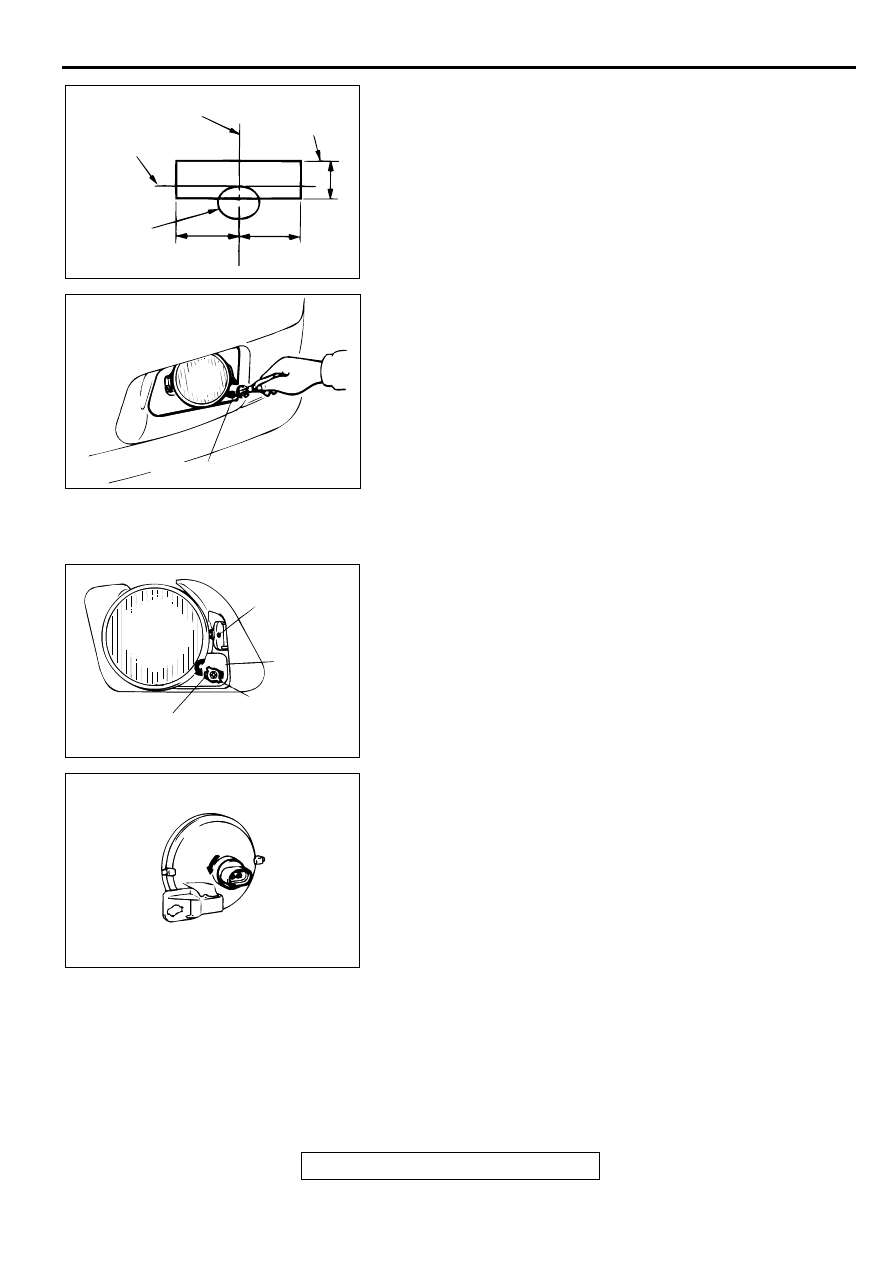

12.Check if the beam shining onto the screen is at the standard

value.

Standard value:

(Vertical direction): 148 mm (5.8 inches) below

horizontal (H)

(Horizontal direction): Parallel to direction of vehicle

travel

NOTE: The horizontal direction is non-adjustable. If
deviation of the light beam axis exceeds the standard value,
check that the mounting location or some other points are
not faulty.

BULB REPLACEMENT

M1542001300119

1. Disconnect the fog light connector behind the bumper.

2. Align the turn-lock ball socket with the slot of the adjuster

bracket by turning the turn-lock ball socket in the shown
direction.

3. Expand the fog light installation tab carefully. Then withdraw

the fog light toward you.

4. Remove the bulb by turning the socket in the shown

direction shown.

ACX02358

HEIGHT OF FOG
LIGHT CENTER

VERTICAL CENTER
LINE AHEAD OF
FOG LIGHT

UPPER
MOST
LEVER
OF HOT
ZONE

HOT ZONE

Within 598
(23.5)

148 (5.8)

mm (in)

AC002905AB

ADJUSTING SCREW

AC002906

SLOT

TURN-LOCK
BALL SOCKET

ADJUSTER
BRACKET

FOG LIGHT
INSTALLATION TAB

AC002907AB

TSB Revision

CHASSIS ELECTRICAL

FOG LIGHT

54A-76

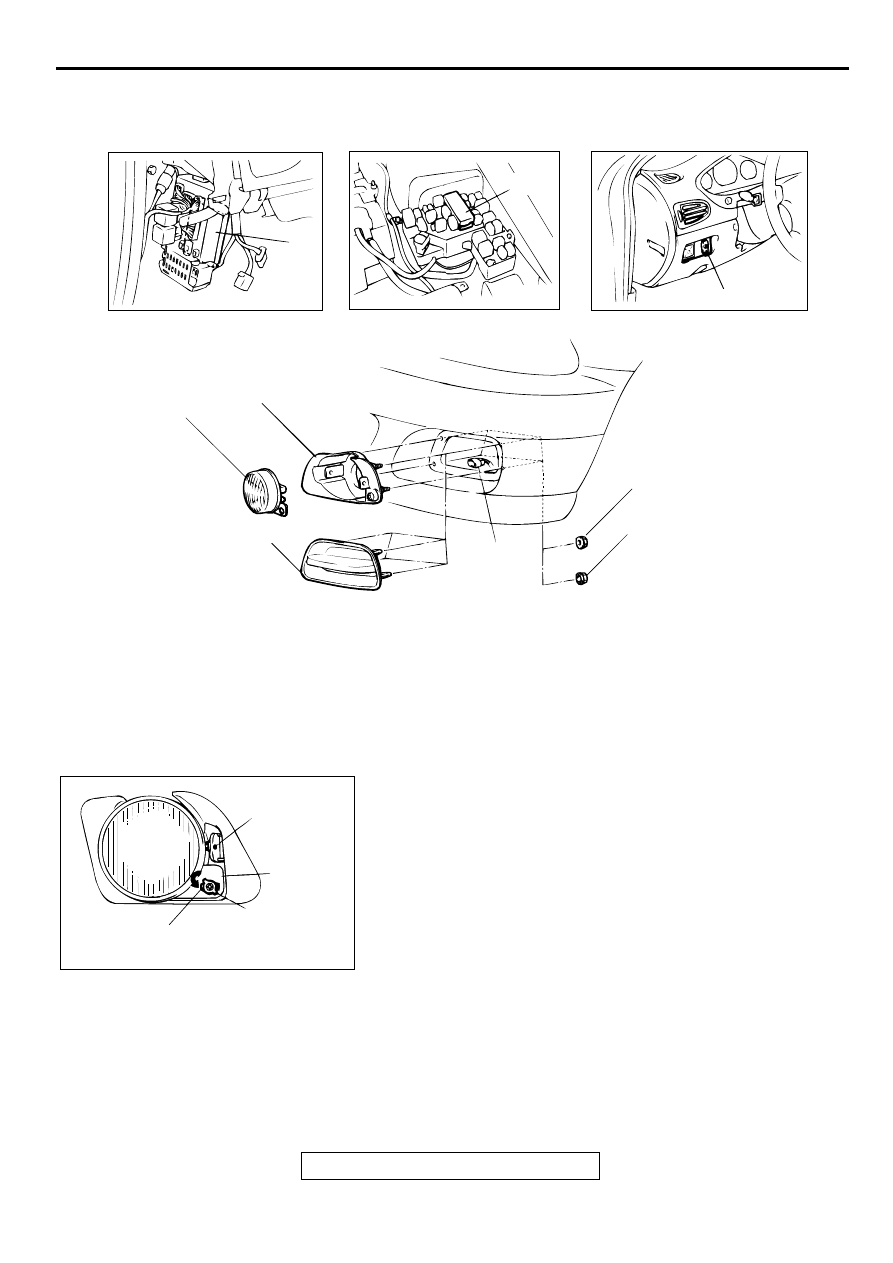

FOG LIGHT REMOVAL AND INSTALLATION

REMOVAL AND INSTALLATION

M1542001500135

REMOVAL SERVICE POINT

<<A>> FOG LIGHT REMOVAL
Align the turn-lock ball socket with the slot of the adjuster
bracket by turning the turn-lock ball socket in the shown
direction.

AC002908

1.5 N·m
13 in-lb

2.5 N·m
22 in-lb

1. ETACS-ECU (REFER TO GROUP

42,KEYLESS ENTRY SYSTEM

P.52A-20

2. FRONT-ECU

3. FOG LIGHT SWITCH
4. FOG LIGHT HOLE COVER

FOG LIGHT REMOVAL STEPS

5. FOG LIGHT CONNECTOR
6. FOG LIGHT BRACKET

<<A>>

7. FOG LIGHT

AC002909

SLOT

TURN-LOCK
BALL SOCKET

ADJUSTER
BRACKET

FOG LIGHT
INSTALLATION TAB
