Mitsubishi Galant. Manual - part 493





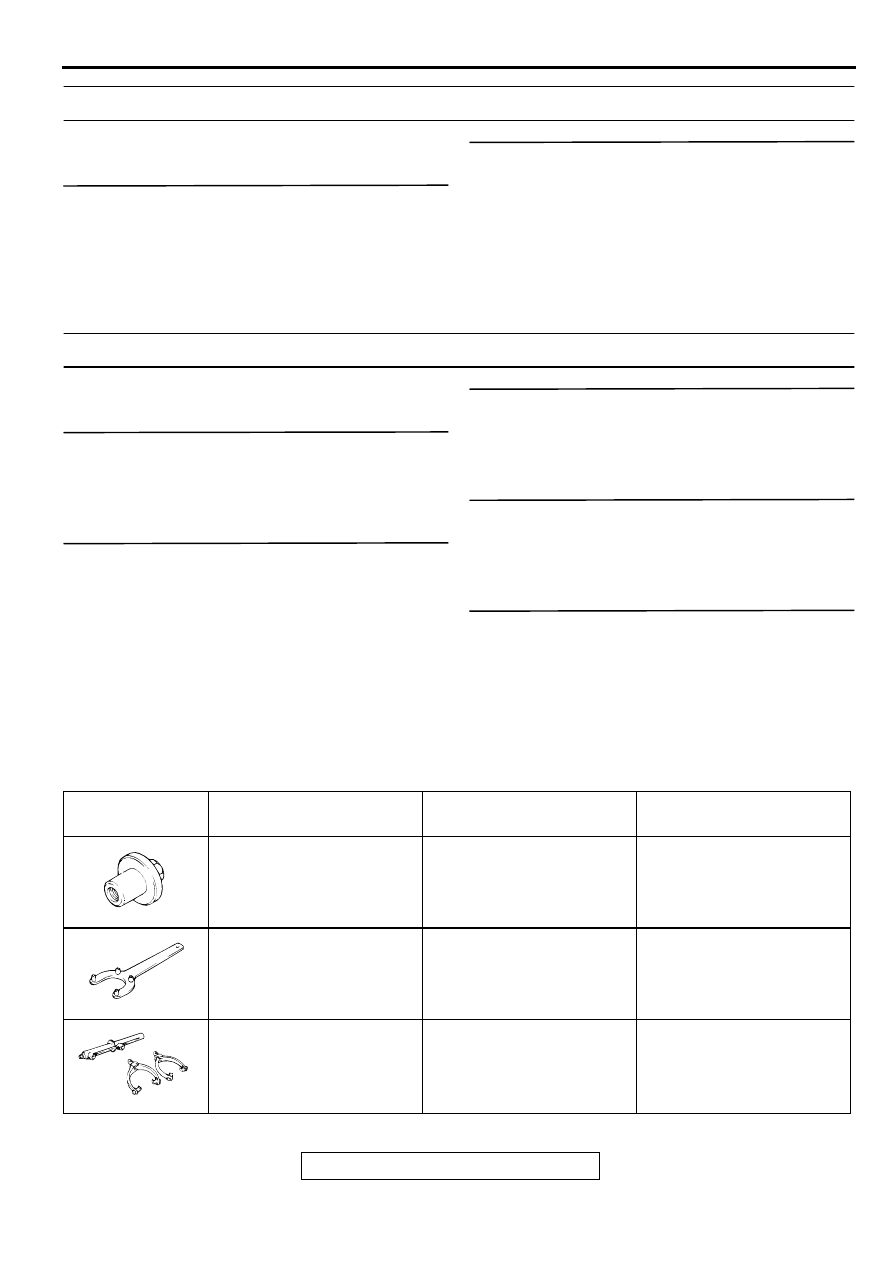

FRONT SUSPENSION DIAGNOSIS

TSB Revision

FRONT SUSPENSION

33A-3

STEP 3. Check the ball joint.

Q: Is the ball joint in good condition?

YES :

Go to Step 4.

NO :

Replace it, then go to Step 5.

STEP4. Check the coil spring.

Q: Is the coil spring in good condition?

YES :

Go to Step 5.

NO :

Replace it, then go to Step 5.

STEP 5. Check symptoms.

Q: Is the malfunction eliminated?

YES :

Return to Step 1.

NO :

This diagnosis is complete.

INSPECTION PROCEDURE 2: Excessive Body Rolling

DIAGNOSIS

STEP 1. Check for broken or deteriorated
stabilizer bar.

Q: Is the stabilizer bar in good condition?

YES :

Go to Step 2.

NO :

Replace it, then go to Step 3.

STEP 2. Check for strut assembly damage.

Q: Is the strut assembly in good condition?

YES :

Go to Step 3.

NO :

Replace it, then go to Step 3.

STEP 3. Check symptoms.

Q: Is the malfunction eliminated?

YES :

Return to Step 1.

NO :

This diagnosis is complete.

INSPECTION PROCEDURE 3: Poor Riding

DIAGNOSIS

STEP 1. Check for improper tire inflation
pressure.
Refer to GROUP 31, On-vehicle Service - Tire
Inflation Pressure Check

P.31-7

.

Q: Is the tire inflation correct?

YES :

Go to Step 2.

NO :

Adjust it, then go to Step 4.

STEP 2. Check for broken or deteriorated coil
spring(s).

Q: Is the coil spring(s) broken or deteriorated?

YES :

Replace it, then go to Step 4.

NO :

Go to Step 3.

STEP 3. Check for strut assembly damage.

Q: Is the strut assembly damaged?

YES :

Replace it, then go to Step 4.

STEP 4. Check symptoms.

Q: Is the malfunction eliminated?

YES :

Return to Step 1.

NO :

This diagnosis is complete.

SPECIAL TOOLS

TSB Revision

FRONT SUSPENSION

33A-4

INSPECTION PROCEDURE 4: Unequal Ride Height

DIAGNOSIS

STEP 1. Check for broken or deteriorated coil
spring(s).

Q: Is the coil spring(s) broken or deteriorated?

YES :

Replace it, then go to Step 2.

NO :

Go to Step 2.

STEP 2. Check symptoms.

Q: Is the malfunction eliminated?

YES :

Return to Step 1.

NO :

This diagnosis is complete.

INSPECTION PROCEDURE 5: Noise

DIAGNOSIS

STEP 1. Check for lack of lubrication.

Q: Is lubrication inadequate?

YES :

Lubricate it, then go to Step 5.

NO :

Go to Step 2.

STEP 2. Check the tightened parts for looseness
as well as the bushings for wear.

Q: Are the tightened parts and bushings in good

condition?
YES :

Go to Step 3.

NO :

Replace it, then go to Step 5.

STEP 3. Check for broken coil spring.

Q: Is the coil spring broken?

YES :

Replace it, then go to Step 5.

NO :

Go to Step 4.

STEP 4. Check for strut assembly damage.

Q: Is the strut assembly damaged?

YES :

Replace it, then go to Step 5.

NO :

Go to Step 5.

STEP 5. Check symptoms.

Q: Is the malfunction eliminated?

YES :

Return to Step 1.

NO :

This diagnosis is complete.

SPECIA L TO O LS

M1332000600059

TOOL

TOOL NUMBER AND
NAME

SUPERSESSION

APPLICATION

MB991004
Wheel alignment
gauge attachment

MB991004-01 or General
service tool

Wheel alignment
measurement

MB991176
Spring seat holder

Tool not available

Strut disassembly and
assembly

A: MB991237
Spring compressor body

B: MB991238
Arm set

MIT221369Front coil spring

compression

MB991004

MB991176

MB991237

A

B

ON-VEHICLE SERVICE

TSB Revision

FRONT SUSPENSION

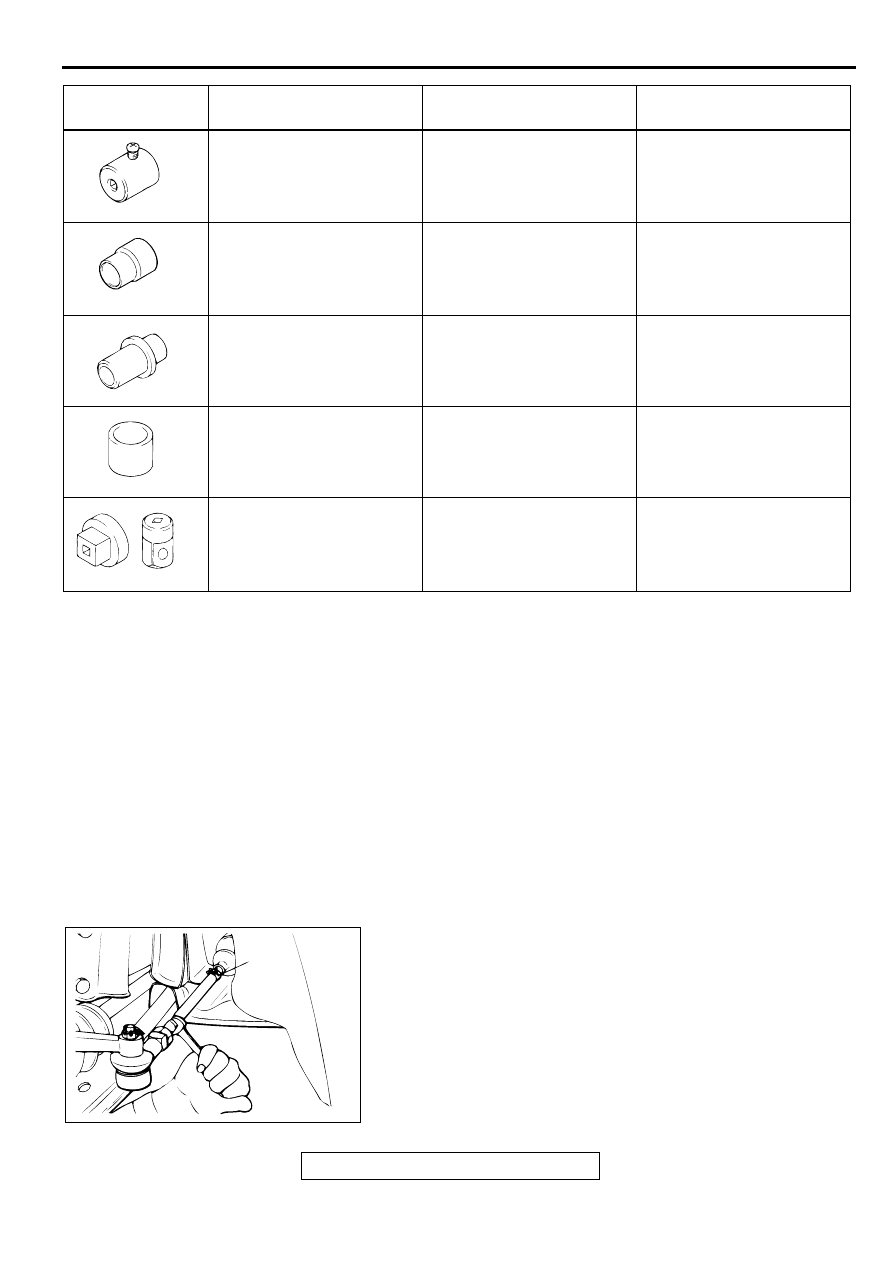

33A-5

O N -VEH IC LE SERVIC E

FRONT WHEEL ALIGNMENT CHECK AND
ADJUSTMENT

M1331000900057

Required Special Tool:

MB991004: Wheel Alignment Gauge Attachment.

Measure wheel alignment with alignment equipment on a level
surface. The front suspension, steering system, and wheels
should be serviced to normal condition before measuring wheel
alignment.
TOE-IN

Standard value: 0

±±±±

 3 mm (0

±±±±

0.12 inch)

NOTE: If the toe-in is not within the standard value, adjust the
toe-in by undoing the clips and turning the left and right tie rod
turnbuckles by the same amount (in opposite directions).

NOTE: The toe will move out as the left turnbuckle is turned
toward the front of the vehicle and the right turnbuckle is turned
toward the rear of the vehicle.
For each one turn of the left and right tie rods, the toe-in will be
adjusted by approximately 1

°

05' (per wheel).

Use a turning radius gauge to check that the steering angle is
at the standard value.

MB991006
Preload wrench

MB990228-01

Lower arm ball joint
breakaway torque check

MB990799
Ball joint dust cover installer

MB990799-01

Lower arm ball joint dust
cover installation

MB991007
Bearing installer

Tool not available

Press-fitting of lower arm
ball joint dust cover

MB991446
Bushing remover and
installer spacer

Tool not available

Press-fitting of lower arm
bushing

MB990326
Preload wrench

General service tool

Stabilizer link ball joint
breakaway torque
measurement

TOOL

TOOL NUMBER AND
NAME

SUPERSESSION

APPLICATION

MB991006

MB990799

MB991007

MB991446

MB990326

AC001078 AB

CLIP

ON-VEHICLE SERVICE

TSB Revision

FRONT SUSPENSION

33A-6

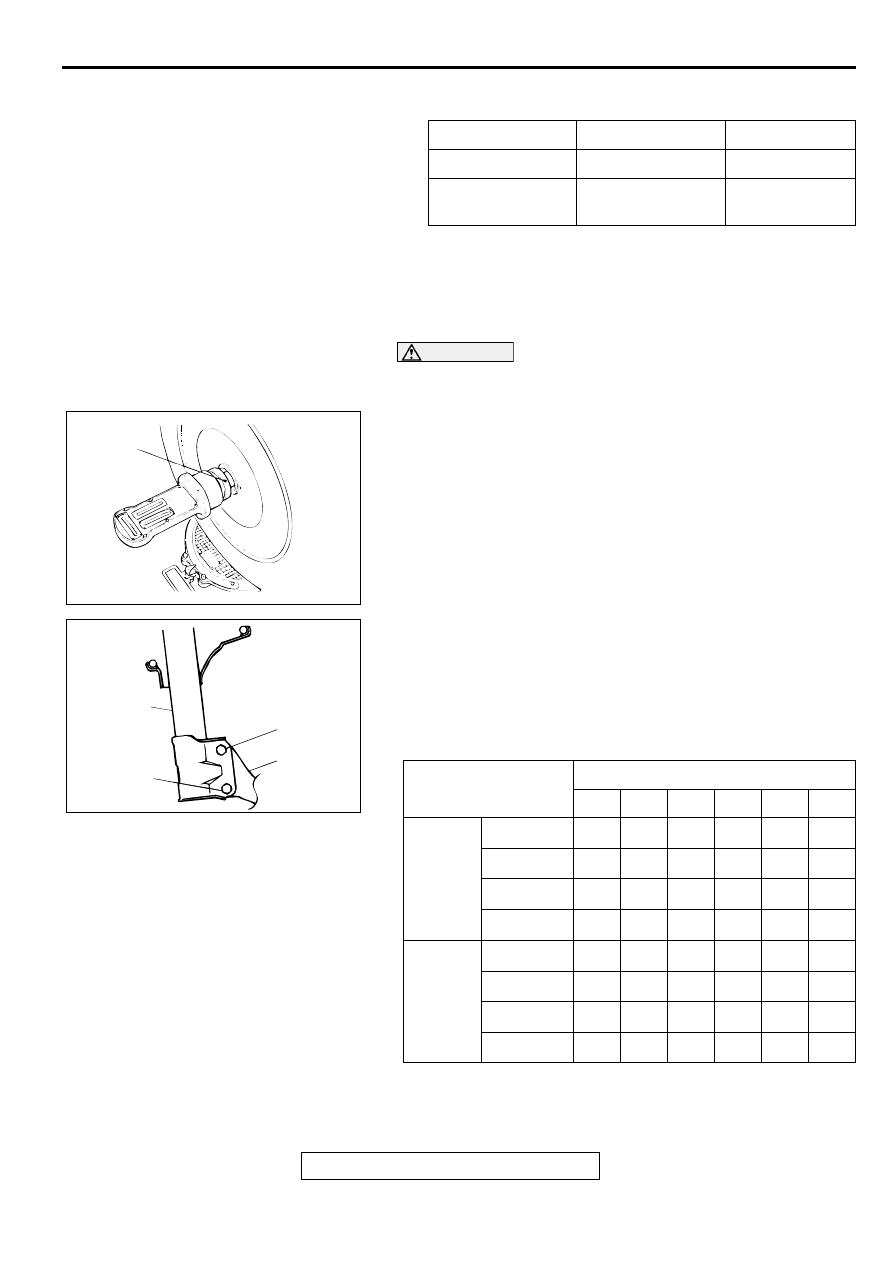

STEERING ANGLE

Standard value:

CAMBER AND CASTER

Standard value:
 Camber 0

°°°°

00'

    ±±±±

 30' (Left/right deviation within 30')

 Caster 3

°°°°

00'

    ±±±±

 30'(Left/right deviation within 30')



NOTE:  Caster is preset at the factory and cannot be adjusted.

CAUTION

Never subject the wheel bearings to the vehicle load when
the driveshaft nuts are loosened.

NOTE: For vehicles with aluminum type wheels, attach the
camber/caster/kingpin gauge to the driveshaft by using special
tool MB991004. Tighten special tool MB991004 to the same
torque 196

−

255 N

m



(145

 −

 198 ft-lb) as the driveshaft nut.

If the camber is outside of the standard value, perform the
following adjustment procedures.
1. Estimate how much additional camber adjustment is

required. Using the table below, select the camber adjusting
bolt, and then replace the knuckle and strut assembly
connection bolts (upper bolt, lower bolt) with the selected
bolts.

NOTE: If the camber adjusting value that is required is greater
than 1

°

 30' , check for bent or damaged parts and replace as

necessary.

ITEM

2.4L ENGINE

3.0L ENGINE

Inner wheel

36

°

36'

±

 2

°

00'

33

°

6'

±

 2

°

00'

Outer wheel
(reference)

30

°

24'

28

°

30'

BOLT DIAMETER
mm (in)

CAMBER ADJUSTING VALUE

0

°°°°

15' 0

°°°°

30' 0

°°°°

45' 1

°°°°

00' 1

°°°°

15' 1

°°°°

30'

Upper
bolt

16.0 (0.63)

14.9 (0.59)

14.1 (0.56)

13.6 (0.54)

Lower
bolt

16.0 (0.63)

14.9 (0.59)

14.1 (0.56)

13.6 (0.54)

AC001079

MB991004

AB

AC001080

STRUT
ASSEMBLY

LOWER BOLT

UPPER BOLT

KNUCKLE

AB
