ENGINE MOUNTING

TSB Revision

POWER PLANT MOUNT

32-5

EN G IN E M O U N TIN G

REMOVAL AND INSTALLATION

M1321001100086

CAUTION

Mounting locations marked by

*

should be provisionally tightened, and then fully tightened after

placing the vehicle horizontally and loading the full weight of the engine on the vehicle body.

Pre-removal and Post-installation Operation

Jack Up the Engine and Transmission Assembly Until
There is no Weight on the Engine Mount Bracket Insula-
tor.

Reserve Tank Removal and Installation (Refer to GROUP
14, Radiator

P.14-15

.)

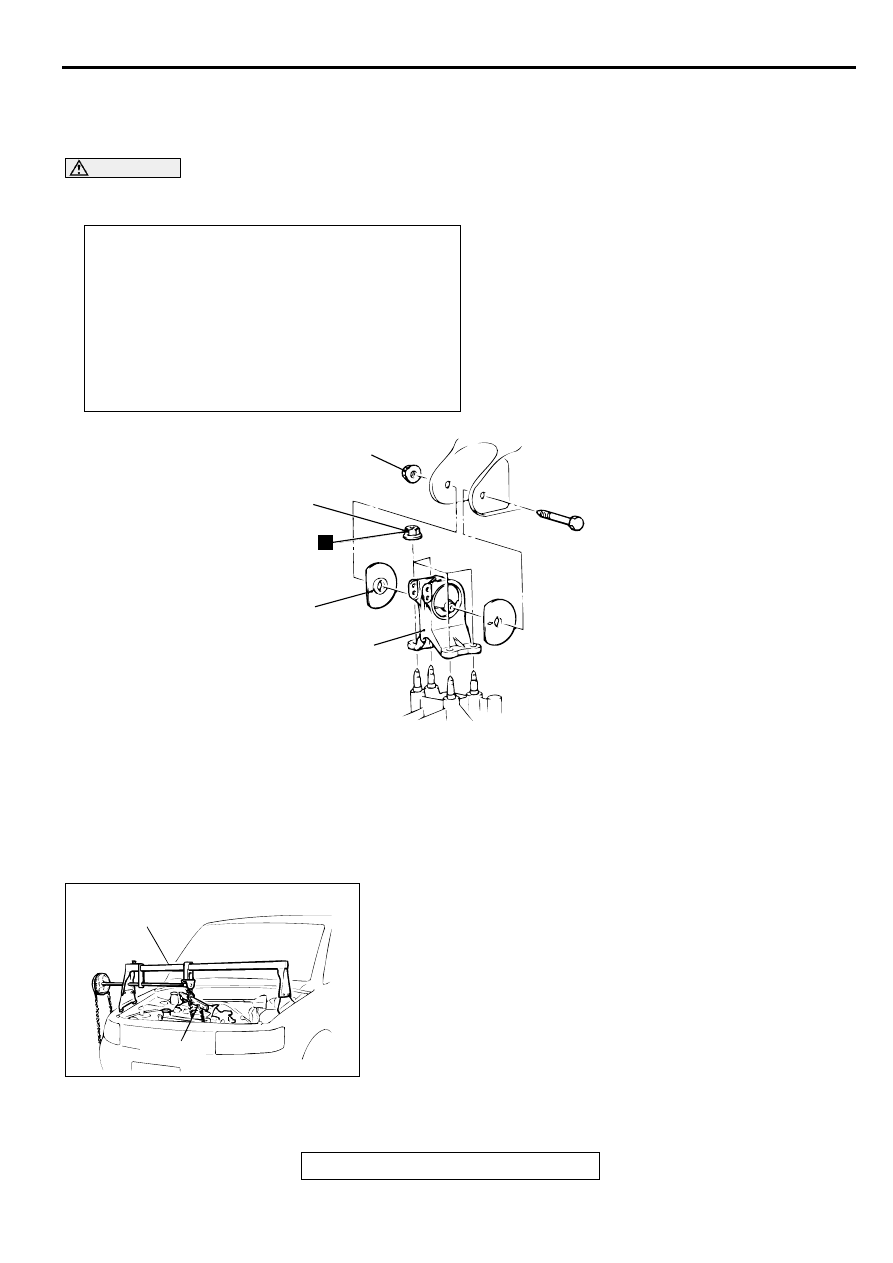

AC000299

5

5

4

3

1

2

6

4

5

5

3

83 N·m*
61 ft-lb*

83 N·m*
61 ft-lb*

86 N·m
63 ft-lb

86 N·m
63 ft-lb

86 N·m
63 ft-lb

36 N·m
27 ft-lb

4.9 N·m
43 in-lb

AC

.4L ENGINE>

<3.0L ENGINE>

N

REMOVAL STEPS

1.

SUCTION HOSE <3.0L ENGINE>

2.

ENGINE MOUNT STAY <3.0L
ENGINE>

3.

ENGINE MOUNT INSULATOR
MOUNTING BOLT

4.

ENGINE MOUNT BRACKET

>>A<<

5.

ENGINE MOUNT STOPPER

6.

DYNAMIC DAMPER <3.0L
ENGINE>

REMOVAL STEPS (Continued)

ENGINE MOUNTING

TSB Revision

POWER PLANT MOUNT

32-6

INSTALLATION SERVICE POINT

>>A<< ENGINE MOUNT STOPPER INSTALLATION
Clamp the engine mount stopper so that the arrow points in the
direction as shown in the diagram.

INSPECTION

M1321001200061

Check the insulators for cracks, separation or deformation.

Check the front insulator stoppers for deformation.

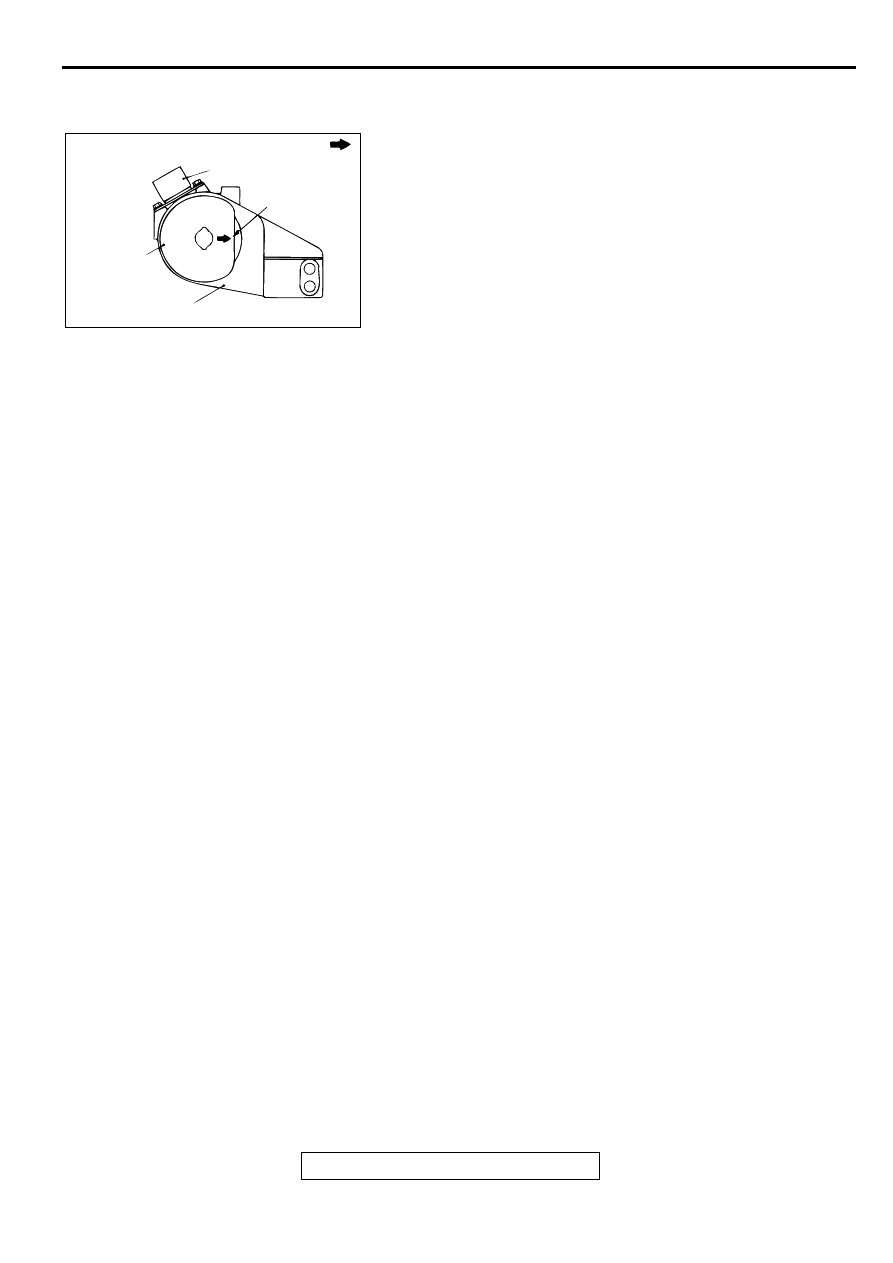

AC000300

ENGINE SIDE

DYNAMIC DAMPER

ARROW

ENGINE
MOUNT
STOPPER

ENGINE MOUNT BRACKET

AB

TRANSAXLE(TRANSMISSION) MOUNTING

TSB Revision

POWER PLANT MOUNT

32-7

TR AN SAXLE(TR A N SM ISSIO N ) M O U N TIN G

REMOVAL AND INSTALLATION

M1321001400087

CAUTION

Mounting locations marked by

*

should be provisionally tightened, and then fully tightened after

placing the vehicle horizontally and loading the full weight of the engine on the vehicle body.

Required Special Tools:

MB991453: Engine Hanger

MZ203827: Engine Lifter

REMOVAL SERVICE POINT

<<A>> TRANSAXLE MOUNT BRACKET REMOVAL
1. Install special tools MB991453 and MZ203827 to the vehicle

body to support the engine and transaxle assembly.

2. Remove the centermember and rear roll stopper bracket.

3. Remove the bolt and nut of the transaxle mount bracket.

4. After lowering the engine and transaxle assembly, remove

the transaxle mount bracket.

Pre-removal and Post-installation Operation

Air Cleaner Assembly Removal and Installation (Refer to
GROUP 15, Air Cleaner

P.15-4

.)

Battery and Battery Tray Removal and Installation (Refer
to GROUP 54A, Battery

P.54A-8

.)

Centermember Removal and Installation (Refer to

P.32-

9

.)

Transaxle and Rear Roll Stopper Connecting Bolt
Removal and Installation (Refer to

P.32-9

.)

Rear Roll Stopper Bracket Removal and Installation <2.4L
Engine> (Refer to GROUP 23A, Transaxle

P.23A-290

.)

AC000301AC

1

2

83 N·m*
61 ft-lb*

57 N·m
42 ft-lb

N

REMOVAL STEPS

<<A>>

1.

TRANSAXLE MOUNT BRACKET

>>A<<

2.

TRANSAXLE MOUNT STOPPER

ACX00406

MZ203827

AB

MB991453

TRANSAXLE(TRANSMISSION) MOUNTING

TSB Revision

POWER PLANT MOUNT

32-8

INSTALLATION SERVICE POINT

>>A<< TRANSAXLE MOUNT STOPPER INSTALLATION
Clamp the transaxle mount stopper so that the arrow points in
the direction as shown in the diagram.

AC000302

ENGINE SIDE

ARROW

TRANSAXLE
MOUNT
BRACKET

AB

TRANS-
AXLE
MOUNT
STOPPER
