Mitsubishi Galant. Manual - part 489





GENERAL DESCRIPTION

TSB Revision

POWER PLANT MOUNT

32-2

.

G EN ER A L DESC RIPTIO N

M1321000100083

The engine-transaxle mount is of an inertial axis
supporting type whose excellent features have
already been proven in many Mitsubishi vehicles.
The inertial axis supporting type mount supports the
front upper part of the engine at the front and the rear
upper part of the transaxle at the rear. This
arrangement effectively suppresses the engine
vibration.

GENERAL DESCRIPTION

TSB Revision

POWER PLANT MOUNT

32-3

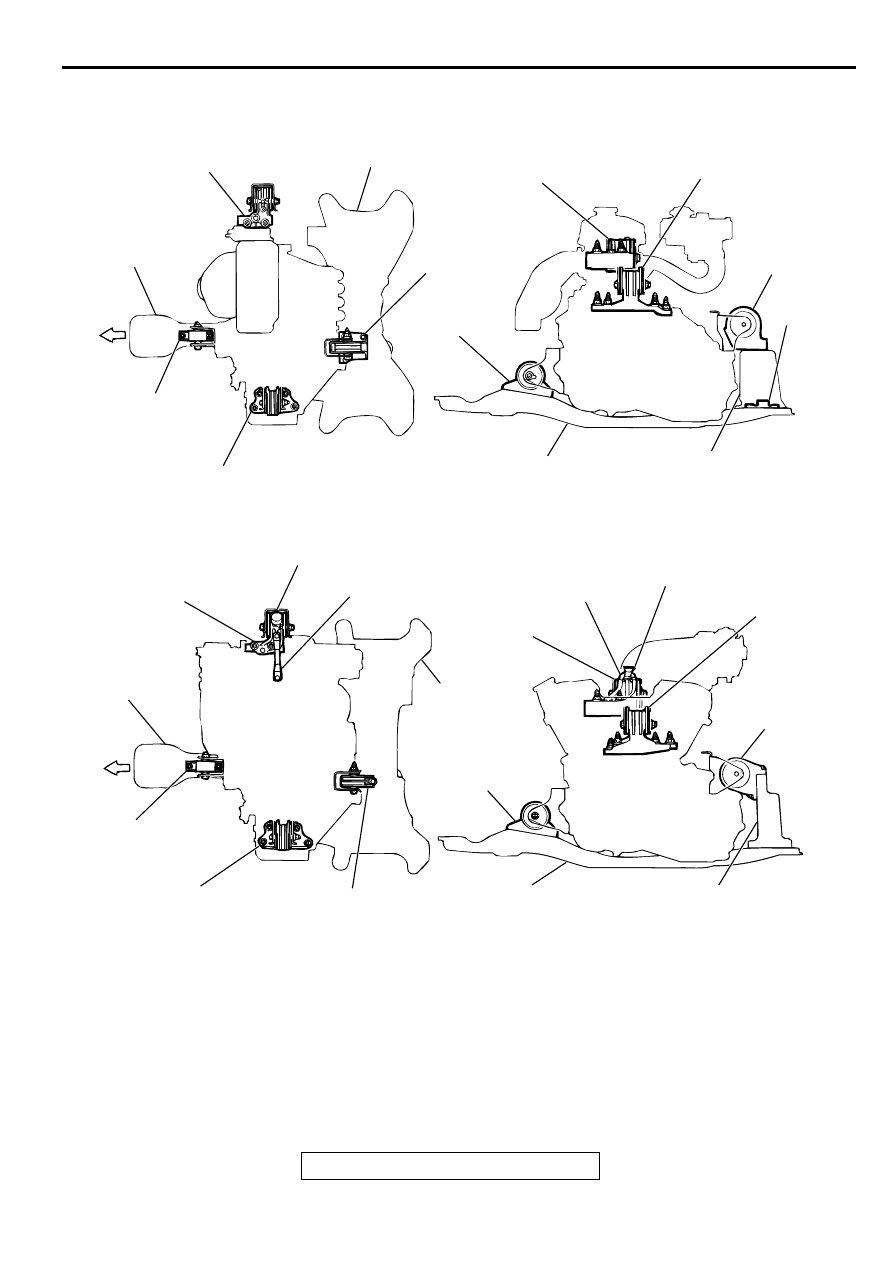

ENGINE MOUNT CONSTRUCTION DIAGRAM

AC005075

FRONT

FRONT

ENGINE MOUNT

ENGINE MOUNT

ENGINE MOUNT

ENGINE MOUNT

CROSSMEMBER

CROSSMEMBER

CROSSMEMBER

CROSSMEMBER

CENTERMEMBER

CENTERMEMBER

CENTERMEMBER

CENTERMEMBER

FRONT ROLL
STOPPER

FRONT ROLL
STOPPER

FRONT ROLL
STOPPER

FRONT ROLL
STOPPER

TRANSAXLE MOUNT

TRANSAXLE MOUNT

TRANSAXLE MOUNT

TRANSAXLE
MOUNT

REAR ROLL
STOPPER

REAR ROLL
STOPPER

REAR ROLL
STOPPER

REAR ROLL
STOPPER

DYNAMIC DAMPER

DYNAMIC DAMPER

ENGINE MOUNT STAY

ENGINE MOUNT
STAY

<2.4L ENGINE>

<3.0L ENGINE>

AB

DYNAMIC
DAMPER

SPECIAL TOOLS

TSB Revision

POWER PLANT MOUNT

32-4

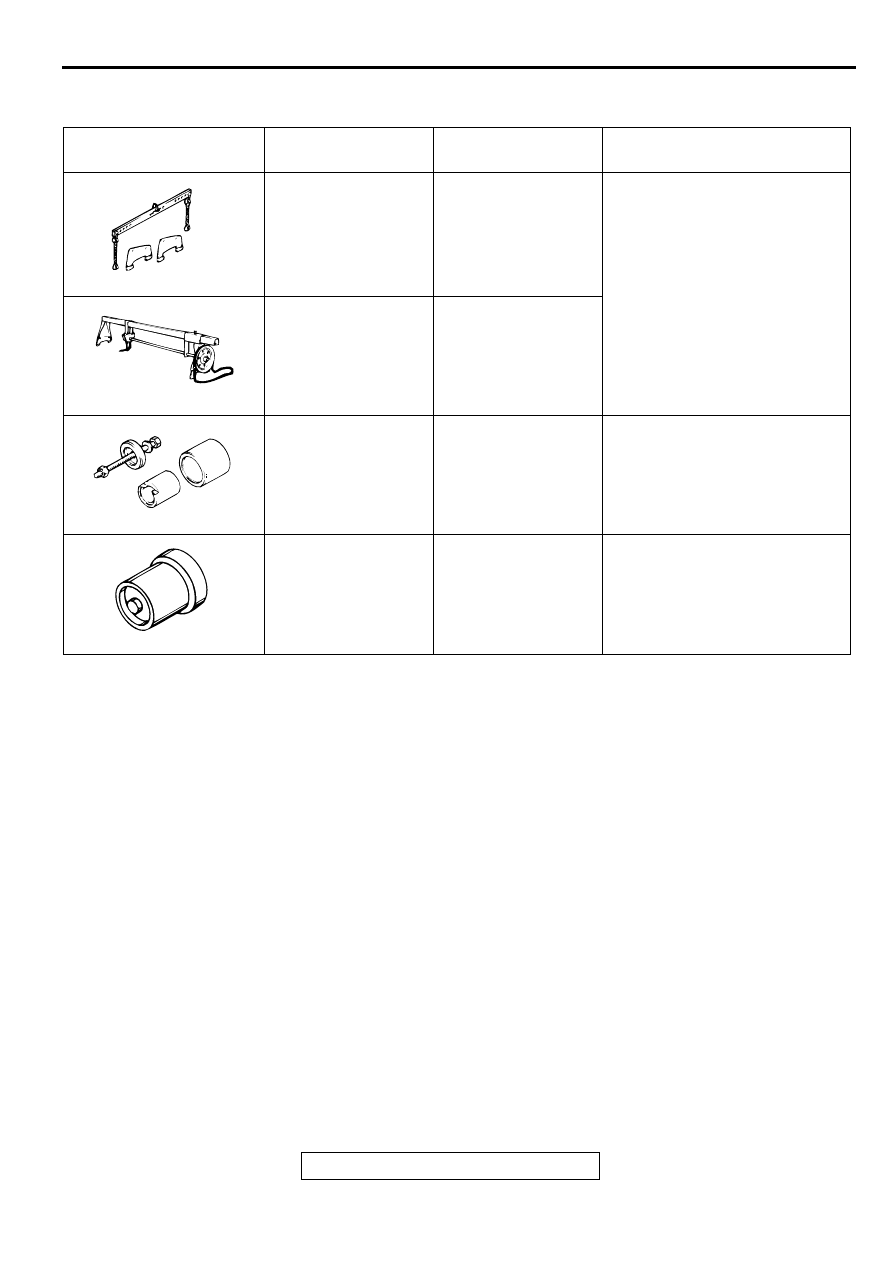

SPECIA L TO O LS

M1321000600066

TOOL

TOOL NUMBER
AND NAME

SUPERSESSION

APPLICATION

MB991453
Engine hanger

Tool not available

To support the engine assembly
during removal and installation
of the transaxle mount

MZ203827
Engine lifter

General service tool

MB991045
Bushing remover and
installer

Tool not available

Driving out and press-fitting of
crossmember bushings A and B

MB990828
Bushing remover and
installer

Tool not available

Driving out and press-fitting of
crossmember bushing C

MB991453

MZ203827

MB991045

MB990828
