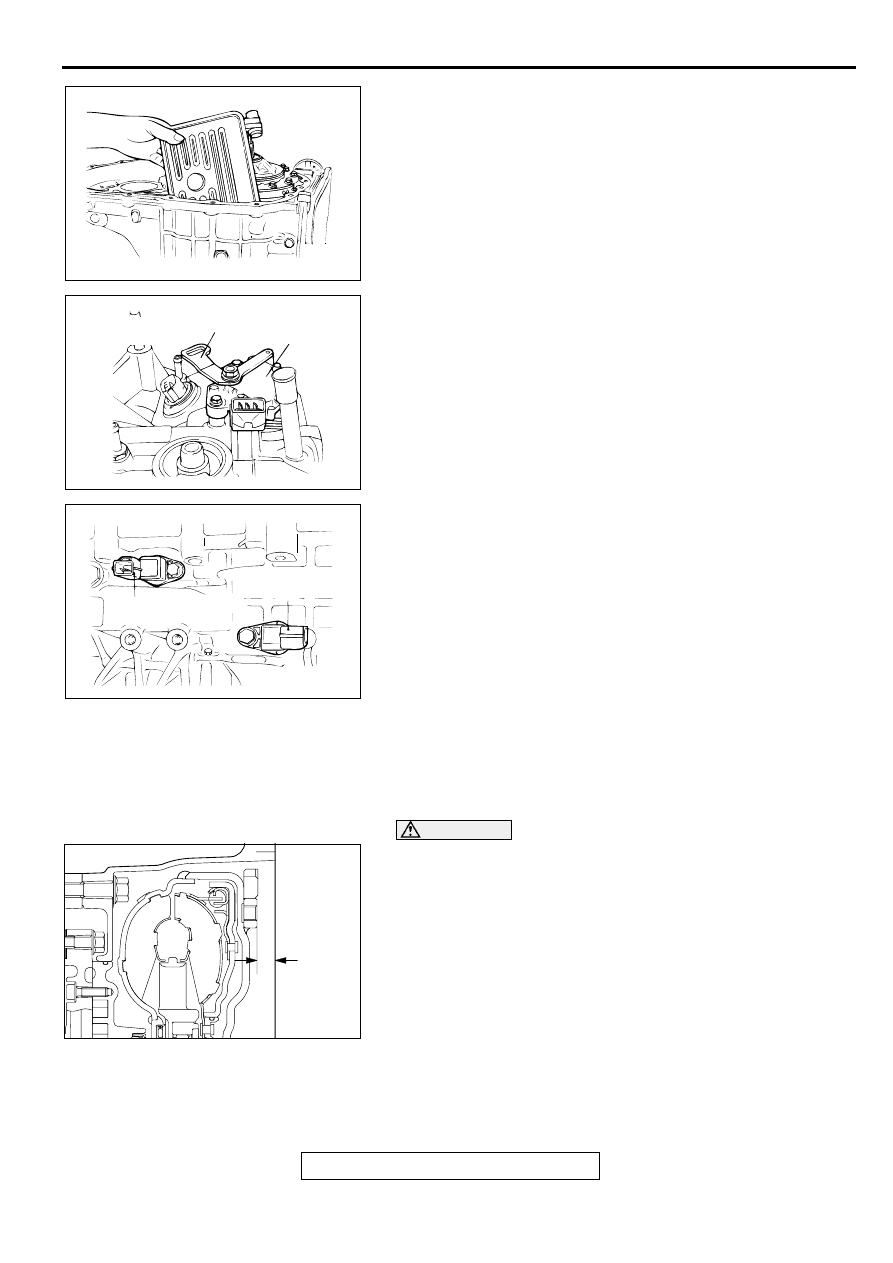

TRANSAXLE TSB Revision AUTOMATIC TRANSAXLE OVERHAUL 23B-49 101.Install the speedometer gear and tighten the bolt to the specified torque. Tightening torque: 5 N ⋅⋅⋅⋅ m (43 in-lb) 102.Install the park/neutral position switch and tighten the bolt to specified torque. Tightening torque: 11 N ⋅⋅⋅⋅ m (95 in-lb) 103.Install the manual control lever and tighten the nut to specified torque. Tightening torque: 22 N ⋅⋅⋅⋅ m (16 ft-lb) 104.Install the input shaft speed sensor and output shaft speed sensor and tighten the bolt to the specified torque. Tightening torque: 11 N ⋅⋅⋅⋅ m (95 in-lb) 105.Install the oil cooler feed tube together with new gaskets and tighten the eye bolts to the specified torque. Tightening torque: 30 N ⋅⋅⋅⋅ m (22 ft-lb) 106.Tighten the oil cooler feed pipe clamp bolt. Tightening torque: 11 N ⋅⋅⋅⋅ m (95 in-lb) 107.Install the oil dipstick. 108.Install the cable support bracket. Tightening torque: 23 N ⋅⋅⋅⋅ m (17 ft-lb) 109.Install the roll stopper brackets. Tightening torque: 69 N ⋅⋅⋅⋅ m (51 ft-lb) CAUTION Apply ATF to the oil pump drive hub before installing the dimension "A" meets the reference value. Reference value: Approximately 12.2 mm (0.48 inch) <F4A42> AKX01102 AKX01100AB PARK/NEUTRAL MANUAL CONTROL AKX01087AB OUTPUT SHAFT INPUT SHAFT SPEED AKX01081 A AB |
