Mitsubishi Galant. Manual - part 334





ON-VEHICLE SERVICE

TSB Revision

ENGINE COOLING

14-14

O N -VEH IC LE SERVIC E

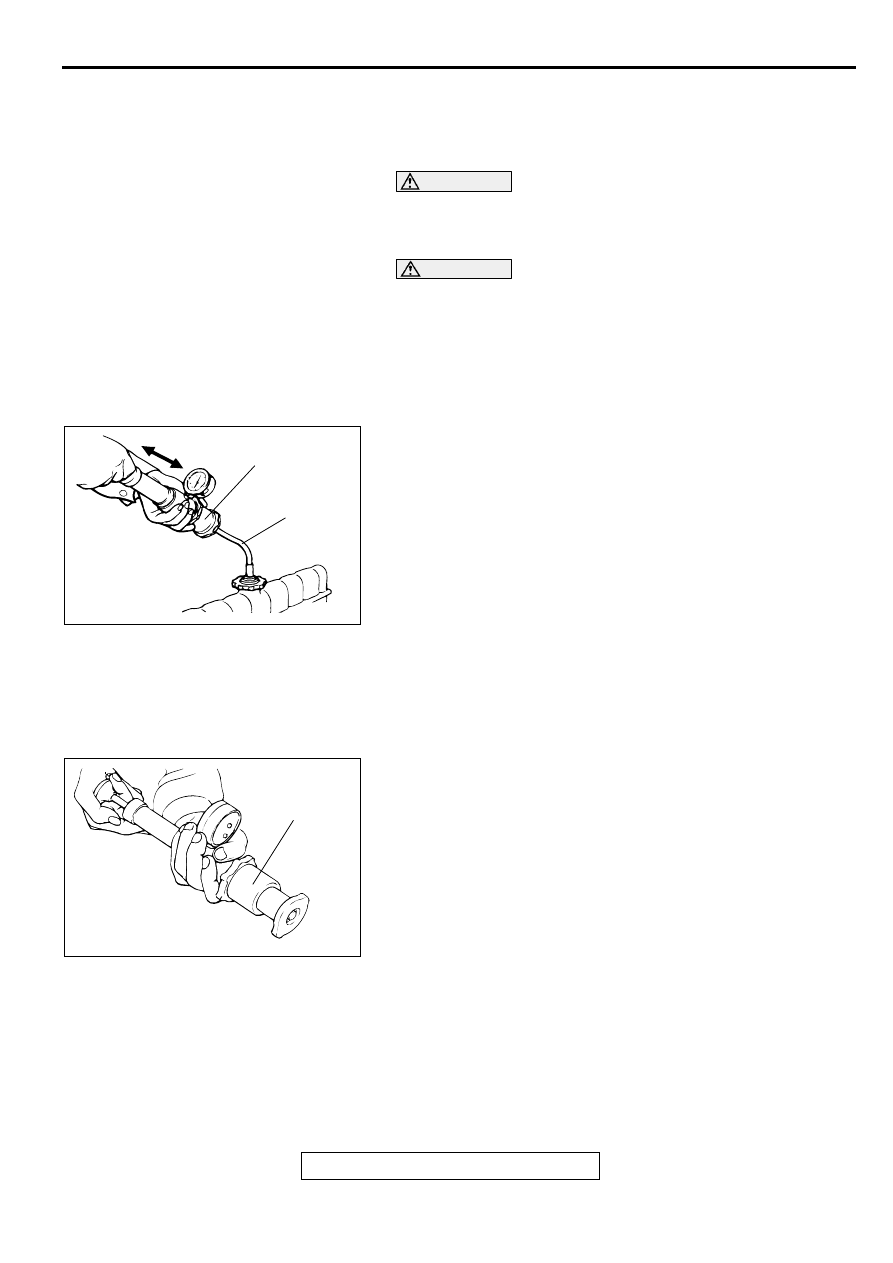

ENGINE COOLANT LEAK CHECK

M1141001000065

WARNING

When pressure testing the cooling system, slowly
release cooling system pressure to avoid getting
burned by hot coolant.

CAUTION

Be sure to completely clean away any moisture from
the places checked.

When the tester is taken out, be careful not to spill any
coolant from it.

Be careful when installing and removing the tester and
when testing not to deform the filler neck of the
radiator.

1. Check that the coolant level is up to the filler neck. Install a

radiator cap tester and apply 160 kPa (23 psi) pressure, and
then check for leakage from the radiator hose or
connections.

2. If there is leakage, repair or replace the appropriate part.

RADIATOR CAP PRESSURE CHECK

M1141001300066

NOTE: Be sure that the cap is clean before testing, since rust
or other foreign material on the cap seal will cause an improper
indication.
1. Use a cap adapter to attach the cap to the tester.

2. Increase the pressure until the indicator of the gauge stops

moving.

Minimum limit: 64 kPa (9.2 psi)

Standard value: 73

−−−−

 103 kPa (11

−−−−

 15 psi)

3. Replace the radiator cap if the reading does not remain at or

above the limit.

ENGINE COOLANT REPLACEMENT

M1141001200092

Refer to GROUP00, Maintenance Service

 Engine Coolant

(Change)

P.00-50

.

ACX01844 AB

CAP ADAPTER

ADAPTER

ACX01845 AB

CAP ADAPTER

RADIATOR

TSB Revision

ENGINE COOLING

14-15

ENGINE COOLANT CONCENTRATION TEST

M1141001100062

Refer to GROUP 00, RECOMMENDED LUBRICANTS AND
LUBRICANT CAPACITIES TABLE

P.00-32

.

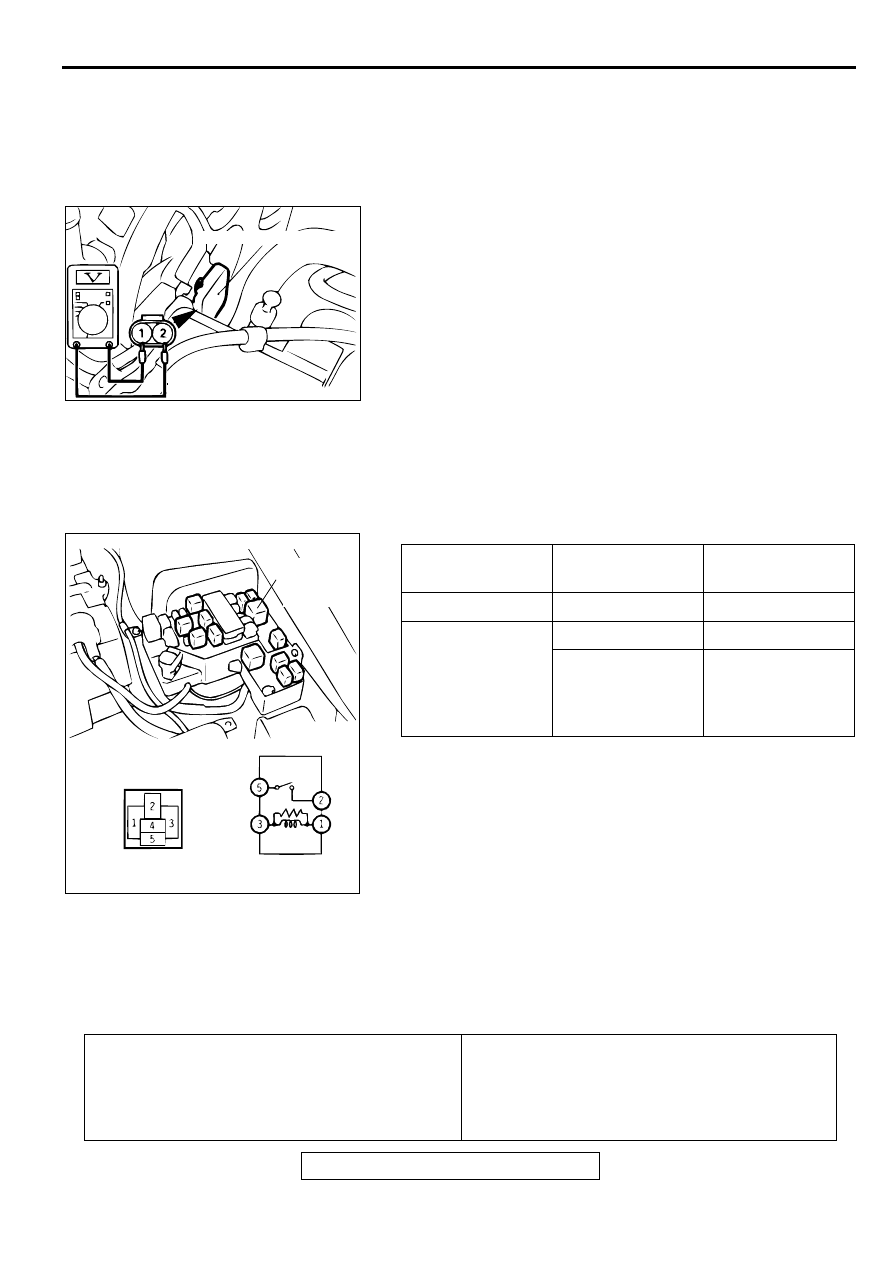

FAN CONTROLLER CHECK

M1141006100056

1. Remove condenser fan motor connector.

2. Start the engine and run it at idle.

3. Turn the A/C switch to ON and maintain the coolant

temperature at 80

°

C (176

°

F) or less.

4. When measuring the voltage between the fan controller-side

connector terminals, check that the value changes
repeatedly as indicated by (1)

 (3) below.

(1) 0 V
(2) 8.2

±

 2.6 V

(3) Battery positive voltage

±

 2.6 V

5. If the voltage does not repeatedly change as indicated,

replace the radiator fan motor and the fan controller
assembly.

FAN CONTROL RELAY CONTINUITY CHECK

M1141006200053

R A D IATO R

REMOVAL AND INSTALLATION

M1141001500071

AC000274 AC

FAN CONTROLLER

TESTER
CONNECTION

BATTERY
VOLTAGE

SPECIFIED
CONDITION

 3

Not applied

Approximately 2

 5

Not applied

Open circuit

Applied (Connect
"+" to the terminal
3 and "

" to the

terminal 1.)

Less than 2

AC000275 AB

FAN
CONTROL
RELAY

Pre-removal Operation

Engine Coolant Draining [Refer to GROUP 00, Mainte-
nance Service

 Engine Coolant (Change)

P.00-50

.]

Post-installation Operation

A/T Fluid Supplying and Checking (Refer to GROUP 00,
Maintenance Service

 Automatic Transmission Fluid

P.00-48

.)

Engine Coolant Supplying [Refer to GROUP 00, Mainte-
nance Service

 Engine Coolant (Change)

P.00-50

.]

RADIATOR

TSB Revision

ENGINE COOLING

14-16

AC004073

11

12

13

14

15

8

8

3

5

2

4

9

10

6

7

11 N·m
97 in-lb

11 N·m
97 in-lb

11 N·m
97 in-lb

4.9 N·m
43 in-lb

AB

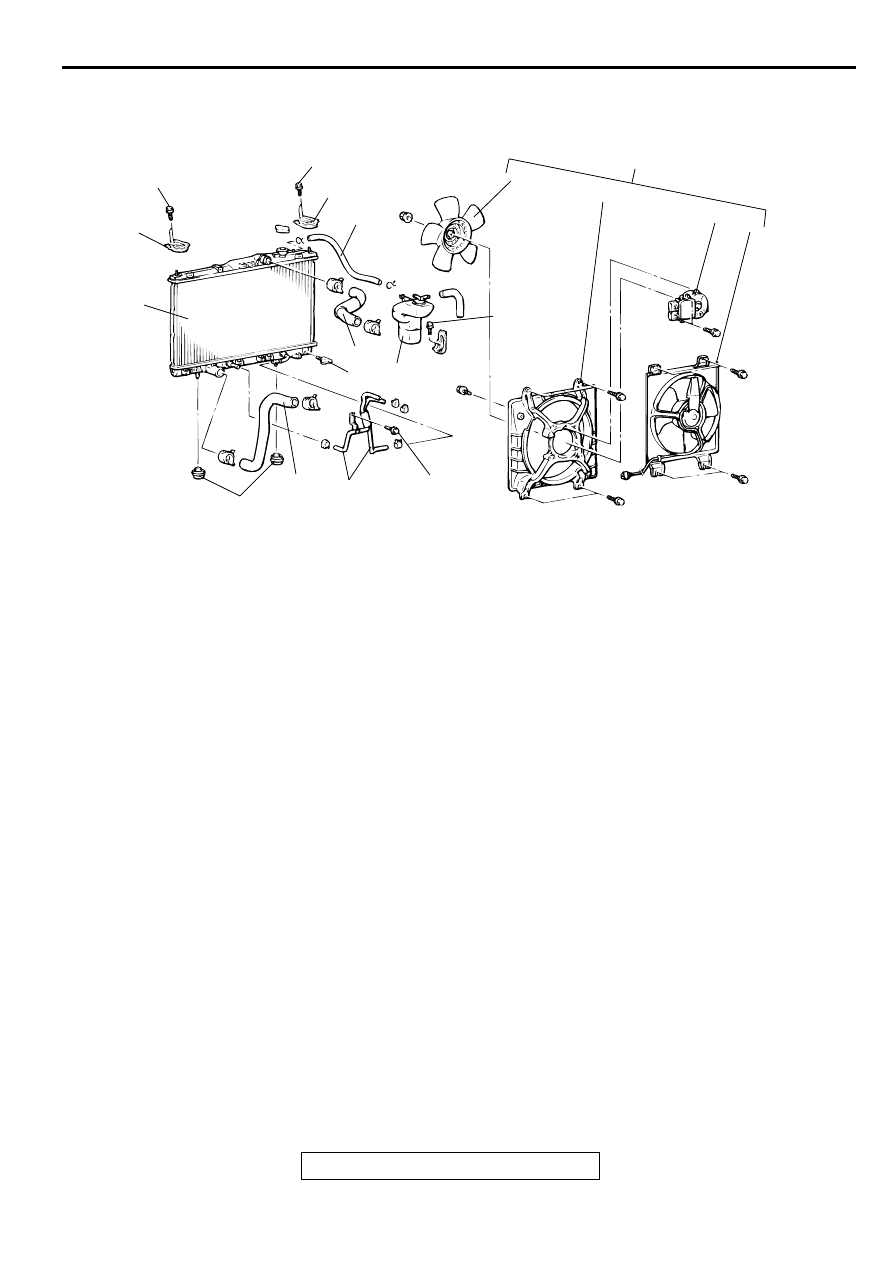

RADIATOR REMOVAL STEPS

1.

RADIATOR CAP

2.

DRAIN PLUG

3.

RUBBER HOSE CONNECTION

4.

RESERVE TANK ASSEMBLY

<<A>>

>>A<<

5.

RADIATOR UPPER HOSE

<<A>>

>>A<<

6.

RADIATOR LOWER HOSE

<<B>>

7.

A/T OIL COOLER HOSE
CONNECTION

8.

RADIATOR SUPPORT

9.

RADIATOR

10. LOWER INSULATOR
11. CONDENSER FAN MOTOR

ASSEMBLY

12. RADIATOR FAN MOTOR

ASSEMBLY

13. FAN

14. RADIATOR FAN MOTOR
15. SHROUD

RADIATOR FAN MOTOR
ASSEMBLY REMOVAL STEPS

1.

RADIATOR CAP

2.

DRAIN PLUG

<<A>>

>>A<<

5.

RADIATOR UPPER HOSE

11. CONDENSER FAN MOTOR

ASSEMBLY

12. RADIATOR FAN MOTOR

ASSEMBLY

13. FAN
14. RADIATOR FAN MOTOR
15. SHROUD

RADIATOR REMOVAL STEPS

RADIATOR

TSB Revision

ENGINE COOLING

14-17

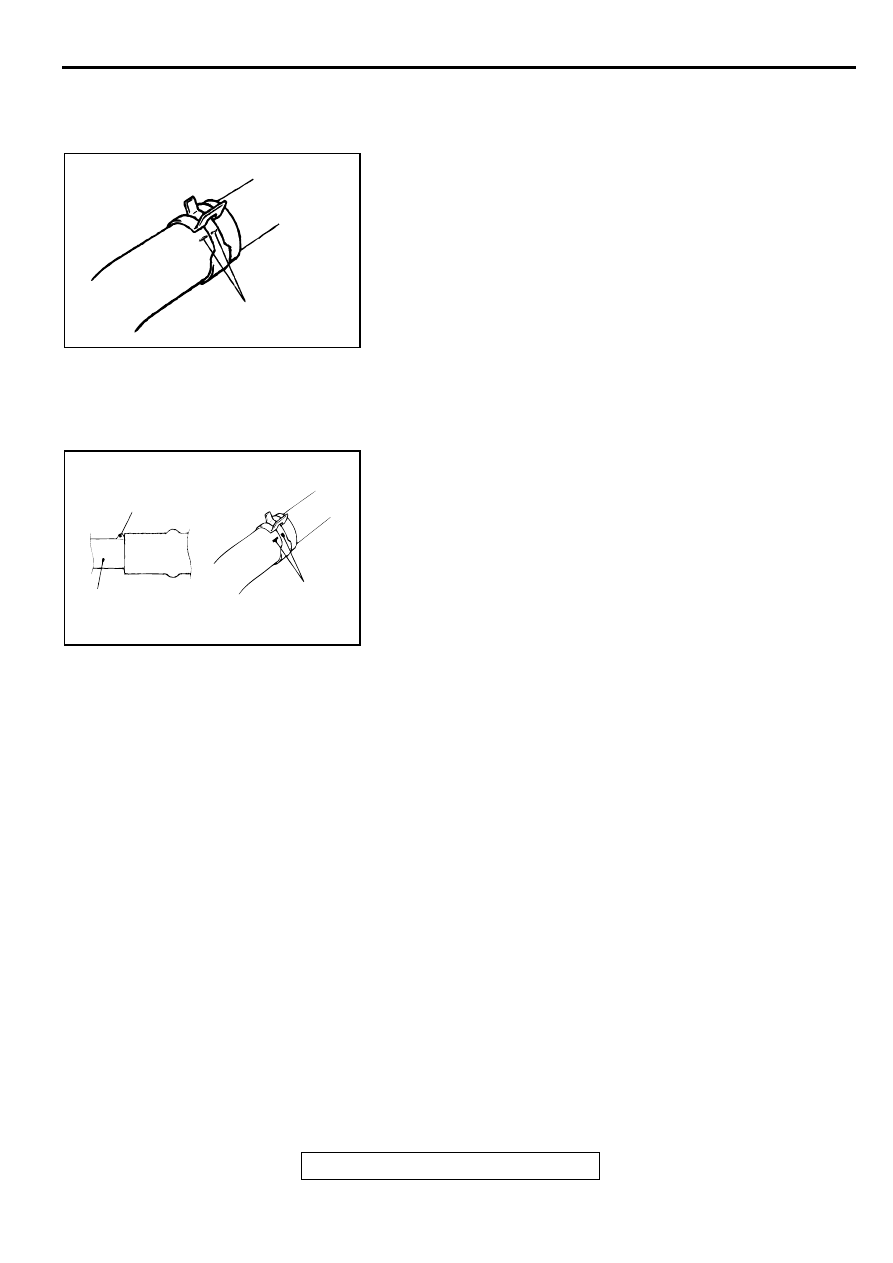

REMOVAL SERVICE POINTS

<<A>> RADIATOR UPPER HOSE/RADIATOR LOWER HOSE
DISCONNECTION
After making mating marks on the radiator hose and the hose
clamp, disconnect the radiator hose.

<<B>> A/T OIL COOLER HOSE REMOVAL
After removing the hose from the radiator, plug the hose and
the radiator nipple to prevent dust or foreign particles from
getting in.

INSTALLATION SERVICE POINT

>>A<< RADIATOR LOWER HOSE/RADIATOR UPPER HOSE
CONNECTION
1. Insert each hose as far as the projection of the water inlet

fitting.

2. Align the mating marks on the radiator hose and hose

clamp, and then connect the radiator hose.

ACX01828

MATING MARKS

AB

ACX01829AB

PROJECTION

WATER OUTLET
FITTING

MATING
MARKS
