THERMOSTAT

TSB Revision

ENGINE COOLING

14-18

TH ER M O STAT

REMOVAL AND INSTALLATION

M1141002400066

REMOVAL SERVICE POINT

<<A>> RADIATOR LOWER HOSE DISCONNECTION
Place mating marks on the radiator lower hose and hose clamp
before disconnection.

INSTALLATION SERVICE POINTS

>>A<< THERMOSTAT INSTALLATION

CAUTION

Make absolutely sure that no oil adheres to the rubber ring
of the thermostat. Also be careful not to fold over or
scratch the rubber ring when inserting.
Install the thermostat so that the jiggle valve is facing straight
up, while being careful not to fold over or scratch the rubber
ring.

>>B<< RADIATOR LOWER HOSE CONNECTION
1. Insert each hose as far as the projection of the water inlet

fitting.

2. Align the mating marks on the radiator hose and hose

clamp, and then connect the radiator hose.

Pre-removal and Post-installation Operation

•

Engine Coolant Draining and Supplying [Refer to GROUP
00, Maintenance Service - Engine Coolant (Change)

P.00-

50

.]

•

Air Cleaner Removal and Installation (Refer to GROUP
15, Air Cleaner

P.15-4

.)

AC000278

2

3

1

17 – 20 N·m
13 – 15 ft-lb

12 N·m
106 in-lb

1

2

3

AB

<2.4L ENGINE>

<3.0L ENGINE>

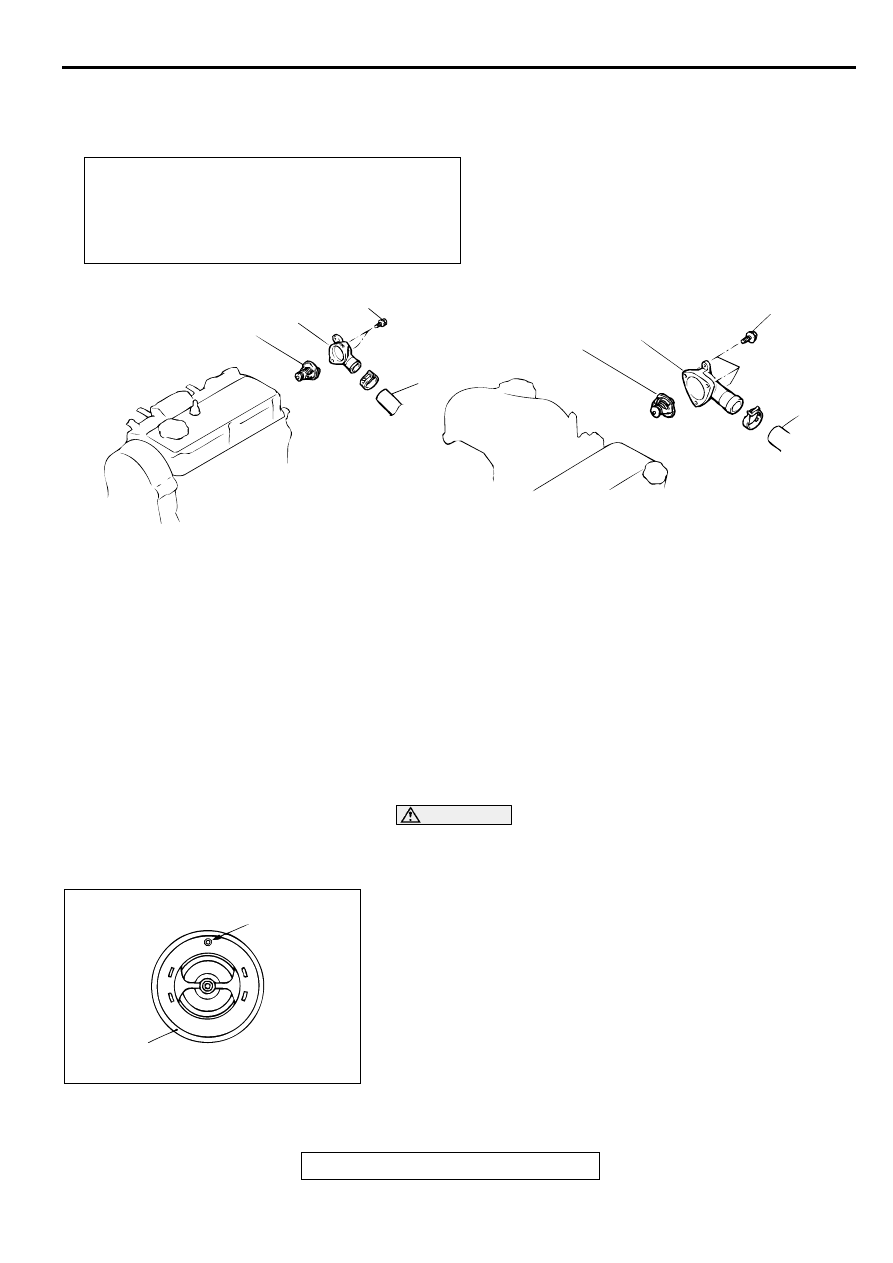

REMOVAL STEPS

<<A>>

>>B<<

1.

RADIATOR LOWER HOSE
CONNECTION

2.

WATER INLET FITTING

>>A<<

3.

THERMOSTAT

REMOVAL STEPS (Continued)

AC000279

JIGGLE VALVE

RUBBER RING

AB

THERMOSTAT

TSB Revision

ENGINE COOLING

14-19

INSPECTION

M1141002500063

THERMOSTAT CHECK

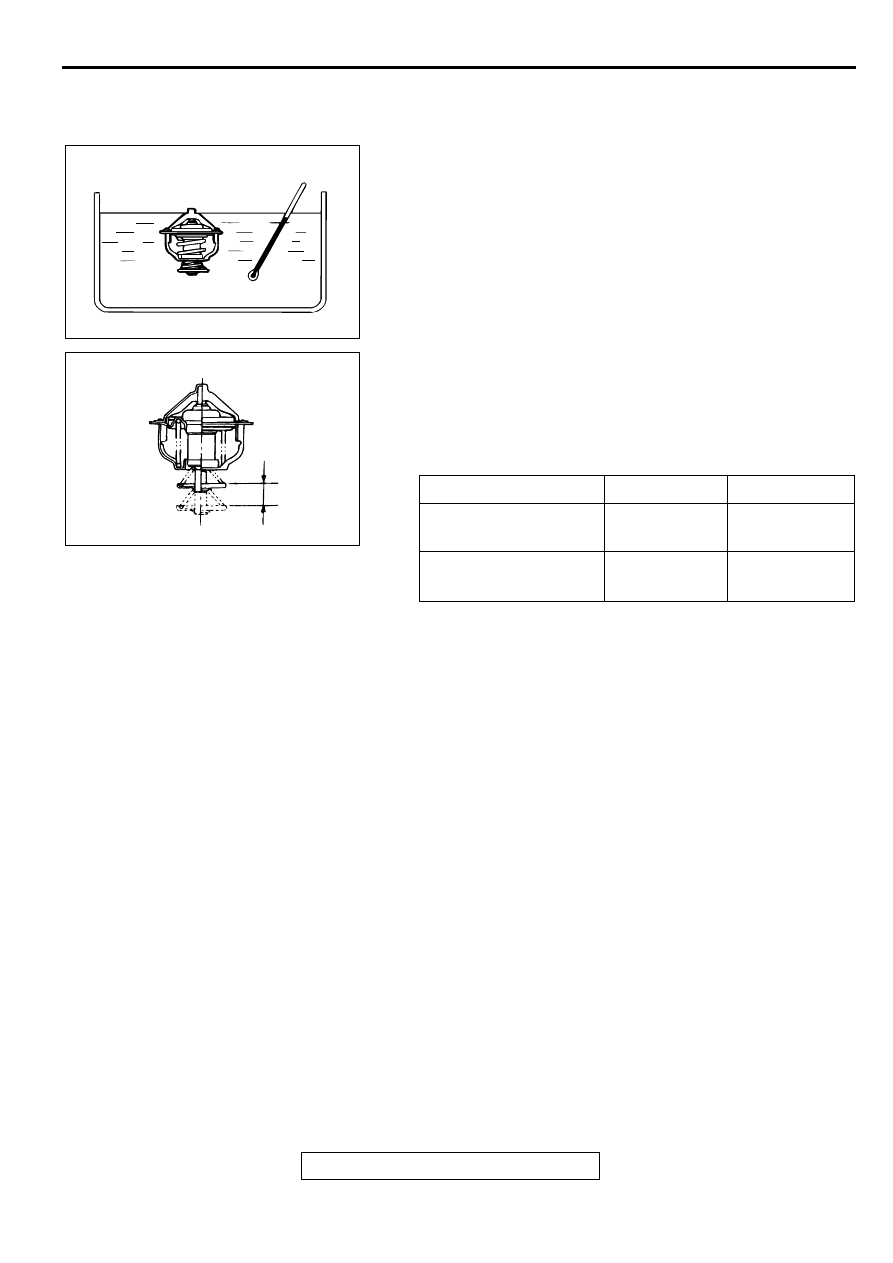

1. Immerse the thermostat in water, and heat the water while

stirring. Check the thermostat valve opening temperature.

Standard value: 88

±±±±

 1.5

°°°°

C (190

±±±±

 3

°°°°

F)

2. Check that the amount of valve lift is at the standard value

when the water is at the full-opening temperature.

NOTE: Measure the valve height when the thermostat is
fully closed, and use this measurement to calculate the
valve height when the thermostat is fully open.

Standard value:

ITEMS

2.4L ENGINE

3.0L ENGINE

Full-opening
temperature

°

C (

°

F)

100 (212)

100 (212)

Amount of valve lift mm
(in)

5.0

−

 7.0 (0.20

−

 0.28) or more

9.0 (0.35)
or more

ACX00400

ACX00401AB

VALVE LIFT

WATER PUMP

TSB Revision

ENGINE COOLING

14-20

WATER  PU M P

REMOVAL AND INSTALLATION

M1141002700078

<2.4L ENGINE>

Pre-removal and Post-installation Operation

•

Engine Coolant Draining and Supplying [Refer to GROUP
00, Maintenance Service - Engine Coolant (Change)

P.00-

50

.]

•

Timing Belt Tensioner Pulley Removal and Installation
(Refer to GROUP 11A, Timing Belt

P.11A-30

.)

AC001549

20 – 25 N·m
15 – 18 ft-lb

23 N·m
17 ft-lb

13 N·m
115 in-lb

1

2

3

4

N

N

AC

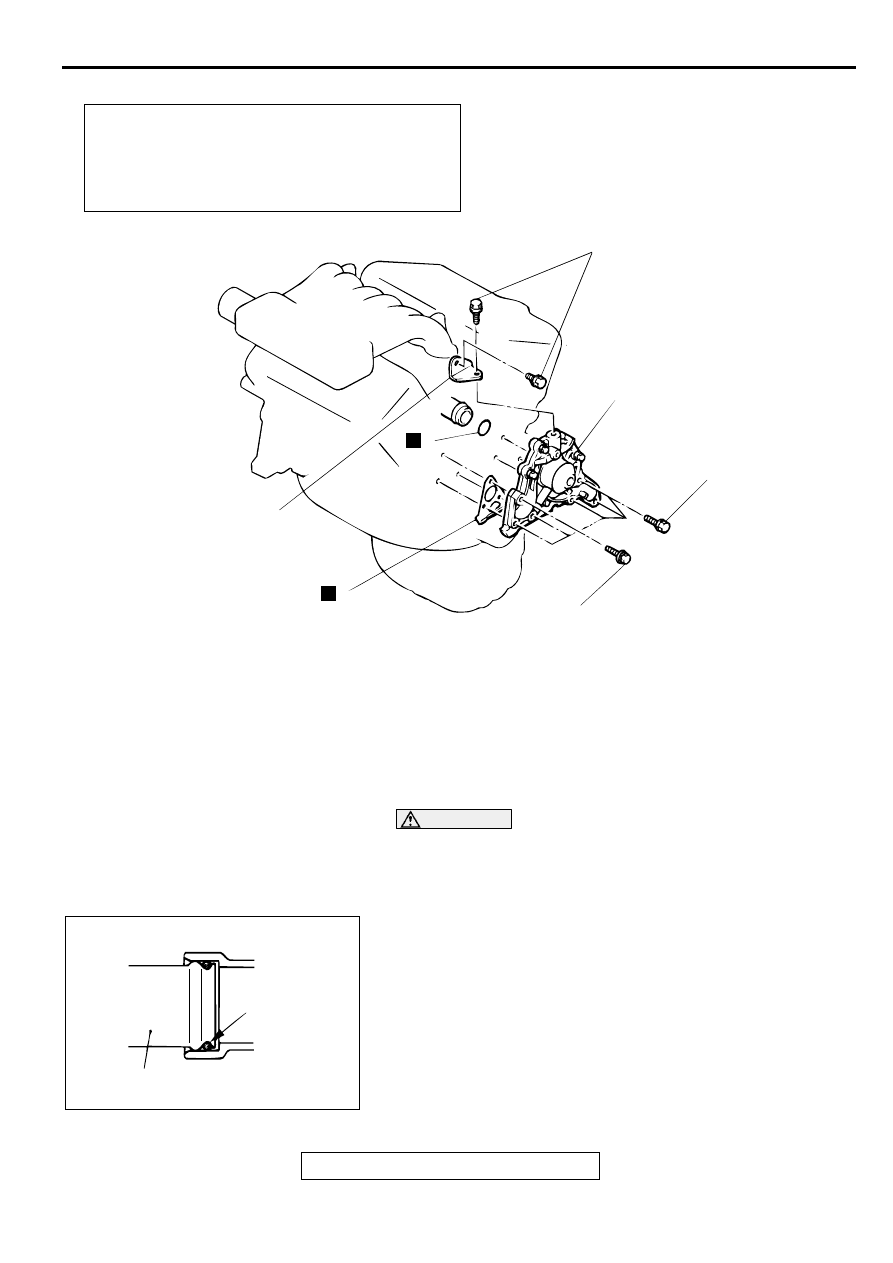

REMOVAL STEPS

1.

GENERATOR BRACE

>>B<<

2.

WATER PUMP ASSEMBLY

3.

WATER PUMP GASKET

>>A<<

4.

O-RING

REMOVAL STEPS (Continued)

WATER PUMP

TSB Revision

ENGINE COOLING

14-21

 <3.0L ENGINE>

INSTALLATION SERVICE POINTS

>>A<< O-RING INSTALLATION

CAUTION

•

Care must be taken not to permit engine oil or other
grease to adhere to the O-ring.

•

When inserting the pipe, check to be sure that there is
no sand, dirt, etc. on its inner surface.

Rinse the mounting location of O-ring and water pipe with
water, and install the O-ring and water pipe.

Pre-removal and Post-installation Operation

•

Engine Coolant Draining and Supplying [Refer to GROUP
00, Maintenance Service - Engine Coolant (Change)

P.00-

50

.]

•

Timing Belt Removal and Installation (Refer to GROUP
11C, Timing Belt

P.11C-29

.)

AC000280

1

2

3

23 N·m
17 ft-lb

23 N·m
17 ft-lb

40 N·m
30 ft-lb

AC

N

N

4

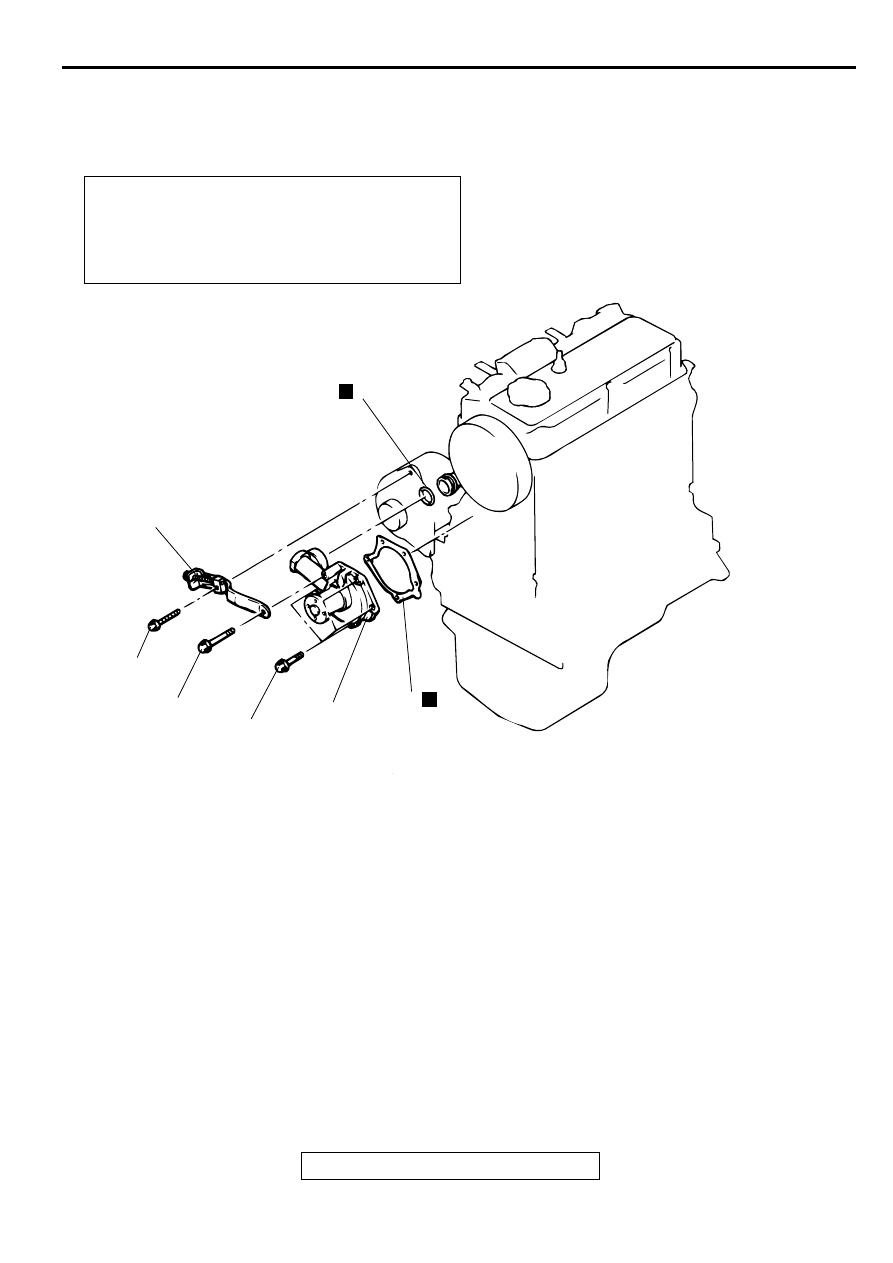

REMOVAL STEPS

•

THERMOSTAT (REFER TO

P.14-

18

.)

1.

BRACKET

>>B<<

2.

WATER PUMP ASSEMBLY

3.

WATER PUMP GASKET

>>A<<

4.

O-RING

REMOVAL STEPS (Continued)

ACX00402

O-RING

WATER PIPE

AD
