MULTIPORT FUEL INJECTION(MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L>

13B-121

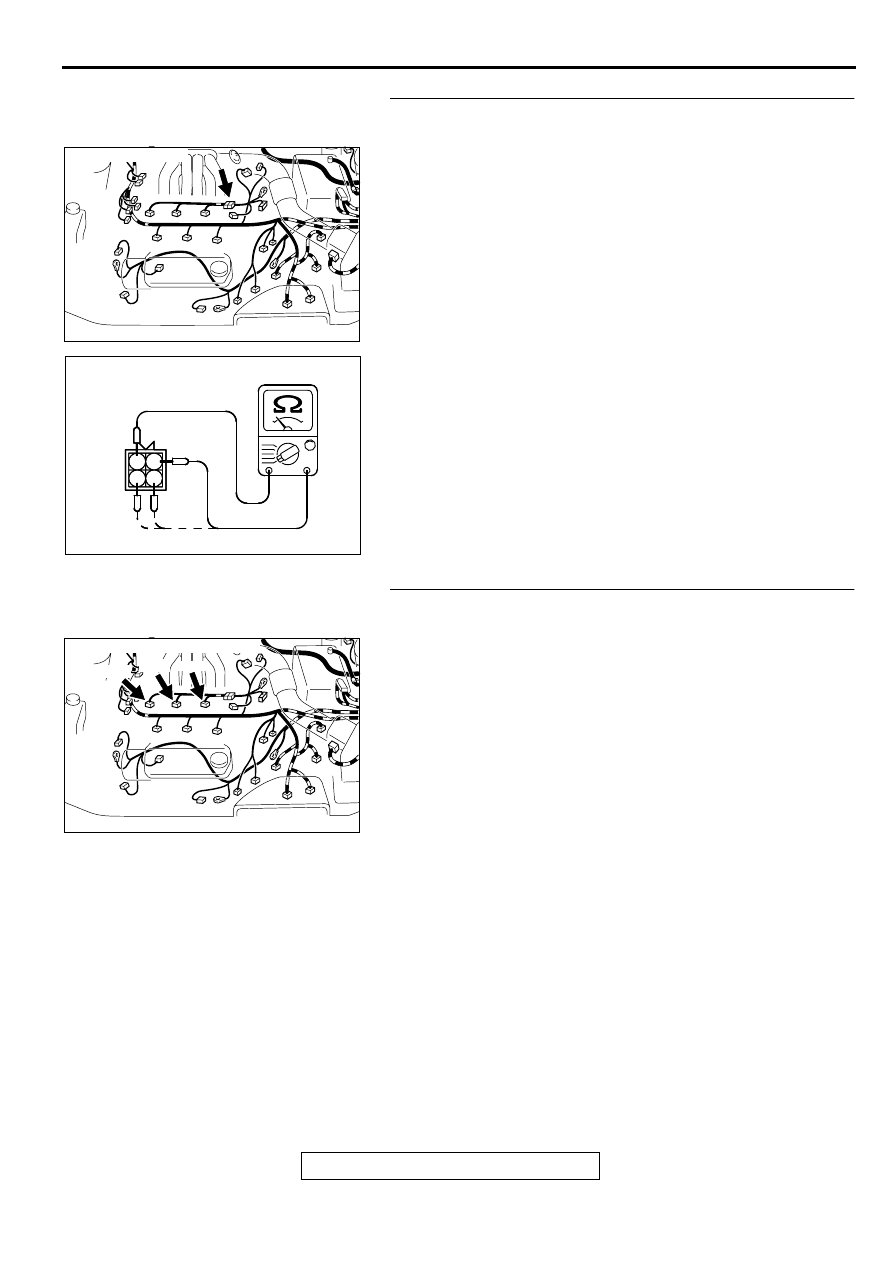

STEP 6. Check the right bank injector resistance at
intermediate connector B-26.
(1) Disconnect the injector intermediate connector B-26.
(2) Measure the resistance between each injector side

connector terminal.

a. Measure the resistance between terminal 1 and 2 when

measuring No.1 cylinder.

b. Measure the resistance between terminal 1 and 3 when

measuring No.3 cylinder.

c. Measure the resistance between terminal 1 and 4 when

measuring No.5 cylinder.

Resistance should be between 13 and 16 ohm [at 20

°



C(68

°

 F)].

Q: Is the resistance normal?

YES : Go to Step 9.
NO :  Go to Step 7.

STEP 7. Check connector B-19, B-22, B-25 at right bank
injector for damage.
(1) Remove the intake manifold.
(2) Check the right bank injector connector, which deviates

from the standard value at Step 6.

Q: Is the connector in good condition?

YES : Go to Step 8.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection(

P.00E-2

). Then go to Step 13.

AK000618

AB

CONNECTOR:B-26

AK000240AB

INJECTOR
INTERMEDIATE
CONNECTOR

1 2
3 4

AK000618AC

CONNECTORS:B-19,B-22,B-25

B-25

B-19

B-22

MULTIPORT FUEL INJECTION(MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L>

13B-122

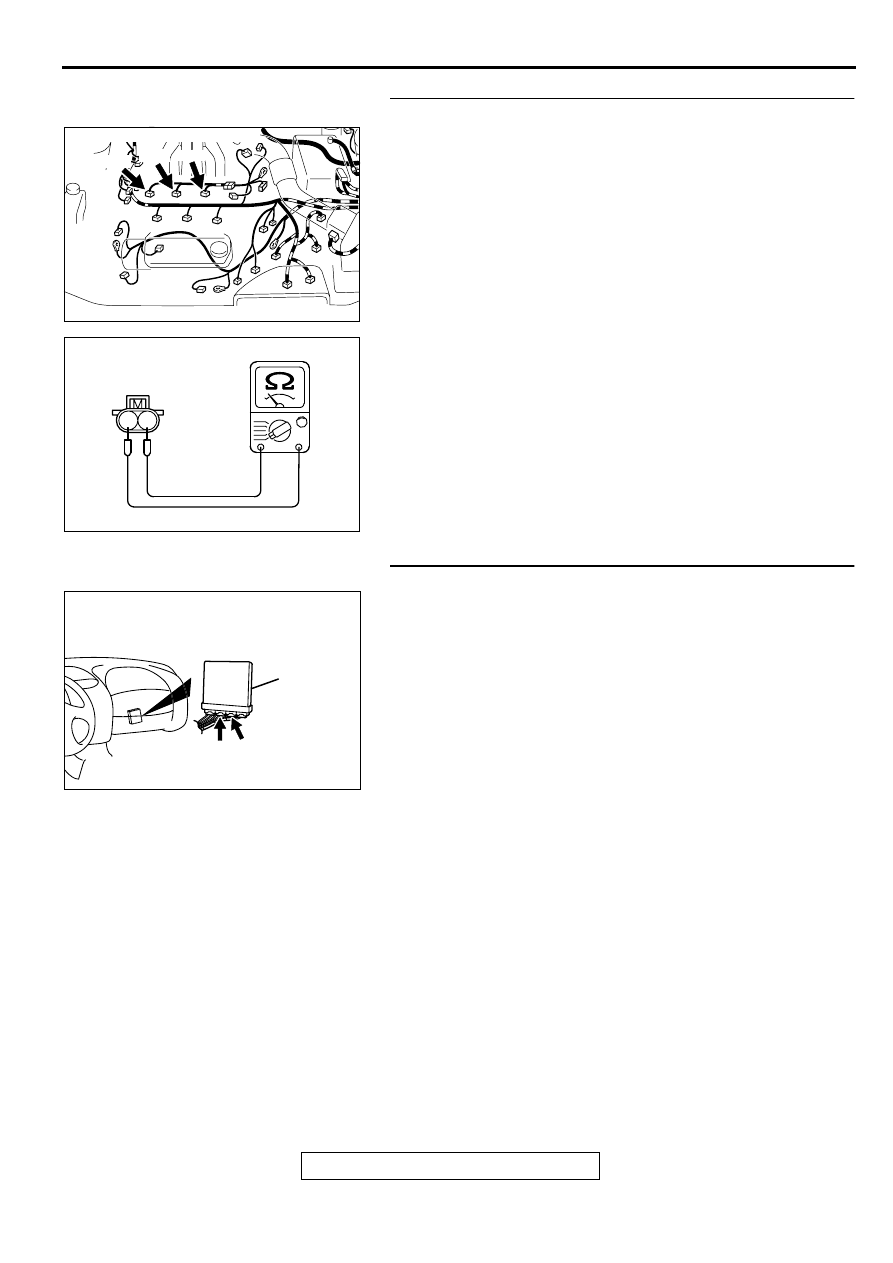

STEP 8. Check the right bank injector.
(1) Check the right bank injector connector, which deviates

from the standard value at Step 6.

(2) Measure the resistance between injector side connector

terminal 1 and 2.

Standard value: 13

−−−−

 16 ohm [at 20

°°°°

C(68

°°°°

 F)]

Q: Is the resistance standard value?

YES : Repair harness wire between injector intermediate

connector and right bank injector connector because
of harness damage. Then go to Step 13.

NO :  Replace the injector. Then go to Step 13.

STEP 9. Check connector C-39, C-41 at PCM for damage.
Q: Is the connector in good condition?

YES : Go to Step 10.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection(

P.00E-2

). Then go to Step 13.

AK000618AC

CONNECTORS:B-19,B-22,B-25

B-25

B-19

B-22

AK000559

2

1

INJECTOR SIDE
CONNECTOR

AB

AK000280

CONNECTORS : C-40, C-41

C-41

C-40

PCM

AX

MULTIPORT FUEL INJECTION(MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L>

13B-123

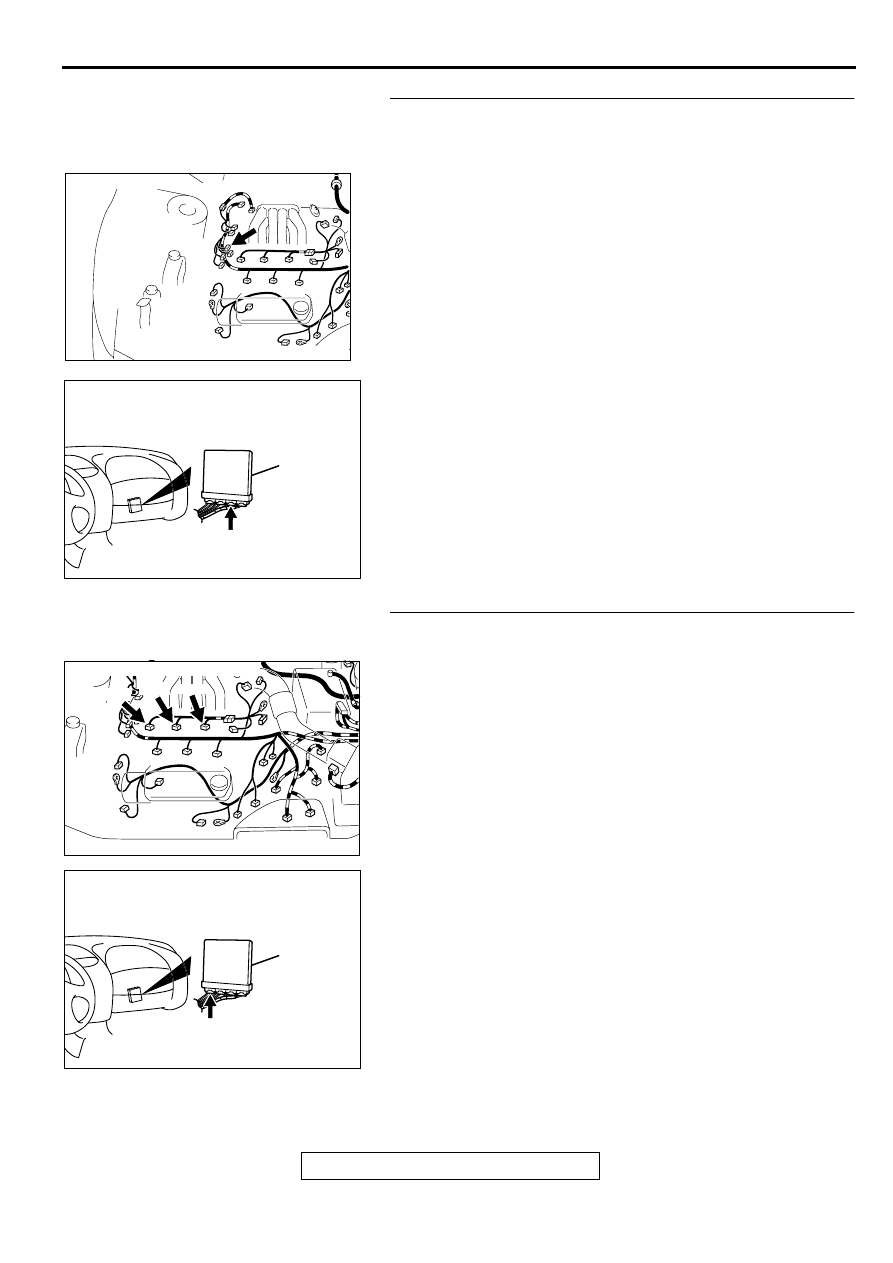

STEP 10. Check for harness damage between right bank
heated oxygen sensor (front) connector B-33 terminal 4
and PCM connector C-41 terminal 72.
Q: Is the harness wire in good condition?

YES : Go to Step 11.
NO :  Repair it. Then go to Step 13.

STEP 11. Check for harness damage between right bank
injector connector and PCM connector.

a. Check the harness wire between right bank injector

connector B-22 terminal 2 and PCM connector C-39
terminal 1 when checking No.1 cylinder.

b. Check the harness wire between right bank injector

connector B-19 terminal 2 and PCM connector C-39
terminal 24 when checking No.3 cylinder.

c. Check the harness wire between right bank injector

connector B-25 terminal 2 and PCM connector C-39
terminal 10 when checking No.5 cylinder.

Q: Is the harness wire in good condition?

YES : Go to Step 12.
NO :  Repair it. Then go to Step 13.

AK000617

CONNECTOR:B-33

AB

AK000280

CONNECTOR : C-41

PCM

AY

AK000618AC

CONNECTORS:B-19,B-22,B-25

B-25

B-19

B-22

AK000280

CONNECTOR : C-39

PCM

AW

MULTIPORT FUEL INJECTION(MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L>

13B-124

STEP 12. Check the fuel pressure.
Refer to

P.13B-522

, Fuel Pressure Test.

Q: Is the fuel pressure normal?

YES : Replace the PCM. Then go to Step 13.
NO :  Repair it. Then go to Step 13.

STEP 13. Test the OBD-II drive cycle.
(1) Carry out a test drive with the drive cycle pattern. Refer to

P.13B-4

, Procedure 6

 Other Monitor.

(2) Check the diagnostic trouble code (DTC).

Q: Is the DTC P0134 is output?

YES : Retry the troubleshooting.
NO :  The inspection is complete.
