MULTIPORT FUEL INJECTION(MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L>

13B-125

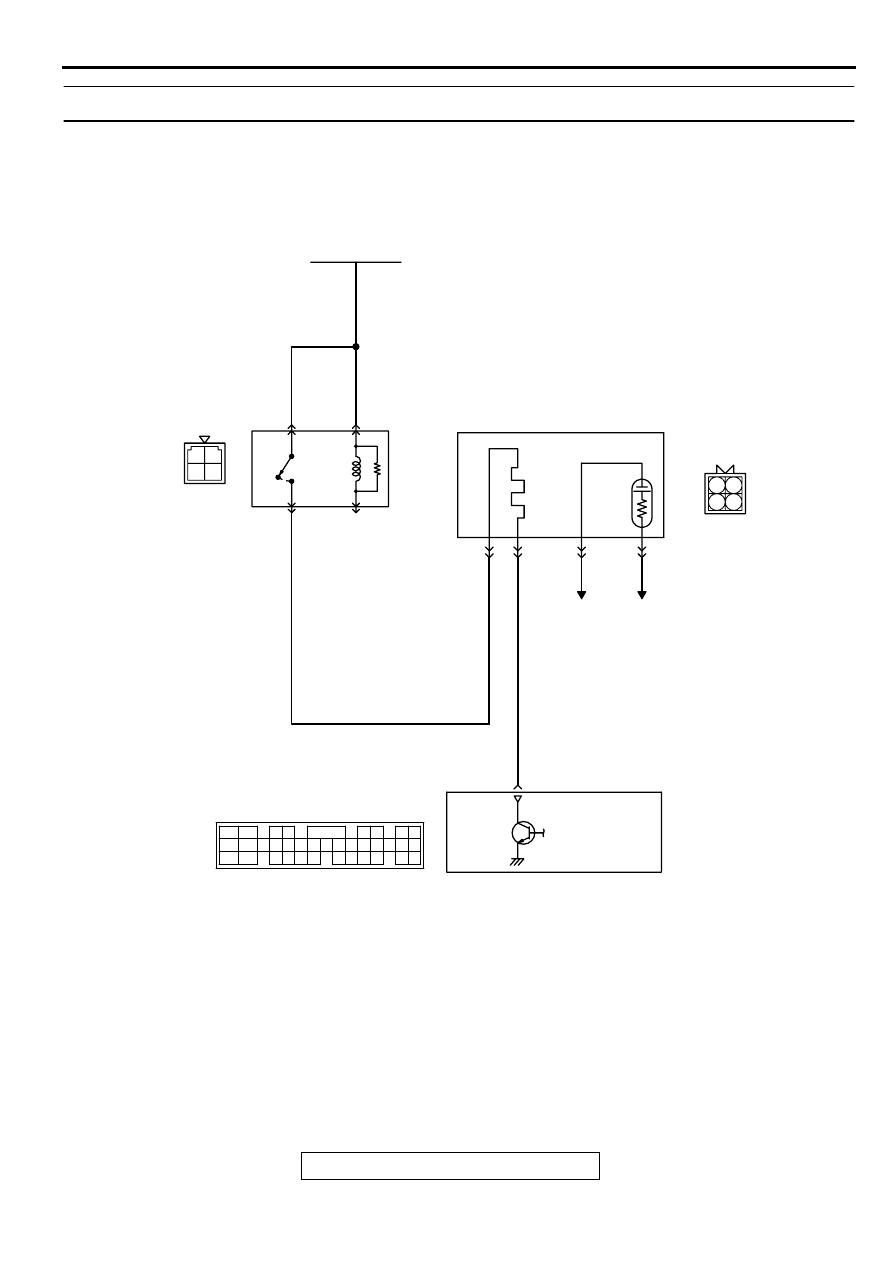

DTC P0135: O

2

 Sensor Heater Circuit Malfunction (bank 1 sensor 1)

AK000502

3 4

1 2

3 4

1 2

RED-

WHITE

RED-

WHITE

RED-

WHITE

RED

BLUE-WHITE

BATTERY

A-21X

3

4

1

2

RIGHT BANK HEATED
OXYGEN SENSOR(FRONT)

     B-33
MU802605

1

2

3

4

TO ECM
OR PCM

TO ECM
OR PCM

POWERTRAIN CONTROL
MODULE(PCM)

4

MFI
RELAY

      C-39
(MU803784)

2

3 4

5 6

7 8

9

11 12 13 14 15 16 17 18 19 20

30

21 22 23

24 25

26 27 28 29

3132 33

34 35

1

10

MULTIPORT FUEL INJECTION(MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L>

13B-126

CIRCUIT OPERATION

Power is supplied from the MFI relay (terminal 1)
to the right bank heated oxygen sensor (front)
heater.

The PCM (terminal 4) controls continuity to the
right bank heated oxygen sensor (front) heater by
turning the power transistor in the PCM "ON" and
"OFF."

TECHNICAL DESCRIPTION

The PCM checks whether the heater current is
within a specified range when the heater is
energized.

DTC SET CONDITIONS

Check Conditions

Engine coolant temperature is higher than 20

°

 C

(68

°

 F).

While the right bank heated oxygen sensor (front)
heater is on.

Battery positive voltage is at between 11 and 16
volts.

Judgment Criteria

Heater current of the right bank heated oxygen
sensor (front) heater has continued to be lower
than 0.2 ampere or higher than 3.5 ampere for 6
seconds.

One monitor during one drive cycle

TROUBLESHOOTING HINTS (The most likely
causes for this code to be set are:)

Open or shorted right bank heated oxygen
sensor (front) heater circuit.

Open circuit in right bank heated oxygen sensor
(front) heater.

PCM failed.

DIAGNOSIS

Required Special Tools
MD998464: Test Harness

ACX02481AG

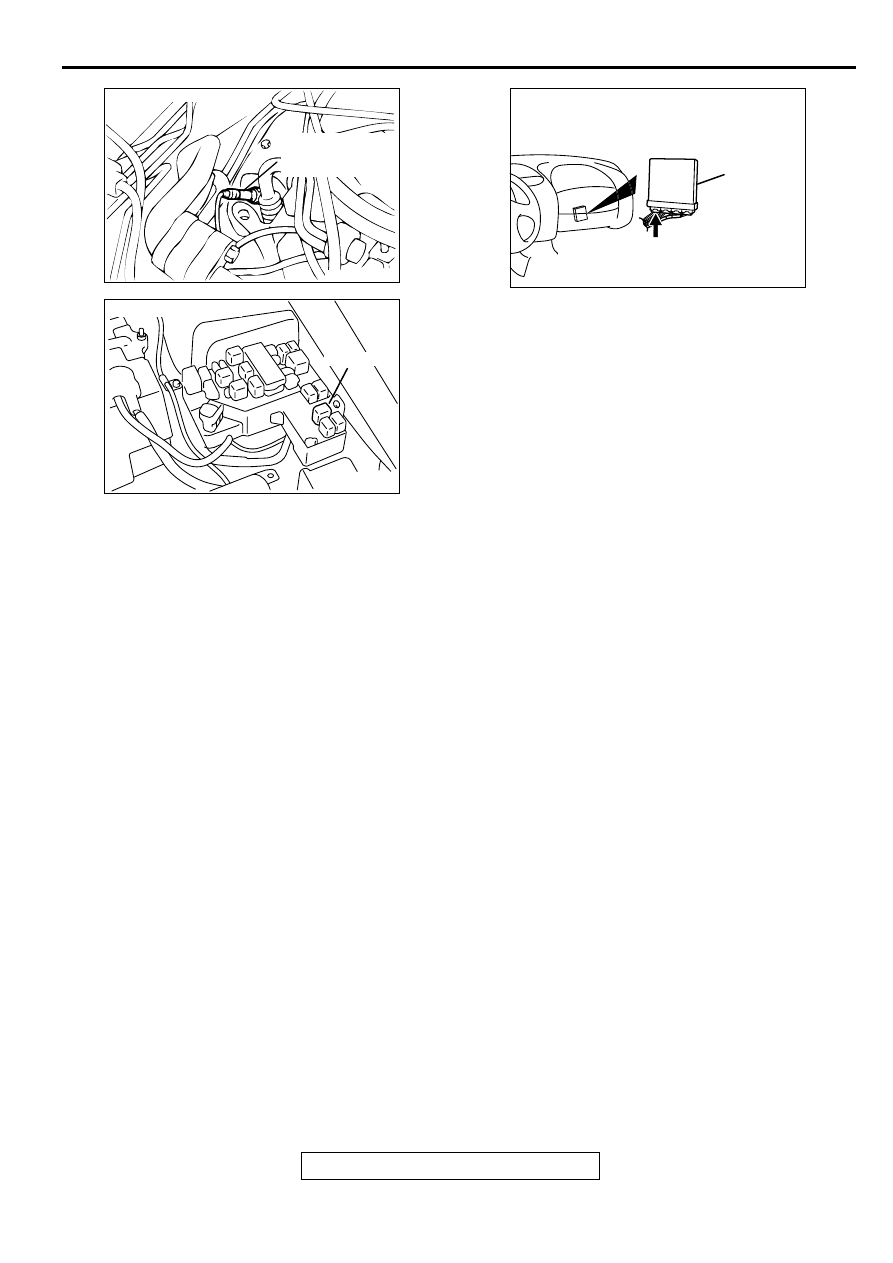

CONNECTOR:B-33

RIGHT BANNK
HEATED OXYGEN
SENSOR(FRONT)

AK000555AB

CONNECTOR : A-21X

MFI RELAY

AK000280

CONNECTOR : C-39

PCM

AW

MULTIPORT FUEL INJECTION(MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L>

13B-127

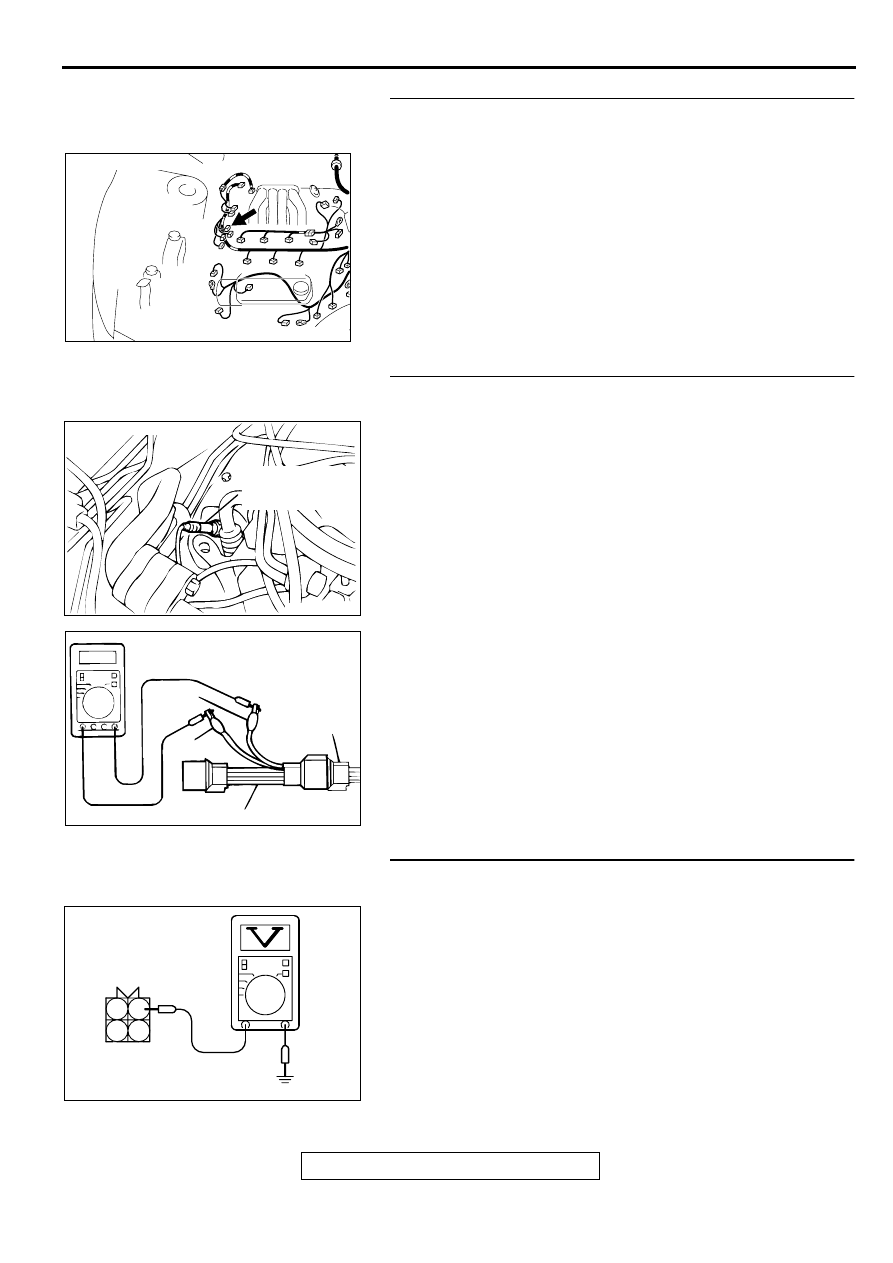

STEP 1. Check connector B-33at the right bank heated
oxygen sensor (front) for damage.
Q: Is the connector in good condition?

YES : Go to Step 2.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection(

P.00E-2

). Then go to Step 12.

STEP 2. Check the right bank heated oxygen sensor
(front).
(1) Disconnect right bank heated oxygen sensor (front)

connector B-33 and connect test harness special tool,
MD998464, to the connector on the right bank heated
oxygen (front) sensor side.

(2) Measure the resistance between heated oxygen sensor

connector terminal 1 (red clip) and terminal 3 (blue clip).

Standard value: 4.5

−−−−

 8.0 ohm [at 20

°°°°

C (68

°°°°

 F)]

Q: Is the resistance normal?

YES : Go to Step 3.
NO :  Replace the right bank heated oxygen sensor (front).

Then go to Step 12.

STEP 3. Check the power supply voltage at right bank
heated oxygen sensor (front) harness side connector B-33.
(1) Disconnect the connector B-33 and measure at the harness

side.

(2) Turn the ignition switch to the "ON" position.
(3) Measure the voltage between terminal 1 and ground.

Voltage should be battery positive voltage.

(4) Turn the ignition switch to the "LOCK"(OFF) position.

Q: Is the voltage normal?

YES : Go to Step 5.
NO :  Go to Step 4.

AK000617

CONNECTOR:B-33

AB

ACX02481AG

CONNECTOR:B-33

RIGHT BANNK
HEATED OXYGEN
SENSOR(FRONT)

AKX01624

HEATED
OXYGEN
SENSOR
EQUIPMENT
SIDE
CONNECTOR

MD998464

BLUE

RED

AC

AKX01498

B-33  HARNESS
SIDE CONNECTOR

2

4

1

3

AL

MULTIPORT FUEL INJECTION(MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L>

13B-128

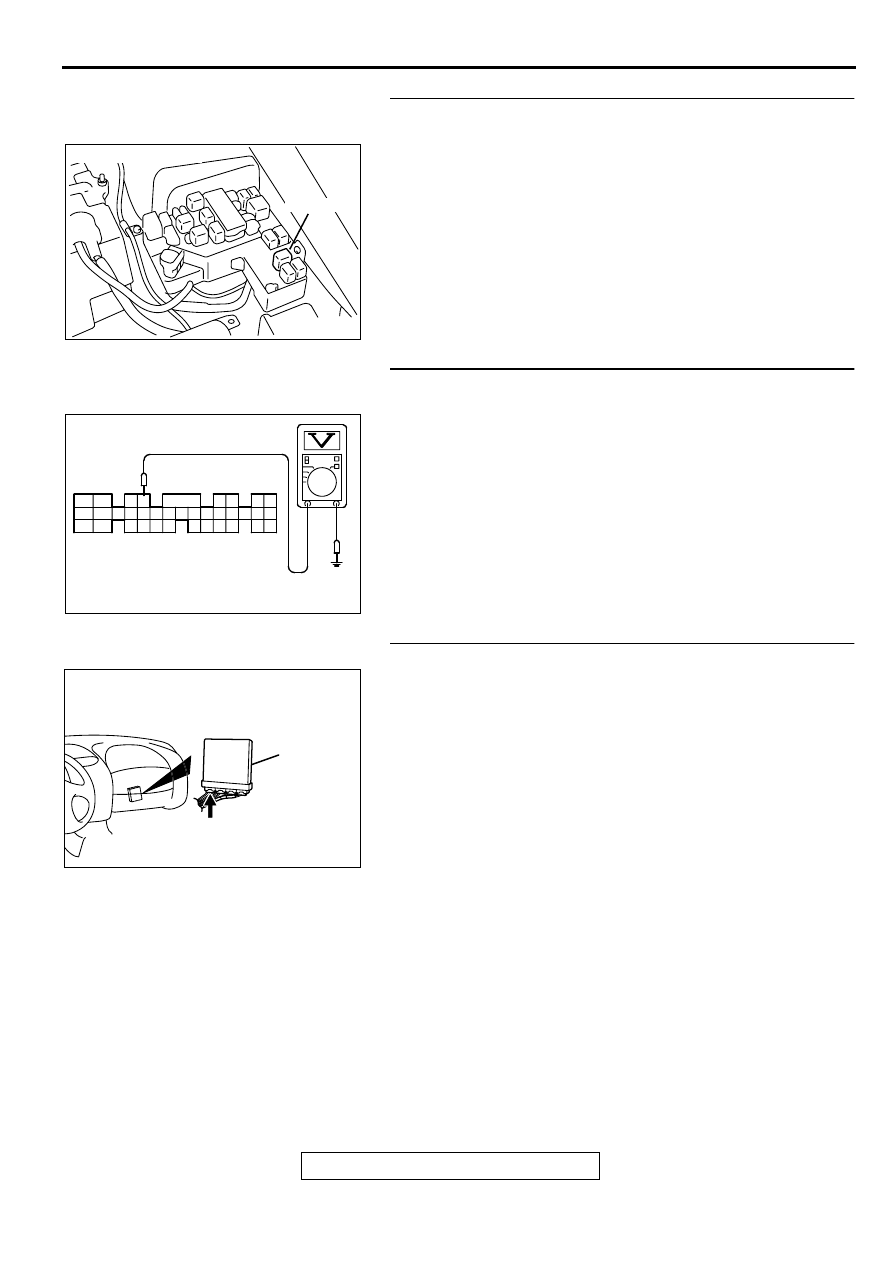

STEP 4. Check connector A-21X at the MFI relay for
damage.
Q: Is the connector in good condition?

YES : Repair harness wire between MFI relay connector A-

21X terminal 1 and right bank heated oxygen sensor
(front) connector B-33 terminal 1 because of open
circuit or short circuit to ground Then go to Step 12.

NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection(

P.00E-2

). Then go to Step 12.

STEP 5. Check the power supply voltage at PCM connector
C-39 by backprobing.
(1) Do not disconnect the connector C-39.
(2) Turn the ignition switch to the "ON" position.
(3) Measure the voltage between terminal 4 and ground by

backprobing.

Voltage should be battery positive voltage.

(4) Turn the ignition switch to the "LOCK"(OFF) position.

Q: Is the voltage normal?

YES : Go to Step 8.
NO :  Go to Step 6.

STEP 6. Check connector C-39 at PCM for damage.
Q: Is the connector in good condition?

YES : Go to Step 7.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection(

P.00E-2

). Then go to Step 12.

AK000555AB

CONNECTOR : A-21X

MFI RELAY

AKX01534

1

2

3 4

5 6

7 8

9 10 1112 13 141516 1718 19 20 212223

24 25

26 2728 29

303132 33

3435

AE

C-39  CONNECTOR
HARNESS SIDE  VIEW

AK000280

CONNECTOR : C-39

PCM

AW
