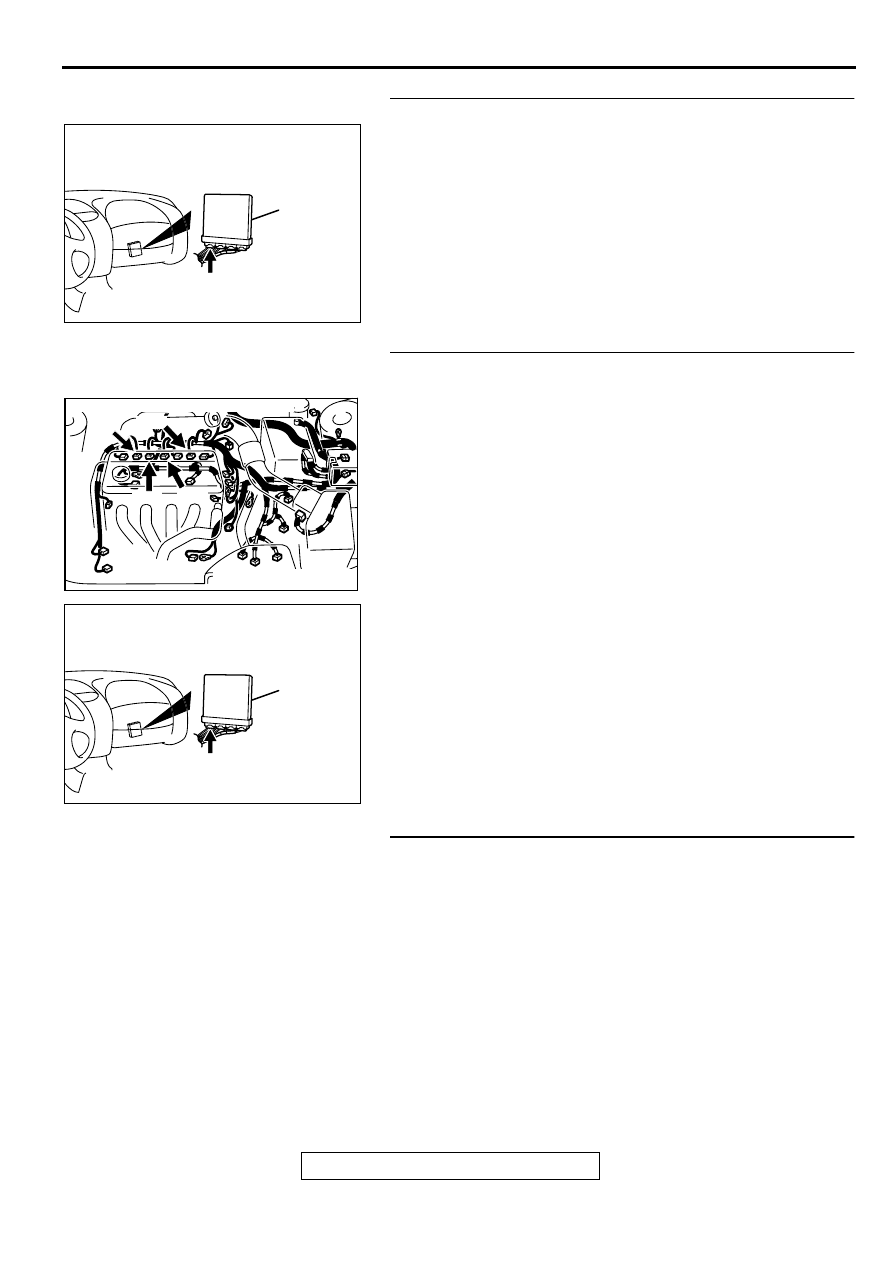

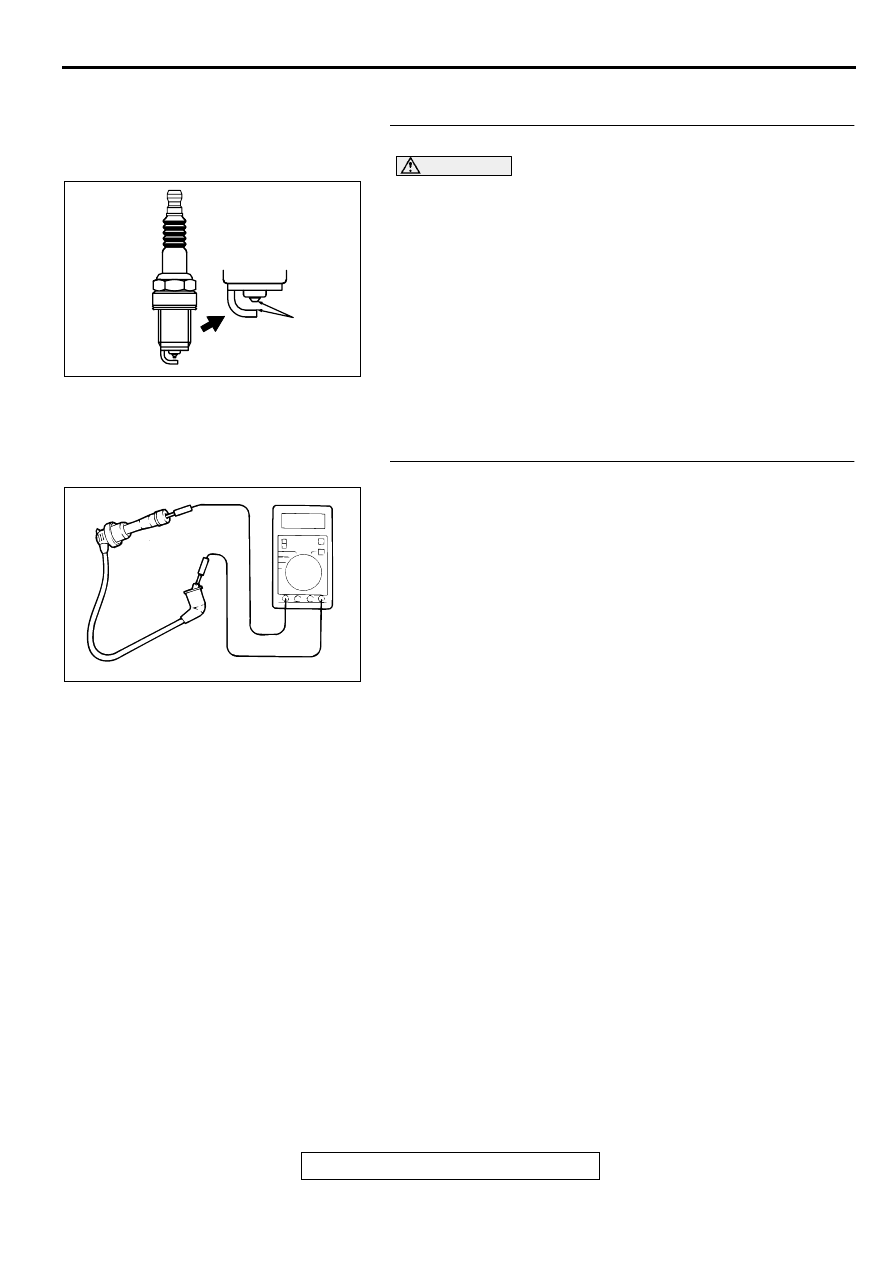

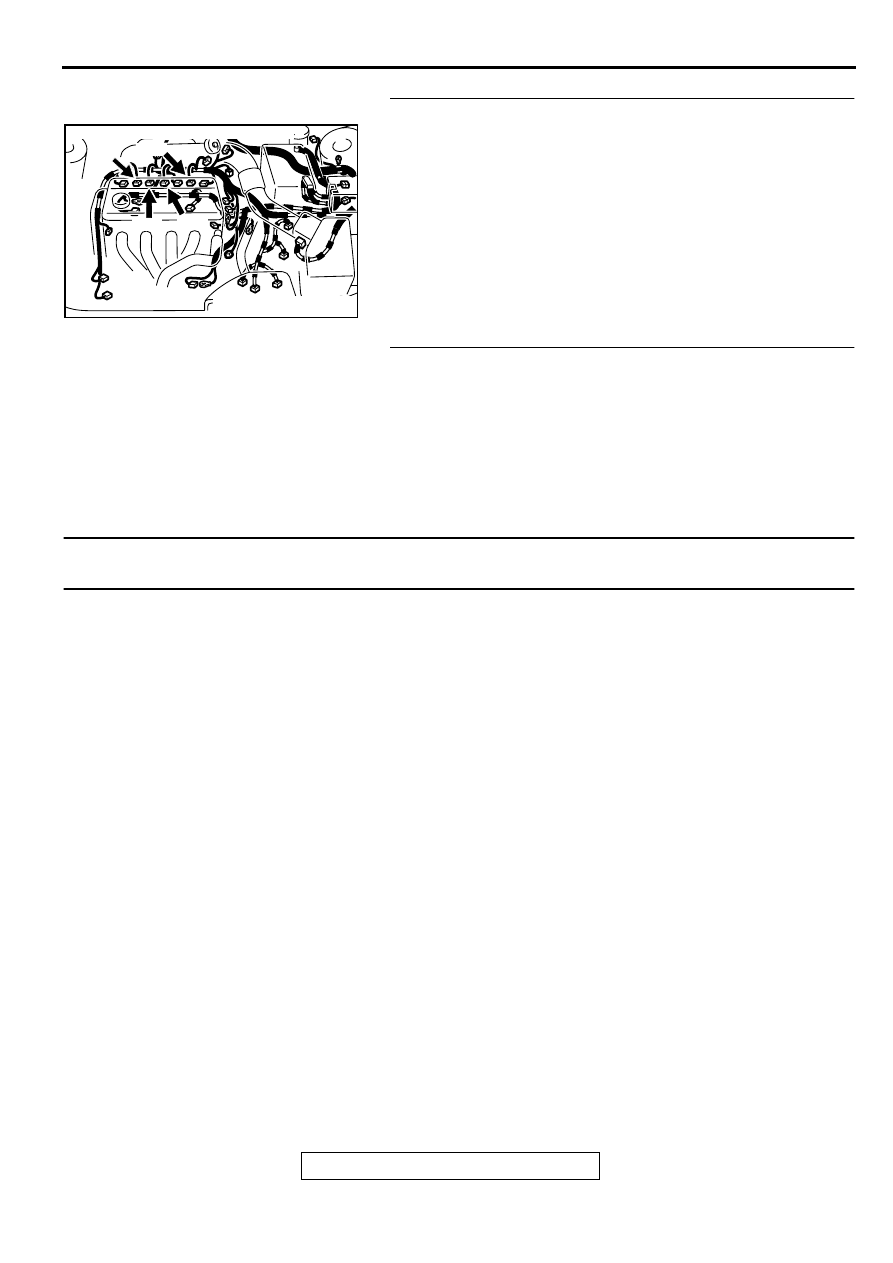

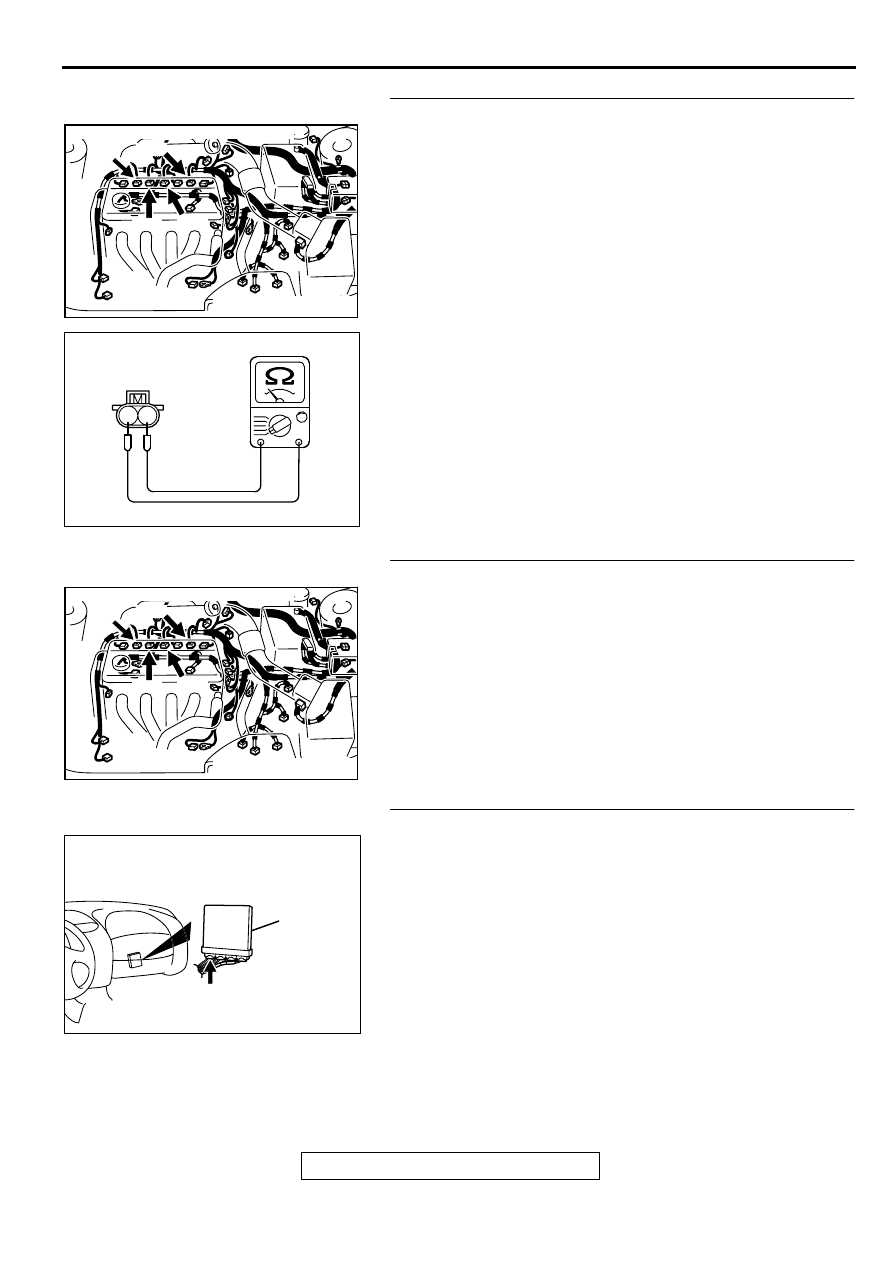

MULTIPORT FUEL INJECTION(MFI) DIAGNOSIS TSB Revision MULTIPORT FUEL INJECTION (MFI) <2.4L> 13A-165 STEP 9. Check connector C-39 at PCM for damage. YES : Go to Step 10. Connector Inspection( ). Then go to Step 13. STEP 10. Check for harness damage between injector a. Check the harness wire between injector connector B-22 terminal 2 and PCM connector C-39 terminal 1 when b. Check the harness wire between injector connector B-21 terminal 2 and PCM connector C-39 terminal 9 when c. Check the harness wire between injector connector B-19 terminal 2 and PCM connector C-39 terminal 24 when d. Check the harness wire between injector connector B-17 terminal 2 and PCM connector C-39 terminal 2 when Q: Is the harness wire in good condition? YES : Go to Step 11. STEP 11. Check the following items. defective component. a. Check for skipped timing belt teeth. c. EGR valve failed. Q: Are there any abnormalities? YES : Go to Step 12. AK000280 CONNECTOR : C-39 PCM AW AK000557 AB B-21 B-19 B-17 B-22 CONNECTORS:B-17,B-19,B-21,B-22 AK000280 CONNECTOR : C-39 PCM AW |
