Mitsubishi Galant. Manual - part 5





VEHICLE IDENTIFICATION

TSB Revision

GENERAL <BODY AND CHASSIS>

00-17

INSPECTION SERVICE POINTS FOR A BLOWN
FUSE

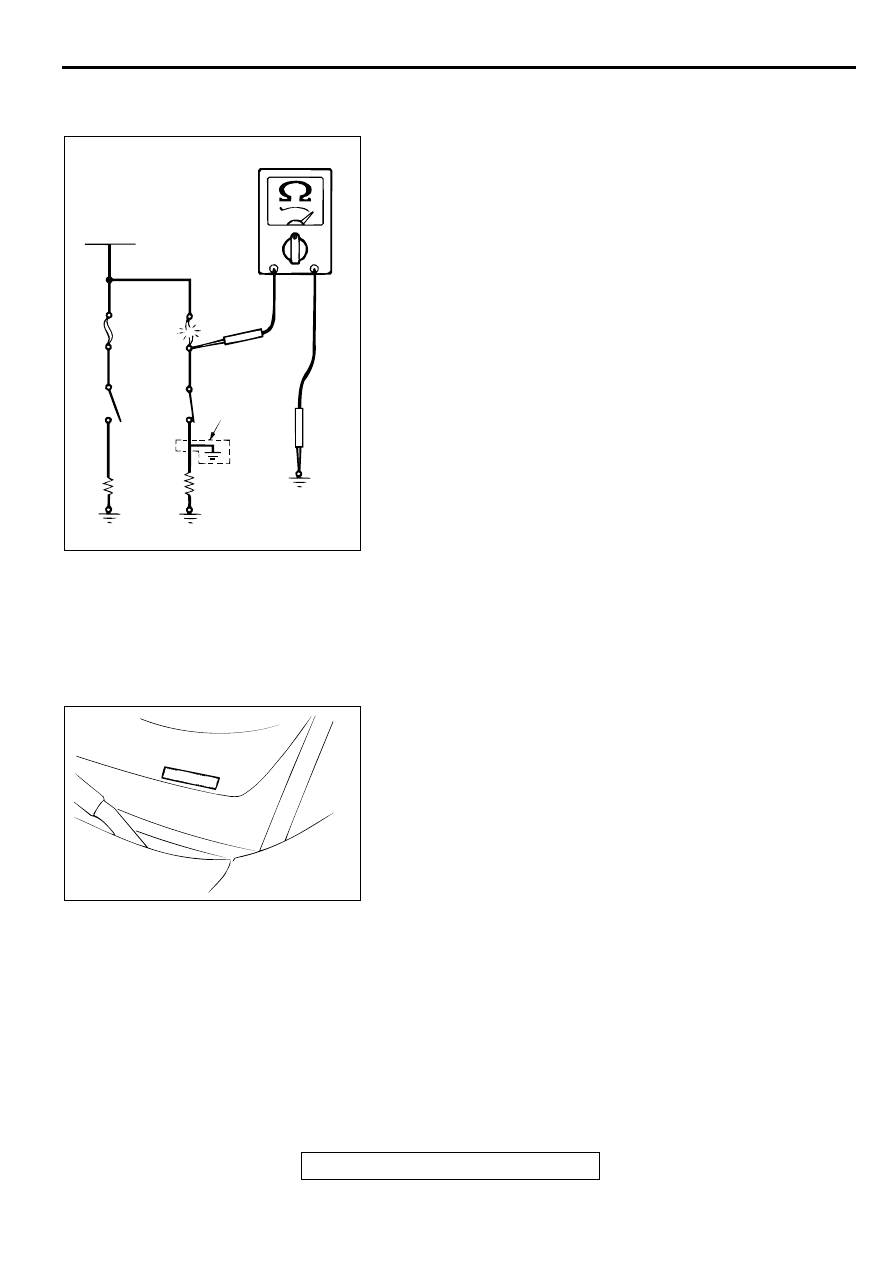

Remove the fuse and measure the resistance between the load
side of the fuse and ground. Set the switches of all circuits
which are connected to this fuse to a condition of continuity. If
the resistance is almost 0 ohm at this time, there is a short
somewhere between these switches and the load. If the
resistance is not 0 ohm, there is no short at the present time,
but a momentary short has probably caused the fuse to blow.
The main causes of a short circuit are the following:

Harness being clamped by the vehicle body

Damage to the outer casing of the harness due to wear or
heat

Water getting into the connector or circuitry

Human error (mistakenly shorting a circuit, etc.)

VEH IC LE ID EN TIFIC ATIO N

VEHICLE IDENTIFICATION NUMBER LOCATION

M1001000400155

The vehicle identification number (VIN) is located on a plate
attached to the left top side of the instrument panel.

ACX00872 AB

BATTERY

FUSE

LOAD
SWITCH

LOAD

SHORT-
CIRCUIT
OCCURRENCE
SECTION

AC000051

VEHICLE IDENTIFICATION

TSB Revision

GENERAL <BODY AND CHASSIS>

00-18

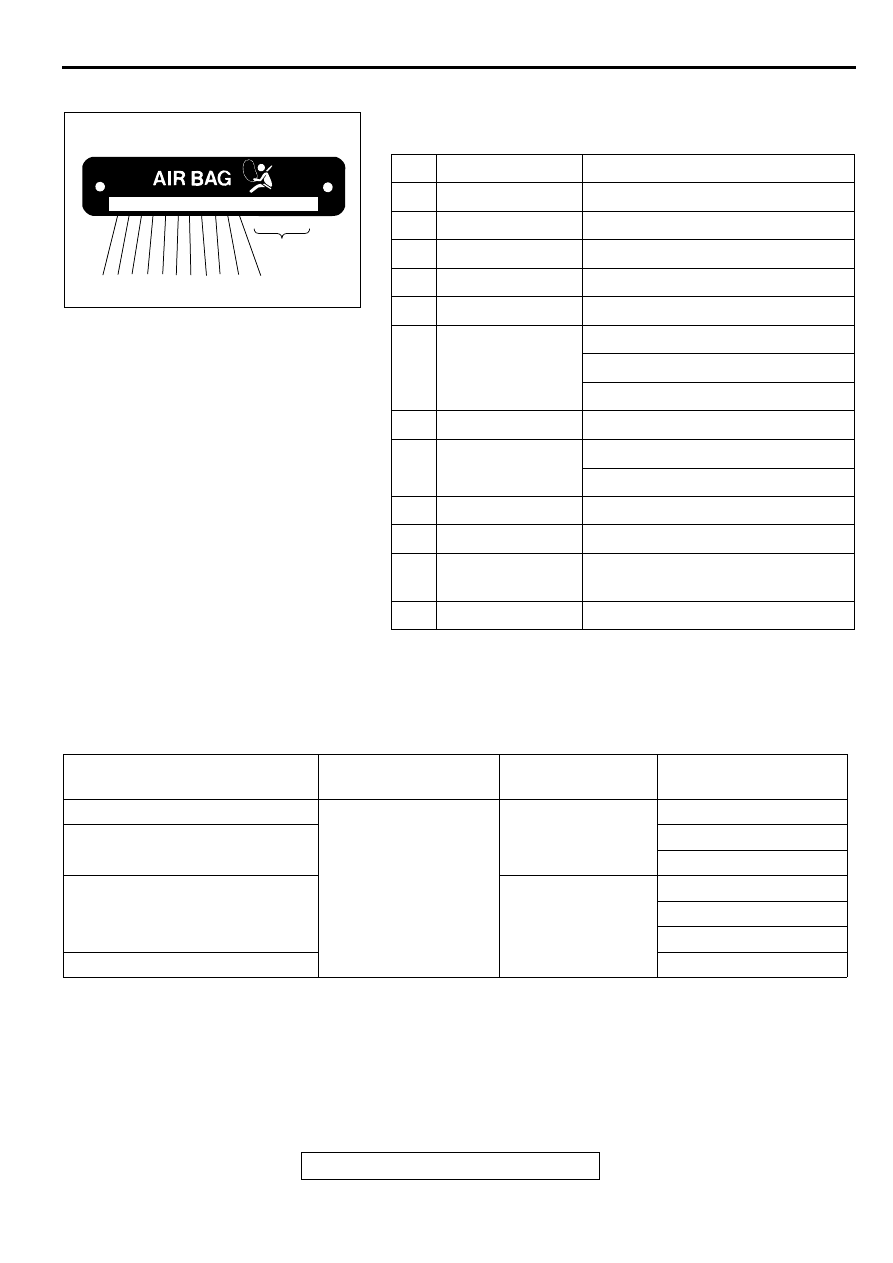

VEHICLE IDENTIFICATION CODE CHART PLATE

All vehicle identification numbers contain 17 digits. The vehicle
number is a code which tells country, make, vehicle type, etc.

NOTE: *: Check digit means a singles number or letter X used
to verify the accuracy of transcription of vehicle identification
number.

VEHICLE IDENTIFICATION NUMBER LIST

NO.

ITEMS

CONTENTS

1

Country

4: USA

2

Make

A: Mitsubishi

3

Vehicle type

3: Passenger car

4

Others

A: Driver and passenger air bags

5

Line

A: GALANT

6

Price class

3: Medium

4: High

5: Premium

7

Body

6: 4-door sedan

8Engine

G: 2.4L

H: 3.0L

9

Check digits*

0, 1, 2, 3, -----------9, X

10

Model year

1: 2001 year

11

Plant

E: Mitsubishi Motor Manufacturing
of America, Inc.

12

Serial number

000001 to 999999

4 A 3 A A 3 6 G 1 1 E



0 0 0 0 0 1

AC004800

1  2  3  4  5  6  7  8  9  10  11

12

AB

VIN(EXCEPT SEQUENCE
NUMBER)

BRAND

ENGINE
DISPLACEMENT

MODEL CODE

4A3AA36G_1E

MITSUBISHI GALANT

2.4L

EA3ASRJEL9M

4A3AA46G_1E

EA3ASRHEL9M

EA3ASRPEL9M

4A3AA46H_1E

3.0L

EA8ASRHEL4M

EA8ASRGEL4M

EA8ASRPEL4M

4A3AA56H_1E

EA8ASRXEL4M

VEHICLE IDENTIFICATION

TSB Revision

GENERAL <BODY AND CHASSIS>

00-19

VEHICLE IDENTIFICATION CODE PLATE

M1001005400127

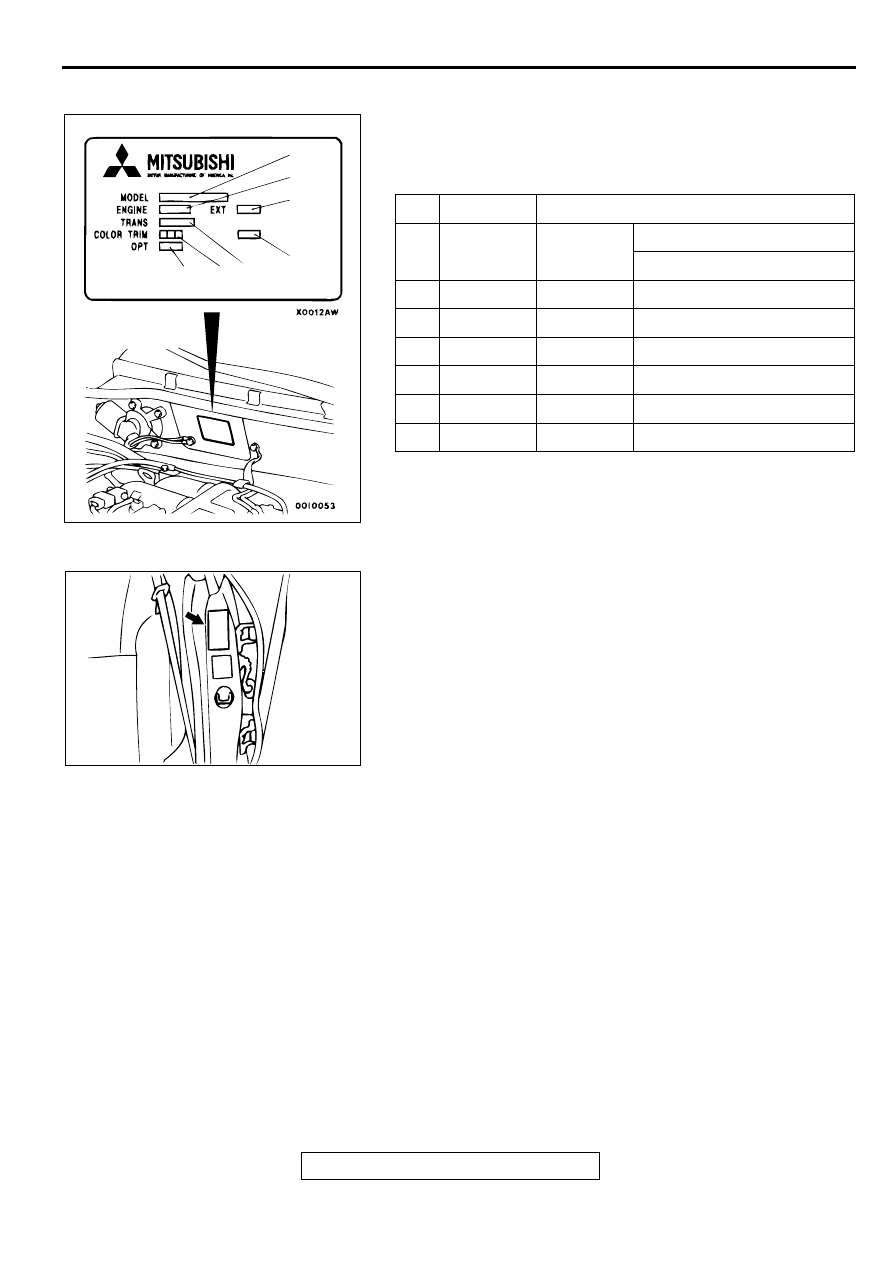

The vehicle information code plate is riveted onto the cowl top
outer panel in the engine compartment.
The plate shows model code, engine model, transaxle model
and body color code.

For monotone color vehicles, the body color code shall be
indicated.

VEHICLE SAFETY CERTIFICATION LABEL

The vehicle safety certification label is attached to the face of
the left door sill.
This label indicates the month and year of manufacture, Gross
Vehicle Weight Rating (GVWR), front and rear Gross Axle
Weight Rating (GAWR), and Vehicle Identification Number
(VIN).

NO. ITEMS

CONTENTS

1

MODEL

EA8ASRXE
L4M

EA8A: Vehicle model

SRXEL4M; Model series

2

ENGINE

6G72

Engine model

3

EXT

CA6A

Exterior code

4

TRANS

F4A51

F4A51:Transaxle model

5

COLOR

R25

R25: Body  color code

6

TRIM

87V

87V: Interior code

7

OPT

03V

03V: Equipment code

AC004805

1

2

3

7

4

5

6

AB

AC004806AB

VEHICLE IDENTIFICATION

TSB Revision

GENERAL <BODY AND CHASSIS>

00-20

ENGINE MODEL STAMPING

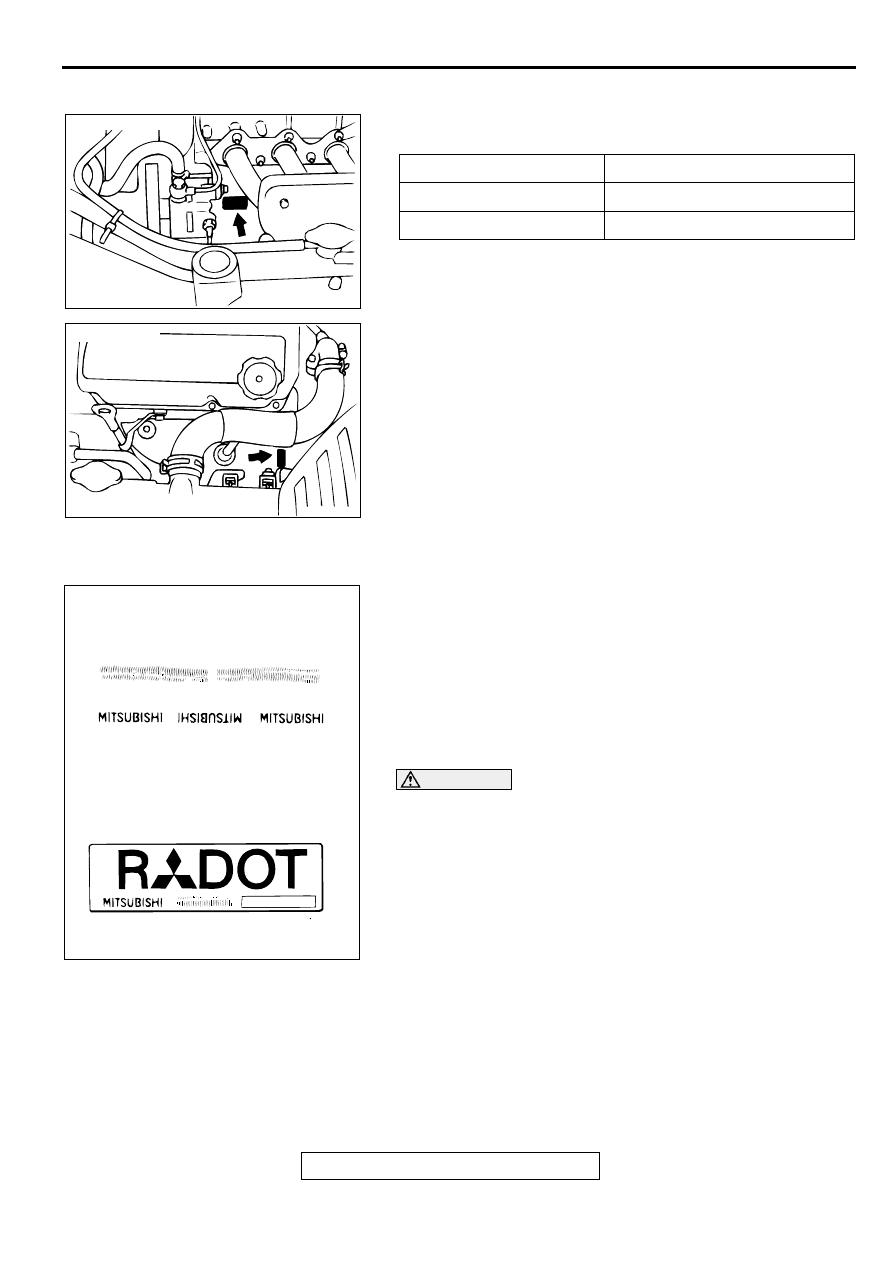

The engine model is stamped on the cylinder block.
These engine model numbers are as shown as follows.

The engine serial number is stamped near the engine model
number.

THEFT PROTECTION

In order to protect against theft, a Vehicle Identification Number
(VIN) is attached as a plate or label to the following major parts
of the engine and transaxle, as well as main outer panels:
Engine cylinder block, Transmission housing. Fender, Doors,
Liftgate, Quarter panel, Hood, Bumpers
In addition, a theft-protection label is attached to replacement
parts for the body outer panel main components, and the same
data are stamped into replacement parts for the engine and the
transaxle.

CAUTION

Cautions regarding panel repairs:

1. When repainting original parts, do so after first

masking the theft-protection label. After painting, be
sure to peel off the masking tape.

2. The theft-protection label for replacement parts is

covered by masking tape, so such parts can be painted
as is. The masking tape should be removed after
painting is finished.

3. The theft-protection label should not be removed from

original parts or replacement parts.

ENGINE MODEL

ENGINE DISPLACEMENT

4G64

2.4L

6G72

3.0L

AC000055AB

2.4L ENGINE

AC000056

3.0L ENGINE

AB

AC000057

THEFT PROTECTION LABEL
FOR ORIGINAL PARTS

FOR REPLACEMENT PARTS

AB
