Mitsubishi Galant. Manual - part 4





HOW TO USE TROUBLESHOOTING/INSPECTION SERVICE POINTS

TSB Revision

GENERAL <BODY AND CHASSIS>

00-13

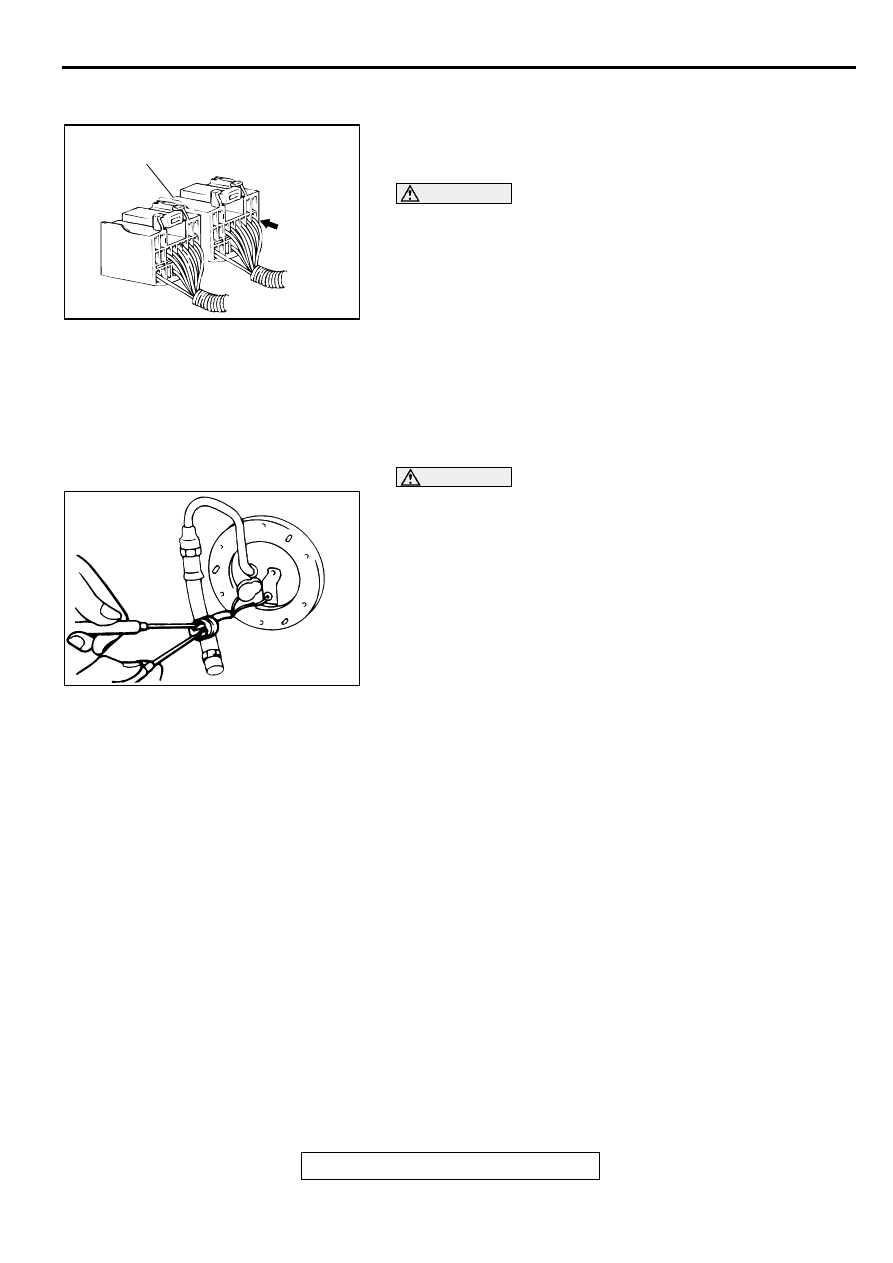

<Female Pin Inspection from Back Side of the Connector

(SRS-ECU Harness Side Connector)>
Since the SRS-ECU harness connector is plated to improve
conductivity, observe the warning below when checking this
connector.

WARNING

Insert the backprobing tool into connector from
harness side, and connect the tester to the
backprobing tool. If any tool other than the
backprobing tool is used, it may cause damage to the
harness and other components. Furthermore,
measurement should not be carried out by touching
the backprobing tool directly against the terminals
from the front of the connector. The terminals are
plated to increase their conductivity, so that if they
are touched directly by the backprobing tool, the
plating may break, which will decrease reliability.

<Male Pin Inspection>

CAUTION

At this time, be careful not to short the connector pins with
the test probes.  To do so may damage the circuits inside
the ECU.
Touch the pin directly with the test bar.

AC001607

SRS-ECU HARNESS
CONNECTOR

AB

ACX00867 AB

HOW TO USE TROUBLESHOOTING/INSPECTION SERVICE POINTS

TSB Revision

GENERAL <BODY AND CHASSIS>

00-14

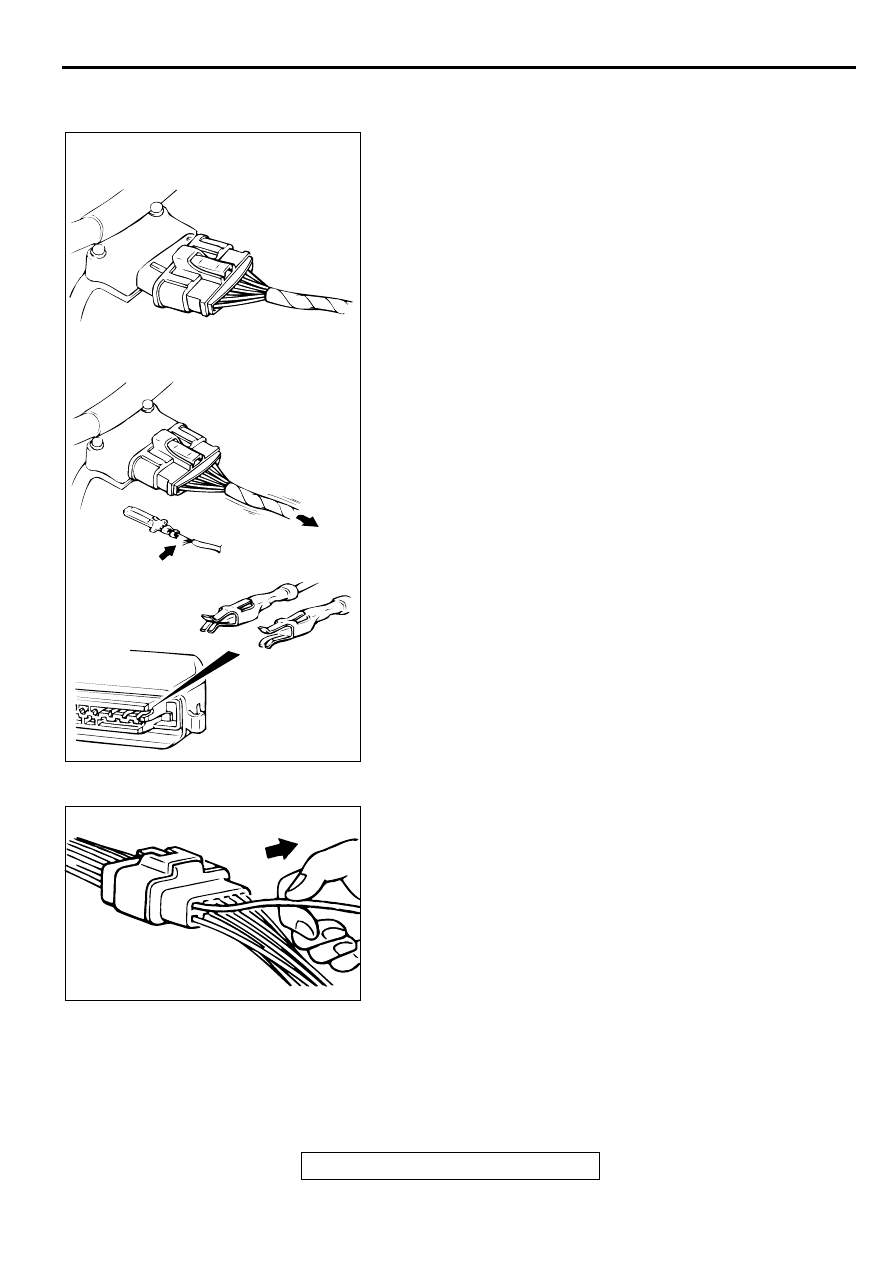

CONNECTOR INSPECTION SERVICE POINTS

VISUAL INSPECTION

Connector is disconnected or improperly connected

Connector pins are pulled out

Due to harness tension at terminal section

Low contact pressure between male and female terminals

Low connection pressure due to rusted terminals or foreign
matter lodged in terminals

CONNECTOR PIN INSPECTION
If the connector pin stopper is damaged, the terminal
connections (male and female pins) will not be perfect even
when the connector body is connected, because the pins may
pull out of the back side of the connector. Therefore, gently pull
the wires one by one to make sure that no pins pull out of the
connector.

CONNECTOR ENGAGEMENT INSPECTION

Required Special Tool:
MB991219: Inspection Harness (contained in MB991223 Test

Harness)

ACX00868 AB

CONNECTOR DISCONNECTED OR
IMPROPERLY CONNECTED

DEFECTIVE CONNECTOR CONTACT

HARNESS WIRE BREAKAGE
AT TERMINAL SECTION

LOW CONTACT
PRESSURE

GOOD

BAD

ACX00869AB

HOW TO USE TROUBLESHOOTING/INSPECTION SERVICE POINTS

TSB Revision

GENERAL <BODY AND CHASSIS>

00-15

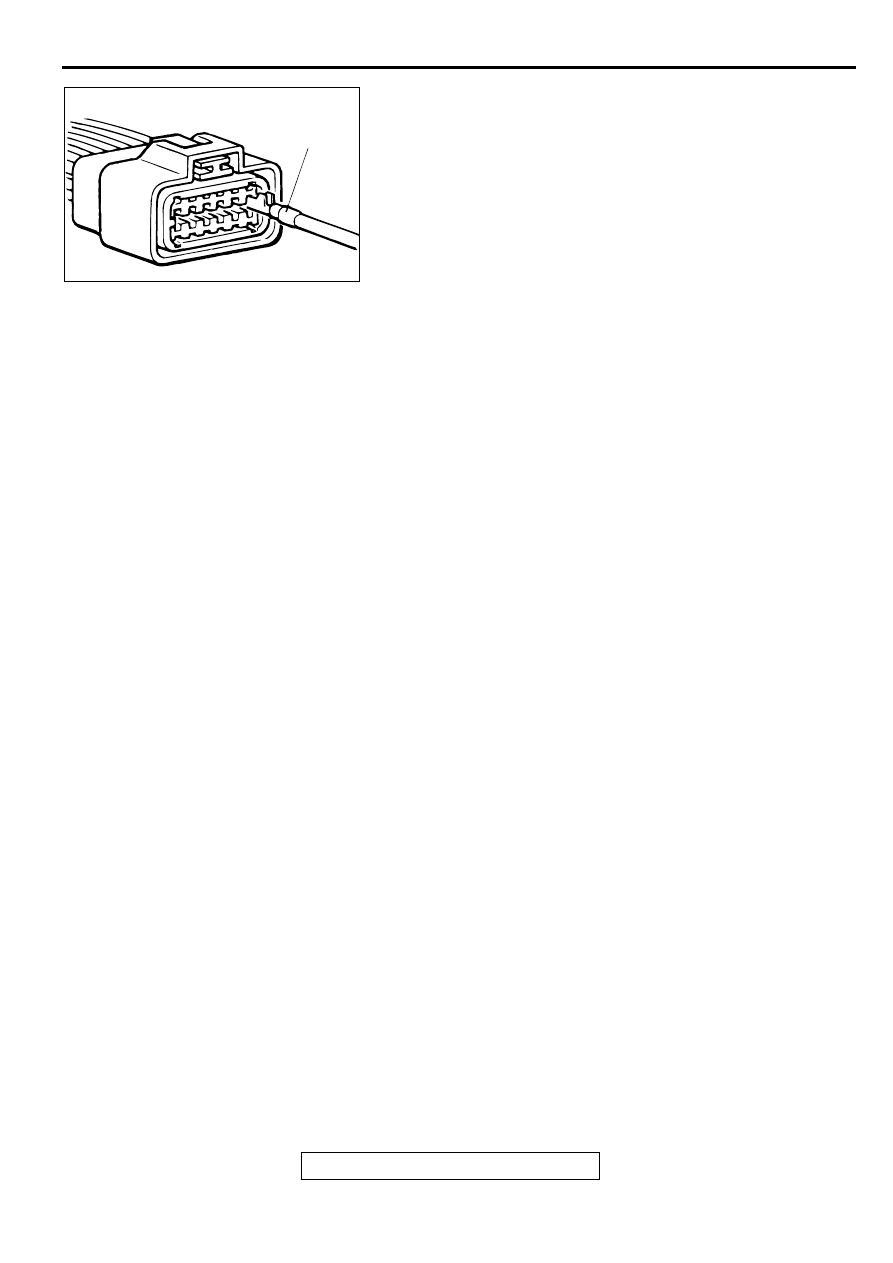

Use special tool, MB991219, to inspect the engagement of the
male pins and female pins. [Pin drawing force: 1 N (0.2 pound)
or more]

HOW TO COPE WITH INTERMITTENT
MALFUNCTIONS

Most intermittent malfunctions occur under certain
conditions. If those conditions can be identified, the
cause will be easier to find.
TO COPE WITH INTERMITTENT MALFUNCTION;
1. Ask the customer about the malfunction
Ask what it feels like, what it sounds like, etc. Then
ask about driving conditions, weather, frequency of
occurrence, and so on.

2. Determine the conditions from the customer's
responses
Typically, almost all intermittent malfunctions occur
from conditions like vibration, temperature and/or
moisture change, poor connections. From the
customer's responses, it should be reasoned which
condition is influenced.

3. Use simulation test
In the cases of vibration or poor connections, use the
simulation tests below to attempt to duplicate the
customer's complaint. Determine the most likely
circuit(s) and perform the simulation tests on the
connectors and parts of that circuit(s). Be sure to use
the inspection procedures provided for diagnostic
trouble codes and trouble symptoms.
For temperature and/or moisture conditions related
intermittent malfunctions try to change the conditions
of the suspected circuit components, then use the
simulation tests below.

4. Verify the intermittent malfunction is
eliminated
Repair the malfunctioning part and try to duplicate
the condition(s) again to verify the intermittent
malfunction has been eliminated.

ACX00870 AB

MB991219

HOW TO USE TROUBLESHOOTING/INSPECTION SERVICE POINTS

TSB Revision

GENERAL <BODY AND CHASSIS>

00-16

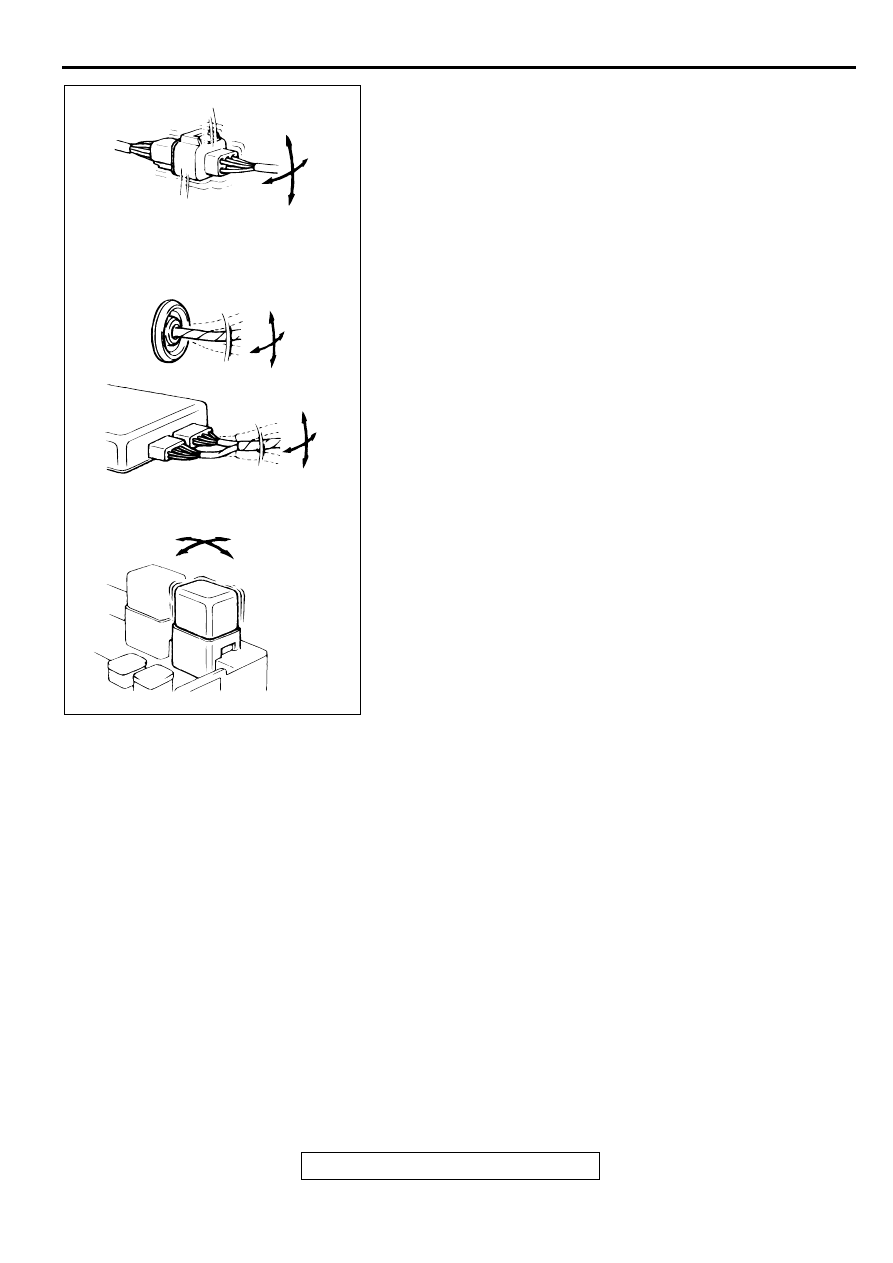

SIMULATION TESTS

NOTE: In case of difficulty in finding the cause of the
intermittent malfunction, the data recorder function in the scan
tool is effective.
For these simulation tests, shake, then gently bend, pull, and
twist the wiring of each of these examples to duplicate the
intermittent malfunction.

Shake the connector up-and-down, and right-and-left.

Shake the wiring harness up-and-down, and right-and-left.

Vibrate the part or sensor.

ACX00871 AB
