DIFFERENTIAL

TSB Revision

AUTOMATIC TRANSAXLE OVERHAUL

23B-76

DIFFERENTIAL

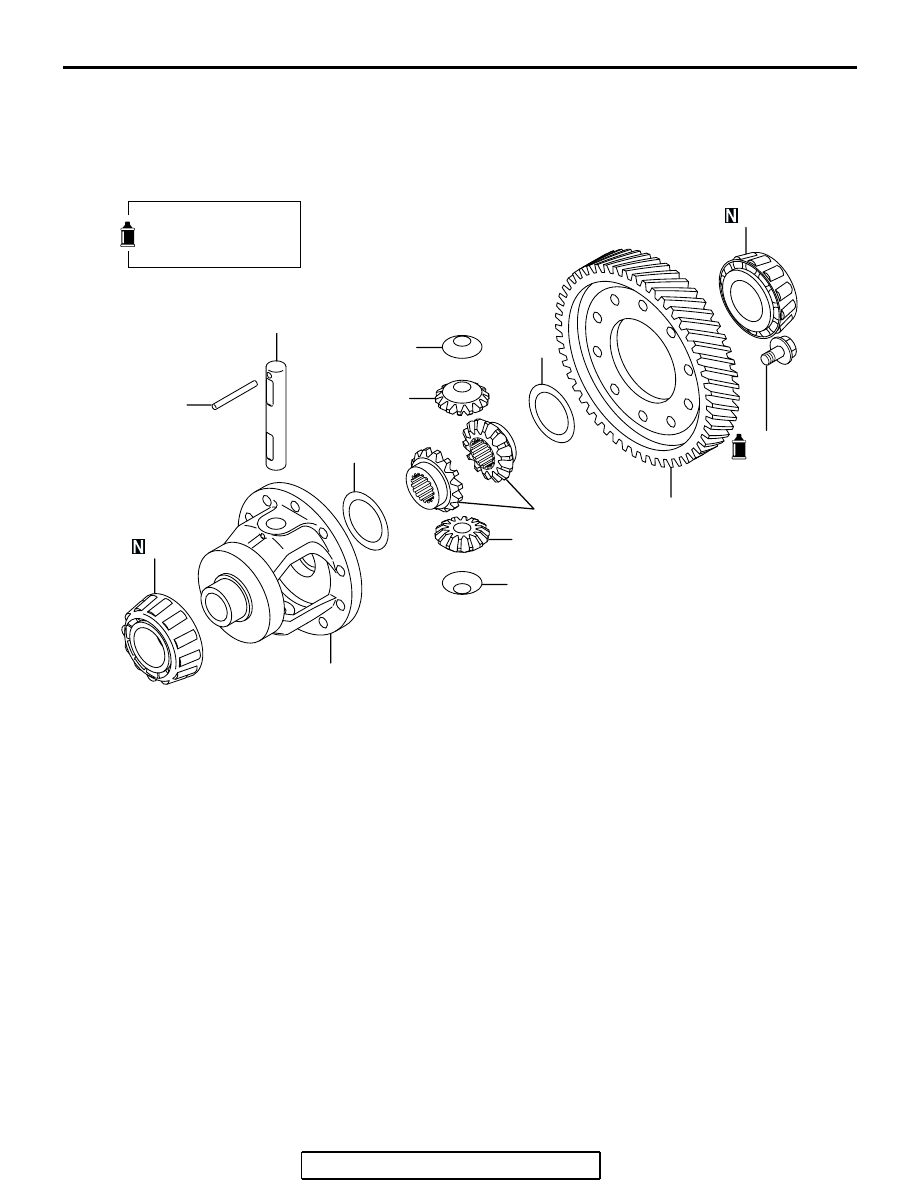

DIFFERENTIAL DISASSEMBLY AND ASSEMBLY

M1233003100297

Required Special Tools:

• MD998801: Bearing Remover

• MD998812: Installer Cap

• MD998820: Installer Adapter (42)

• MD998823: Installer Adapter (48)

AK301606

2

4

8

6

5

3

8

135

± 5

N·m

100

± 3

ft-lb

1

7

5

2

6

9

AB

APPLY AUTOMATIC
TRANSMISSION FLUID
TO ALL MOVING PARTS
BEFORE INSTALLATION.

DISASSEMBLY STEPS

>>D<<

1.

DIFFERENTIAL DRIVE GEAR

<<A>> >>C<<

2.

TAPER ROLLER BEARINGS

>>B<<

3.

LOCK PIN

>>A<<

4.

PINION SHAFT

>>A<<

5.

PINIONS

>>A<<

6.

WASHERS

>>A<<

7.

SIDE GEARS

>>A<<

8.

SPACERS

9.

DIFFERENTIAL CASE

DISASSEMBLY STEPS

DIFFERENTIAL

TSB Revision

AUTOMATIC TRANSAXLE OVERHAUL

23B-77

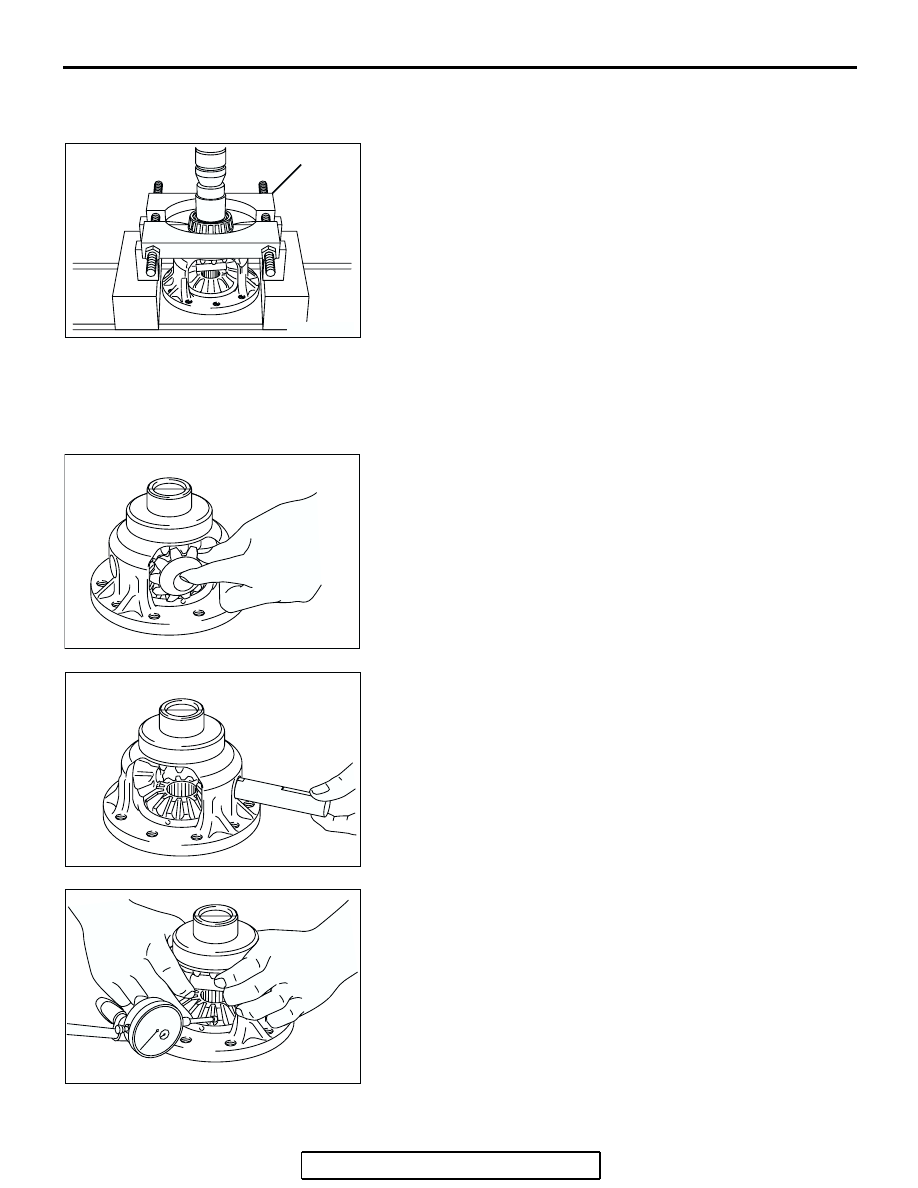

DISASSEMBLY SERVICE POINT

.

<<A>>  TAPER ROLLER BEARING  REMOVAL

1. Support the taper roller bearing with special tool MD998801,

and then set them on the press.

2. Push down on the differential case with the press to remove

the bearing.

ASSEMBLY SERVICE POINTS

.

>>A<< SPACER, SIDE GEAR, WASHER, PINION
AND PINION SHAFT INSTALLATION

1. Mount a spacer on the back surface of the side gear, and

then install the side gear in the differential case.
NOTE: When a new side gear is to be installed, use a
medium thickness spacer [0.93 to 1.00 mm (0.0366 to
0.0395 inch)].

2. Set the washer on the back of each pinion, and put both

pinions simultaneously in mesh with the side gears. While
rotating them, install them into position.

3. Insert the pinion shaft.

4. Measure the backlash between the side gear and pinion.

Standard value:
0.025

− 0.150 mm (0.0010 − 0.0059 inch)

5. If the backlash is out of the standard value, select a spacer

and re-measure the backlash.
NOTE: Adjust until the backlash on both sides are equal.

.

AK301767AB

MD998801

AK300655

AK300656

AK300657

DIFFERENTIAL

TSB Revision

AUTOMATIC TRANSAXLE OVERHAUL

23B-78

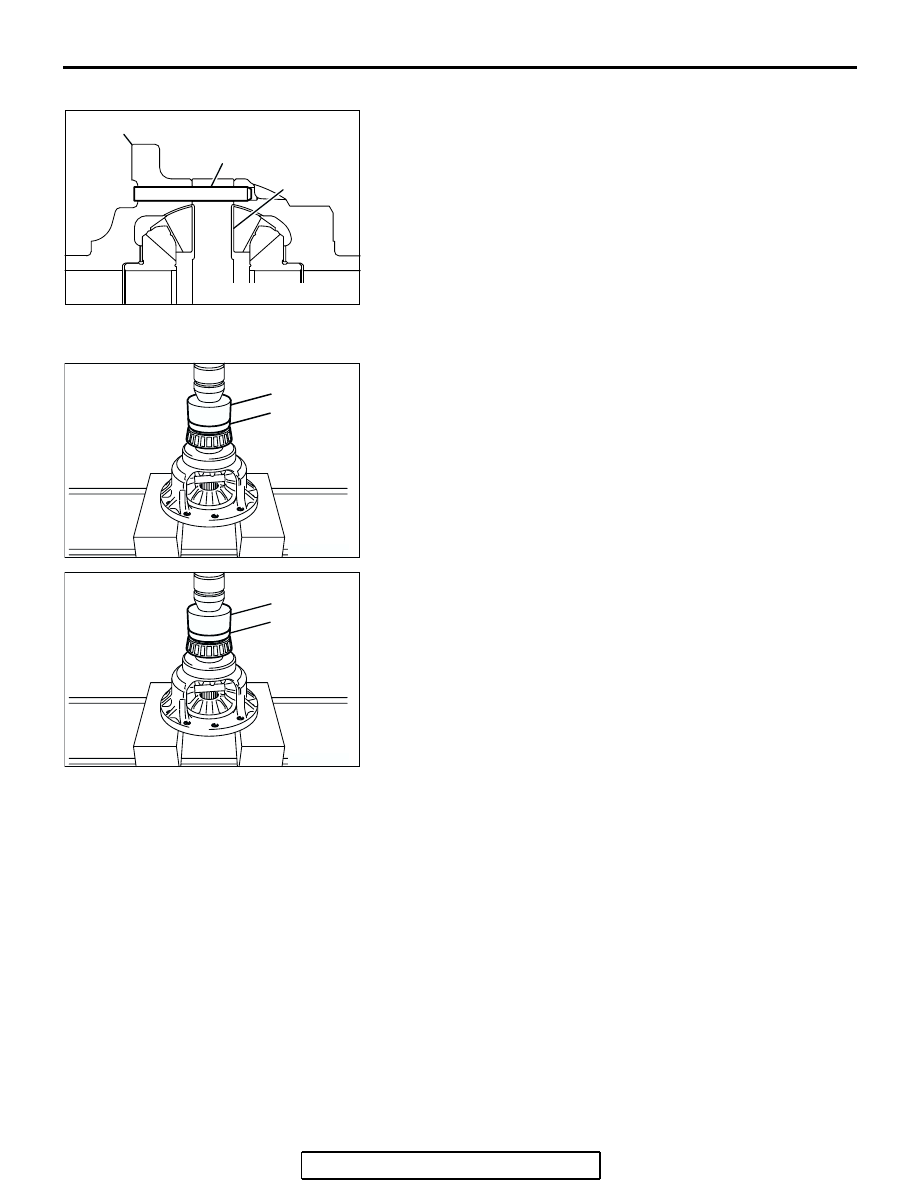

>>B<<LOCK PIN INSTALLATION

Install the lock pin so that it will be oriented in the direction
shown.

.

>>C<<  TAPER ROLLER BEARING  INSTALLATION

Using special tools MD998812 and MD998823 <F4A4B> or
MD998820 <F4A5A>, press in the taper roller bearing.

.

AK301284AC

DIFFERENTIAL CASE

LOCK PIN

PINION SHAFT

AK301768

MD998812

MD998823

AC

<F4A4B>

AK300658AB

MD998812

MD998820

<F4A5A>

DIFFERENTIAL

TSB Revision

AUTOMATIC TRANSAXLE OVERHAUL

23B-79

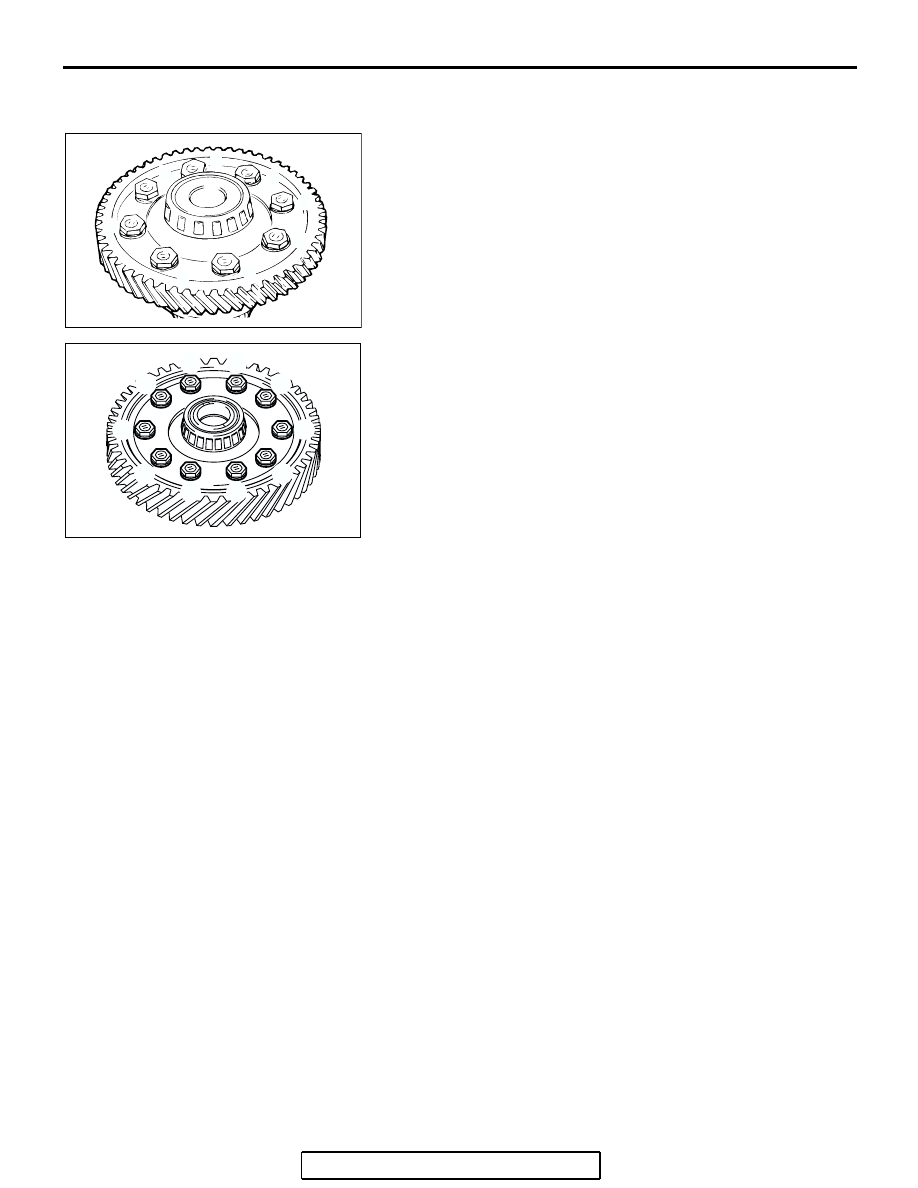

>>D<< DIFFERENTIAL DRIVE GEAR
INSTALLATION

Apply ATF to the bolt, and then tighten the bolts to the specified
torque in the sequence shown.

Tightening torque: 135

± 5 N⋅m (100 ± 3 ft-lb)

AK100395AD

5

3

1

8

4

2

7

6

<F4A4B>

AK300659

10

8

1

6

8

9

7

4

5

3

AB

<F4A5A>
