ROCKER ARMS AND CAMSHAFT

TSB Revision

ENGINE OVERHAUL <3.8L ENGINE>

11D-26

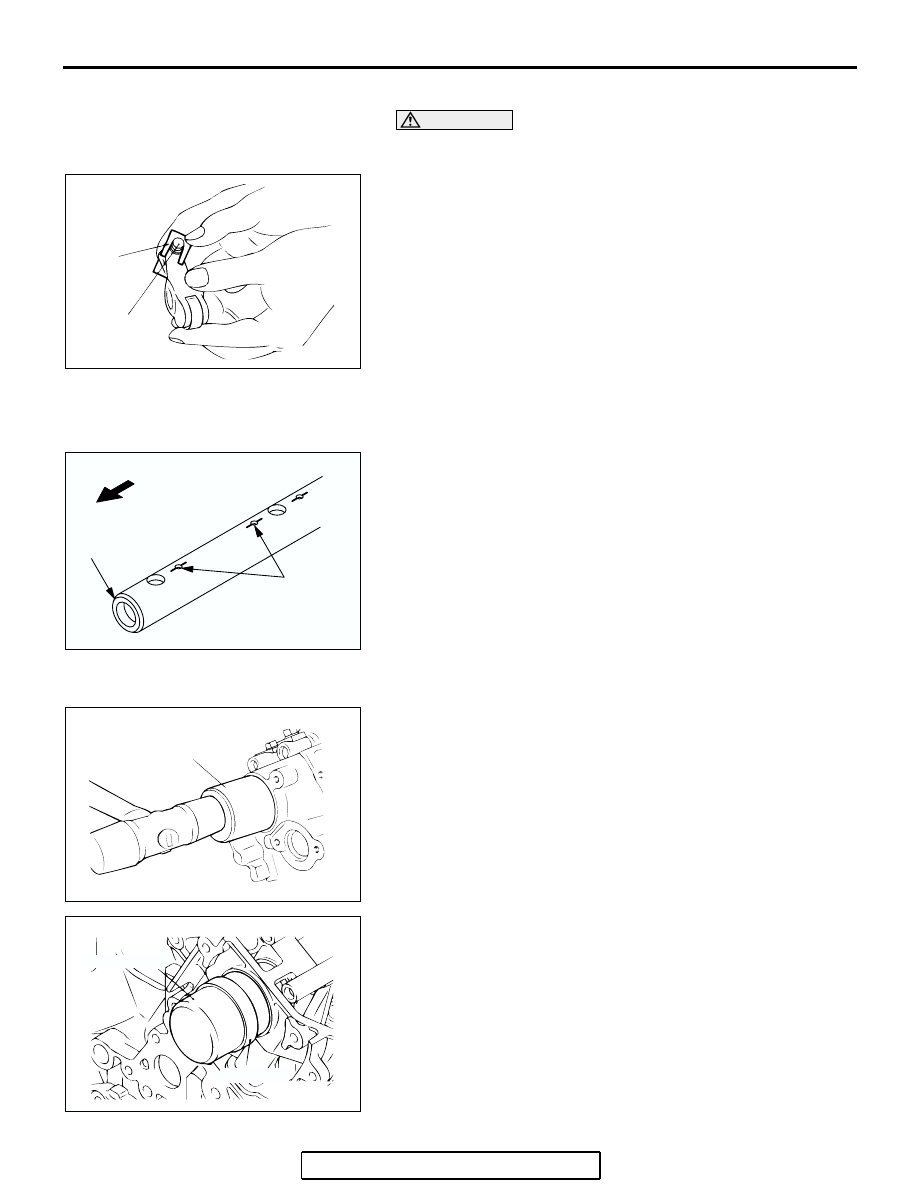

>>B<< LASH ADJUSTER INSTALLATION

CAUTION

If the lash adjuster is re-used, clean the lash adjuster.
(Refer to lash adjuster inspection

P.11D-27

.)

Fit the lash adjuster onto the rocker arm without allowing diesel
fuel to spill out. Fit special tool MD998443 to prevent the lash
adjuster coming from free and falling to the floor.

.

>>C<< ROCKER ARMS AND SHAFT
INSTALLATION

1. Position the end with the larger chamfer at the right on the

front bank, and at the left on the rear bank.
NOTE: The side with the four bolt holes is on the intake side.

2. Position the side with the oil holes on the lower side

(cylinder head side).

.

>>D<< CAMSHAFT OIL SEAL INSTALLATION

Use special tools MD998713 and MB991559 to install the cam-
shaft oil seal.

AKX00715

MD998443

LASH
ADJUSTER

AB

AK202325

TIMING BELT SIDE

CHAMFERED

OIL HOLE

AC

AKX00615

<RIGHT BANK SIDE>

MD998713

AB

AKX00639

<LEFT BANK SIDE>

MB991559

AB

MD998713

ROCKER ARMS AND CAMSHAFT

TSB Revision

ENGINE OVERHAUL <3.8L ENGINE>

11D-27

INSPECTION

M1113005500463

.

ROCKER ARM SHAFT

Check the rocker arm mounting areas of the rocker arm shafts
for wear or damage. Replace as necessary.

.

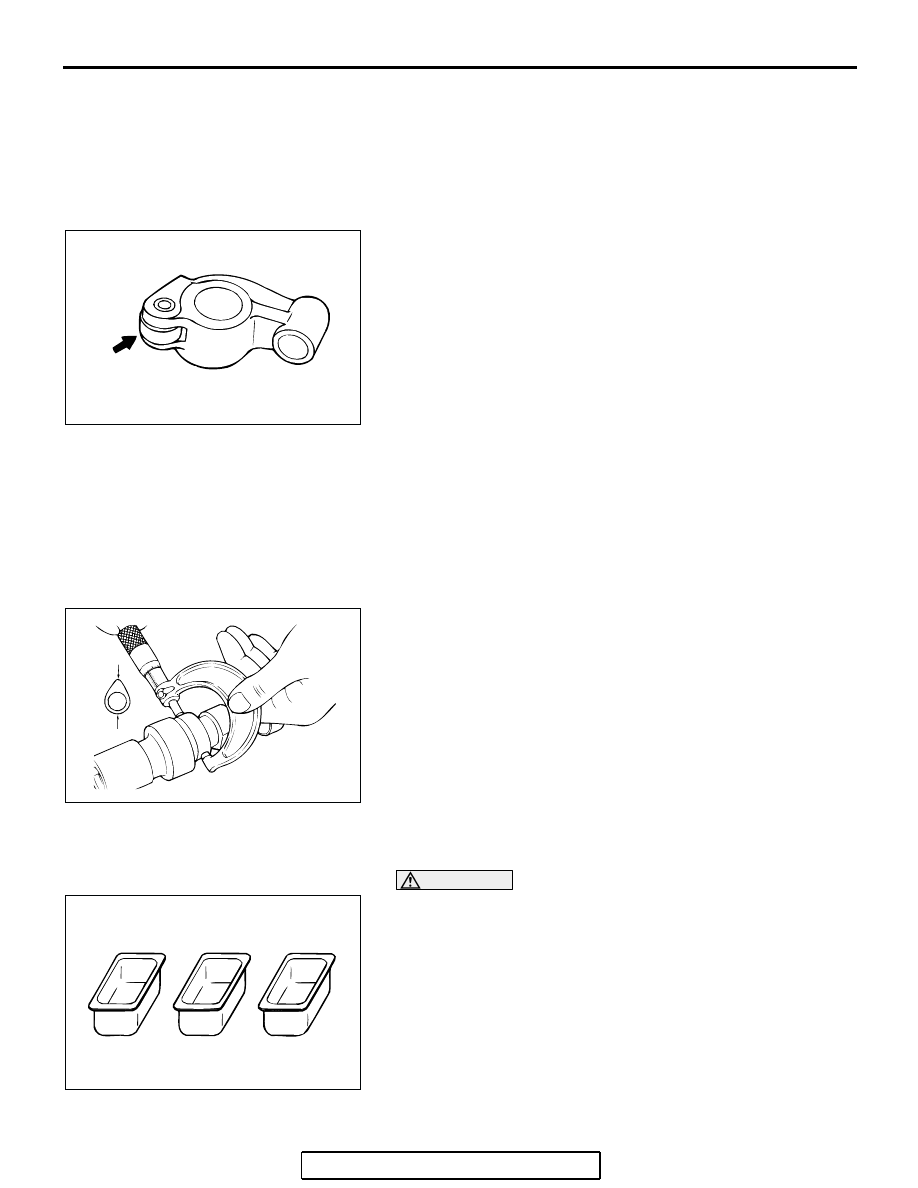

ROCKER ARM

1. Check the roller surface and replace the rocker arm if

recesses, damage or heat seizure is observed.

2. Check roller rotation and replace the rocker arm if uneven

rotation or roller backlash of the roller is observed.

3. Check the inside diameter and replace the rocker arm if

damage or seizure is observed.

.

CAMSHAFT

1. Check the camshaft bearing journals for damage and

binding. If the journals are binding, check the cylinder head
for damage. Also check the cylinder head for clogged oil
holes.

2. Check the tooth surface of the distributor drive gear teeth of

the camshaft and replace if abnormal wear is evident.

3. Check the cam surface for abnormal wear and damage and

replace if necessary. Also measure the cam height and
replace if out of minimum limit.

Standard value:

Intake 37.39 mm (1.472 inches)
Exhaust 37.71 mm (1.485 inches)

Minimum limit:

Intake 36.89 mm (1.452 inches)
Exhaust 37.21 mm (1.465 inches)

.

LASH ADJUSTERS

CAUTION

• The lash adjusters are precision-engineered mecha-

nisms. Do not allow them to become contaminated by
dirt or other foreign substances.

• Do not attempt to disassemble the lash adjusters.
• Use only fresh diesel fuel to clean the lash adjusters.

1. Prepare three containers and approximately 5 dm

3

 (30.5

quart) of diesel fuel. Into each container, pour enough diesel
fuel to completely cover a lash adjuster when it is standing
upright. Then, perform the following steps with each lash
adjuster.

AKX00723

ROLLER TIP

AB

AKX00685

AKX00625

OUTSIDE
CLEANING

INSIDE
CLEANING

FILLING
DIESEL FUEL

A

B

C

AB

ROCKER ARMS AND CAMSHAFT

TSB Revision

ENGINE OVERHAUL <3.8L ENGINE>

11D-28

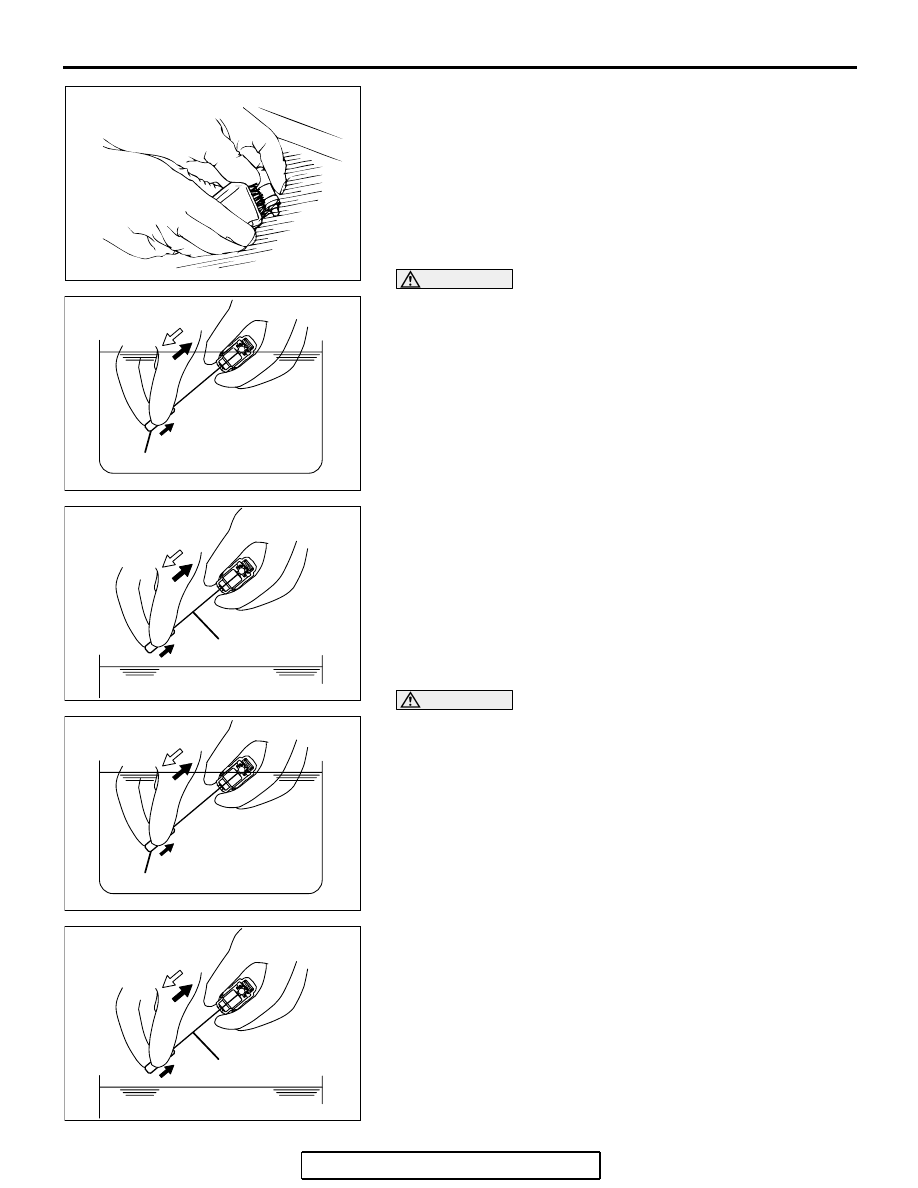

2. Place the lash adjuster in container A and clean its outside

surface.
NOTE: Use a nylon brush if deposits are hard to remove.

CAUTION

The steel ball spring is extremely weak, so the lash
adjuster's functionality may be lost if the air bleed wire is
pushed in hard.
3. While gently pushing down the internal steel ball using wire

[0.5 mm (0.020 inch) in diameter] or special tool MD998442,
move the plunger through five to ten strokes until it slides
smoothly. In addition to eliminating stiffness in the plunger,
this operation will remove dirty oil.
NOTE: If the plunger remains stiff or the mechanism
appears otherwise abnormal, replace the lash adjuster.

4. Remove the lash adjuster from the container. Then, push

down the steel ball gently and push the plunger to eliminate
diesel fuel from the pressure chamber.

CAUTION

The steel ball spring is extremely weak, so the lash
adjuster's functionality may be lost if the air bleed wire is
pushed in hard.
5. Place the lash adjuster in container B. Then, gently push

down the internal steel ball using a wire [0.5 mm (0.020
inch) in diameter] or special tool MD998442 and move the
plunger through five to ten strokes until it slides smoothly.
This operation will clean the lash adjuster's pressure
chamber.

6. Remove the lash adjuster from the container. Then, push

down the steel ball gently and push the plunger to eliminate
diesel fuel from the pressure chamber.

AKX00626

DIESEL
FUEL

AB

AK202680

AK202680

DIESEL FUEL

MD998442

AE

AK202681

DIESEL FUEL

MD998442

AD

AK202680

AK202680

DIESEL FUEL

MD998442

AE

AK202681

DIESEL FUEL

MD998442

AD

ROCKER ARMS AND CAMSHAFT

TSB Revision

ENGINE OVERHAUL <3.8L ENGINE>

11D-29

CAUTION

Do not use container C for cleaning. If cleaning is per-
formed in container C, foreign matter could enter the pres-
sure chamber when the chamber is filled with diesel fuel.

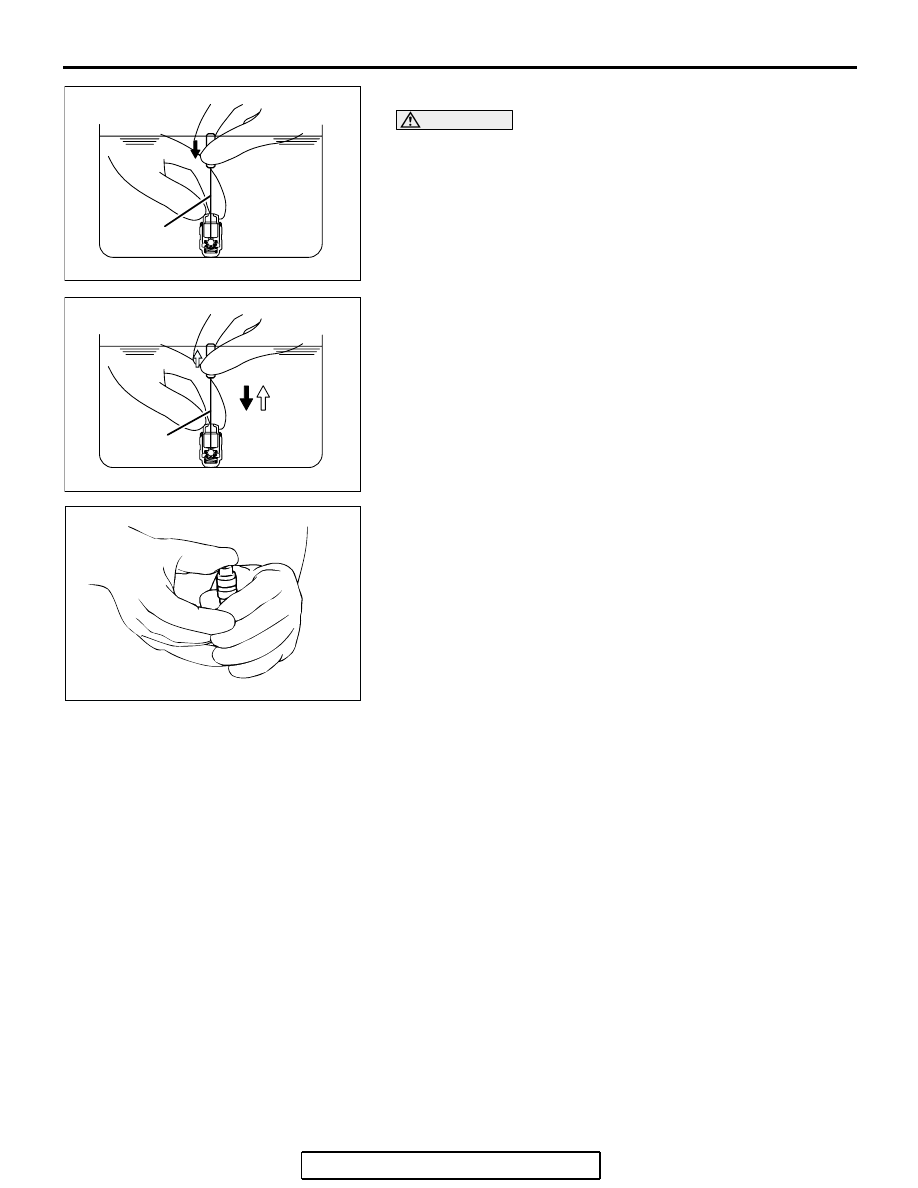

7. Place the lash adjuster in container C. Then, gently push

down the internal steel ball using a wire [0.5 mm (0.020
inch) in diameter] or special tool MD998442.

8. Stand the lash adjuster with its plunger at the top, then push

the plunger downward firmly until it moves through its
greatest possible stroke. Return the plunger slowly, then
release the steel ball and allow the pressure chamber to fill
with diesel fuel.

9. Remove the lash adjuster from the container, then stand the

lash adjuster with its plunger at the top. Push the plunger
firmly and check that it does not move.
NOTE: If the lash adjuster contracts or moves, repeat steps
7 through 9 again to fill it with diesel fuel completely.
Replace the lash adjuster if it still contracts or moves after
performing these steps.

10.Stand the lash adjuster upright to prevent diesel fuel from

spilling out. Do not allow the lash adjuster to become
contaminated by dirt or other foreign matter. Install the lash
adjuster onto the engine as soon as possible.

AK202682

DIESEL FUEL

MD998442

AD

AK202683

DIESEL FUEL

MD998442

AD

AKX00627
