Mitsubishi Galant 9G. Manual - part 608





CYLINDER HEAD AND VALVES

TSB Revision

ENGINE OVERHAUL <3.8L ENGINE>

11D-30

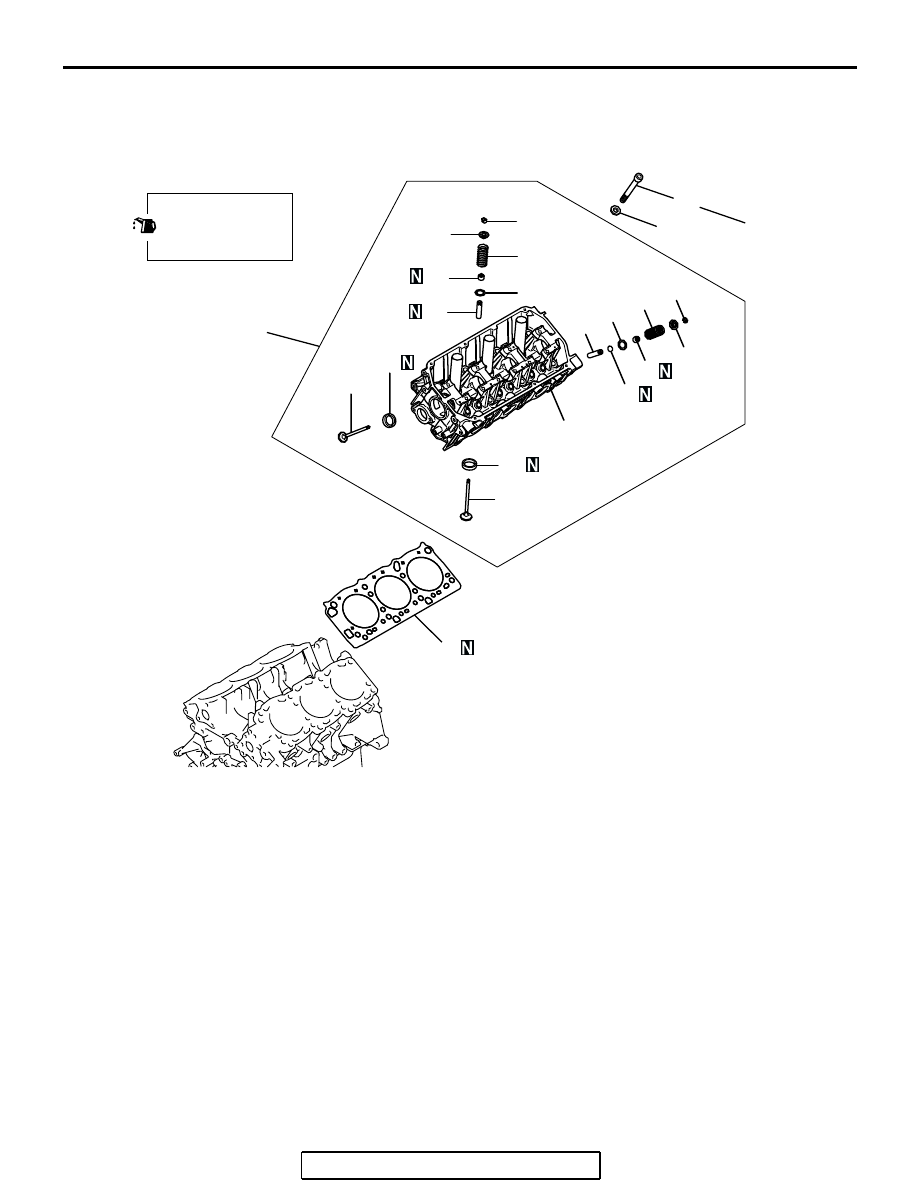

CYLINDER HEAD AND VALVES

REMOVAL AND INSTALLATION

M1113006900527

Required Special Tools:

• MB991999: Valve Stem Seal Installer

• MD998051: Cylinder Head Bolt Wrench

• MD998735: Valve Spring Compressor

• MD998772: Valve Spring Compressor

AK304296AB

4

12

21

5

6

7

13

14

17

9

11

16

19

10

18

22

20

8

15

108 ± 5 N·m
80 ± 4 ft-lb

    0 N·m
    0 in-lb

108 ± 5 N·m
80 ± 4 ft-lb

1

2

APPLY ENGINE OIL
TO ALL MOVING
PARTS BEFORE
INSTALLATION.

3

REMOVAL STEPS

<<A>>>D<<

1. CYLINDER HEAD BOLT
2. WASHER
3. CYLINDER HEAD ASSEMBLY
4. CYLINDER HEAD GASKET

<<B>>>C<<

5. RETAINER LOCK
6. VALVE SPRING RETAINER

>>B<<

7. VALVE SPRING
8. INLET VALVE

<<B>>>C<<

9. RETAINER LOCK
10. VALVE SPRING RETAINER

>>B<<

11. VALVE SPRING

12. EXHAUST VALVE

>>A<<

13. VALVE STEM SEAL
14. VALVE SPRING SEAT

>>A<<

15. VALVE STEM SEAL
16. VALVE SPRING SEAT
17. INLET VALVE GUIDE
18. SNAP RING
19. EXHAUST VALVE GUIDE
20. INLET VALVE SEAT
21. EXHAUST VALVE SEAT
22. CYLINDER HEAD

REMOVAL STEPS (Continued)

CYLINDER HEAD AND VALVES

TSB Revision

ENGINE OVERHAUL <3.8L ENGINE>

11D-31

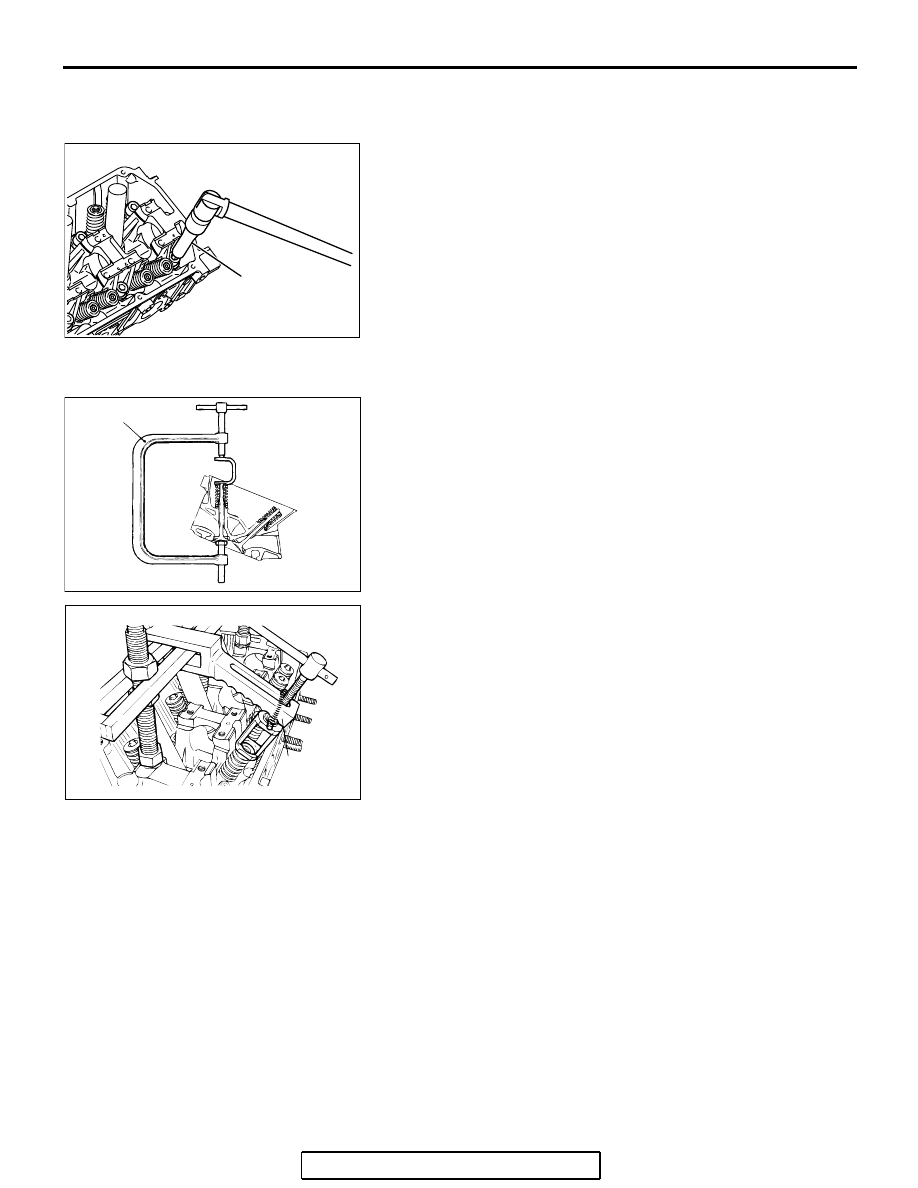

REMOVAL SERVICE POINTS

.

<<A>> CYLINDER HEAD BOLT REMOVAL

Use special tool MD998051 to loosen the cylinder head bolt.

.

<<B>> RETAINER LOCK REMOVAL

1. Using special tool MD998735 or MD998772, compress the

spring.

2. Remove the retainer locks.
NOTE: Tag removed valves, springs and other components,
noting their cylinder numbers and locations to facilitate reas-
sembly. Store these components safely.

AK302682AB

MD998051

AK100166

MD998735

AB

AKX00617

MD998772

AB

CYLINDER HEAD AND VALVES

TSB Revision

ENGINE OVERHAUL <3.8L ENGINE>

11D-32

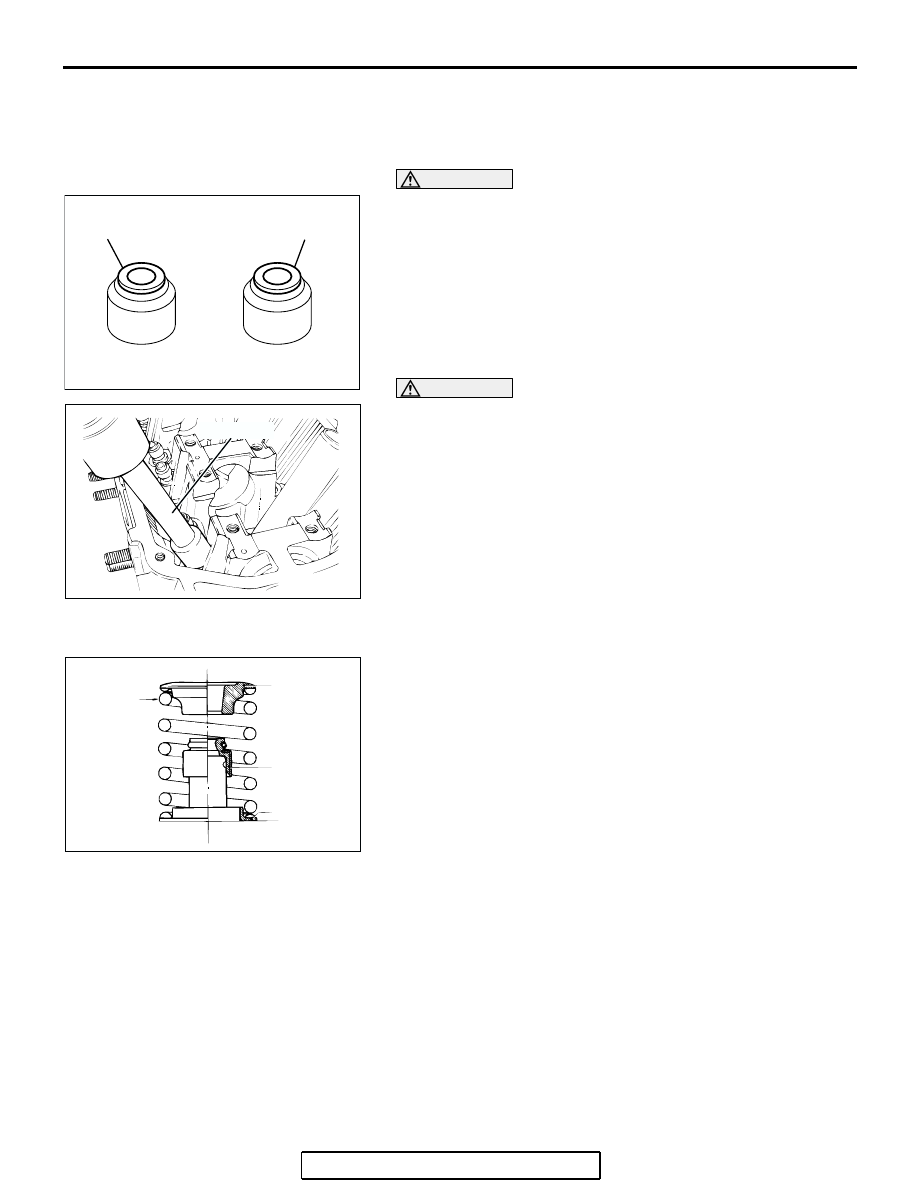

INSTALLATION SERVICE POINTS

.

>>A<< VALVE STEM SEAL INSTALLATION

1. Install the valve spring seat.

CAUTION

• Valve stem seals for intake valves and for exhaust

valves are different. Be sure to install the correct ones.

• Valve stem seal identification color

Intake: GRAY
Exhaust: GRAY GREEN

CAUTION

Always use the special tool to install the valve stem seal.
Improperly installed valve stem seals may leak oil.
2. Using special tool MB991999, install a new stem seal to the

valve guide.

.

>>B<< VALVE SPRING INSTALLATION

Install the valve spring end with its identification color toward
the spring retainer.

.

AK303630

EXHAUST

RUBBER COLOR:
GRAY

RUBBER COLOR:
GRAY GREEN

INTAKE

AB

AKX00618AC

MB991999

AKX00718

SPRING SEAT

SPRING
RETAINER

IDENTIFI-
CATION
COLOR

STEM SEAL

AB

CYLINDER HEAD AND VALVES

TSB Revision

ENGINE OVERHAUL <3.8L ENGINE>

11D-33

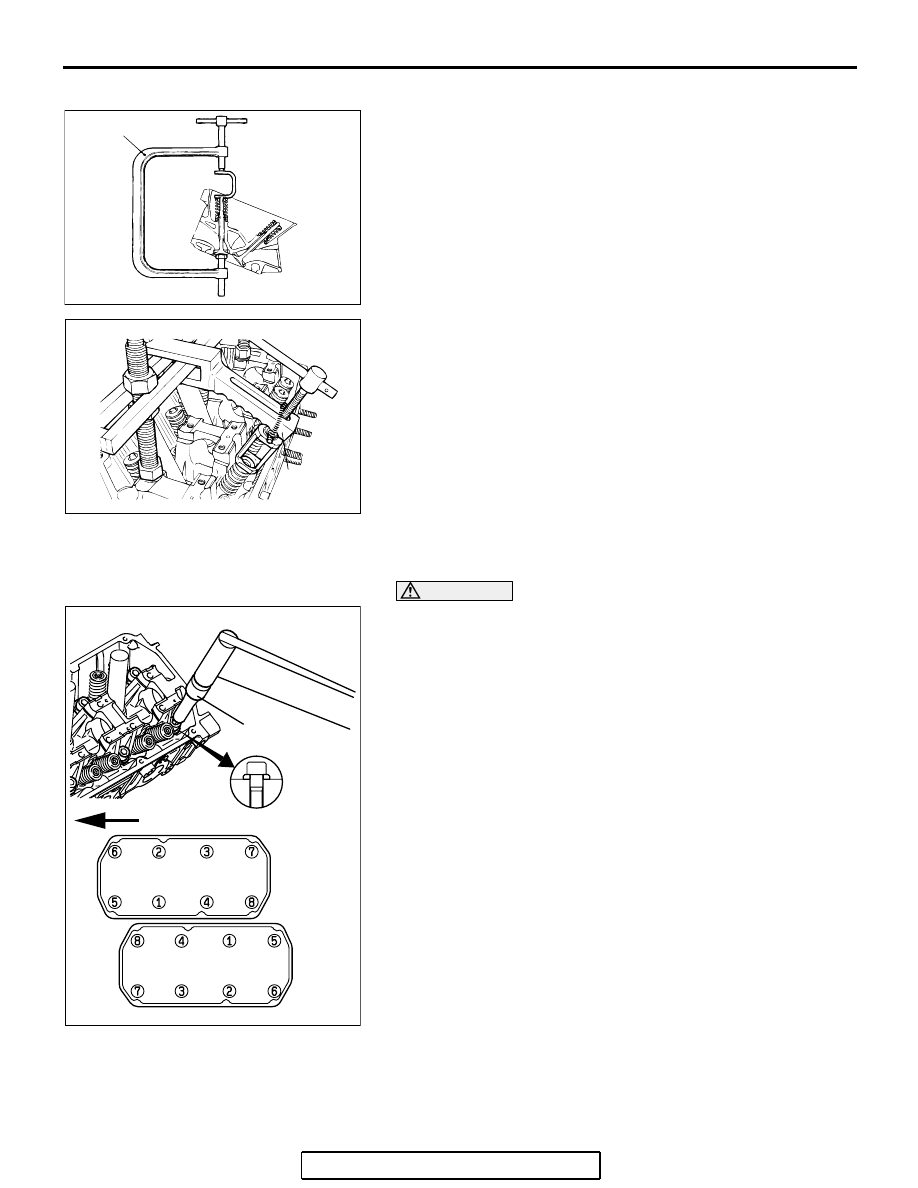

>>C<< RETAINER LOCK INSTALLATION

Using special tool MD998735 or MD998772, compress the
valve spring and insert the retainer lock into position.
NOTE: The valve spring, if excessively compressed, causes
the bottom end of retainer to damage the stem seal.

.

>>D<< CYLINDER HEAD BOLT INSTALLATION

CAUTION

Attach the head bolt washer in the direction shown in the
figure.
1. Tighten the bolts in the illustrated sequence two or three

steps.

Tightening torque: 108

± 5 Nm (80 ± 4 ft-lb)

2. Back off the bolts once and tighten them again to the

specified torque in step1.

AK100166

MD998735

AB

AKX00617

MD998772

AB

AKX01452AB

FRONT

MD998051

HEAD
BOLT
WASHER

RIGHT
BANK

LEFT
BANK
