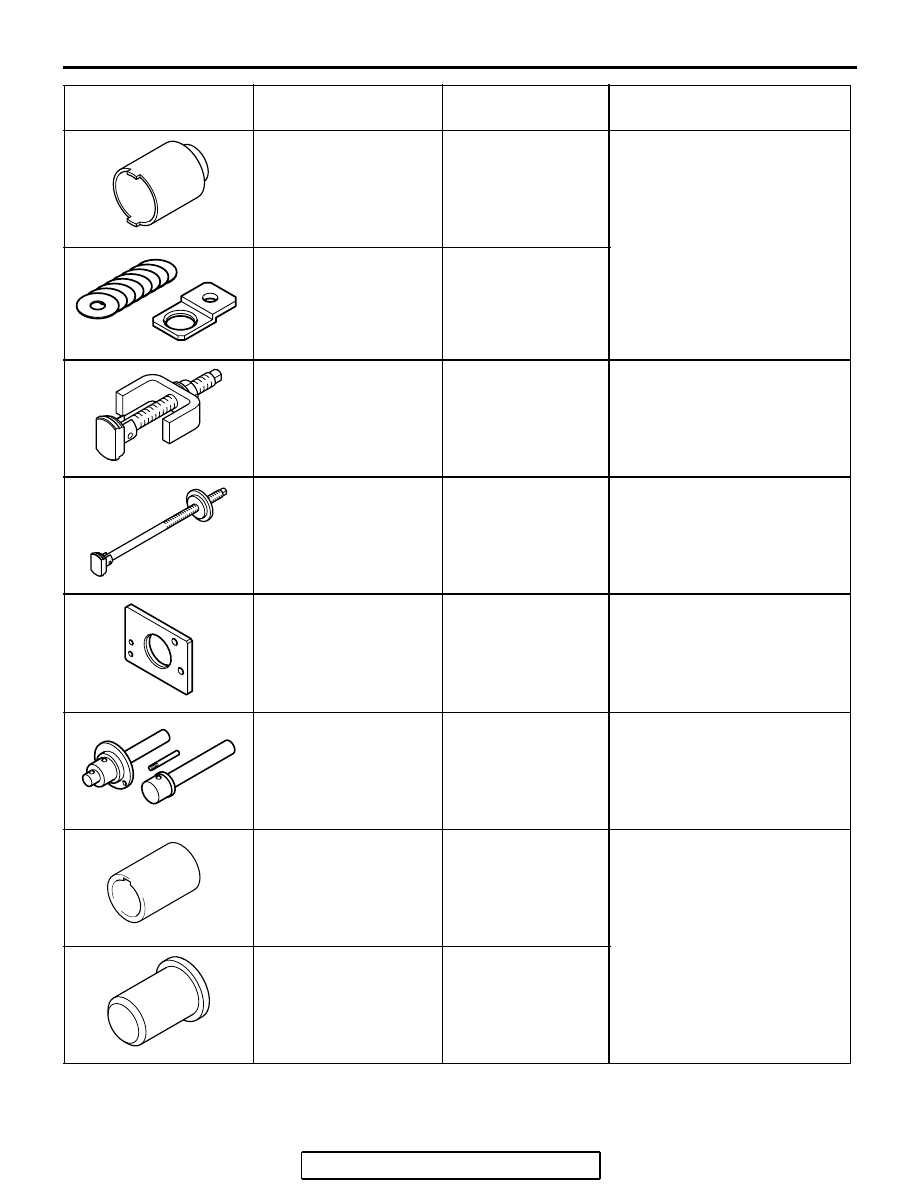

SPECIAL TOOLS

TSB Revision

ENGINE OVERHAUL <2.4L ENGINE>

11B-4

MD998162
Plug wrench

MD998162-01

Removal and installation of
front case cap plug

MD998783
Plug wrench retainer

General service tool

MD998371
Silent shaft bearing
puller

MD998371-01

Removal of counterbalance
shaft front bearing

MD998372
Silent shaft bearing
puller

MD998372-01

Removal of counterbalance
shaft rear bearing

MB991603
Bearing installer stopper

General service tool

Removal and installation of rear
bearing

MD998705
Silent shaft bearing
installer

MD998373-01 Use
with MB990938-01

Installation of counterbalance
shaft bearing

MD998285
Crankshaft front oil seal
guide

MD998285-01

Installation of crankshaft front
oil seal

MD998375
Crankshaft front oil seal
installer

MD998375-01

TOOL

TOOL NUMBER AND
NAME

SUPERSESSION

APPLICATION

D998285

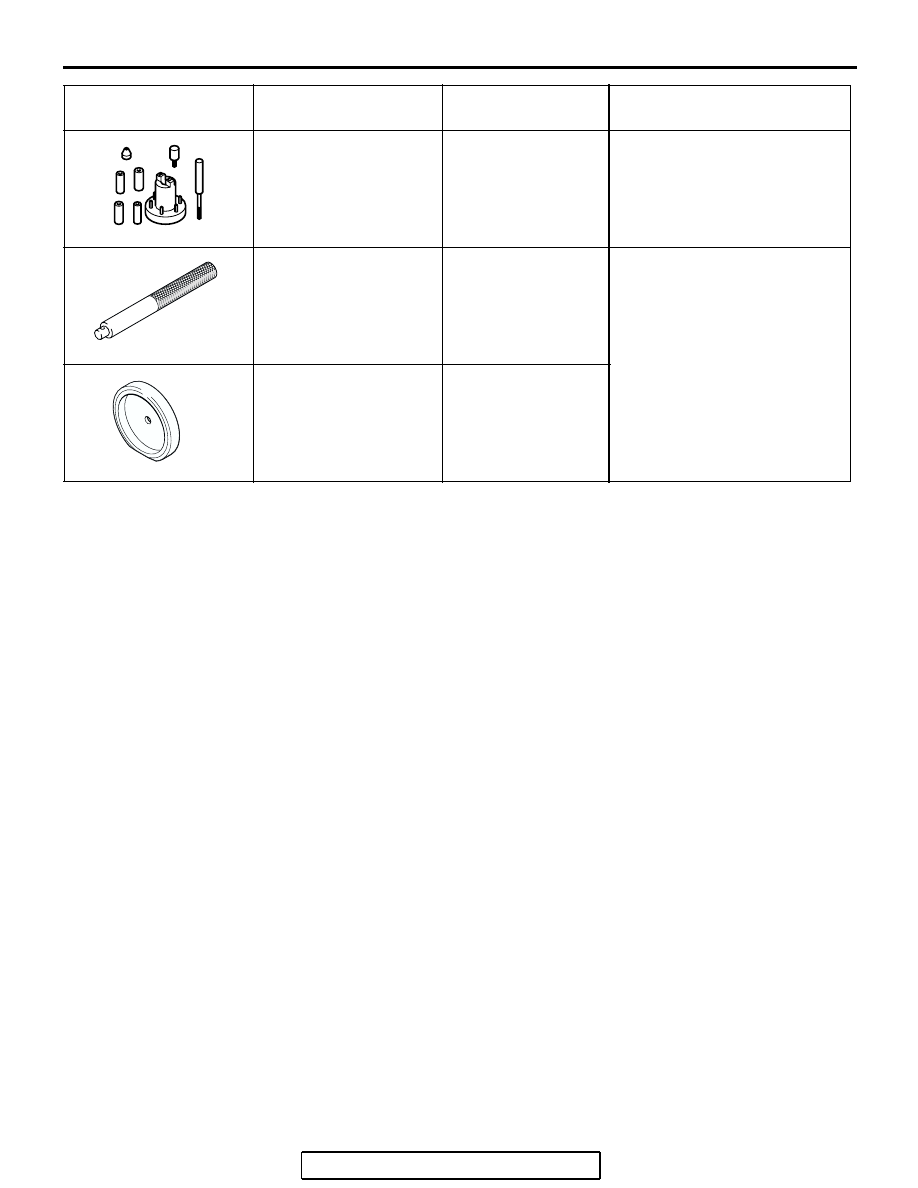

SPECIAL TOOLS

TSB Revision

ENGINE OVERHAUL <2.4L ENGINE>

11B-5

MD998780
Piston pin setting tool

MIT216941

Removal and installation of
piston pin

MB990938
Handle

MB990938-01

Installation of crankshaft rear oil
seal

MD998776
Crankshaft rear oil seal
installer

MD998376-01

TOOL

TOOL NUMBER AND
NAME

SUPERSESSION

APPLICATION

D998776

GENERATOR AND IGNITION SYSTEM

TSB Revision

ENGINE OVERHAUL <2.4L ENGINE>

11B-6

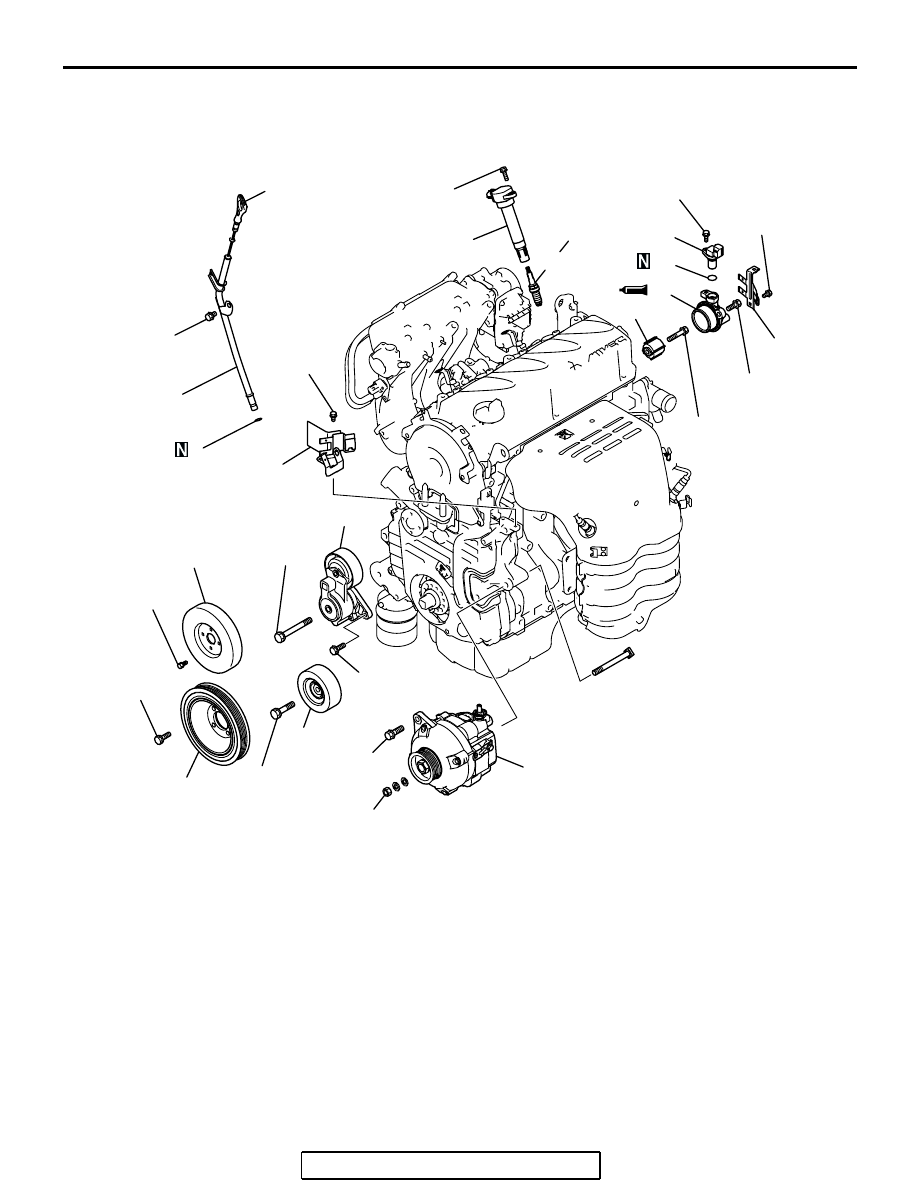

GENERATOR AND IGNITION SYSTEM

REMOVAL AND INSTALLATION

M1113001000518

Required Special Tools:

• MB991398: Spark Plug Wrench

• MD998781: Flywheel Stopper

AK303211AB

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

10 ± 1 N·m
89 ± 8 in-lb

14 ± 1 N·m
124 ± 8 in-lb

25 ± 4 N·m
19 ±2 ft-lb

13 ± 1 N·m
115 ± 8 in-lb

44 ± 10 N·m
33 ± 6 ft-lb

25 ± 5 N·m
19 ± 2 ft-lb

8.5 ± 0.5 N·m
75 ± 4 in-lb

22 ± 4 N·m
17 ± 2 ft-lb

22 ± 4 N·m
17 ± 2 ft-lb

49 ± 9 N·m
36 ± 6 ft-lb

79 ± 5 N·m
58 ± 3 ft-lb

44 ± 10 N·m
33 ± 6 ft-lb

10 ± 1 N·m
89 ± 8 in-lb

10 ± 1 N·m
89 ± 8 in-lb

8.8 ± 1.0 N·m
78 ± 8 in-lb

REMOVAL STEPS

1. OIL DIPSTICK
2. OIL DIPSTICK GUIDE
3. O-RING
4. AUTO TENSIONER
5. CRANKSHAFT PULLEY
6. WATER PUMP  PULLEY
7. IDLER PULLEY
8. CONNECTOR BRACKET
9. GENERATOR

10. IGNITION COIL

<<A>> >>C<<

11. SPARK PLUG
12. CONNECTOR BRACKET
13. CAMSHAFT POSITION SENSOR
14. O-RING

>>B<<

15. CAMSHAFT POSITION SENSOR

SUPPORT

<<B>> >>A<<

16. CAMSHAFT POSITION SENSING

CYLINDER

REMOVAL STEPS  (Continued)

GENERATOR AND IGNITION SYSTEM

TSB Revision

ENGINE OVERHAUL <2.4L ENGINE>

11B-7

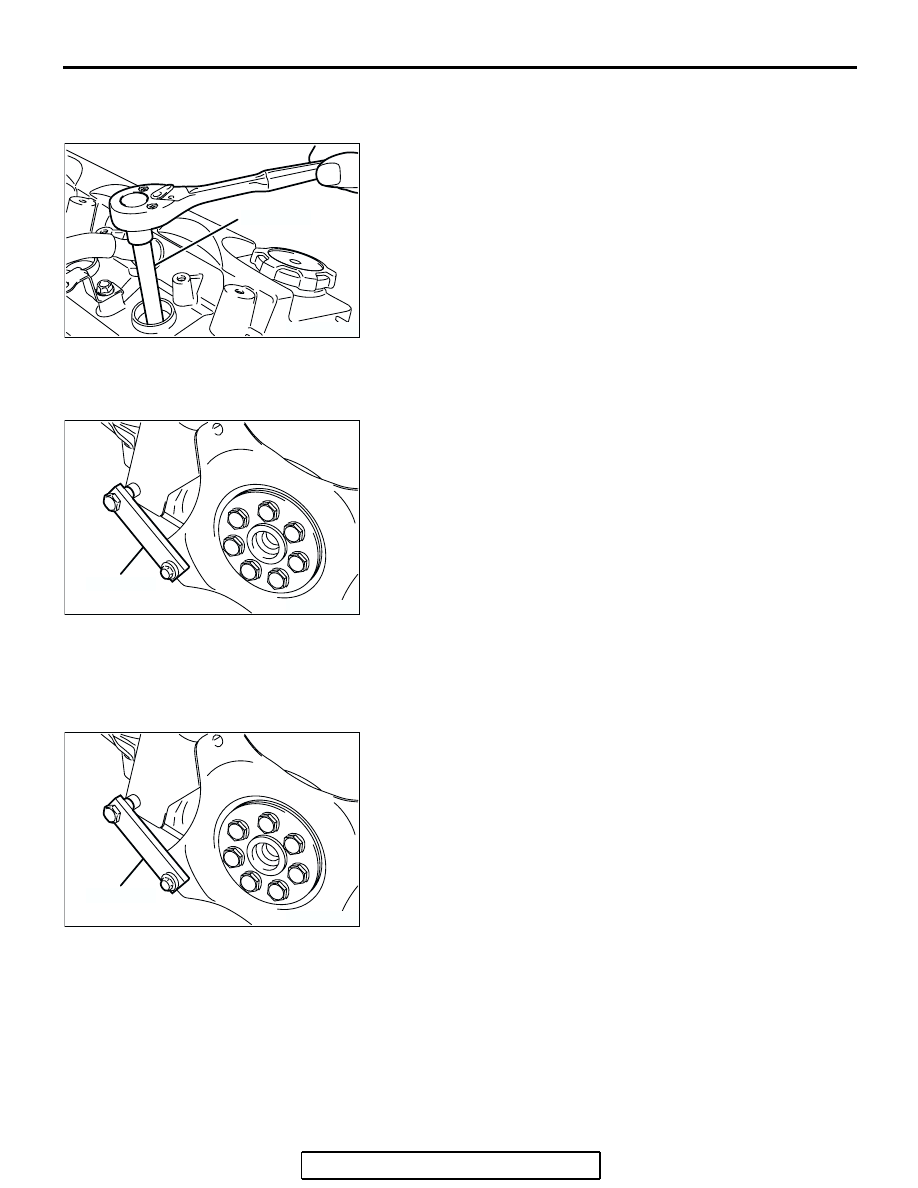

REMOVAL SERVICE POINT

.

<<A>> SPARK PLUG REMOVAL

Using special tool MB991398, remove the spark plug.

.

<<B>> CAMSHAFT POSITION SENSING
CYLINDER REMOVAL

1. Using special tool MD998781, hold the drive plate.
2. Remove the camshaft position sensing cylinder.

INSTALLATION SERVICE POINT

.

>>A<< CAMSHAFT POSITION SENSING CYLIN-
DER INSTALLATION

1. Using special tool MD998781, hold the drive plate.
2. Tighten the camshaft position sensing cylinder to the

specified torque.

Tightening torque: 22

± 4 N⋅m (17 ± 2 ft-lb)

.

AK300130AC

MB991398

AK300135

MD998781

AC

AK300135

MD998781

AC
