TRANSAXLE ASSEMBLY

TSB Revision

AUTOMATIC TRANSAXLE

23A-402

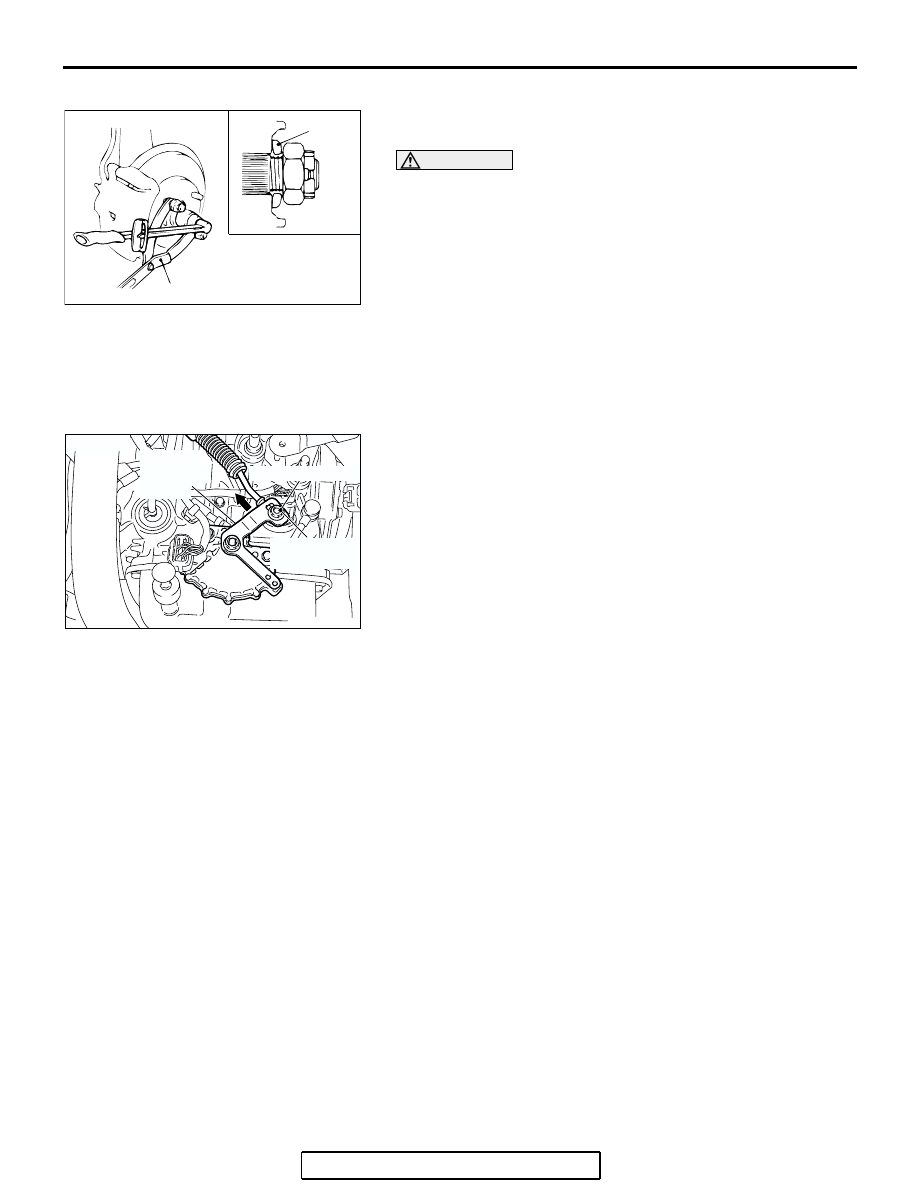

>>D<< DRIVE SHAFT NUT INSTALLATION

1. Be sure to install the drive shaft washer in the specified

direction.

CAUTION

Before securely tightening the drive shaft nuts, make sure
there is no load on the wheel bearings. Otherwise the
wheel bearing will be damaged.
2. Using special tool MB990767, tighten the drive shaft nut to

the specified torque.

Tightening torque: 226

± 29 Nm (167 ± 21 ft-lb)

.

>>E<< TRANSAXLE CONTROL
CABLE/ADJUSTING NUT  INSTALLATION

1. Place the selector lever and manual control lever in the “N”

position.

2. Place the cable stud into the manual control lever slot and

install the nut loosely. Gently push the transaxle control
cable into the manual control lever slot until the cable is taut.
Tighten the nut to the specified torque.

Tightening torque: 12

± 2 Nm (107 ± 17 in-lb)

AC210244AB

MB990767

WASHER

AC305881AD

12 ± 2 N·m
107 ± 17 in-lb

ADJUSTING NUT

MANUAL
CONTROL
LEVER

<F4A5A>

TRANSMISSION FLUID COOLER, HOSE AND PIPE

TSB Revision

AUTOMATIC TRANSAXLE

23A-403

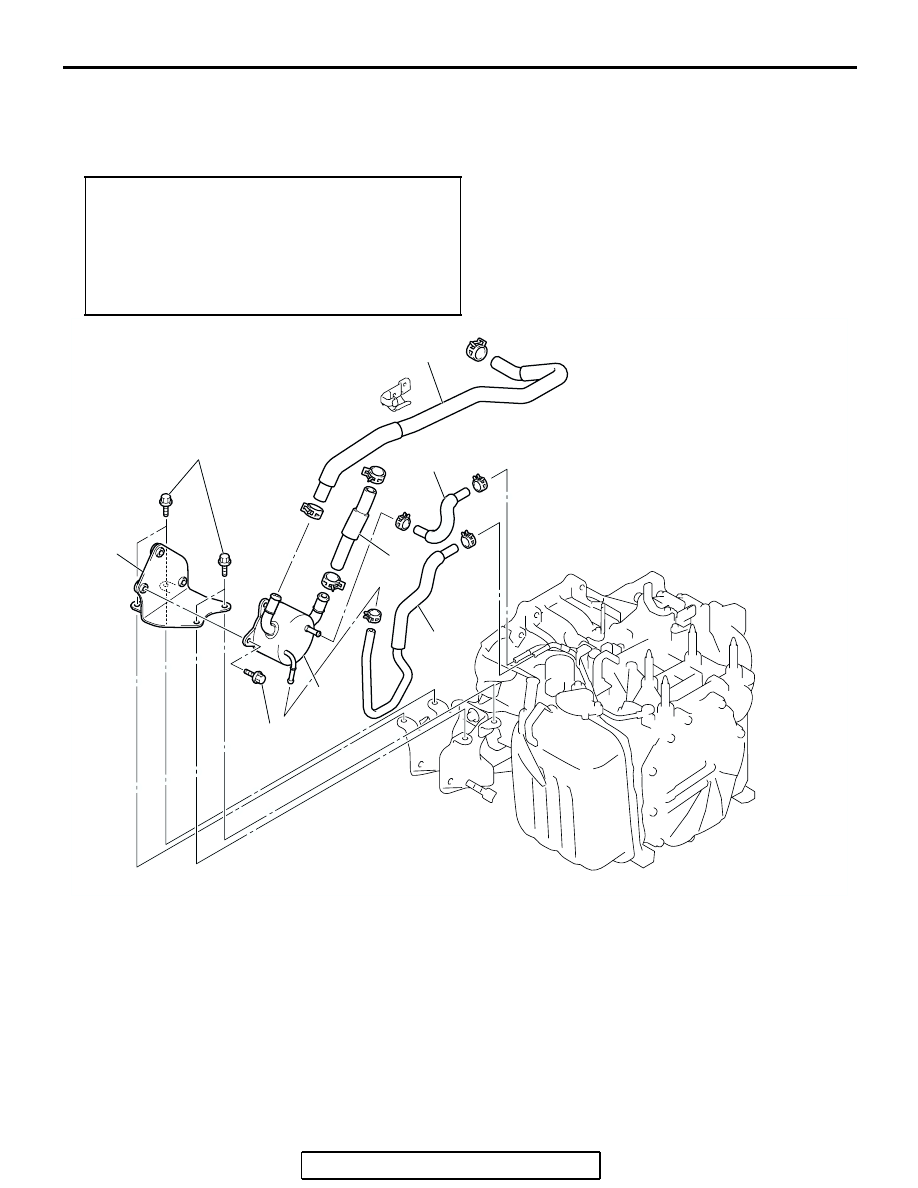

TRANSMISSION FLUID COOLER, HOSE AND PIPE

REMOVAL AND INSTALLATION

M1231021900044

<F4A4B>

Pre-removal and Post-installation Operation
• Engine Coolant Draining and Supplying (Refer to GROUP

00

− Maintenance Service

P.00-56

.)

• Transmission Fluid Draining and Supplying (Refer to

GROUP 00, Maintenance Service

− Automatic Transmis-

sion Fluid

P.00-53

.)

• Air Cleaner Intake Duct Removal and Installation (Refer to

GROUP 15, Air Cleaner

P.15-4

.)

AC306185AB

23 ± 3 N·m
17 ± 2 ft-lb

23 ± 3 N·m
17 ± 2 ft-lb

1

2

3

4

6

5

REMOVAL STEPS

<<A>>

1.

TRANSMISSION FLUID COOLER
RETURN HOSE

<<A>>

2.

TRANSMISSION FLUID COOLER
FEED HOSE

<<A>>

3.

WATER COOLER FEED HOSE

<<A>>

4.

WATER COOLER RETURN HOSE

ATF WARMER (TRANSMISSION
FLUID COOLER) AND ATF
WARMER (TRANSMISSION
FLUID COOLER) BRACKET

5.

ATF WARMER (TRANSMISSION
FLUID COOLER) BRACKET

<<A>>

6.

ATF WARMER (TRANSMISSION
FLUID COOLER)

REMOVAL STEPS (Continued)

TRANSMISSION FLUID COOLER, HOSE AND PIPE

TSB Revision

AUTOMATIC TRANSAXLE

23A-404

REMOVAL SERVICE POINTS

.

<<A>> TRANSMISSION FLUID COOLER RETURN

HOSE/TRANSMISSION FLUID COOLER FEED

HOSE/WATER COOLER FEED HOSE/WATER

COOLER RETURN HOSE/ATF WARMER (TRANS-

MISSION FLUID COOLER) REMOVAL

Drain the transmission fluid and engine coolant, which still
remained in the hoses and the ATF warmer (transmission fluid
cooler).

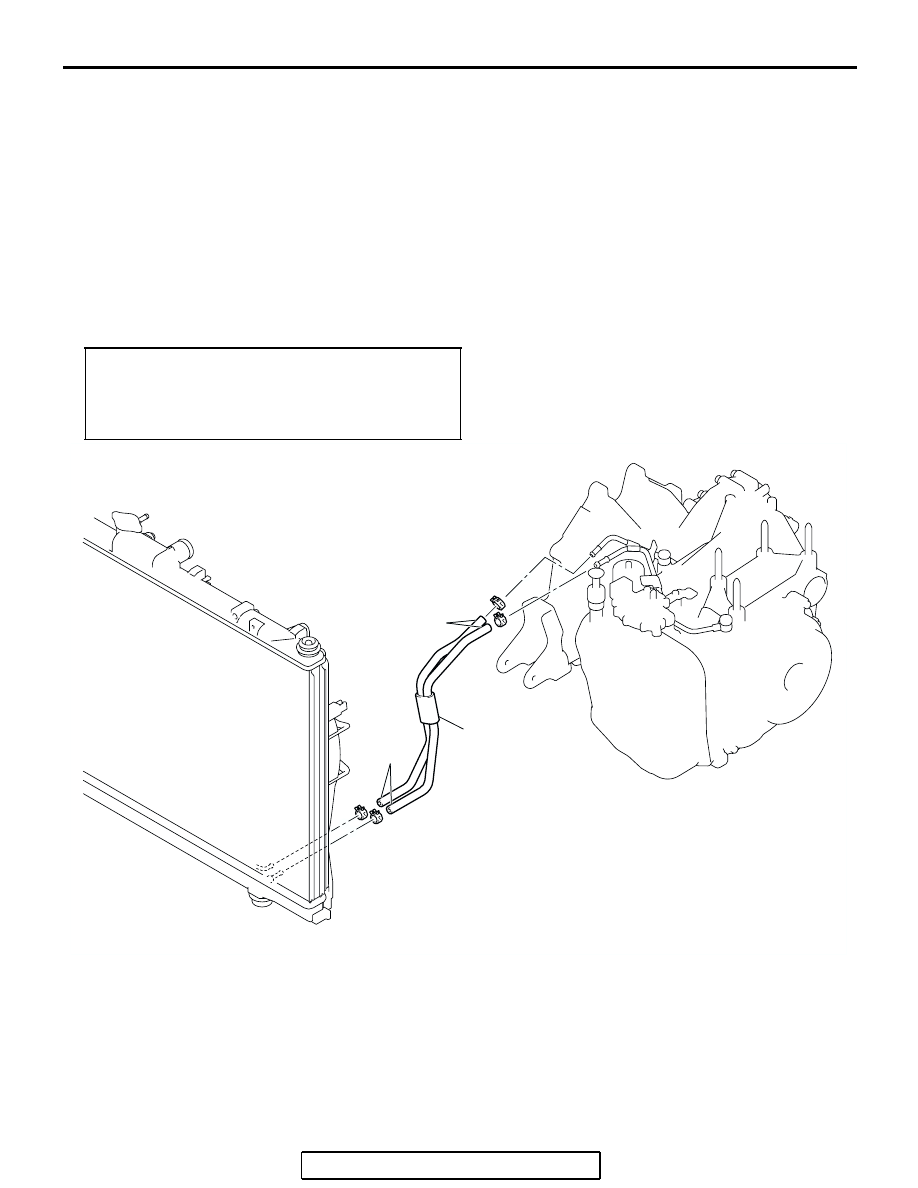

REMOVAL AND INSTALLATION

M1231021900033

<F4A5A>

Pre-removal and Post-installation Operation
• Transmission Fluid Draining and Supplying (Refer to

GROUP 00, Maintenance Service

− Automatic Transmis-

sion Fluid

P.00-53

.)

• Front Under Cover <LH> Removal and Installation

AC306186

1

2

3

AB

TRANSMISSION FLUID COOLER
LINE ASSEMBLY REMOVAL
STEPS

<<A>>

1.

HOSE ASSEMBLY CONNECTION
<RADIATOR SIDE>

AIR CLEANER ASSEMBLY
(REFER TO GROUP 15

P.15-4

).

<<A>>

2.

HOSE ASSEMBLY CONNECTION
<TRANSAXLE SIDE>

3.

HOSE ASSEMBLY

TRANSMISSION FLUID COOLER
LINE ASSEMBLY REMOVAL
STEPS (Continued)

SPECIFICATIONS

TSB Revision

AUTOMATIC TRANSAXLE

23A-405

REMOVAL SERVICE POINTS

.

<<A>> HOSE ASSEMBLY <RADIATOR
SIDE>/HOSE ASSEMBLY <TRANSAXLE SIDE>
REMOVAL

Drain the transmission fluid, which still remained in the hose
assembly and the transmission fluid cooler.

SPECIFICATIONS

FASTENER TIGHTENING SPECIFICATIONS

M1231012400245

ITEM

SPECIFICATION

Transmission range switch
Transmission range switch body mounting bolt

11

± 1 N⋅m (96 ± 8 in-lb)

Transaxle control
Adjusting nut

12

± 2 N⋅m (107 ± 17 in-lb)

Shift knob attaching screw

2.0

± 0.3 N⋅m (18 ± 2 in-lb)

Selector lever assembly attaching bolt

12

± 2 N⋅m (102 ± 22 in-lb)

Shift lock cable unit fixing bolt

5.0

± 1.0 N⋅m (44 ± 9 in-lb)

Transaxle control cable attaching bolt

12

± 2 N⋅m (102 ± 22 in-lb)

Key interlock and shift lock mechanisms
Shift lock cable unit fixing bolt

5.0

± 1.0 N⋅m (44 ± 9 in-lb)

Transaxle assembly
Adjusting nut

12

± 2 N⋅m (107 ± 17 in-lb)

ATF warmer (transmission fluid cooler) bracket attaching bolt <F4A4B>

23

± 3 N⋅m (17 ± 2 ft-lb)

Bell housing cover attaching bolt (engine side) <F4A4B>

9.0

± 1.0 N⋅m (80 ± 9 in-lb)

Bell housing cover attaching bolt (transaxle side) <F4A4B>

26

± 5 N⋅m (19 ± 4 ft-lb)

Center member attaching bolt

83

± 12 N⋅m (61 ± 9 ft-lb)

Cover attaching bolt <F4A5A>

11

± 0.5 N⋅m (93 ± 4 in-lb)

Drive plate bolt

49

± 3 N⋅m (36 ± 2 ft-lb)

Drive shaft and inner shaft assembly bolt (RH) <F4A5A>

41

± 4 N⋅m (30 ± 3 ft-lb)

Drive shaft nut

226

± 29 N⋅m (167 ± 21 ft-lb)

Engine oil pan and transaxle coupling bolt <F4A5A>

35

± 6 N⋅m (26 ± 4 ft-lb)

Front roll stopper bracket retainer nut

58

± 7 N⋅m (43 ± 5 ft-lb)

Rear roll stopper bracket attaching bolt

90

± 10 N⋅m (67 ± 7 ft-lb)

Rear roll stopper bracket retainer nut

58

± 7 N⋅m (43 ± 5 ft-lb)

Self-locking nut (lower arm ball joint connection)

65

± 6 N⋅m (48 ± 4 ft-lb)

Self-locking nut (tie rod end connection)

29

± 4 N⋅m (21 ± 3 ft-lb)

Stabilizer link to strut connecting nut

48

± 7 N⋅m (36 ± 5 ft-lb)

Starter motor attaching bolt

30

± 3 N⋅m (23 ± 2 ft-lb)

Starter terminal nut

12

± 2 N⋅m (102 ± 22 in-lb)

Transaxle assembly upper part coupling bolt <F4A4B>

48

± 6 N⋅m (36 ± 4 ft-lb)
