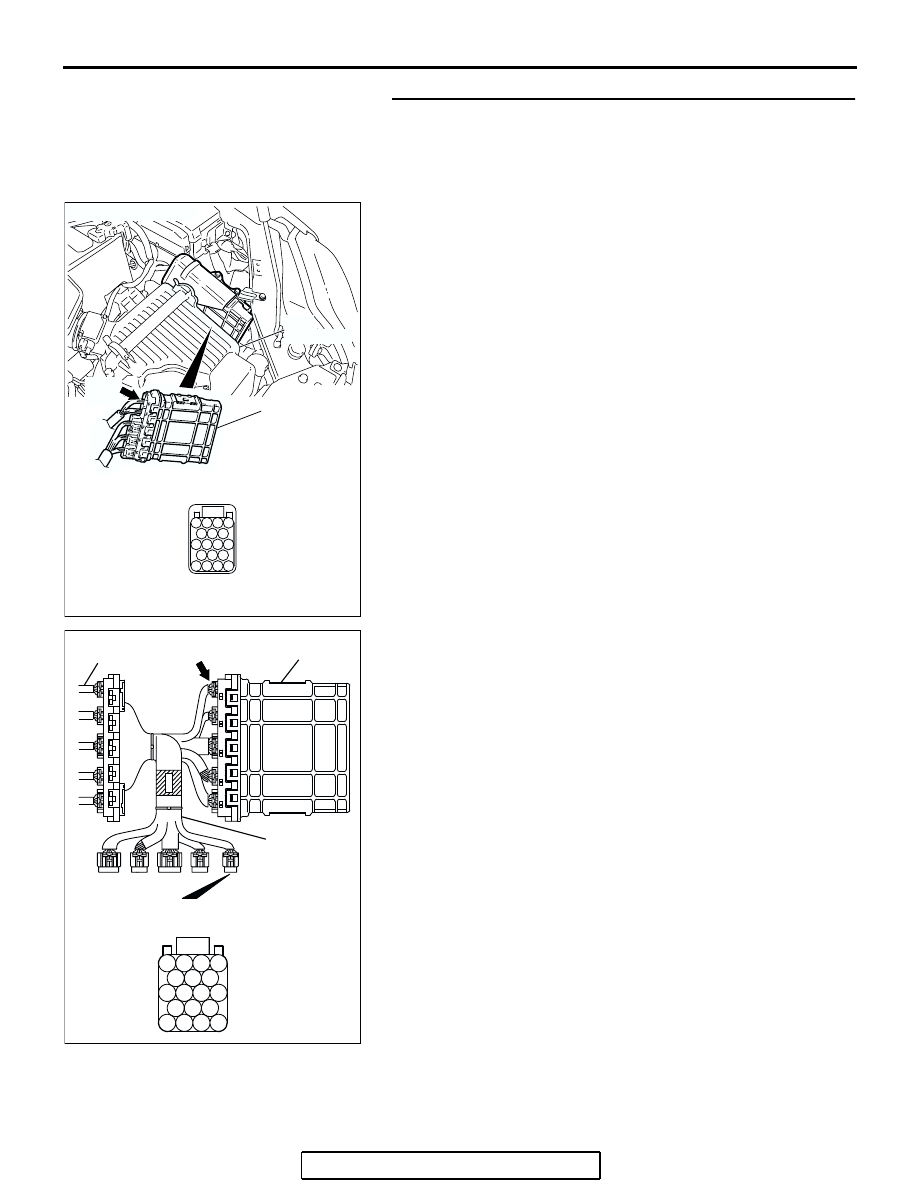

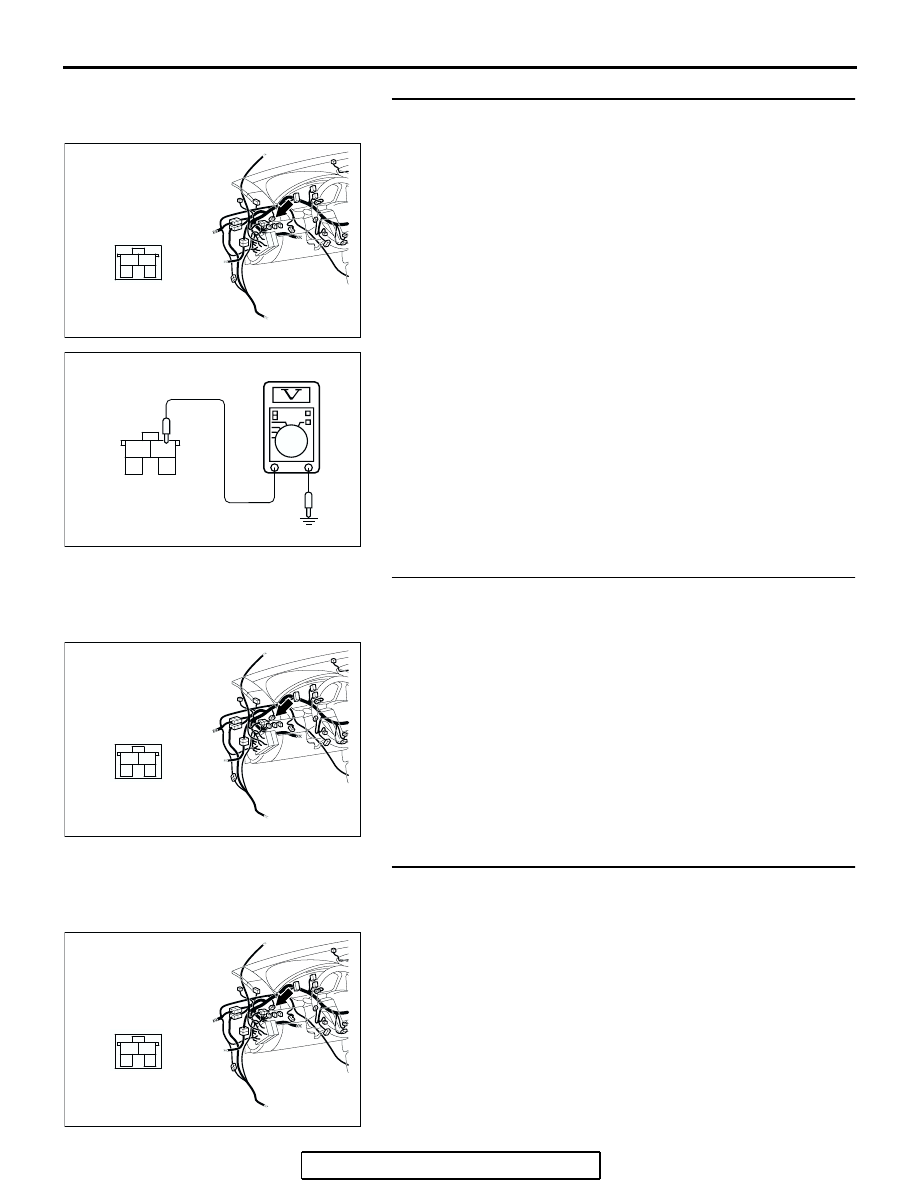

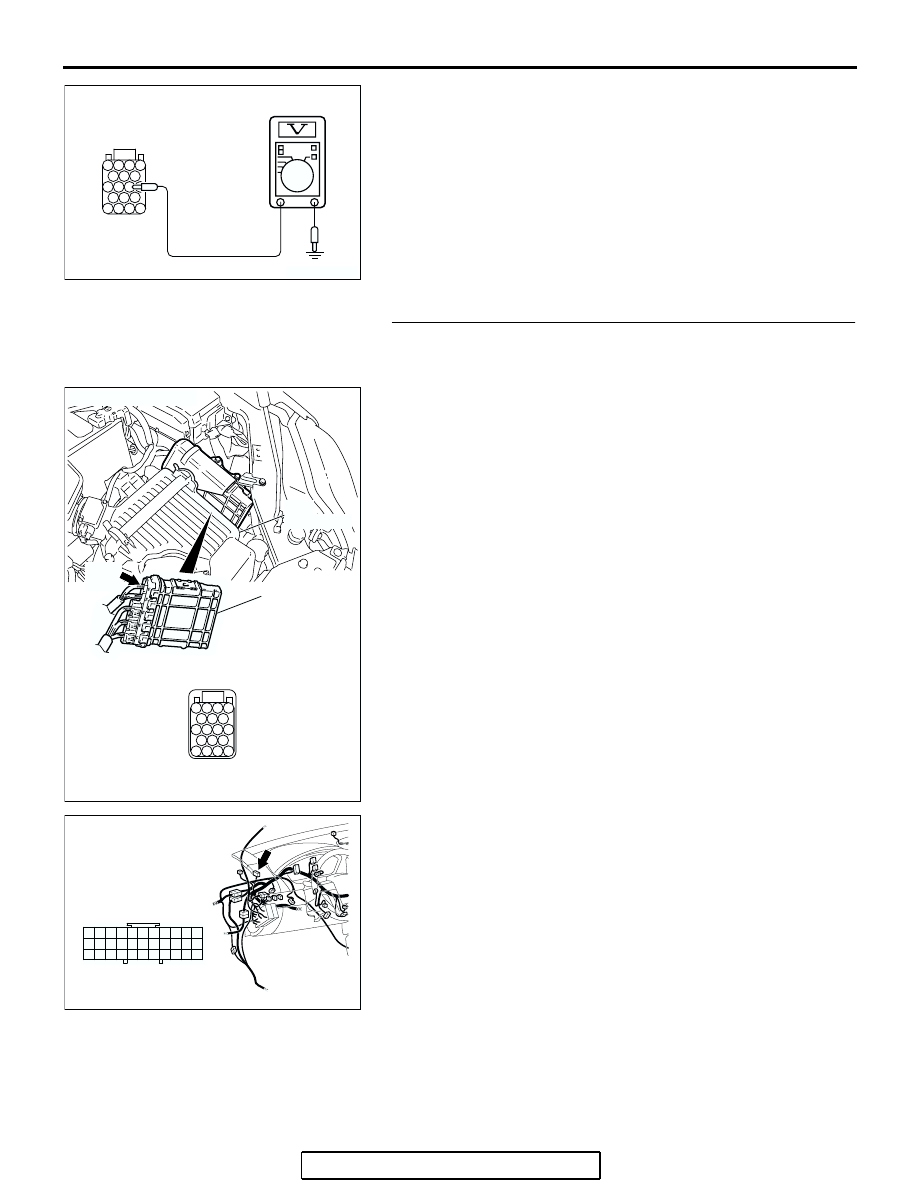

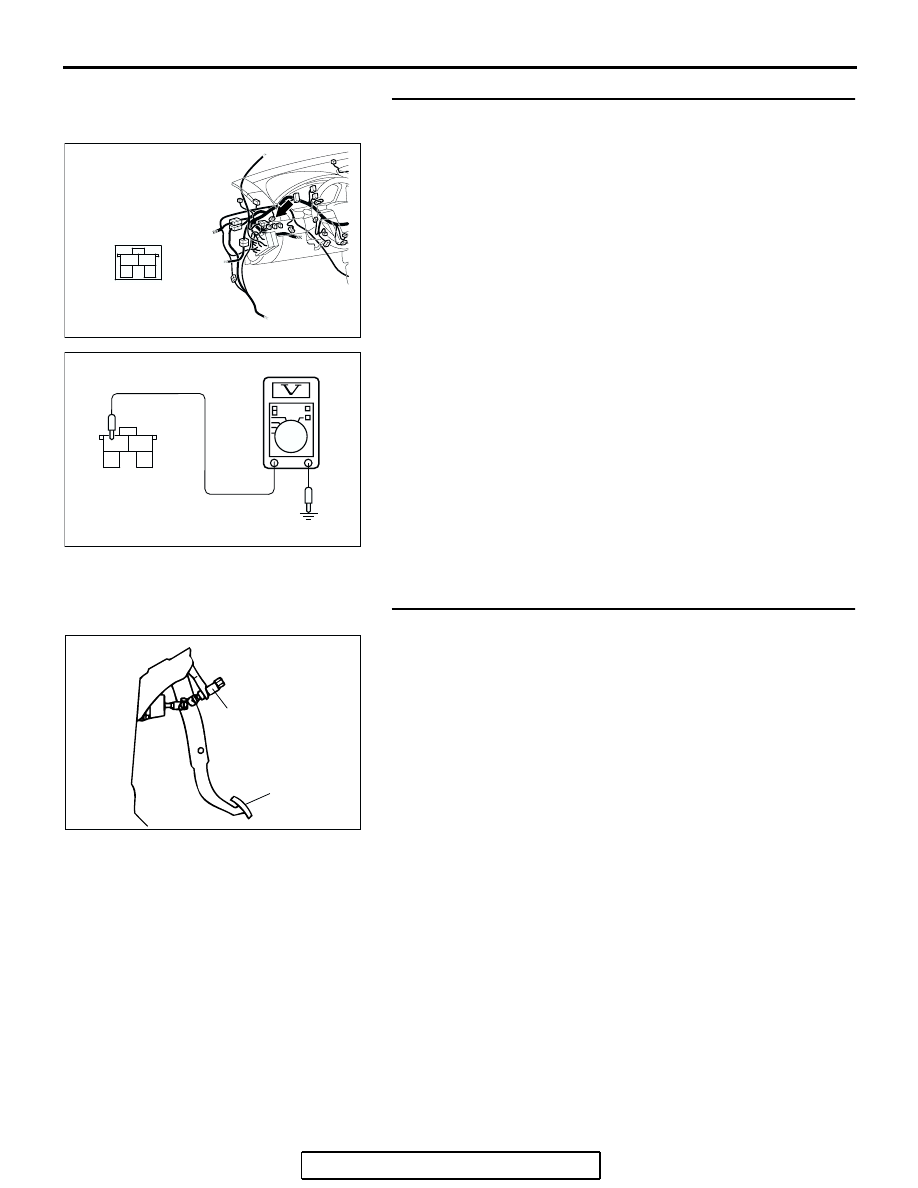

AUTOMATIC TRANSAXLE DIAGNOSIS TSB Revision AUTOMATIC TRANSAXLE 23A-114 STEP 4. Measure the stoplight switch power supply (3) Measure the voltage between terminal 2 and ground by backprobing. • The voltage should measure battery positive voltage. Q: Is the measured voltage battery positive voltage? YES : Go to Step 7. STEP 5. Check stoplight switch connector C-30 for loose, YES : Go to Step 6. GROUP 00E, Harness Connector Inspection STEP 6. Check the harness for damage between stoplight YES : Go to Step 7. AC305231 CONNECTOR: C-30 AU 2 1 3 4 2 1 3 4 AC201487 C-30 HARNESS AG AC305231 CONNECTOR: C-30 AU 2 1 3 4 AC305231 CONNECTOR: C-30 AU 2 1 3 4 |
