Mitsubishi Galant 9G. Manual - part 508





AUTOMATIC TRANSAXLE DIAGNOSIS

TSB Revision

AUTOMATIC TRANSAXLE

23A-110

STEP 19. Using scan tool MB991958, check data list item
23: Output Shaft Speed Sensor.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Connect scan tool MB991958 to the data link connector.
(2) Start the engine.
(3) Set scan tool MB991958 to data reading mode.

• Item 23: Output Shaft Speed Sensor.

• When driving at constant speed of 50 km/h (31

mph), the display should be "1,400

− 1,700 r/min"

(Gear range: 3rd gear).

(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the sensor operating properly?

YES : It can be assumed that this malfunction is intermittent.

Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points

− How to

Cope with Intermittent Malfunction

P.00-14

.

NO :  Replace the PCM.

AC305412

AB

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

AUTOMATIC TRANSAXLE DIAGNOSIS

TSB Revision

AUTOMATIC TRANSAXLE

23A-111

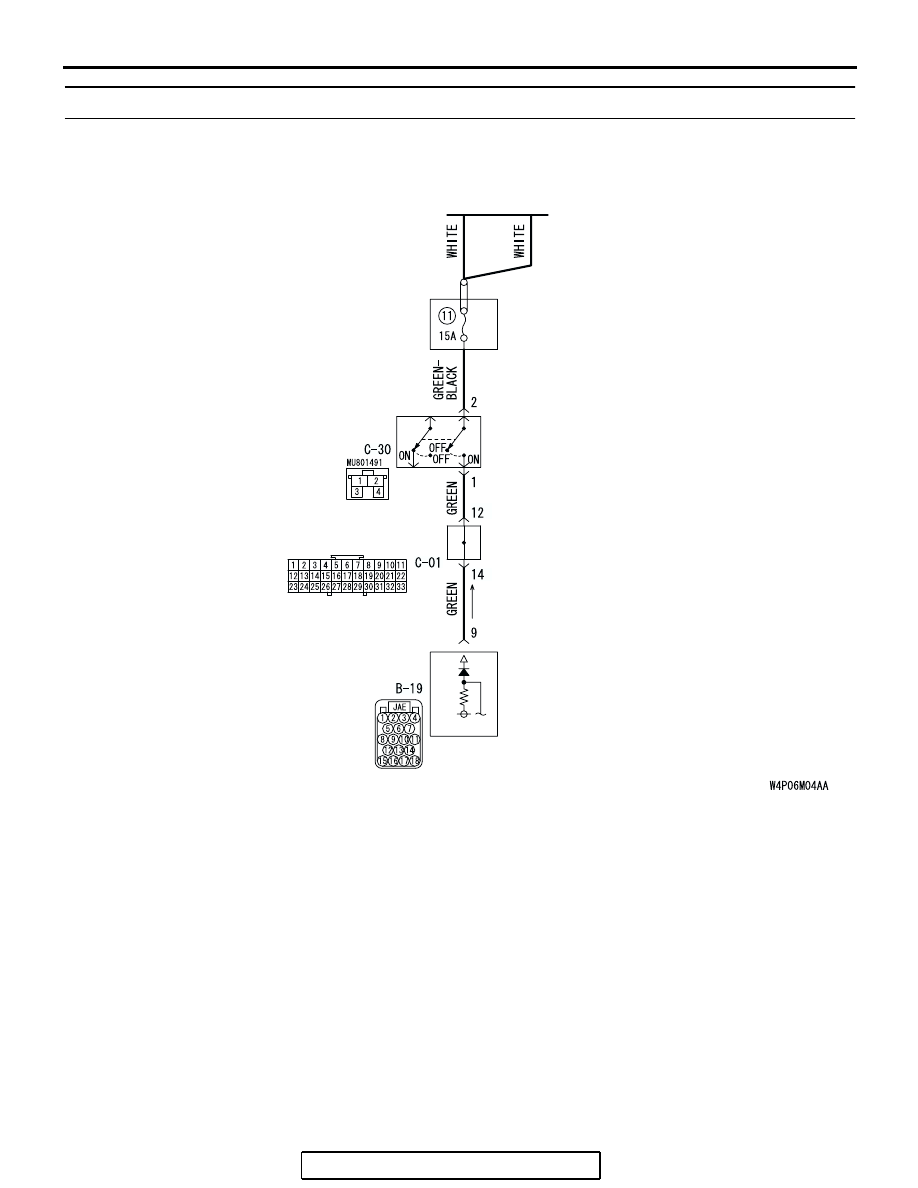

DTC 26: Stoplight Switch System

BATTERY

RELAY
BOX

STOPLIGHT
SWITCH

JOINT
CONNECTOR (1)

POWERTRAIN
CONTROL MODULE

AC209757AC

Stoplight Switch System Circuit

AUTOMATIC TRANSAXLE DIAGNOSIS

TSB Revision

AUTOMATIC TRANSAXLE

23A-112

.

CIRCUIT OPERATION

• Battery positive voltage is supplied to the stop-

light switch (terminal 2).

• When the brake pedal is depressed, battery posi-

tive voltage is applied to the PCM (terminal 9).

.

DTC SET CONDITIONS

If the stoplight switch is on for five minutes or more
while driving above 50 km/h (31 mph), or all of the
stop light bulbs are blown, it is judged there is a short
circuit or open circuit in the stoplight switch. This
causes DTC 26 to be set.

.

TROUBLESHOOTING HINTS (THE MOST
LIKELY CAUSES FOR THIS CODE TO BE
SET ARE:)

• Malfunction of the stoplight switch

• Malfunction of stoplight valve

• Damaged harness or connector

• Malfunction of the PCM

DIAGNOSIS

Required Special Tool:

• MB991958: Scan Tool (MUT-III Sub Assembly)

• MB991824: V.C.I.

• MB991827: MUT-III USB Cable

• MB991910: MUT-III Main Harness A

STEP 1. Check the brake pedal height.
Refer to GROUP 35A, On-vehicle Service

− Brake Pedal

Check and Adjustment

P.35A-13

.

Q: Is the height adjusted properly?

YES : Go to Step 2.
NO :  Adjust the brake pedal to the proper height.

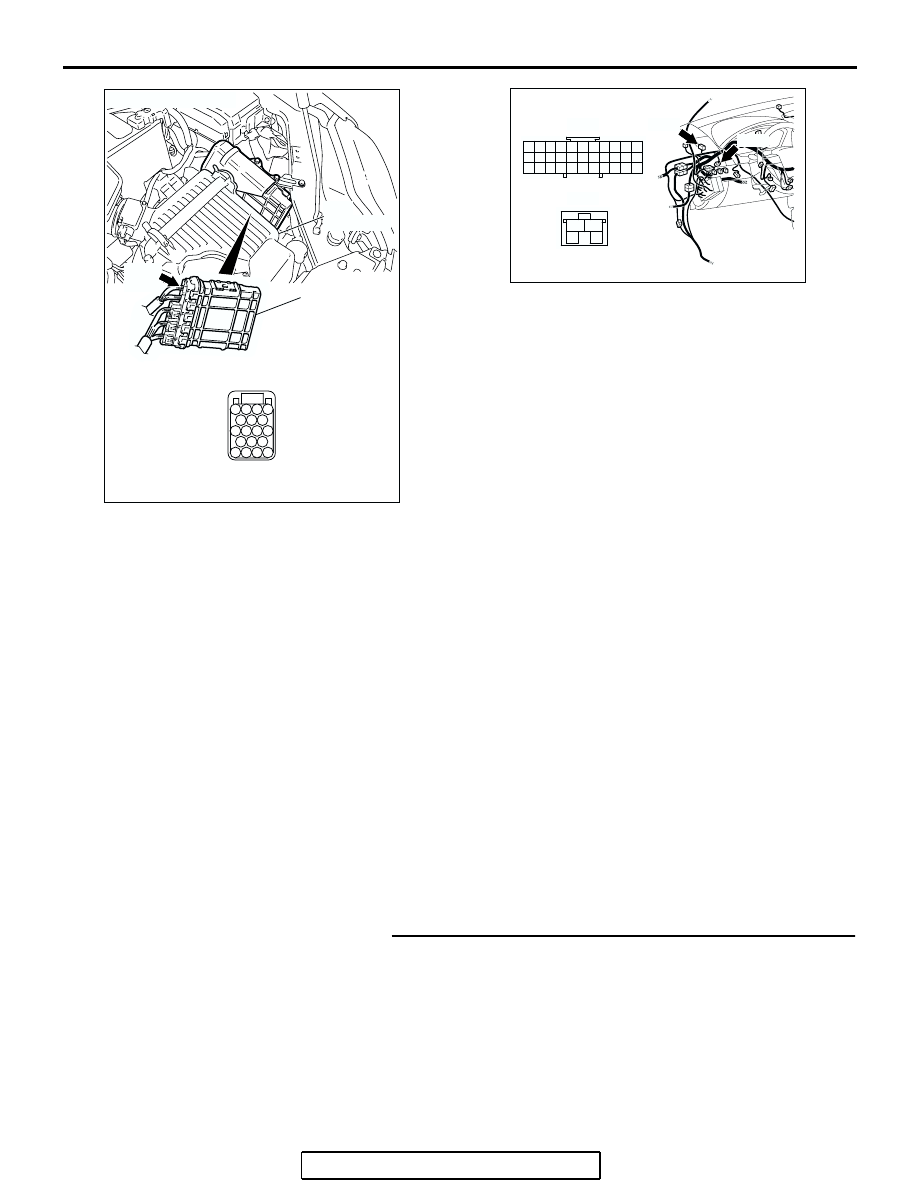

AC306248AF

B-19
(B)

CONNECTOR: B-19

PCM

AIR
CLEANER

JAE

17

13

10

12

1516

5 6

9

2

14

18

11

4

7

3

8

1

AC305231

CONNECTORS: C-01, C-30

AT

C-01

2

1

3

4

C-30

C-30

33

22

11

28

17

16

15

14

13

12

25

2324

2627

3

1 2

4 5

21

20

19

18

29 30

32

31

7

6

8

10

9

C-01

AUTOMATIC TRANSAXLE DIAGNOSIS

TSB Revision

AUTOMATIC TRANSAXLE

23A-113

STEP 2. Check the stoplight valve.
Refer to GROUP 54A, Rear combination light

P.54A-119

.

Q: Is the stoplight valve in good condition?

YES : Go to Step 3.
NO :  Replace the stoplight switch. Refer to GROUP 35A,

Brake Pedal

P.35A-24

.

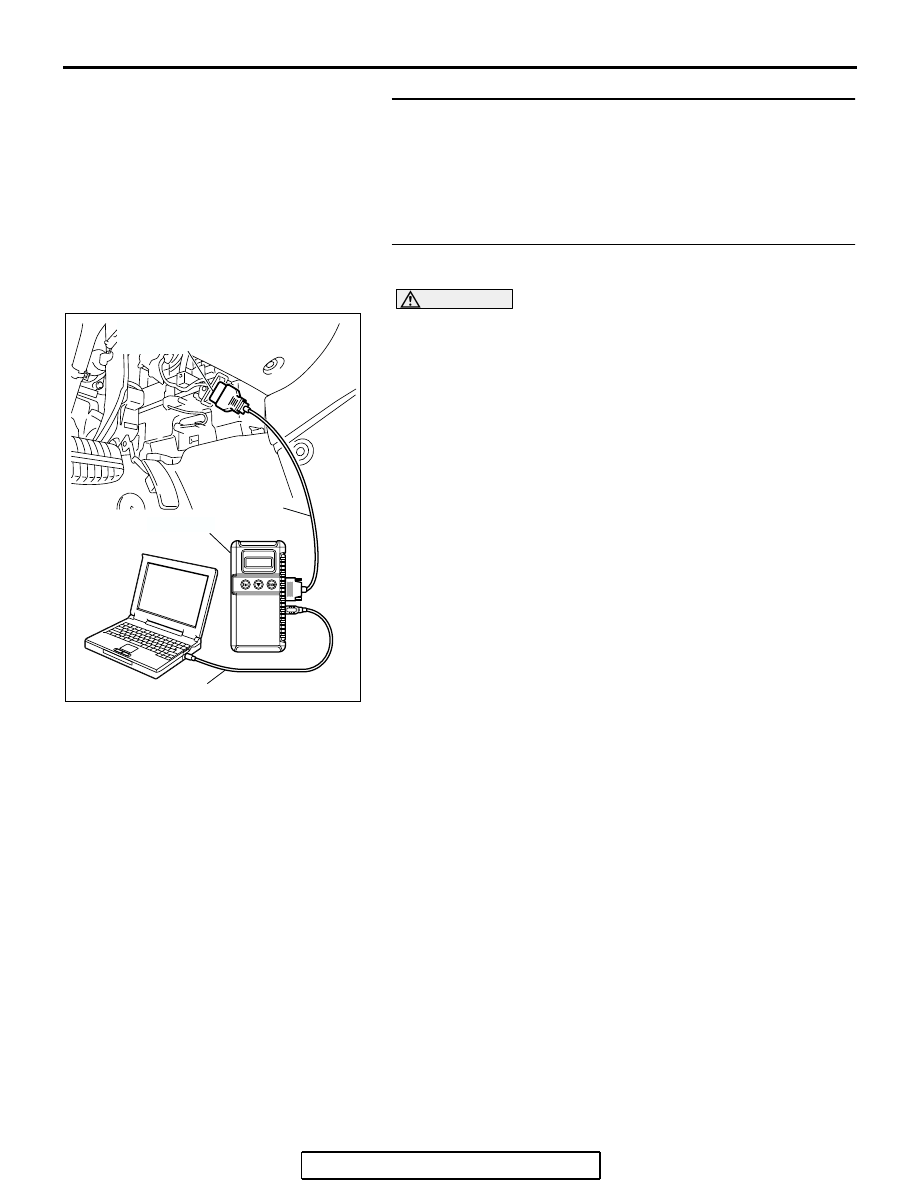

STEP 3. Using scan tool MB991958, check data list item 26:
Stoplight Switch.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Connect scan tool MB991958 to the data link connector.
(2) Turn the ignition switch to the "ON" position.
(3) Set scan tool MB991958 to the data reading mode.

• Item 26: Stoplight Switch.

• When the brake pedal is depressed, the display on

scan tool MB991958 should be "ON."

• When the brake pedal is not depressed, the display

on scan tool MB991958 should be "OFF."

(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the switch operating properly?

YES : It can be assumed that this malfunction may be

intermittent. Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points

− How to

Cope with Intermittent Malfunction

P.00-14

.

NO :  Go to Step 4.

AC305412

AB

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827
