MAINTENANCE SERVICE

TSB Revision

GENERAL

00-58

CAUTION

Do not use alcohol or methanol anti-freeze or any engine
coolants mixed with alcohol or methanol anti-freeze. The
use of an improper anti-freeze can cause corrosion of the
aluminum components.

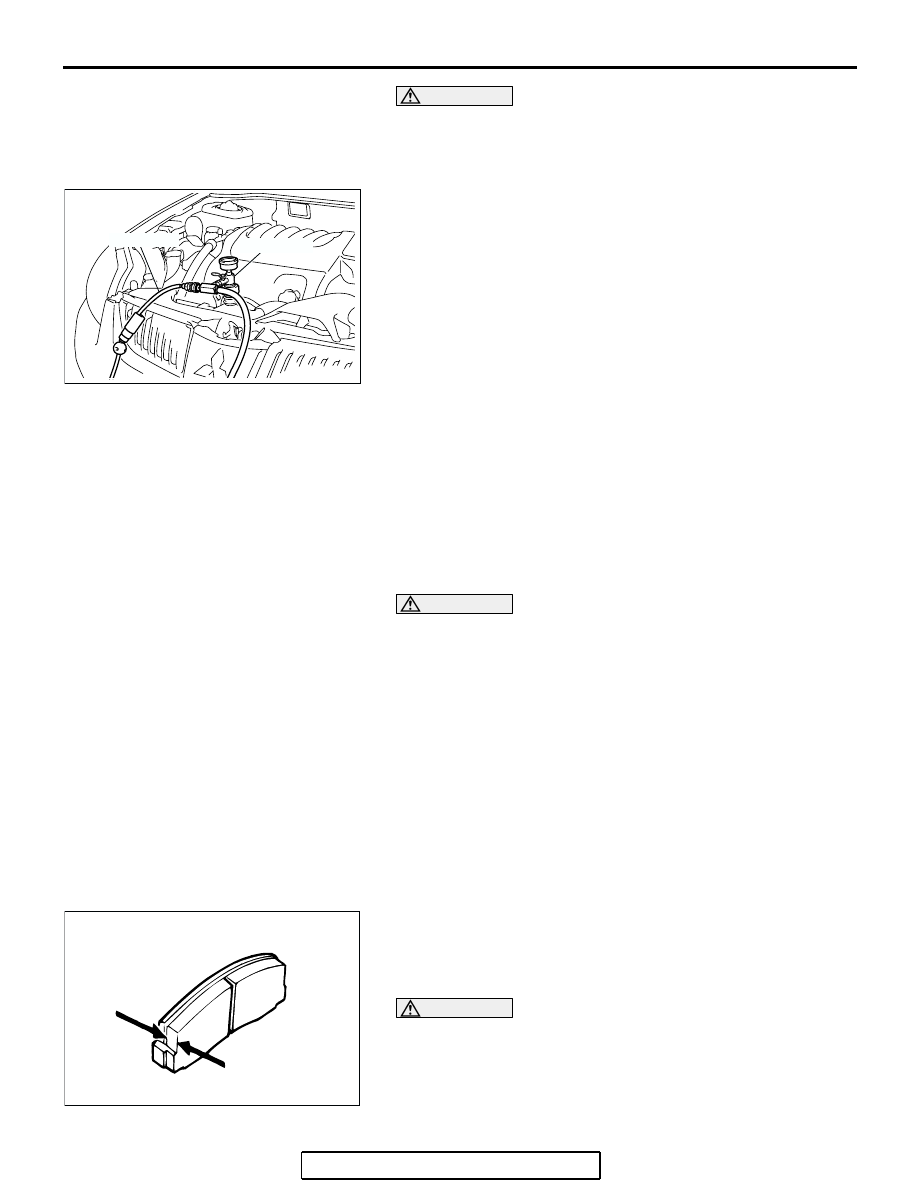

10.By referring to the section on coolant, select an appropriate

concentration for safe operating temperature within the
range of 30 to 60%. Use special tool MB991871 to refill the
coolant. A convenient mixture is a 50% water and 50%
antifreeze solution [freezing point:

−31°C (−32.8 °F)].

Recommended antifreeze: Long Life Antifreeze

Coolant or an equivalent

Quantity:

<2.4L Engine> 7.7 dm

3

 (8.1 quarts)

<3.8L Engine> 8.7 dm

3

 (9.2 quarts)

NOTE: For how to use special tool MB991871, refer to its
manufacturer’s instructions.

11.Reinstall the radiator cap.
12.Start the engine and let it warm up until the thermostat

opens.

13.After repeatedly revving the engine up to 3,000 r/min

several times, stop the engine.

14.Remove the radiator cap after the engine has cooled, and

pour in coolant up to the brim. Reinstall the cap.

CAUTION

Do not overfill the radiator condenser tank assembly.
15.Add coolant to the radiator condenser tank assembly

between the "FULL" and "LOW" mark if necessary.

14. COOLANT HOSES (RADIATOR HOSE,
HEATER HOSE) (INSPECT)

M1001009700034

Inspect the surface of radiator hoses and heater hoses for heat
and mechanical damage. Hard and brittle rubber, cracking,
tears, cuts, abrasions and excessive swelling indicate deterio-
ration of the rubber.

15. DISC BRAKE PADS, ROTORS (INSPECT FOR
WEAR)

M1001003200291

Check for fluid contamination and wear. Replace the complete
set of pads if any one pad is defective.

Thickness of lining
Minimum limit: 2.0 mm (0.08 inch)

CAUTION

The pads for the right and left wheels should be replaced
at the same time. Never split or intermix brake pad sets. All
four pads must be replaced as a complete set.

AC306129

AIR HOSE

MB991871

AB

ACX00898 AB

MAINTENANCE SERVICE

TSB Revision

GENERAL

00-59

16. BRAKE HOSES (CHECK FOR
DETERIORATION OR LEAKS)

M1001003400314

Inspection of brake hoses should be included in all brake ser-
vice operations.
The hoses should be checked for:
1. Incorrect length, severe surface cracking, stretching,

scuffing or worn spots (If the fabric casing of the hoses is
exposed by cracks or abrasion in the rubber hose cover, the
hoses should be replaced. Eventual deterioration of the
hose and possible bursting failure may occur).

2. Incorrect installation, twisting or interference with wheel, tire

or chassis.

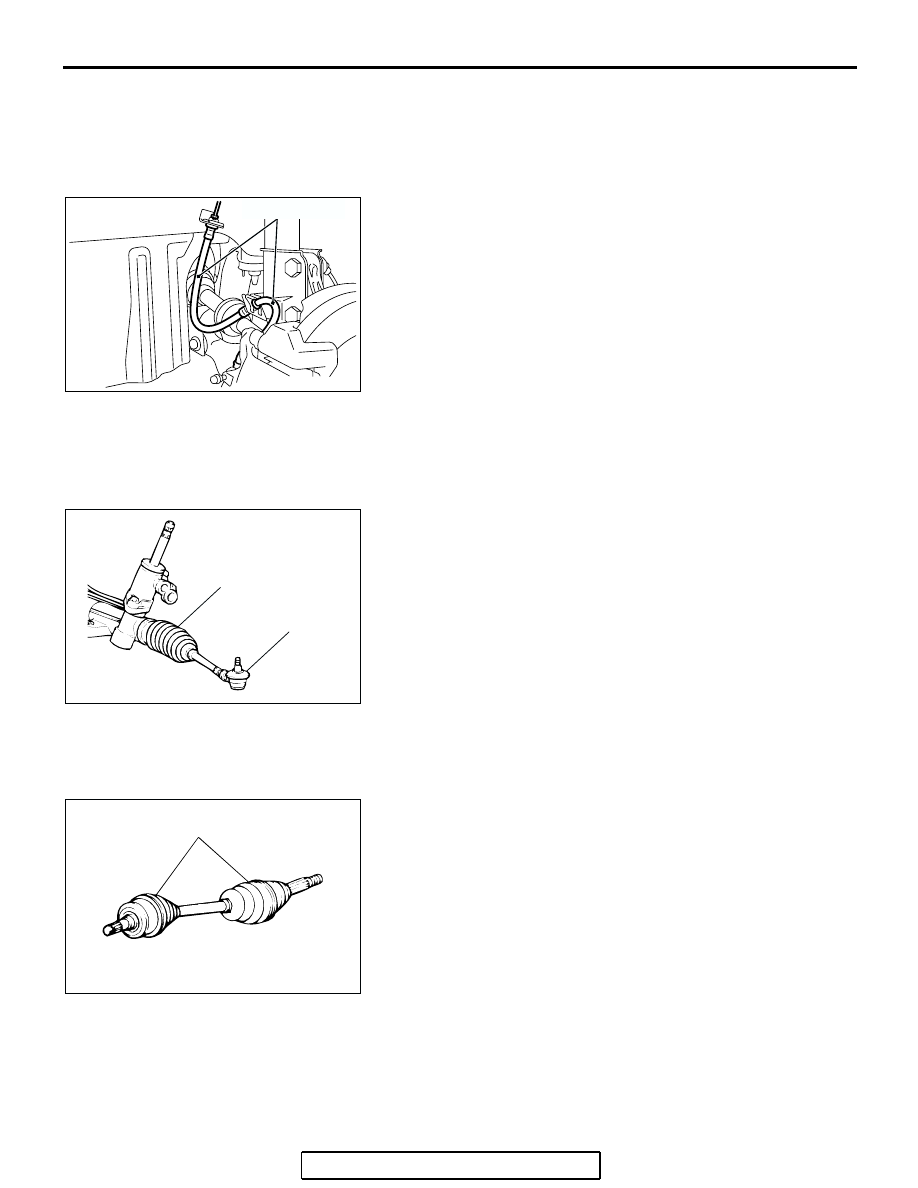

17. BALL JOINT AND STEERING LINKAGE
SEALS (INSPECT FOR GREASE LEAKS AND
DAMAGE)

M1001003500322

1. These components, which are permanently lubricated at the

factory, do not require periodic lubrication. Damaged seals
and boots should be replaced to prevent leakage or grease
contamination.

2. Inspect the dust cover and boots for proper sealing, leakage

and damage, and replace them if defective.

18. DRIVE SHAFT BOOTS (INSPECT FOR
GREASE  LEAKS AND DAMAGE)

M1001003600318

1. These components, which are permanently lubricated at the

factory, do not require periodic lubrication. Damaged seals
and boots should be replaced to prevent leakage or grease
contamination.

2. Inspect the dust cover and boots for proper sealing, leakage

and damage. Replace them if defective.

AC306483

AB

BRAKE HOSES

AC100948

BOOT

DUST
COVER

AB

AC000109 AB

BOOTS

MAINTENANCE SERVICE

TSB Revision

GENERAL

00-60

19. SUSPENSION SYSTEM (INSPECT FOR
LOOSENESS AND DAMAGE)

M1001009600048

Visually inspect the front/rear suspension components for dete-
rioration and damage. Re-tighten the front/rear suspension
components retaining bolts to specified torque.

20. SRS AIR BAG (INSPECT FOR SRS SYSTEM)

M1001003700326

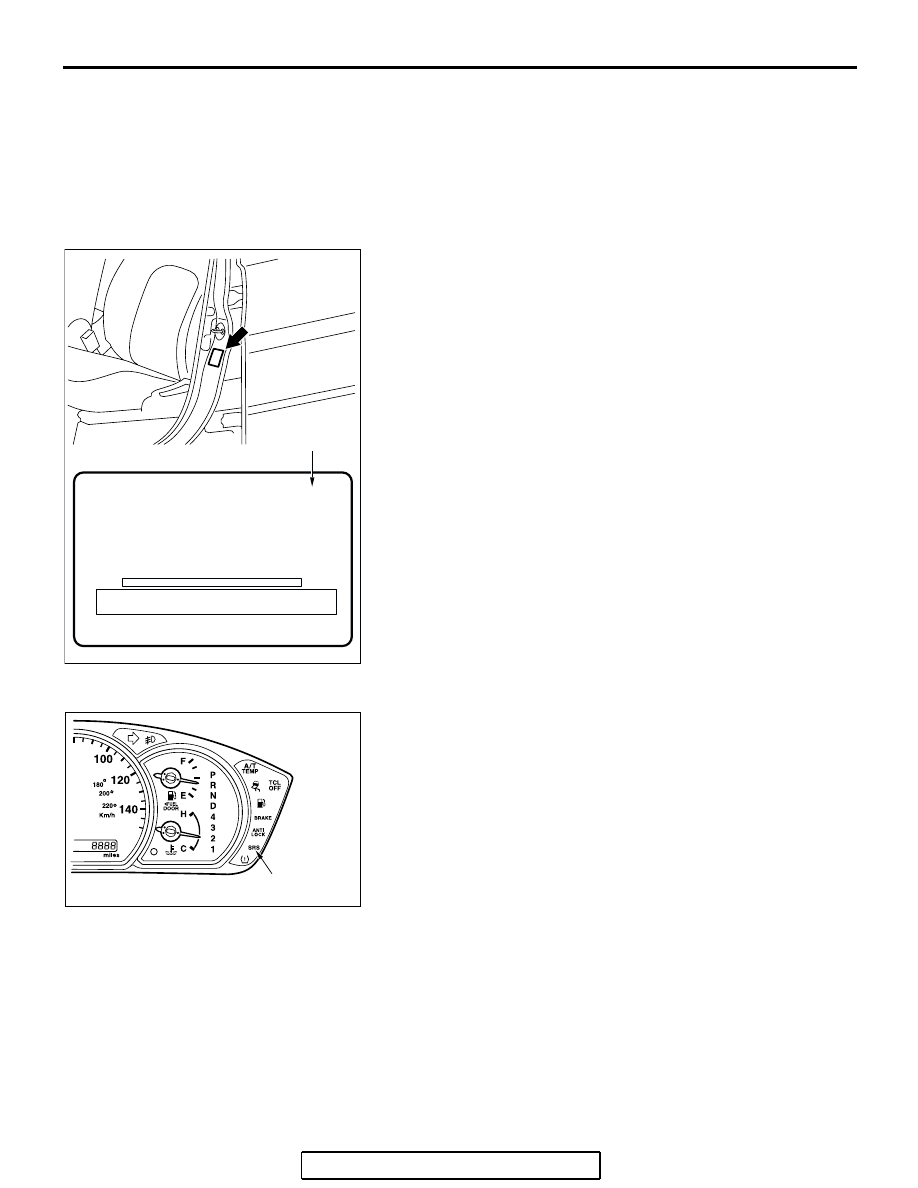

The SRS must be inspected by an authorized dealer 10 years
after the car manufacture date shown on the certification label
located on the left center pillar.

SRS WARNING LIGHT CHECK

Turn the ignition key to the "ON" position. Does the "SRS"
warning light illuminate for about seven seconds, and then
remain off for at least five seconds after turning the Key OFF? If
yes, the SRS system is functioning properly. If no, refer to
GROUP 52B, Diagnosis

P.52B-334

.

AC211636

MADE  IN  U.S.A. DATE

MFD BY MITSUBISH MOTORS NORTH AMERICA, INC.

GVWR

LBS/

KG

GVWR

LBS/

KG

WITH

FR.

RIMS AT

kPa/

kPa/

GAWR

LBS/

KG

WITH

TIRES.

psi COLD.

psi COLD.

TIRES.

RR.

RIMS AT

THIS

VEHICLE CONFORMS TO ALL APPLICABLE FEDERAL MOTOR

VEHICLE SAFETY STANDARDS IN EFFECT ON THE DATE OF
MANUAC TURE SHOWN ABOVE.

MDH

VEHICLE

TYPE :MPV

AB

DATE OF
MANUFACTURE

CERTIFICATION LABEL

AC206181

SRS WARNING LIGHT

AB

MAINTENANCE SERVICE

TSB Revision

GENERAL

00-61

SRS COMPONENT VISUAL CHECK

DANGER

Wait at least 60 seconds after disconnecting the bat-
tery cable before doing any further work. The SRS
system is designed to retain enough voltage to
deploy the air bag for a short time even after the bat-
tery has been disconnected. Serious injury may result
from unintended air bag deployment if work is done
on the SRS system immediately after the battery
cable is disconnected.

WARNING

Battery posts, terminals and related accessories con-
tain lead and lead compounds. WASH HANDS AFTER
HANDLING.

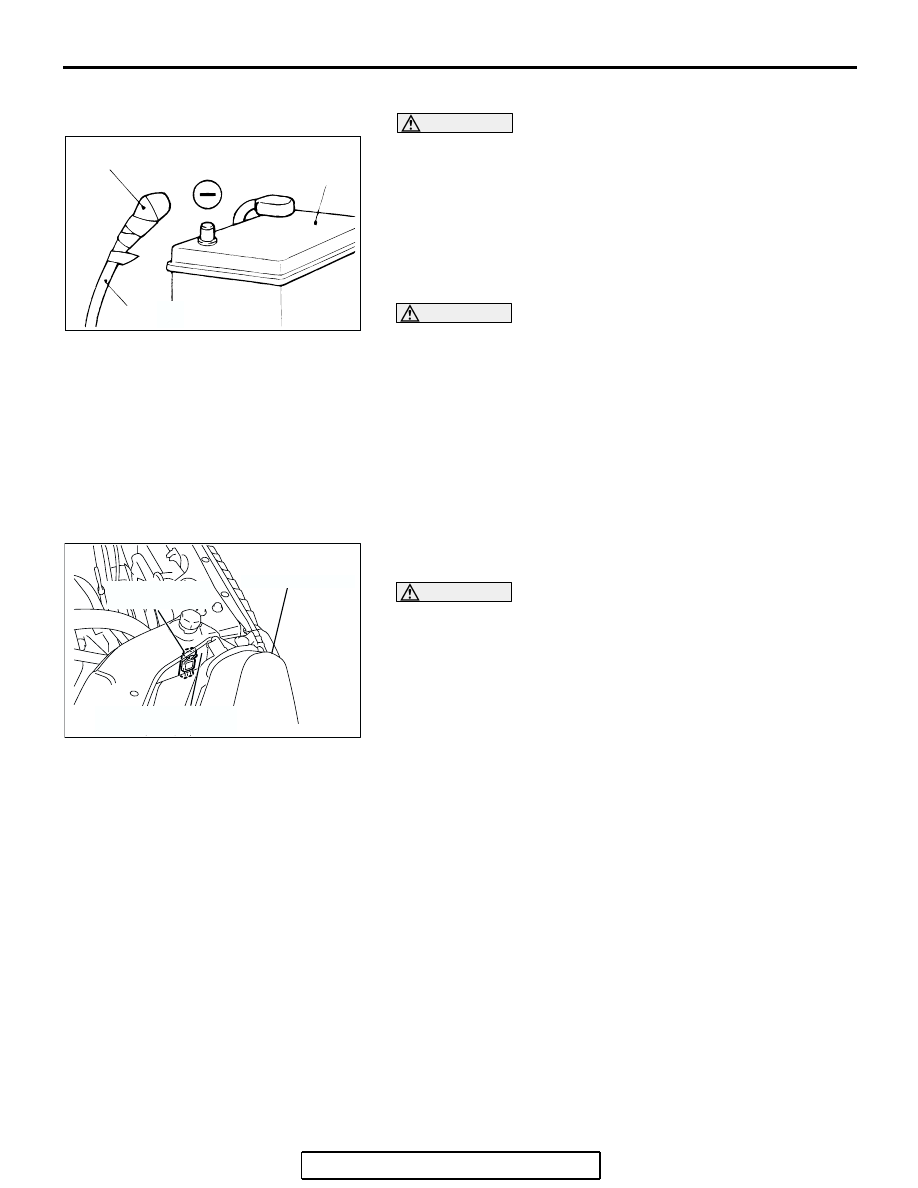

1. Turn the ignition switch to the "LOCK" (OFF) position,

disconnect the negative battery cable and tape the terminal.

2. Remove the floor console assembly (Refer to GROUP 52A,

Floor Console

P.52A-9

).

3. Disconnect a connector from the SRS-ECU.

FRONT IMPACT SENSORS

1. Check that the arrows on the sensors face toward the front

of the vehicle.

WARNING

The SRS may not activate if a front impact sensor
is not installed properly, which could result in seri-
ous injury or death to the vehicle's driver and pas-
senger.

If a dent, crack, deformation or rust is detected,
replace with a new sensor.

2. Check the front side member and front impact sensor for

deformation or rust.

3. Check the front impact sensor wiring harness for binding;

Check the connector for damage; and check the terminals
for deformation.
Replace the sensor and/or wiring harness if they fail the
visual check (Refer to GROUP 52B, SRS Service
Precautions

P.52B-26

 and GROUP 52B, Front Impact

Sensor

P.52B-363

).

ACX00902 AB

TAPE

BATTERY

BATTERY CABLE

AC306331AB

FRONT IMPACT
SENSOR

HEADLIGHT (RH)

RADIATOR SUPPORT
PANEL
