KEYLESS ENTRY SYSTEM

TSB Revision

BODY

42-72

4. Press the hazard warning light switch six times within 10

seconds.
NOTE: When the hazard warning light switch has been
pressed six times, the ETACS-ECU locks and unlocks the
doors automatically once. The ETACS-ECU is ready to reg-
ister an encrypted code.
NOTE: The hazard warning light switch is a toggle switch.

5. Press the transmitter button, and then press it two times

within 10 seconds of the first press. This will register the
code.

6. When the encrypted code has been registered, the

ETACS-ECU locks and unlocks the doors automatically
once.

7. If you are using two or more transmitters or have added a

second transmitter, the next transmitter should be registered
within one minute after registering the code for the previous
transmitter. The registration procedure is common for all the
transmitter.

8. Registration mode will be canceled under the following

conditions:

• When the secret code for four transmitters has been regis-

tered;

• When passing one minute after finishing the registration of

all transmitters;

• When special tool MB991824 (V.C.I.) is disconnected;

• When the key is removed from the key cylinder;

9. After the registration is completed, remove the ignition key

and close all the doors, and then check that the keyless
entry system operates normally.

ACX00571

V. C. I. CONNECTED

WITHIN 10 SECONDS

HAZARD
WARNING
LIGHT
SWITCH

ON

OFF

1

2

3

4

5

6

AR

SUNROOF ASSEMBLY

TSB Revision

BODY

42-73

SUNROOF ASSEMBLY

GENERAL DESCRIPTION

M1426000100234

A motor-driven inner slide-type glass sunroof with a
tilt-up mechanism is available in some models as a
standard or optional equipment. Even when the sun-
roof is fully closed, a sufficient amount of lighting and
a feeling of openness can still be obtained by open-
ing the sunroof sunshade.

SUNROOF DIAGNOSIS

M1426000700311

The sunroof system is controlled by the Simplified
Wiring System (SWS). Refer to GROUP 54B, SWS
Diagnosis

P.54B-59

.

SPECIAL TOOL

M1426000600228

ON-VEHICLE SERVICE

WATER TEST

M1426000900274

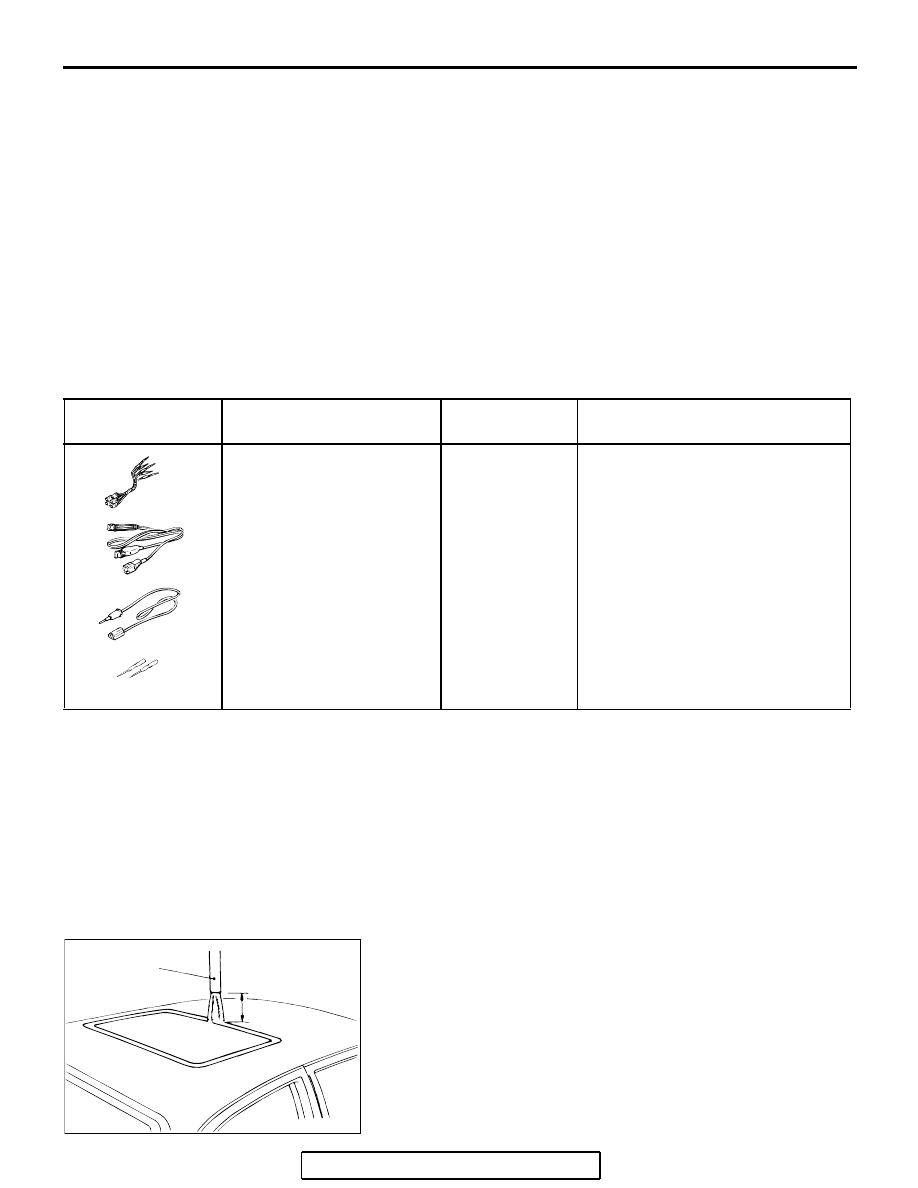

Check if there are any leaks in the sunroof by the following pro-
cedure.
1. Fully close the roof lid glass.
2. Adjust the water pressure so that water comes out of the

hose to a height of approximately 50 cm (19.7 inches) when
the hose is held vertically facing upwards.

3. Hold the end of the hose approximately 30 cm (11.8 inches)

above the roof and let the water run onto the weatherstrip for
5 minutes or more.

4. Check if any water leaks can be found in the room while

watering. Even though there are any water leaks around the
roof lid glass, it can be acceptable as long as water is caught
in the drip area.

TOOL

TOOL NUMBER AND
NAME

SUPER
SESSION

APPLICATION

MB991223
Harness set

• A: MB991219

Test harness

• B: MB991220

LED harness

• C: MB991221

LED harness adapter

• D: MB991222

Probe

General service
tools

Measurement of terminal voltage

• A: Connector pin contact

pressure inspection

• B: Power circuit inspection

• C: Power circuit inspection

• D: Commercial tester connection

MB991223

A

D

C

B

AD

ACX00572AB

HOSE

APPROX
30 cm (11.8 in)

SUNROOF ASSEMBLY

TSB Revision

BODY

42-74

SUNROOF TIMER FUNCTION CHECK

M1426004300100

Keep the door closed, turn OFF the ignition switch and check to
see if the sunroof can be operated for 30 seconds after that. If
not, perform troubleshooting (Refer to GROUP 54B, SWS
Diagnosis

P.54B-59

).

SUNROOF FIT ADJUSTMENT

M1426001000285

1. Fully close the roof lid glass.
2. Fully open the sunshade.

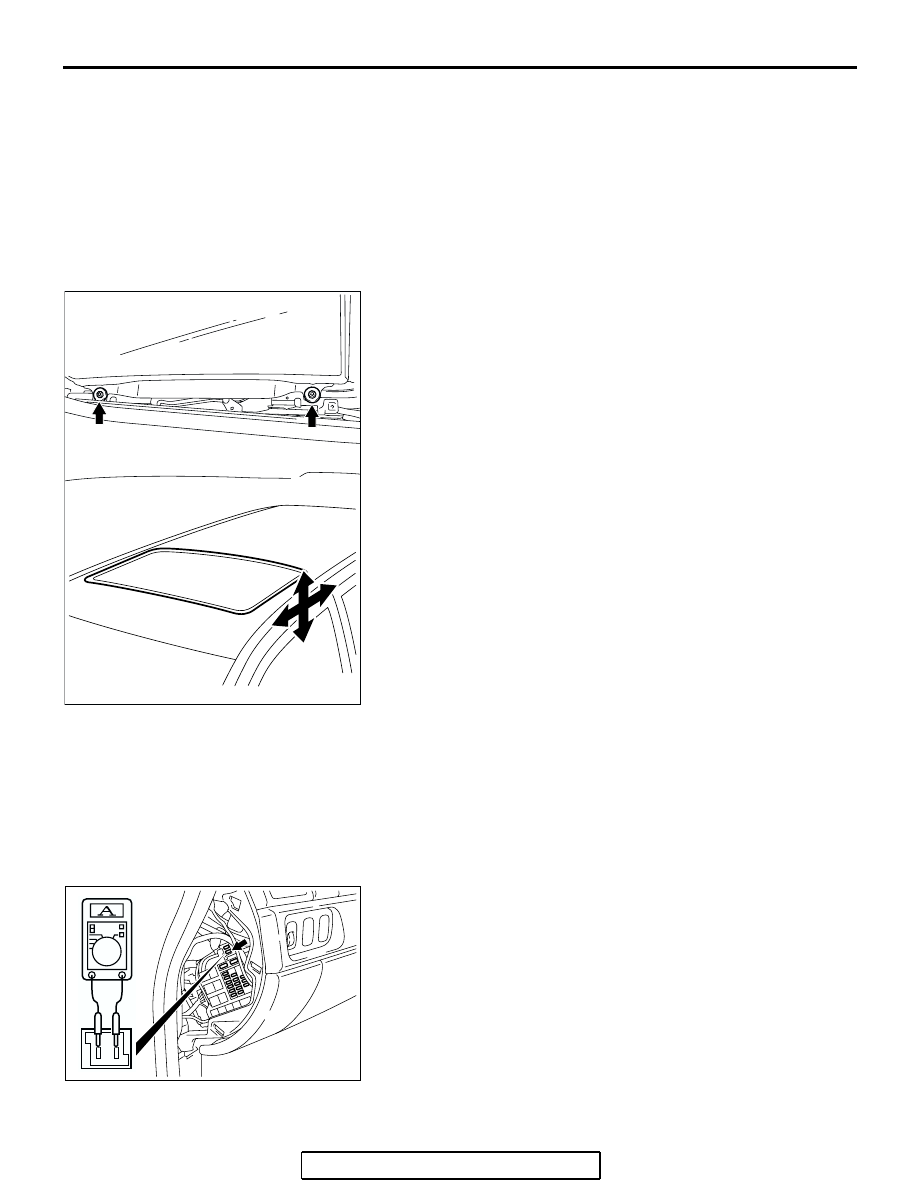

3. Loosen the roof lid glass assembly mounting screws. Align

the roof lid glass by moving it backward, forward, up or down
along the guide oblong hole so that the clearance between
the glass and the vehicle body is even.

4. Check to be sure that the roof lid glass is flush with the roof

panel at corner areas.

5. Check to be sure that the sunroof operates smoothly.

SUNROOF CHECK

M1426004700119

Check to see that the sunroof operates by pressing the sunroof
switch. Perform troubleshooting if operations malfunction
(Refer to GROUP 54B, SWS Diagnosis

P.54B-59

).

ROOF LID GLASS OPERATION CURRENT CHECK

M1426003200166

1. Remove the fuse of the sunroof, then connect the circuit

tester as shown in the Figure.

2. Turn ON the sunroof switch, then measure the operating

current when the roof lid glass is halfway opened.

Standard value: 7 A or less [at 20

°C (68 °F)]

3. Check the following areas if the operating current of

exceeds the standard value:

• Sunroof installation, deformation and appearance of any

foreign substances.

• Drive cable installation.

• Tilting of roof lid glass.

AC306510

AC307290

AC206306

AB

AC305031

AC

SUNROOF ASSEMBLY

TSB Revision

BODY

42-75

SUNROOF INITIALIZATION

M1426004600123

The sunroof should be initialized when any of the following
components are replaced, the sunroof position is miss timed.

• Roof lid glass assembly

• Sunroof motor assembly

.

1. Ensure the components are correctly assembled. Ensure all

the connectors are connected securely.

2. If the sunroof is already in learn mode, go to step 3. If the

sunroof is not in learn mode, enter learn mode by (1) or (2)
below.

(1) Disconnect the sunroof motor assembly connector while

the sunroof is operating.

(2) Stop the sunroof operation by fitting the block (board

etc.). Then press and hold the sunroof close switch for 10
seconds with the sunroof stopped.

3. Press the sunroof Close switch repeatedly until the sunroof

is tilted up fully.

4. Press and hold the sunroof Close switch for at least three

seconds.

5. Press the sunroof Close switch until the sunroof closes fully.
6. The sunroof should work normally.
NOTE: Do not stop the sunroof before it reaches the fully
closed position during operations in steps 5 above. If the sun-
roof has stopped accidentally, repeat the procedure from step
1.

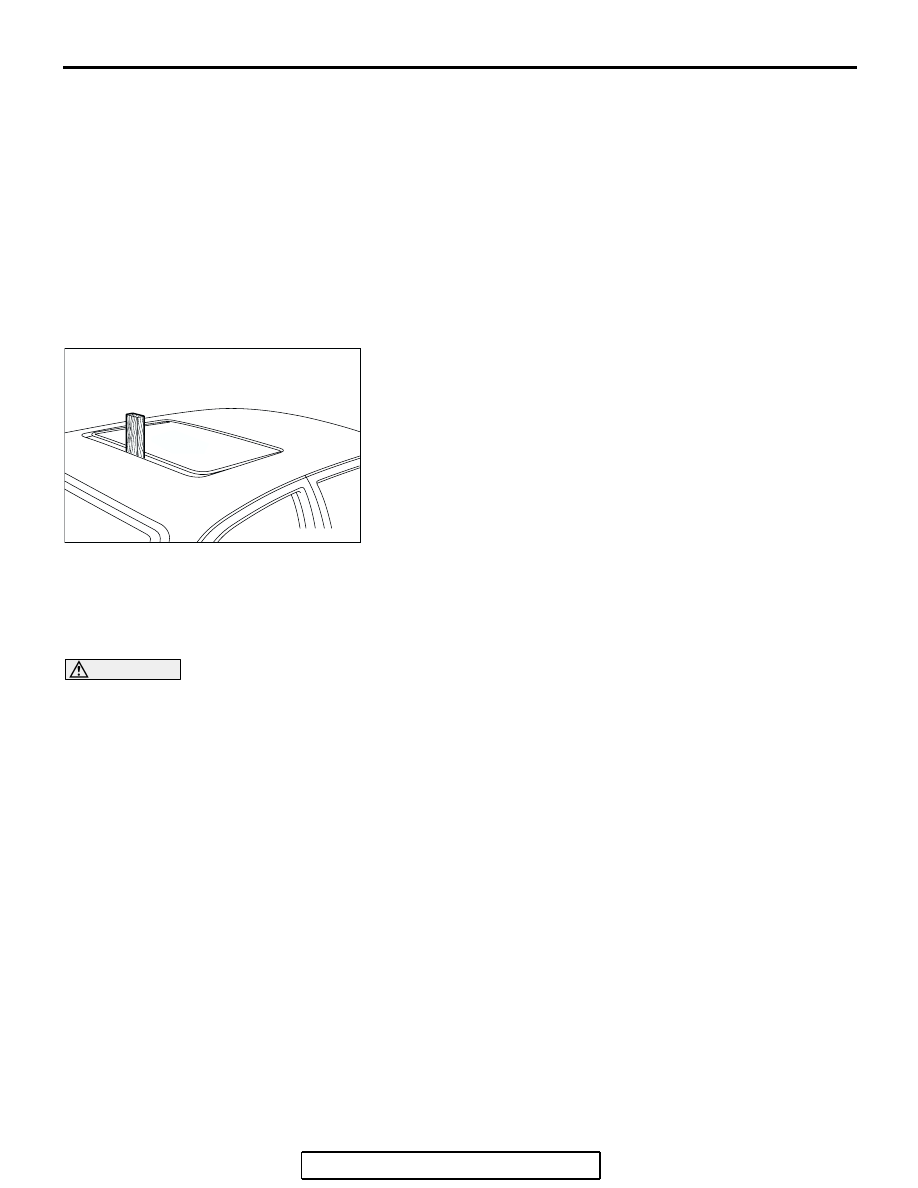

SUNROOF OPERATION CHECK

M1426002600332

CAUTION

Check that the following items are normal before carrying out this operation check.

• Installation condition of the sunroof assembly
• Installation condition, deformation and contamination of the sunroof drive cable
• Installation of sunroof lid glass
• Sunroof switch and sunroof motor assembly

Check that the following items. If faulty, replace the
sunroof motor assembly.

AC203084 AB
