ON-VEHICLE SERVICE

TSB Revision

ENGINE MECHANICAL <2.4L ENGINE>

11A-16

COMPRESSION PRESSURE CHECK

M1111002601101

Required Special Tool:
MB991958: Scan Tool (MUT-III Sub Assembly)

• MB991824: V.C.I.

• MB991827: MUT-III USB Cable

• MB991910: MUT-III Main Harness A

1. Before inspection, check that the engine oil, starter and

battery are normal. Also, set the vehicle in the following
condition:

• Engine coolant temperature: 80 − 95°C (176 − 203°F)

• Lights and all accessories: OFF

• Transaxle: P range

NOTE: Vehicles for Canada, the headlight, taillight, etc.
remain lit even when the lighting switch is in "OFF" position
but this is no problem for checks.

2. Remove all of the ignition coils and spark plugs.
3. Disconnect the crankshaft position sensor connector.

NOTE: Doing this will prevent the engine control module
from carrying out ignition and fuel injection.

WARNING

Keep your distance from the spark plug hole when
cranking. Oil, fuel, etc., may spray out from the spark
plug hole and may cause serious injury.

4. Cover the spark plug hole with a shop towel etc., during

cranking. After the engine has been cranked, check for
foreign material adhering to the shop towel.

5. Set a compression gauge to one of the spark plug holes.
6. Crank the engine with the throttle valve fully open and

measure the compression pressure.

Standard value (at engine speed of 200 r/min):
1,560 kPa (226 psi)
Minimum limit (at engine speed of 200 r/min):
1,130 kPa (164 psi)

7. Measure the compression pressure for all the cylinders, and

check that the pressure differences of the cylinders are
below the limit.

Limit: 98 kPa (14 psi)

8. If there is a cylinder with compression or a compression

difference that is outside the limit, pour a small amount of
engine oil through the spark plug hole, and repeat the
operations in steps 6 to 8.

(1) If the compression increases after oil is added, the cause

of the malfunction is a worn or damaged piston ring
and/or cylinder inner surface.

(2) If the compression does not rise after oil is added, the

cause is a burnt or defective valve seat, or pressure is
leaking from the gasket.

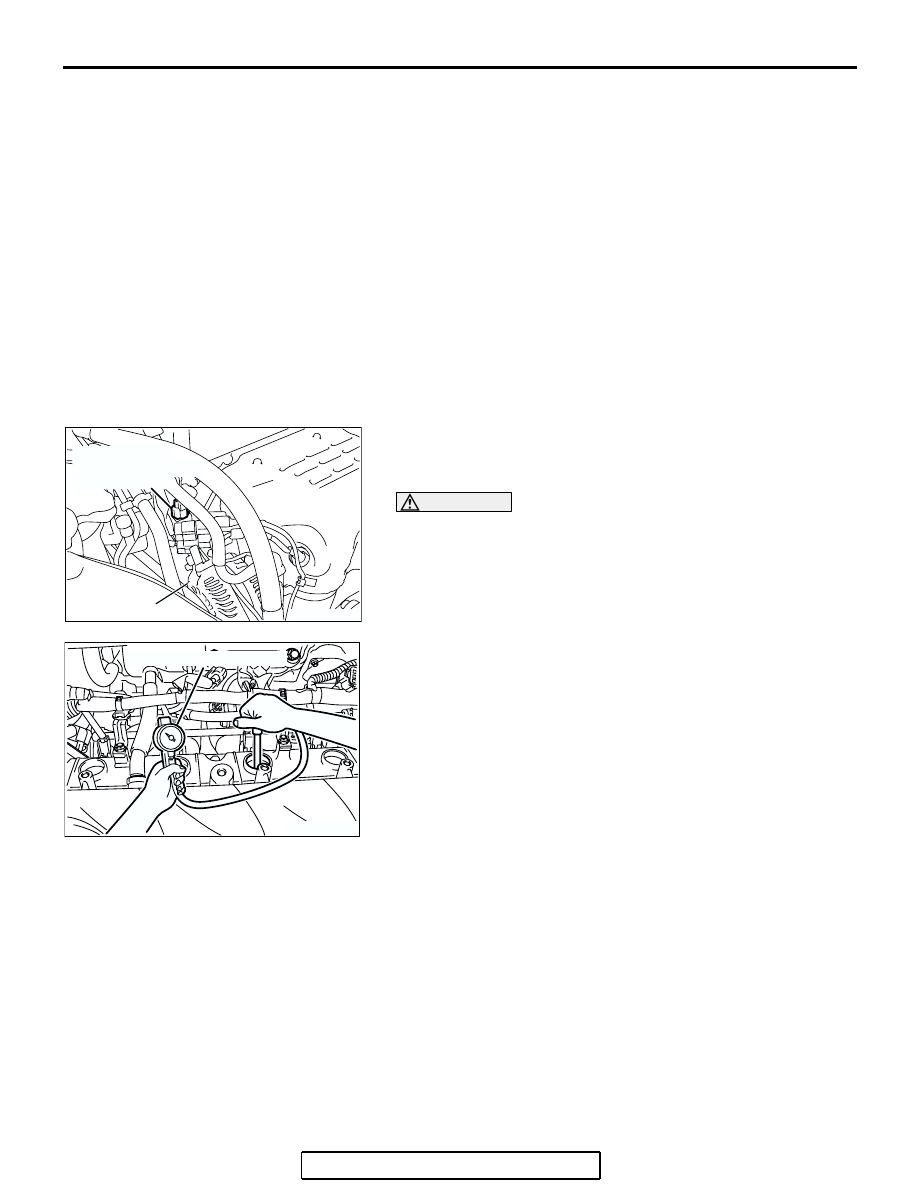

AK303009

CRANKSHAFT
POSITION SENSOR
CONNECTOR

AB

GENERATOR

AK204360

COMPRESSION GAUGE

AC

ON-VEHICLE SERVICE

TSB Revision

ENGINE MECHANICAL <2.4L ENGINE>

11A-17

9. Connect the crankshaft position sensor connector.
10.Install the spark plugs and ignition coils.
11.Use the scan tool MB991958 to erase the diagnostic trouble

codes.
NOTE: This will erase the diagnostic trouble code resulting
from the crankshaft position sensor connector being discon-
nected.

MANIFOLD VACUUM CHECK

M1111002700837

1. Start the engine and allow it to warm up until the

temperature of the engine coolant reaches 80

− 95°C (176 −

203

°F).

2. Connect an engine tachometer.
3. Disconnect the ventilation hose from the positive crankcase

ventilation (PCV) valve , and connect a vacuum gauge to the
ventilation hose.

4. Plug the PCV valve.
5. Start the engine and check that idle speed is within

specification. Then check the vacuum gauge reading.

Idle speed: 700

± 100 r/min

Minimum limit: 60 kPa (18 in Hg)

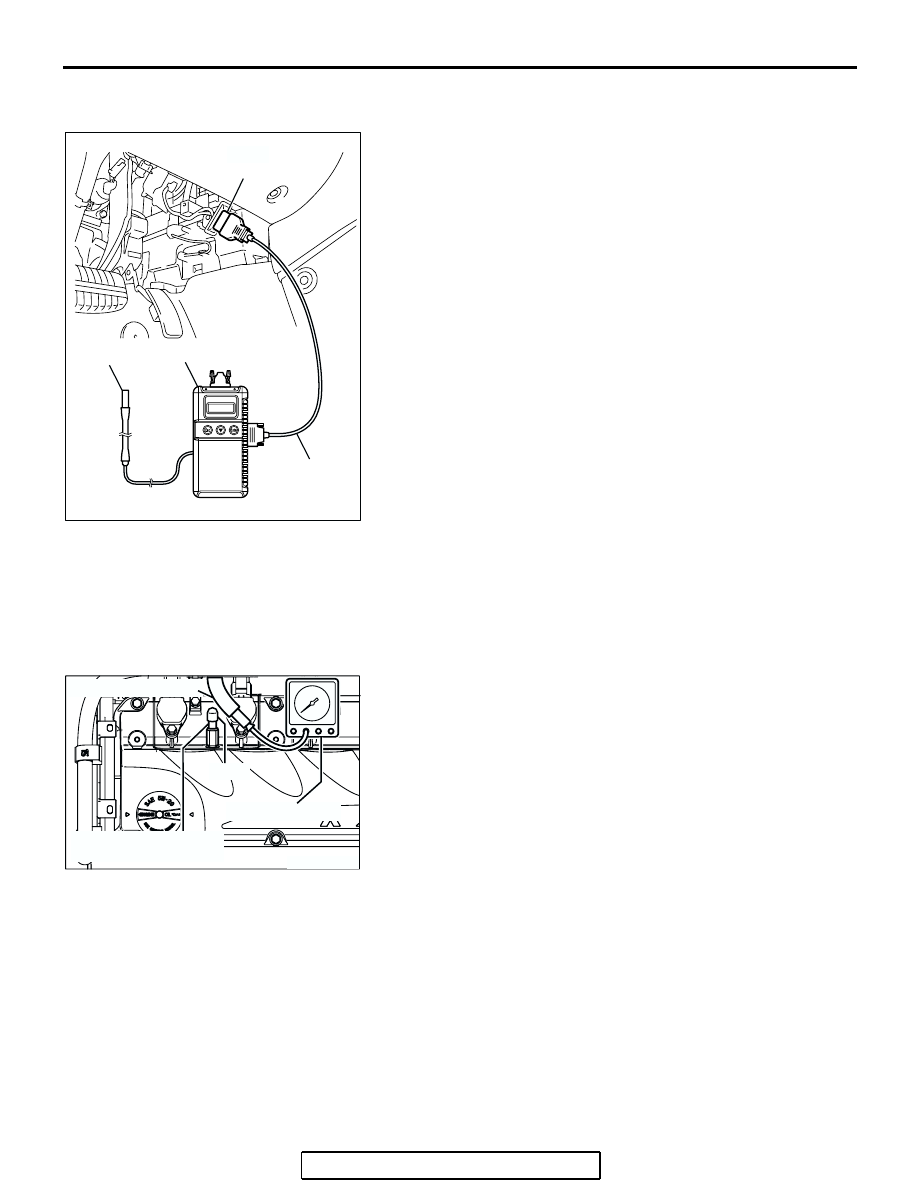

AC302077
AC305412

AC306958AB

MB991824

MB991910

MB991668

DATA LINK

CONNECTOR

AK301330AB

VACUUM GAUGE

POSITIVE CRANKCASE
VENTILATION VALVE

PLUG

VENTILATION HOSE

ON-VEHICLE SERVICE

TSB Revision

ENGINE MECHANICAL <2.4L ENGINE>

11A-18

CYLINDER BLOCK HEATER UNIT  CHECK

M1111004800023

1. Remove the front number 1 exhaust pipe. (Refer to GROUP

15, Exhaust Pipe and Main Muffler

P.15-20

).

2. Remove the front number 2 exhaust pipe. (Refer to GROUP

15, Exhaust Pipe and Main Muffler

P.15-20

).

3. Remove the intake manifold stay. (Refer to GROUP 15,

Intake Manifold

P.15-8

).

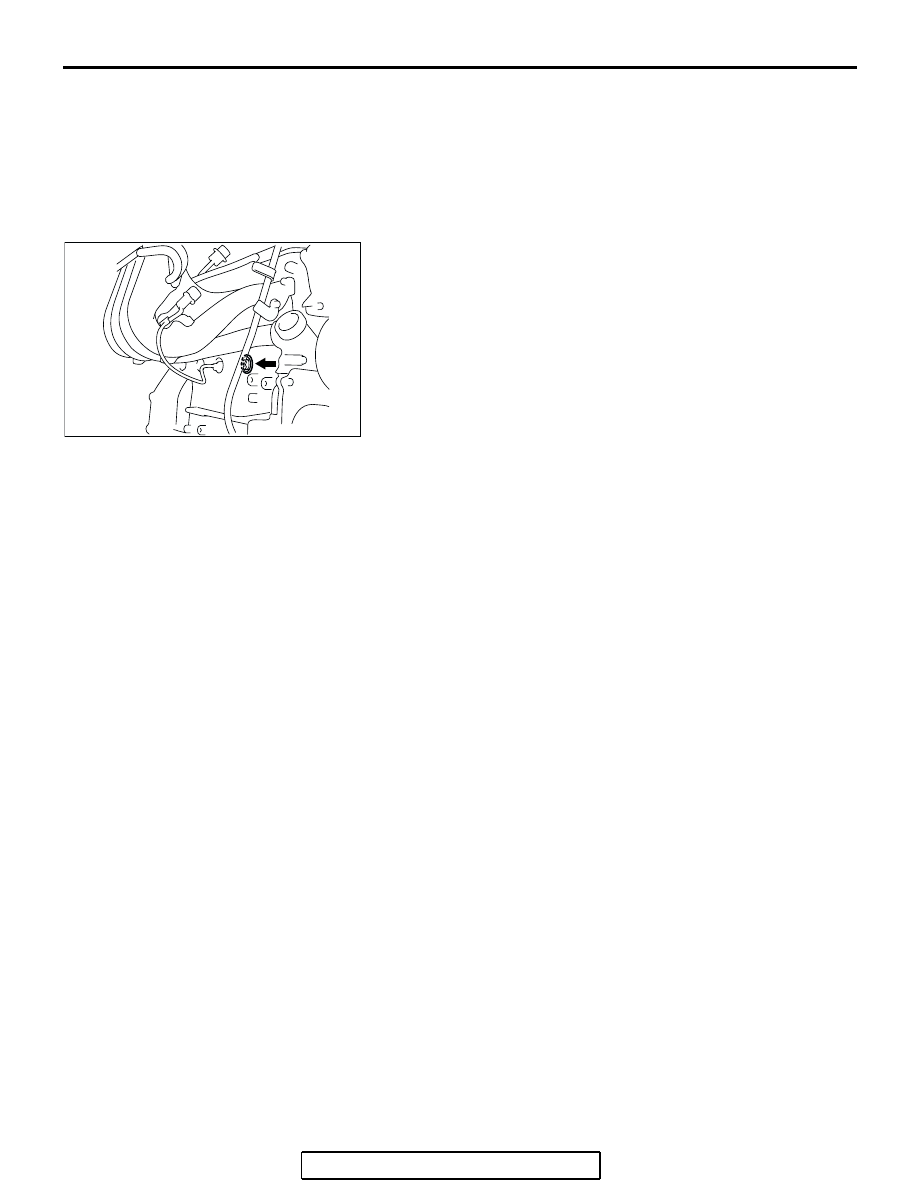

4. Disconnect cylinder block heater unit connector, and

measure the resistance at cylinder block heater unit.

Standard value: 28

 40

5. If not within the standard value, replace the cylinder block

heater unit. (Refer to

P.11A-64

).

AC307039AB

ENGINE ASSEMBLY

TSB Revision

ENGINE MECHANICAL <2.4L ENGINE>

11A-19

ENGINE ASSEMBLY

REMOVAL AND INSTALLATION

M1112001000849

CAUTION

*: indicates parts which should be temporarily tightened, and then fully tightened with the engine
weight applied on the vehicle body.

Pre-removal Operation
• Side Under Cover Removal (Refer to GROUP 51, Under

Cover

P.51-11

).

• Fuel Line Pressure Reduction [Refer to GROUP 13A,

On-vehicle Service

− Fuel Pump Connector Disconnec-

tion (How to Reduce Pressurized Fuel Lines)

P.13A-1127

].

• Engine Oil Draining (Refer to GROUP 12, On-vehicle Ser-

vice

− Engine Oil Replacement

P.12-3

).

• Engine Coolant Draining (Refer to GROUP 14, On-vehicle

Service

− Engine Coolant Replacement

P.14-7

).

• Transmission Fluid Draining (Refer to GROUP 23A,

On-vehicle Service

− Transmission Fluid Change

P.23A-367

).

• Hood Removal (Refer to GROUP 42, Hood

P.42-8

).

• Powertrain Control Module (PCM) Removal (Refer to

GROUP 13A, Powertrain Control Module (PCM)

P.13A-1140

).

• Air Cleaner Removal (Refer to GROUP 15, Air Cleaner

P.15-4

).

• Battery and Battery Tray Removal

• Radiator Assembly Removal (Refer to GROUP 14, Radia-

tor

P.14-11

).

• Front No.1 Exhaust Pipe Removal (Refer to GROUP 15,

Exhaust Pipe and Main Muffler

P.15-20

).

• Front No.2 Exhaust Pipe Removal (Refer to GROUP 15,

Exhaust Pipe and Main Muffler

P.15-20

).

Post-installation Operation
• Front No.2 Exhaust Pipe Installation (Refer to GROUP 15,

Exhaust Pipe and Main Muffler

P.15-20

).

• Front No.1 Exhaust Pipe Installation (Refer to GROUP 15,

Exhaust Pipe and Main Muffler

P.15-20

).

• Radiator Assembly Installation (Refer to GROUP 14,

Radiator

P.14-11

).

• Battery and Battery Tray Installation

• Air Cleaner Installation (Refer to GROUP 15, Air Cleaner

P.15-4

).

• Powertrain Control Module (PCM) Installation (Refer to

GROUP 13A, Powertrain Control Module (PCM)

P.13A-1140

).

• Hood Installation (Refer to GROUP 42, Hood

P.42-8

).

• Transmission Fluid Refilling (Refer to GROUP 23A,

On-vehicle Service

− Transmission Fluid Change

P.23A-367

).

• Engine Coolant Refilling (Refer to GROUP 14, On-vehicle

Service

− Engine Coolant Replacement

P.14-7

).

• Engine Oil Refilling (Refer to GROUP 12, On-vehicle Ser-

vice

− Engine Oil Replacement

P.12-3

).

• Fuel Leak Check

• Drive Belt Tension Check (Refer to

P.11A-8

).

• Side Under Cover Installation (Refer to GROUP 51,

Under Cover

P.51-11

).

• Front Wheel Alignment Check and Adjustment (Refer to

GROUP 33, On-vehicle Service

− Front Wheel Alignment

Check and Adjustment

P.33-6

).
