Mitsubishi Galant 9G. Manual - part 309





AUTO A/C DIAGNOSIS

TSB Revision

AUTOMATIC AIR CONDITIONING

55B-22

DATA LIST REFERENCE TABLE

M1554005100147

CHECK AT A/C-ECU TERMINAL

M1552010300572

SCAN TOOL
(MUT-III)
DISPLAY

ITEM
NO.

INSPECTION ITEM INSPECTION REQUIREMENT

NORMAL VALUE

Inside
temperature
sensor

01

Interior temperature
sensor

Ignition switch: ON

Inside air
temperature and
temperature
displayed on the
scan tool are
identical.

Photo sensor

06

Photo sensor

Ignition switch: ON

Amount of light is
proportional to
voltage displayed on
the scan tool.

8

2

1

5

3 4

6 7

9 10

20

19

18

17

16

15

14

13

12

11

32

24

29

21

31

30

2223

27

35

33

25

34

26

36

28

AC210339

C-15

C-16

AB

TERMINAL
NO.

CHECK ITEM

CHECKING REQUIREMENTS NORMAL CONDITION

1

Air mixing damper control motor When the air mix damper is

moved to the MAX. COOL
position.

10 V

When the air mix damper is
moved to the MAX. HOT
position.

0.5 V

2

Air mixing damper control motor When the air mix damper is

moved to the MAX. COOL
position.

0.5 V

When the air mix damper is
moved to the MAX. HOT
position.

10 V

3

Back-up power supply

Always

Battery positive voltage

4

Mode selection damper control
motor (DEF)

When the damper is moved to
the FACE position.

0.5 V

When the damper is moved to
the DEF position.

10 V

5

Outside/inside air selection
damper control motor (outside)

When the damper is moved to
the inside air recirculation
position.

0.5 V

When the damper is moved to
the outside air induction
position.

0 V (when the motor is
stopped)

AUTO A/C DIAGNOSIS

TSB Revision

AUTOMATIC AIR CONDITIONING

55B-23

6

Outside/inside air selection
damper control motor (inside)

When the damper is moved to
the inside air recirculation
position.

0 V (when the motor is
stopped)

When the damper is moved to
the outside air induction
position.

0.5 V

8

Rear defogger relay

Ignition switch: ON

Battery positive voltage

9

Front blower relay

Ignition switch: ON

Battery positive voltage

10

A/C compressor relay

A/C compressor relay: ON

Battery positive voltage

11

Mode selection damper control
motor (FACE)

When the damper is moved to
the FACE position.

10 V

When the damper is moved to
the DEF position.

0.5 V

12

A/C pressure sensor

Ignition switch: ON

5 V

16

Potentiometer power supply

Ignition switch: ON

5 V

17

Power transistor (BASE)

When the blower speed
selection dial shows Maximum
air volume.

1 V

18

Power transistor
(COLLECTOR)

When the blower speed
selection dial shows Maximum
air volume.

12.1 V

19

Photo sensor

Ignition switch: ON

5 V

20

Sensors and potentiometers
ground

Always

0 V

21

Mode selection damper control
motor potentiometer input

When the damper is moved to
the FACE position.

4 V

22

Interior temperature sensor

Ignition switch: ON

5 V

23

Ambient temperature sensor
input

When sensor temperature is
25

°C (77°F) [4 kΩ]

1.9 V

24

Air thermo sensor input

When sensor temperature is
25

°C (77°F) [1.5 kΩ]

2.2 V

25

Photo sensor ground

Ignition switch: ON

0 V

26

A/C pressure sensor

at 2.6 MPa

3.9 V

27

Ground

Always

0 V

28

Power supply to the ignition
switch (IG2)

Ignition switch: ON

Battery positive voltage

29

Air mixing damper control motor
potentiometer input

When the damper door is
moved to the MAX. HOT
position.

1.4 V

30

Illumination ground

Always

0 V

31

ILL power supply

Lighting switch: ON

Battery positive voltage

34

A/C pressure sensor ground

Always

0 V

36

Power supply to the ignition
switch (ACC)

Ignition switch: ON

Battery positive voltage

TERMINAL
NO.

CHECK ITEM

CHECKING REQUIREMENTS NORMAL CONDITION

SPECIAL TOOLS

TSB Revision

AUTOMATIC AIR CONDITIONING

55B-24

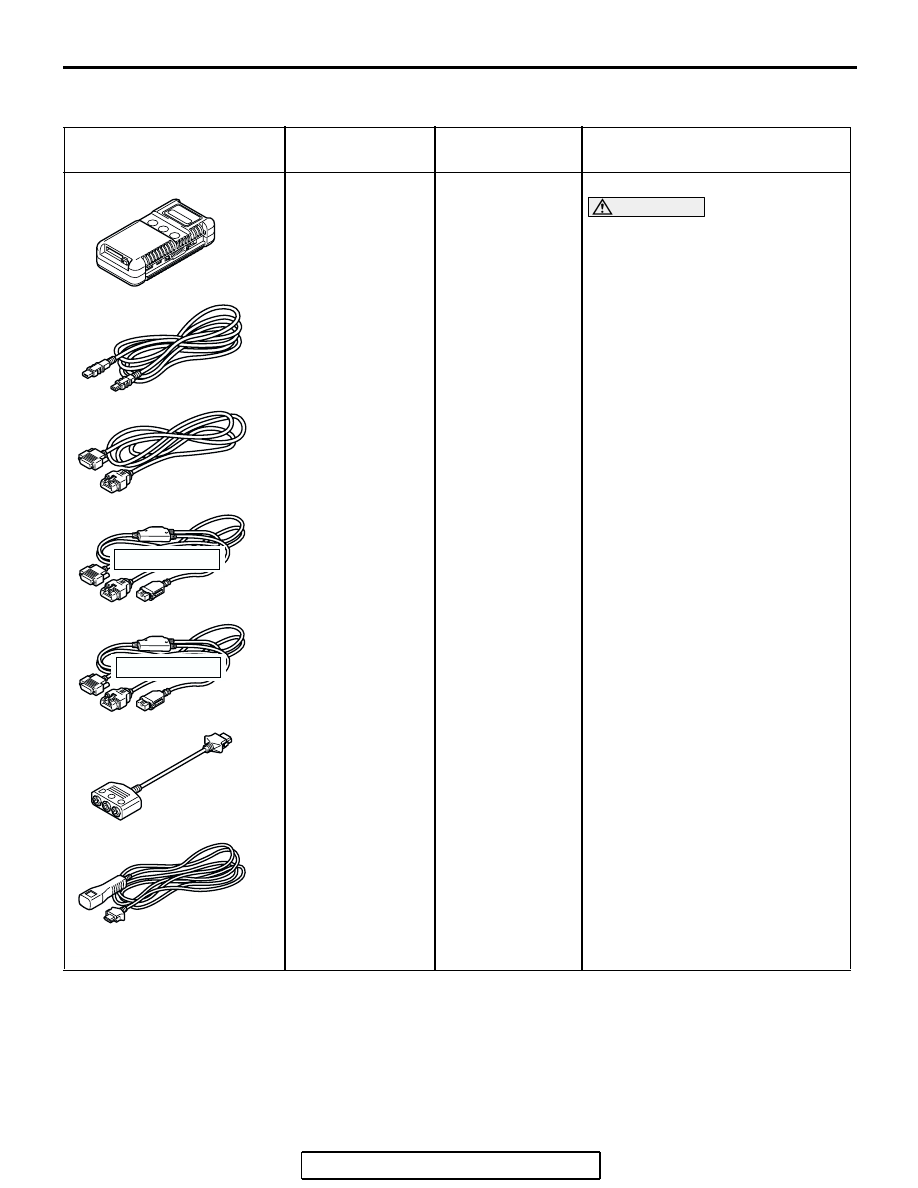

SPECIAL TOOLS

M1552000600345

TOOL

TOOL NUMBER
AND NAME

SUPER SESSION APPLICATION

MB991958

A: MB991824
B: MB991827
C: MB991910
D: MB991911
E: MB991914
F: MB991825
G: MB991826

MUT-III Sub
Assembly

A: Vehicle

communication
interface (V.C.I.)

B: MUT-III USB

cable

C: MUT-III main

harness A
(Vehicles with
CAN
communication
system)

D: MUT-III main

harness B
(Vehicles
without CAN
communication
system)

E: MUT-III main

harness C (for
Daimler
Chrysler models
only)

F: MUT-III

measurement
adapter

G: MUT-III Trigger

Harness

MB991824-KIT
NOTE: G:
MB991826 MUT-III
Trigger Harness is
not necessary
when pushing
V.C.I. ENTER key.

Checking diagnostic trouble codes

CAUTION

For vehicles with CAN
communication, use MUT-III
main harness A to send
simulated vehicle speed. If you
connect MUT-III main harness B
instead, the CAN communication
does not function correctly.

MB991910

MB991826

MB991958

MB991911

MB991914

MB991824

MB991827

MB991825

DO NOT USE

A

B

C

D

E

F

G

DO NOT USE

SENSORS

TSB Revision

AUTOMATIC AIR CONDITIONING

55B-25

SENSORS

REMOVAL AND INSTALLATION

M1554001900088

Required Special Tools:

•  MB991958: Scan Tool (MUT-III Sub Assembly)

• MB991824: Vehicle Communication Interface

(V.C.I.)

• MB991827: MUT-III USB Cable

• MB991910: MUT-III Main Harness A

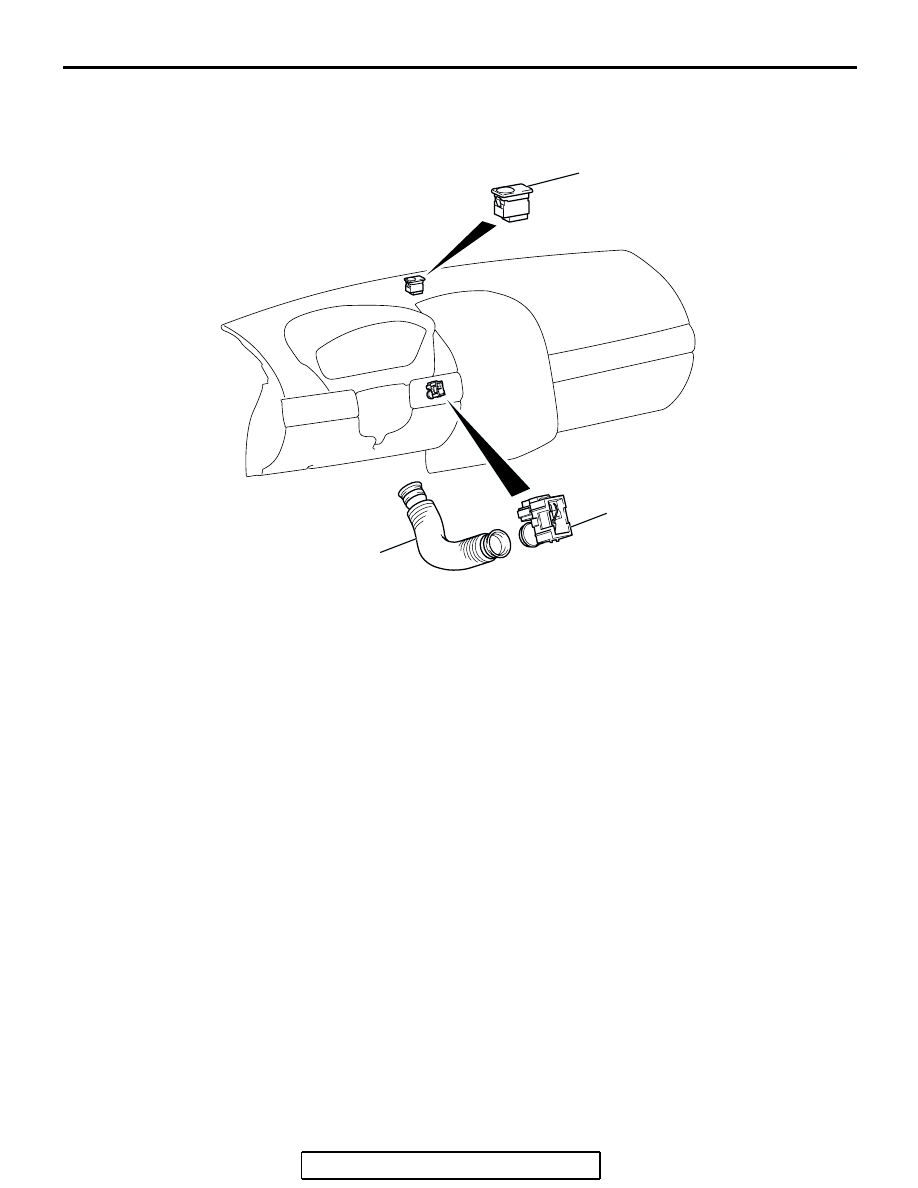

AC306634

3

1

2

AB

INTERIOR TEMPERATURE
SENSOR REMOVAL STEPS

LOWER PANEL (REFER TO
GROUP 52A, INSTRUMENT
PANEL

P.52A-3

).

1.

INTERIOR TEMPERATURE
SENSOR

2.

ASPIRATOR HOSE

PHOTO SENSOR REMOVAL
STEPS

3.

PHOTO SENSOR
